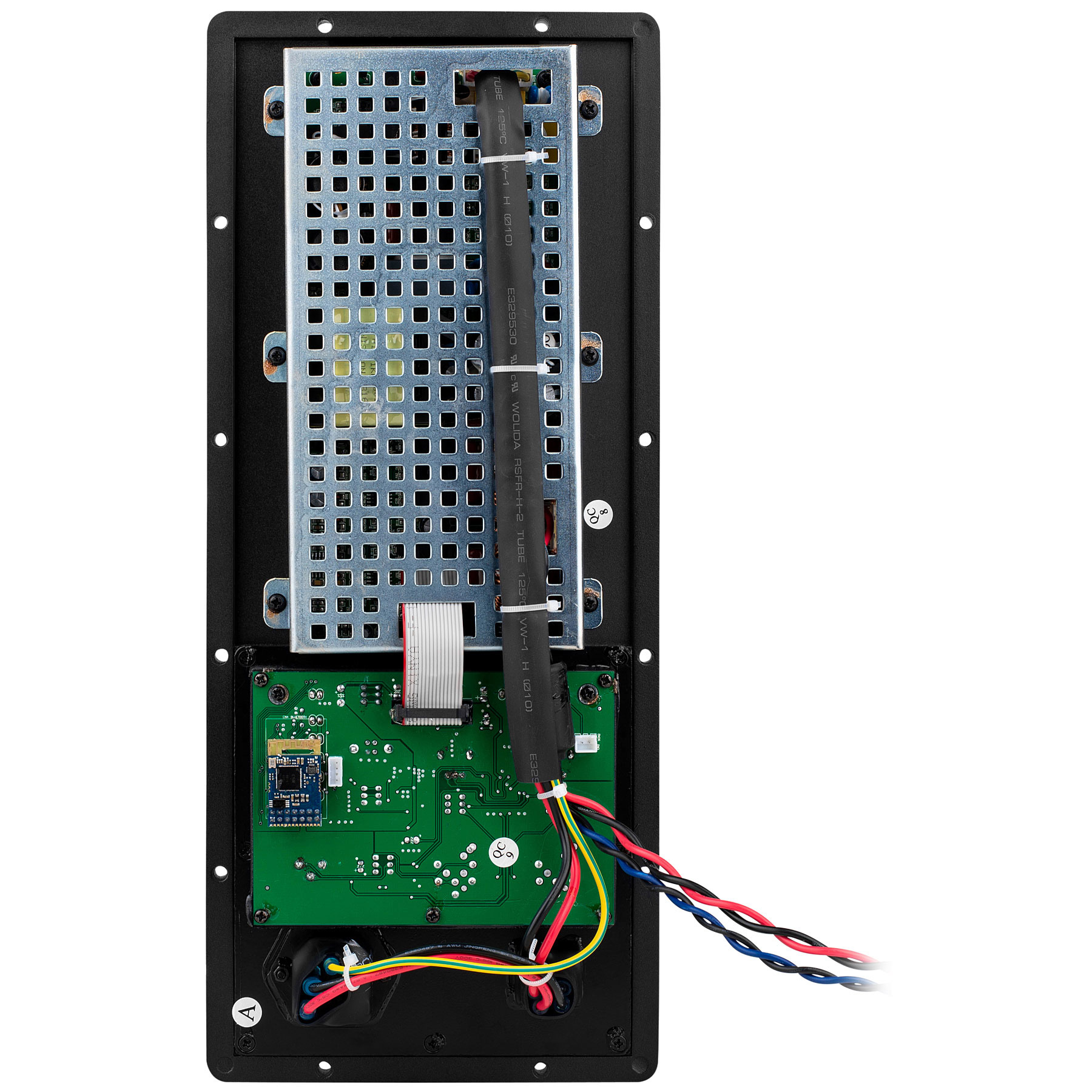

      Dayton Audio PPA800DSP Plaatversterker

      € 363,60€ 439,95 Niet op voorraad: neem contact met ons op voor de actuele levertijd

      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €417,95 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      With customizable DSP and 800 watts of clean power (600W for low frequencies; 200W for highs), Dayton Audio's PPA800DSP is perfect for building your own powered PA speakers or even retrofitting existing passive speakers. With the ability to set crossover frequency, parametric EQ, and delay for each channel the possibilities are endless. In addition, the 4 additional programmable EQ presets and Bluetooth input gives this amplifier all of the features you would expect from todays powered PA speakers.



      Highlights

      • High power 2-way plate amp with DSP for creating active speaker systems
      • Customizable crossover frequencies, parametric EQ's, limiter, and delay
      • Simple user interface allows easy DSP adjustment (Windows compatible)
      • 5 programmable EQ presets per output for various applications
      • Bluetooth input (summed to mono) for use with phones, tablets, or laptops
      • 2-channel mixer built right in, plus line out for subs or additional speakers



      Product details

      Dayton Audio PPA800DSP 2-Way Plate Amplifier 800W 2-Channel with DSP and Bluetooth

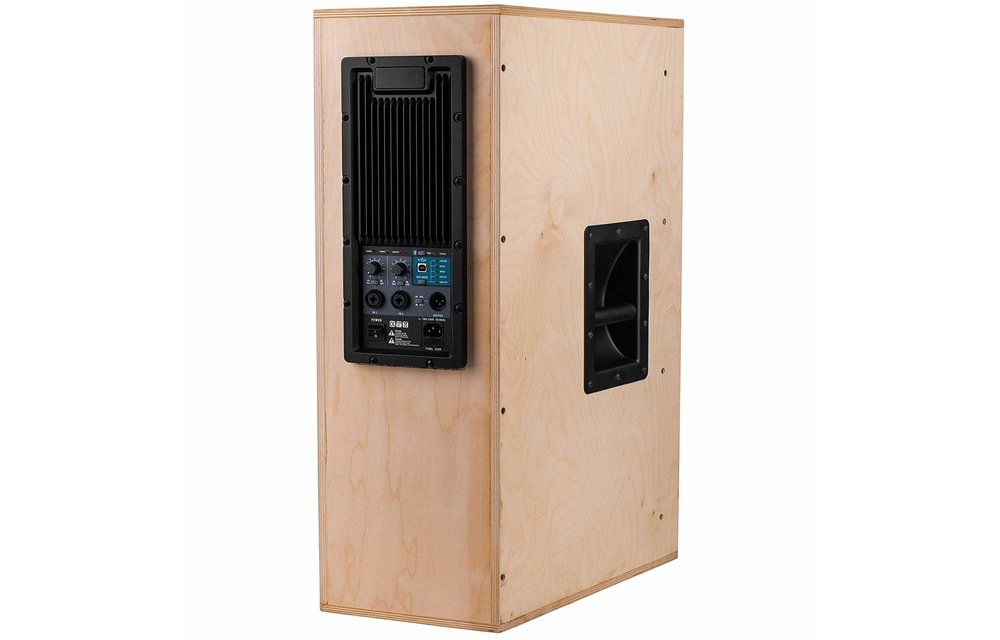

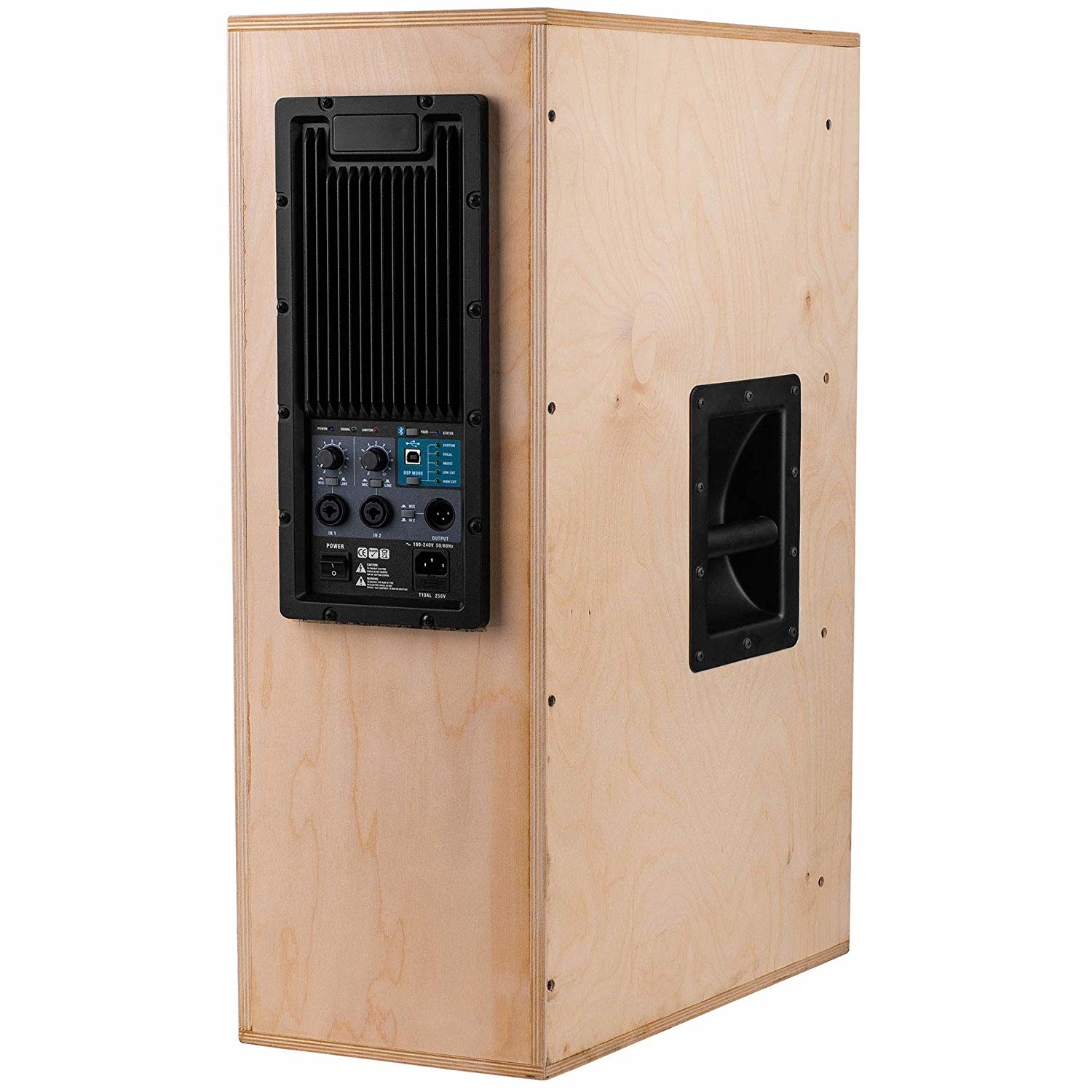

      Dayton Audio's PPA800DSP plate amplifier produces 800 watts of power split between 2-channels (600W for low frequencies; 200W for highs) with simple adjustable DSP making it an excellent amplifier for building custom, high-output, active 2-way speaker designs. Thanks to the compact size, this amplifier is also a great choice for retrofitting existing passive designs. Perfect for DJs, karaoke, live sound reinforcement, performers and presenters alike, the PPA800DSP provides not only plenty of good, clean power, but an abundance of additional features to make sure your show goes off without a hitch, and with a minimum of effort or additional hardware to lug around.



      User Customizable DSP puts you in control

      The true highlight of the PPA800DSP is the built in customizable DSP. Using the simple Windows interface you are able to set specific levels, high and low pass filters, parametric EQ's, limiter, and delays for each output. This gives you the ability to customize the response of this amplifier to almost any 2-way design and even set presets for specific situations.



      Built in 2-channel Mixer with Bluetooth

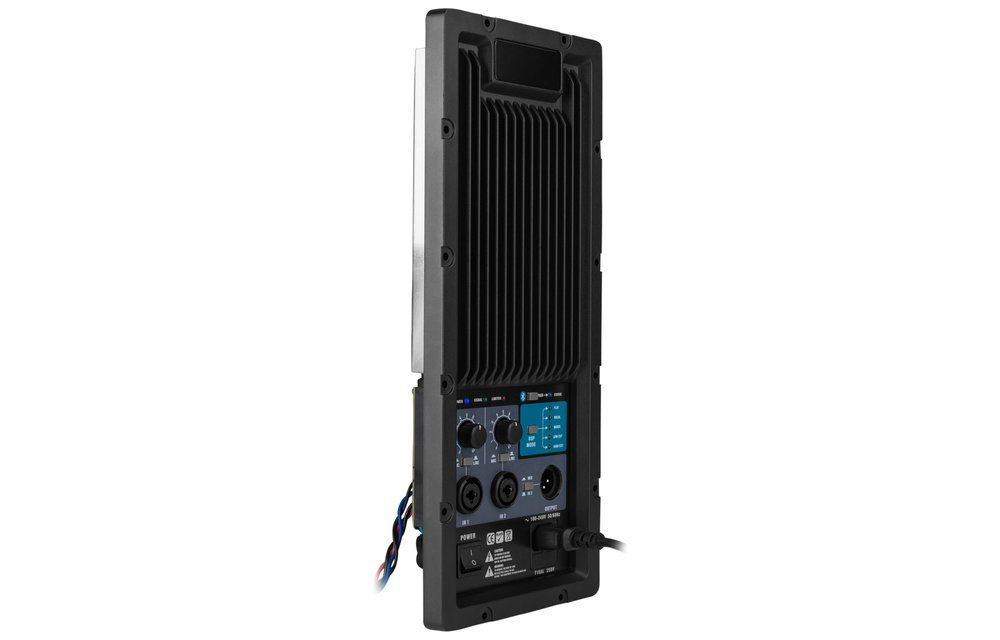

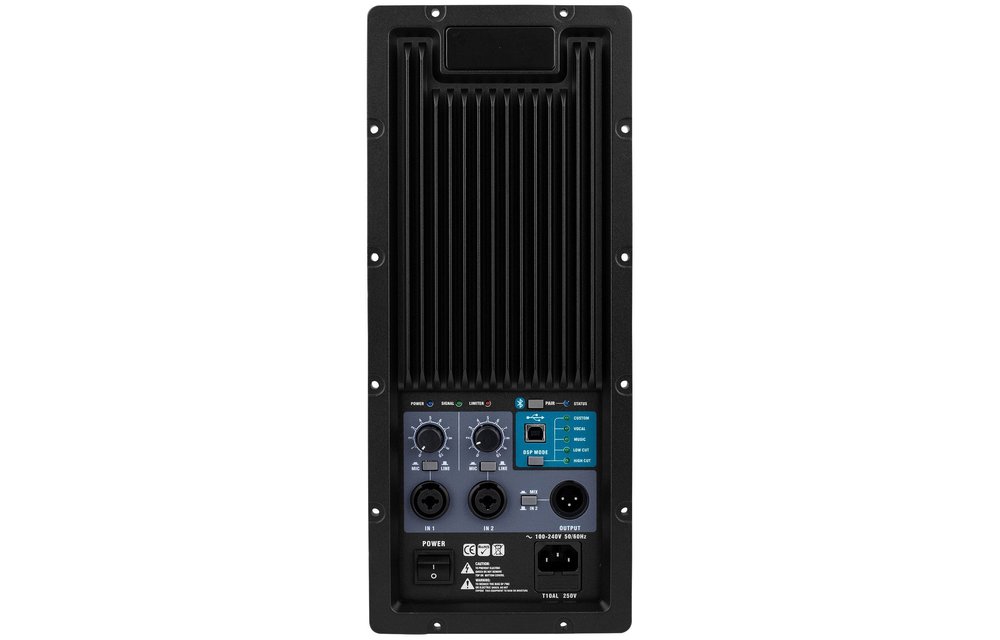

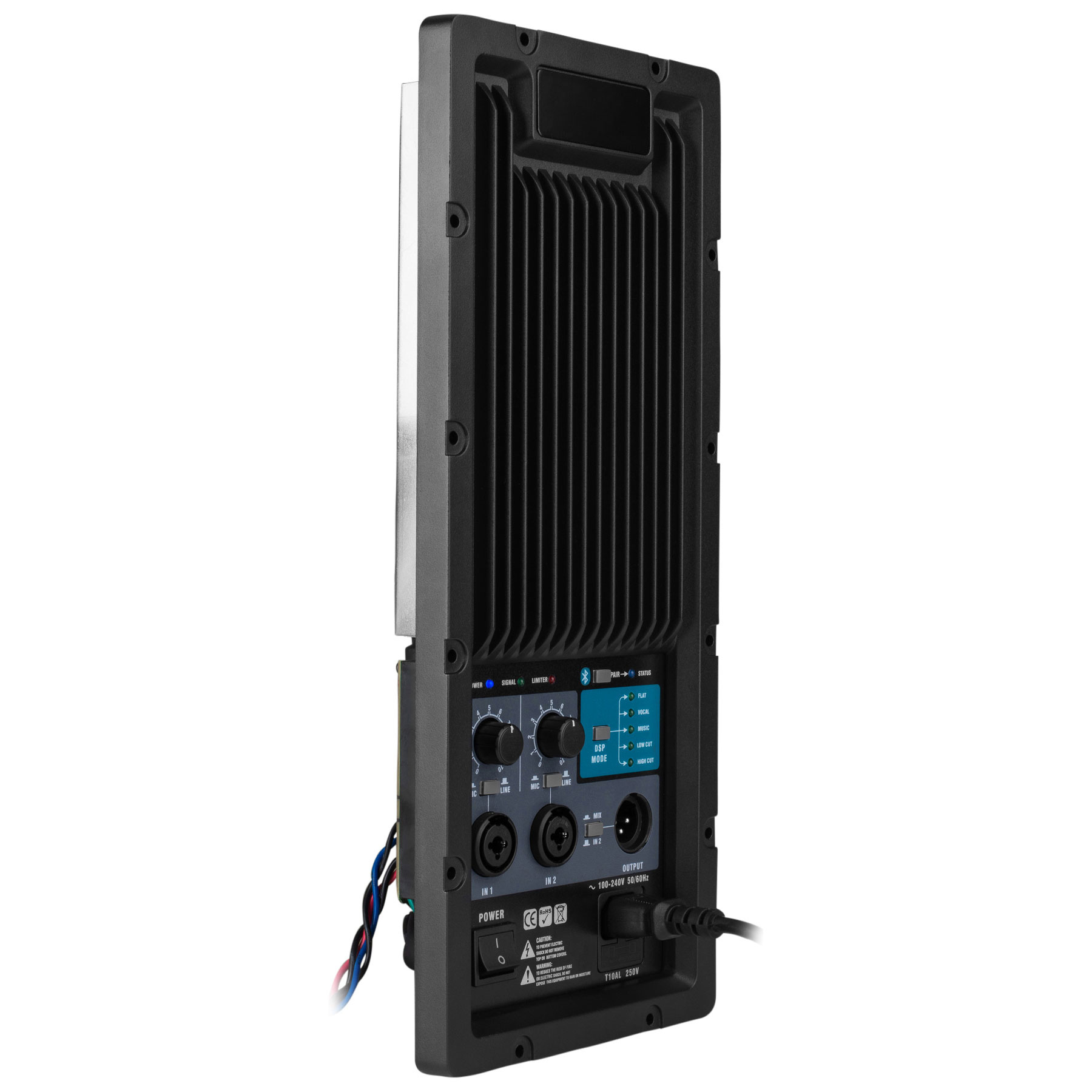

      You'll also enjoy the luxury of having a 2-channel mixer on board, which means one less piece of rig to schlep for many situations. Each channel can accommodate XLR or 1/4" input, line or mic level signal. In addition to this creature comfort, you also get a Bluetooth receiver, so you can play backing tracks, break music, or whatever you need - without wires, adapters, and all the associated hassle - right from your smart phone, tablet, or other Bluetooth-enabled device. The mixer section also includes an XLR line output so you can feed your signal to another powered speaker or subwoofer. You can choose to send your mix or only the signal from channel 2, on down the line. The mixer section is also home for all the LED indicators: power, signal, limiting, and Bluetooth status - everything you need to know, all at a glance.



      Dayton Audio PPA800DSP Windows Software



      Specifications: • Amplifier type: Class D • Low frequency power rating (Red/Black wires): 600W RMS (4 ohms/1 kHz @ THD+N 1%) • High frequency power rating (Blue/Black wires): 200W RMS (4 ohms/8 kHz @ THD+N 0.1%) • Input sensitivity: LINE, 0 dBu; MIC, -24 dBu • Bluetooth version: 4.2 • Power: 120~240 VAC, 50/60 Hz, auto-sensing • Dimensions: 15" L x 6-5/16" W x 2-3/4" D • Cutout dimensions: 14" x 5-1/2" • Weight: 5.0 lbs.







      Specificaties

      Artikelnummer
      PPA800DSP
      Nominaal vermogen
      1 x 600 watts at 4 ohms + 1 x 200 watts at 4 ohms
      Vermogen gebrugd
      -
      Minimale belasting
      4 ohms
      Signaal-ruisverhouding (SNR)
      -
      Vervorming
      1% THD (at rated power)
      Versterkerklasse
      Class D
      Versterkertopologie
      -
      Efficiëntie
      -
      Frequentierespons
      20 - 20,000 Hz
      Ingangsimpedantie
      -
      Ingangsgevoeligheid
      775 mV
      Inschakelgevoeligheid
      -
      DSP
      DAC
      -
      Maximale sample rate
      -
      Uitgangskanalen
      2
      Analoog in / uit
      2/1
      S/PDIF in / uit
      -/-
      AES/EBU in / uit
      -/-
      Coaxial in / uit
      -/-
      RCA in / uit
      -/-
      XLR in / uit
      - /1
      Jack in / uit
      2/ -
      USB-Verbinding
      configure port only
      Netwerkverbinding
      -
      Bluetooth
      Subwoofer pre-out
      -
      Auto aan / uit
      -
      App-bediening
      -
      EQ-correctie
      EQ-profielen
      Fasesturing
      (0° or 180°)
      Instelbare kantelfrequentie
      Presets
      -
      Besturingssoftware
      Dayton Audio PPA800DSP Software
      Windows/Mac compatible
      / -
      Voedingsvereisten
      120-240 VAC
      Voedingsaansluiting
      IEC C14
      Standby stroomverbruik
      -
      Stroomlimiet
      -
      Onder-/overspanningsbeveiliging
      -
      Afmetingen (H x B x D)
      381 x 160 x 70 mm
      Uitsparingsafmetingen
      356 x 140 mm

      Toon meer

      Reviews

      4 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      Prima versterker met heel veel mogelijkheden
      Door Reinder W. on 14 Februari 2020
      5 van 5

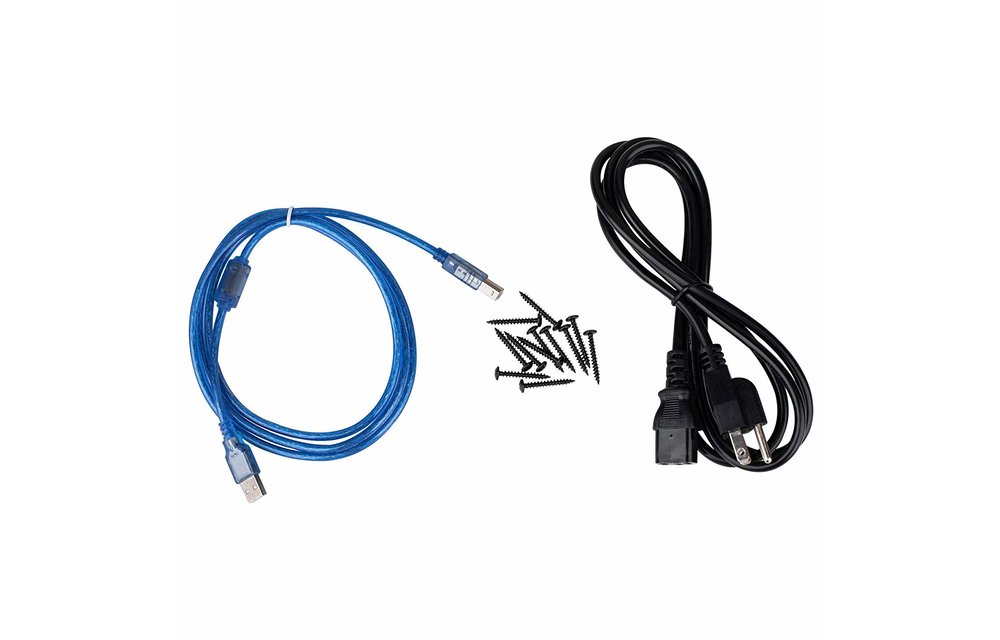

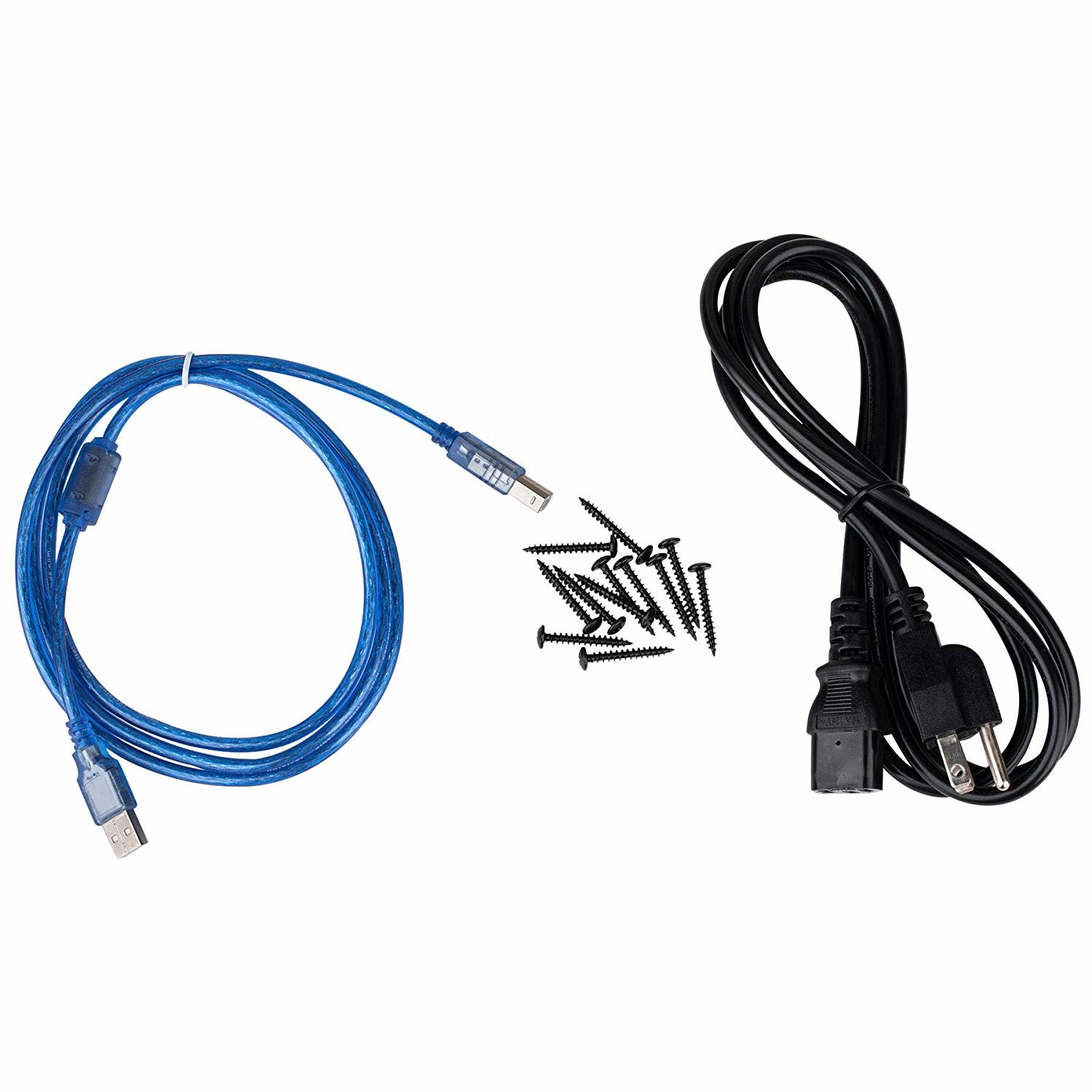

      Does everything it promises. Very good sound, very versatile and complete delivery including USB cable. Windows app works great, simple and easy to use. Seems well built, but only time will tell whether it is really robust and reliable.
      Door Reinder on 1 Augustus 2019
