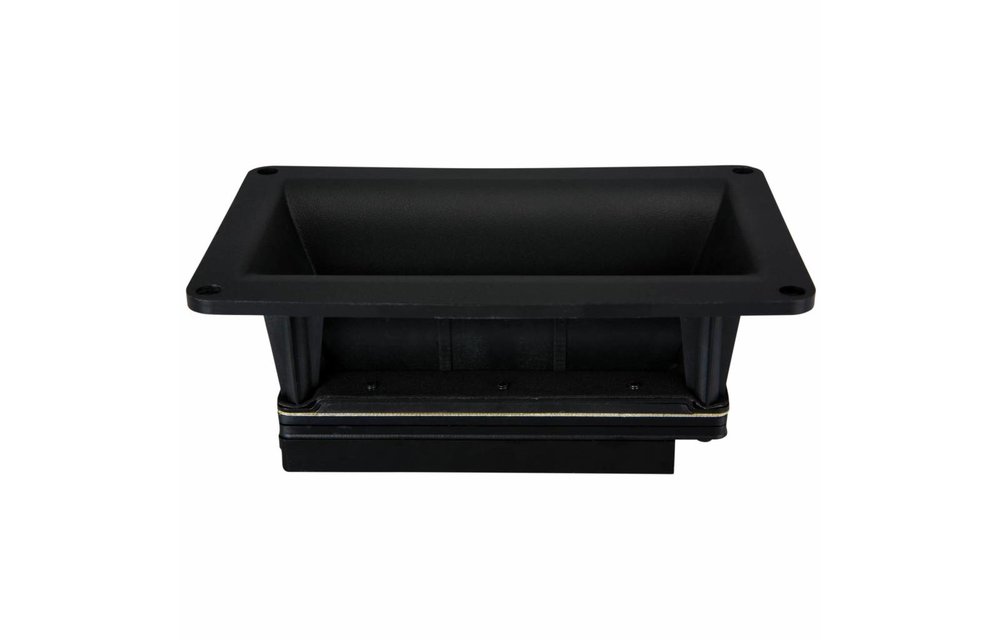

      Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm

      € 90,87€ 109,95 2 Op voorraad
      • -5% Bestelling 4 voor slechts € 104,45 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!


      Dayton Audio's PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high frequency complement to powerful pro audio drivers or other high-sensitivity speakers. 6 ohm impedance.



      • Low-compression planar horn design
      • Detailed, non-fatiguing sound reproduction
      • Rugged, reinforced injection-molded horn flare
      • Controlled, 60 degree horizontal dispersion
      • High 80-watt RMS power handling


      Product details

      Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm


      Planar tweeters offer a seductively smooth and richly detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn loaded design that achieves the high sensitivity of many horn loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio.

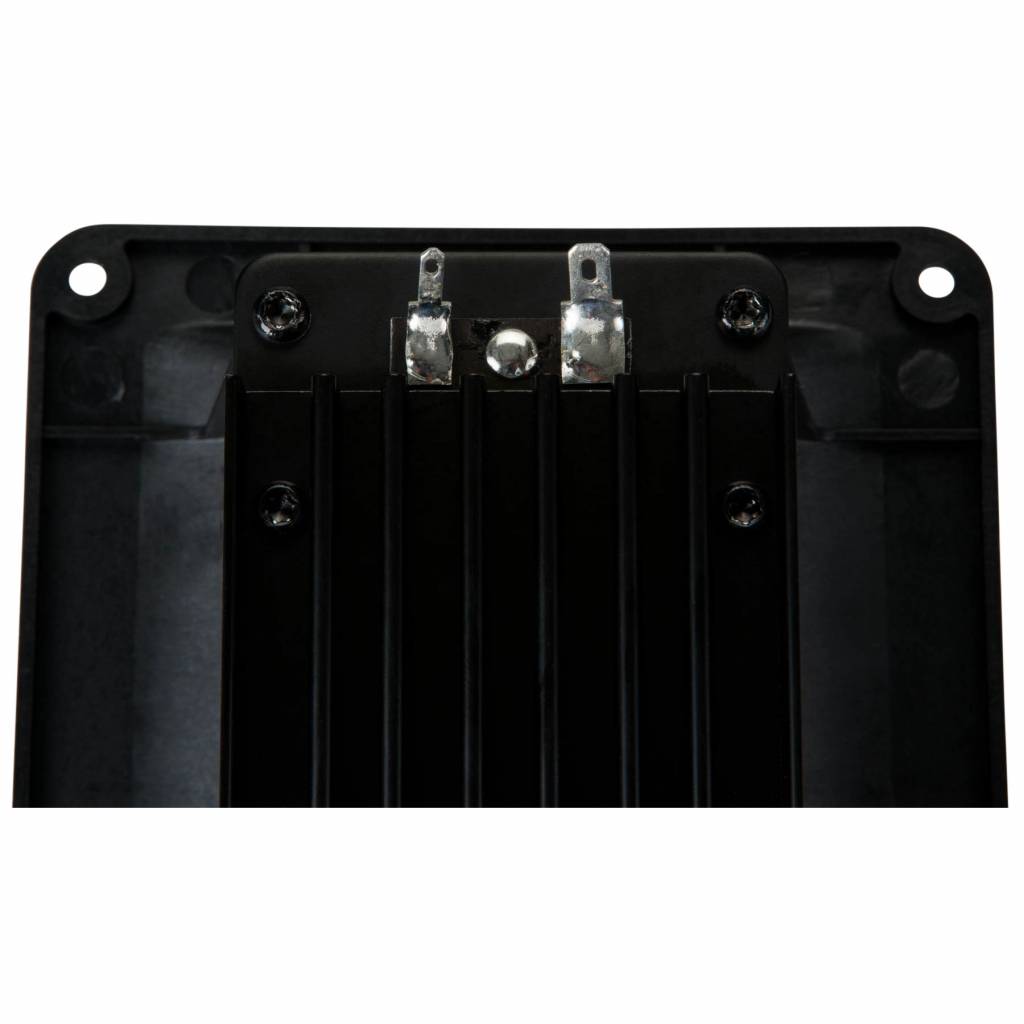

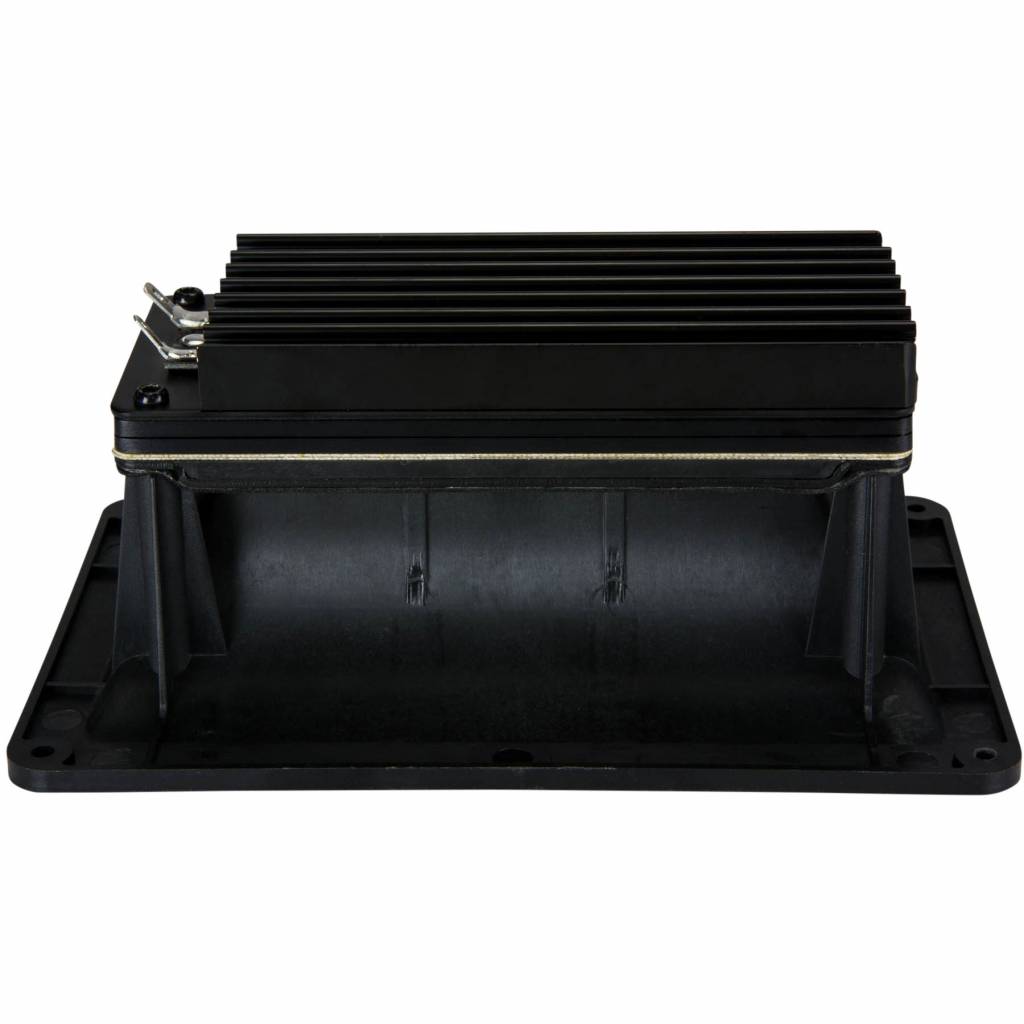

      Cooling is often a problem in planar drivers, but the PHT1-6 features a large, rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2nd order 2,500 Hz (minimum) crossover. The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high efficiency midbass driver.

      Toon meer


      Tweeter type
      Planar Horn
      Tweeter serie
      Planar Series
      Belastbaarheid (RMS)
      80 Watts
      Impedantie (Z)
      6 Ω
      105 dB @ 2.83V/1m
      2,500 - 18,000 Hz
      Gelijstroomweerstand (Re)
      5.77 ohms
      Voice Coil Inductance (Le)
      0.17 mH
      Totale buitendiameter
      126 mm x 196 mm
      85 mm x 181 mm
      75 mm

      Toon meer


      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5
      well if you want experience hi-end sound,this tweeter might be good choice to 15inch midrande sensitive driver.I am using this tweeter with faital pro 15 4ohms midrange bass drivers. Guitar strings,vocals ,trumpets,cymbals and many other instruments sounds real,like they are in the room.No blankets on intruments like in main stream speakers till 10000euros.You might be shocked by the sound in good way.Improves highs,midrange very much
      Door Albina M. on 12 Maart 2019
