    Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver 4 Ohm

    € 9,95 Niet op voorraad: binnen 1 week leverbaar
    Dayton Audio's PC68-4 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an ex... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €9,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio's PC68-4 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated mid-range in 3-way designs this driver will prove to be an excellent value.



    Highlights

    • Smooth response with true full-range reproduction for simple speaker designs
    • Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
    • Rubber surround improves cone linearity and transients
    • High energy ferrite magnet increases BL for higher efficiency and more output



    Product details

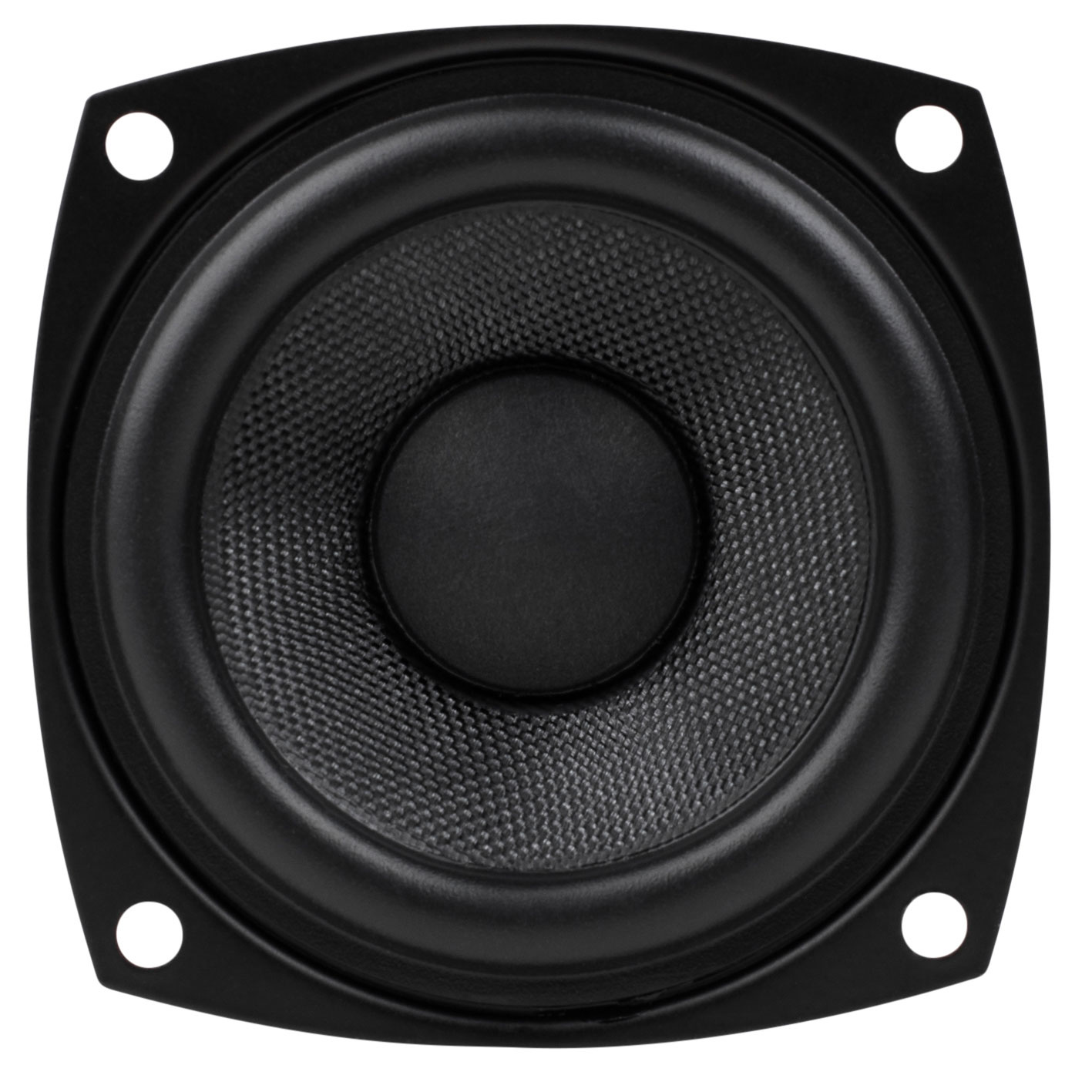

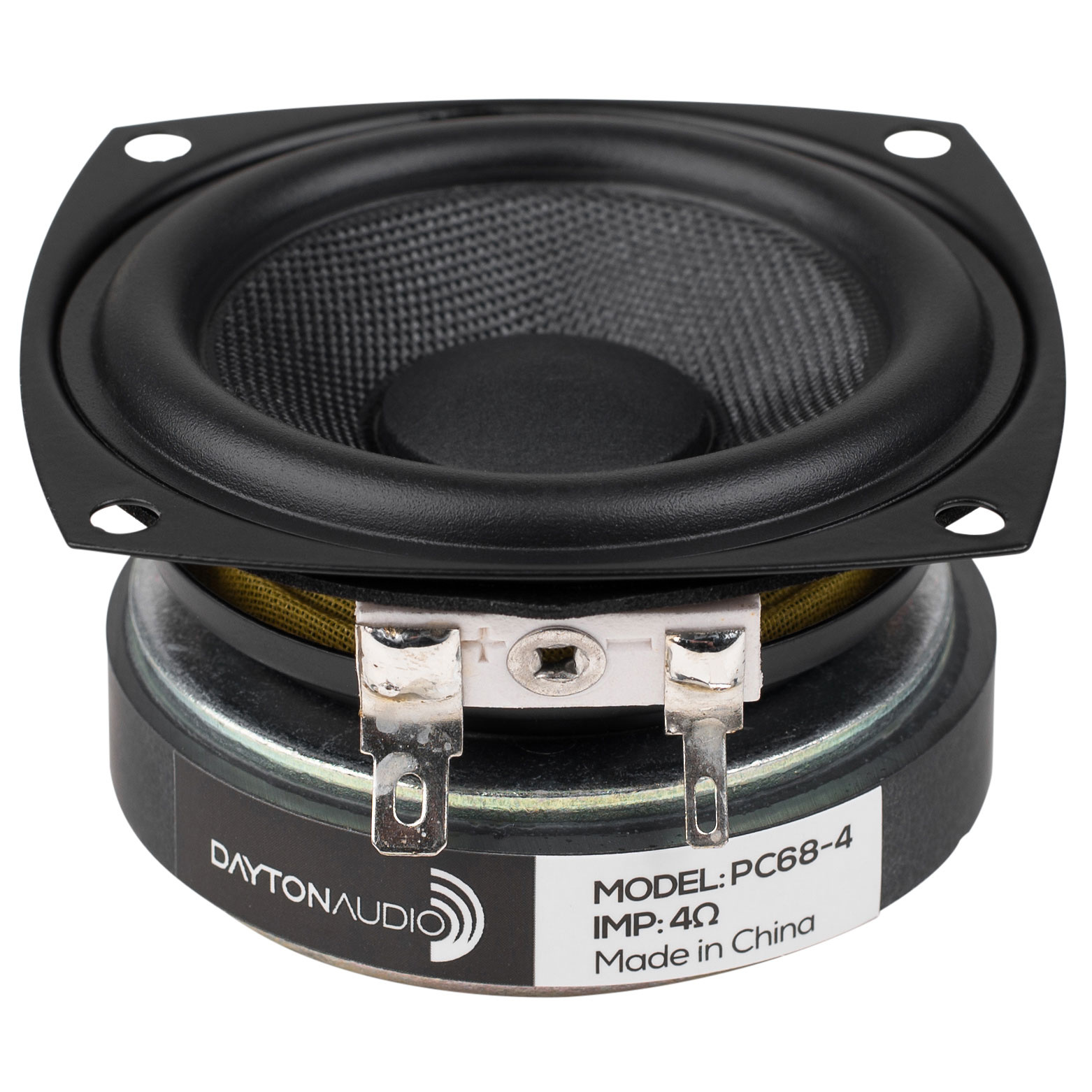

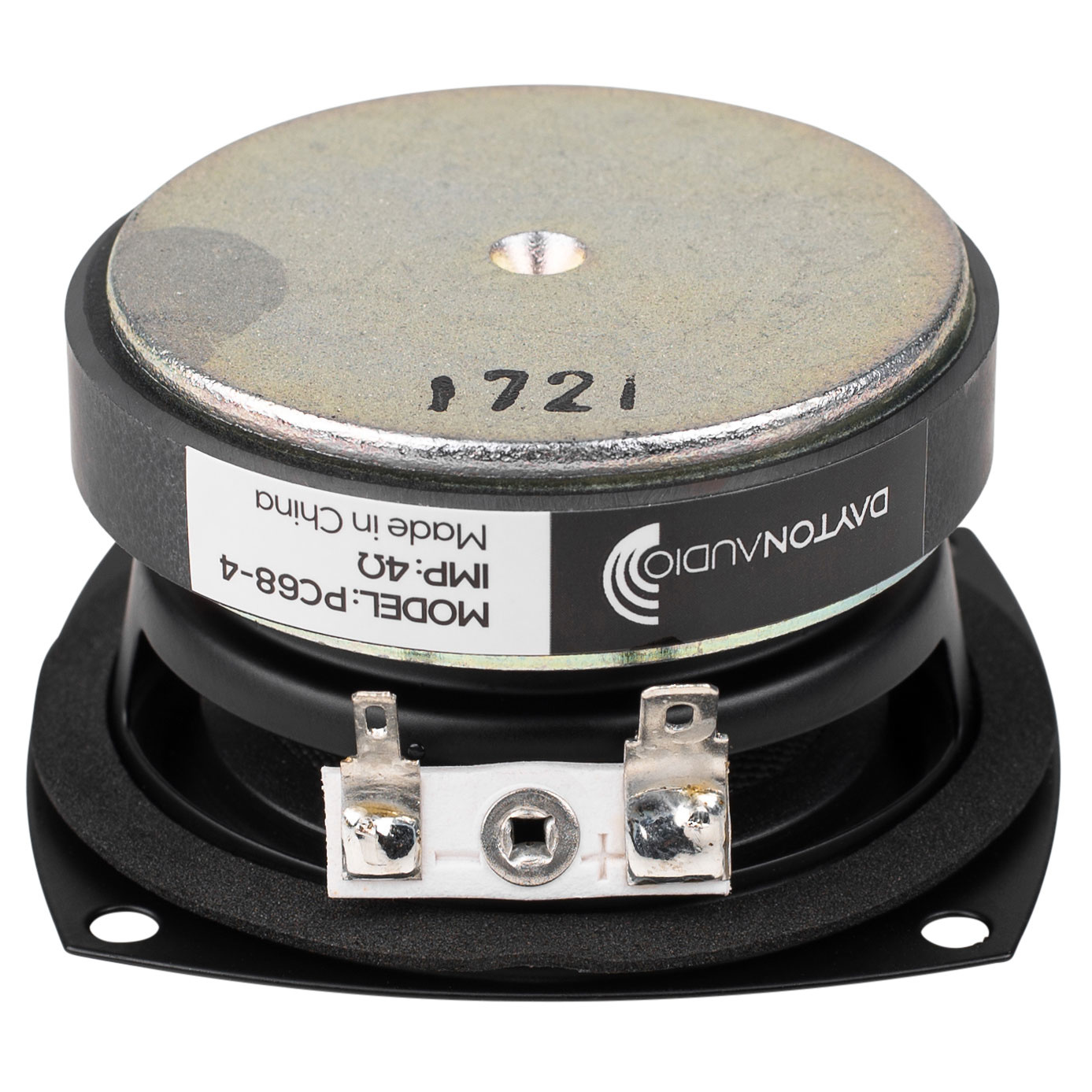

    Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver

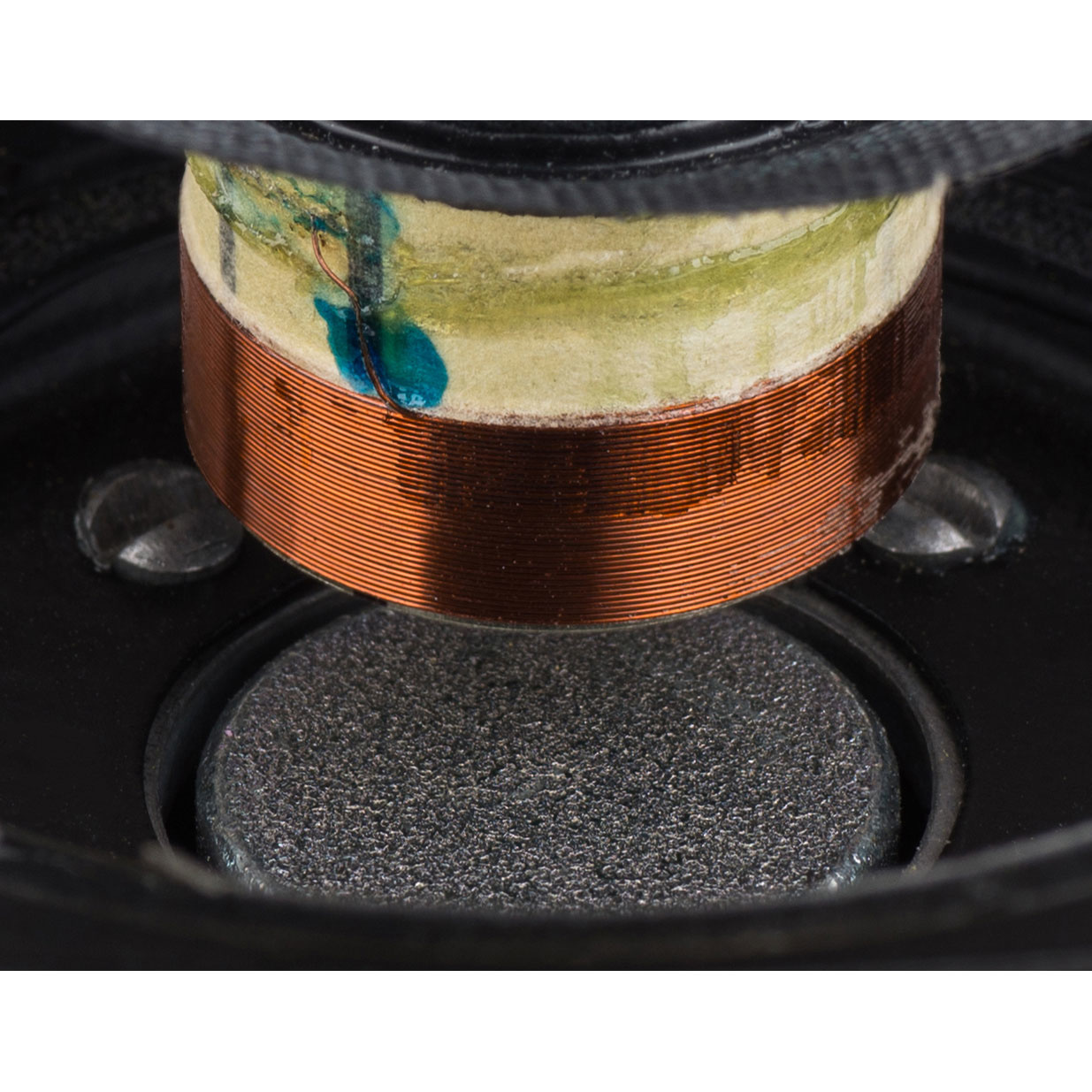

    The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications for an amazing value.

    Specificaties

    Artikelnummer
    PC68-4
    Woofer Series
    PC series
    Woofer Type
    Full-Range
    Nominal Diameter
    2.5"
    Power Handling (RMS)
    20 watts
    Power Handling (max)
    40 watts
    Continuous Program Power
    -
    Impedance
    4 ohms
    Sensitivity
    86.1 dB @ 2.83V/1m
    Frequency Response
    120 - 17,000 Hz
    Voice Coil Diameter
    19 mm
    Magnet Weight
    -
    DC Resistance (Re)
    3.8 ohms
    Voice Coil Inductance (Le)
    0.29 mH
    Resonant Frequency (Fs)
    117.1 Hz
    Mechanical Q (Qms)
    2.49
    Electromagnetic Q (Qes)
    0.87
    Total Q (Qts)
    0.65
    Diaphragm Mass Inc. Airload (Mms)
    1.7g
    Moving Mass Of Diaphragm (Mmd)
    -
    Mechanical Compliance of Suspension (Cms)
    1.07 mm/N
    Surface Area of Cone (Sd)
    21.2 cm²
    Volume of Displacement (Vd)
    4.2 cm³
    BL Product (BL)
    2.4 Tm
    Compliance Equivalent Volume (Vas)
    0.7 liters
    Maximum Linear Excursion (Xmax)
    2 mm
    Driver's Mechanical Losses (Rms)
    -
    Cone / Diaphragm Material
    Poly Composite
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper-clad aluminum
    Voice Coil Former
    Aluminum
    Dual Voice Coil
    -
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Shielded
    -
    Overall Outside Diameter
    68 mm
    Overall Depth
    37 mm
    Baffle Cutout Diameter
    64 mm
    Bolt Circle Diameter
    73 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4.2 mm
    Sealed Volume
    1.13 liters
    Sealed F3
    150 Hz
    Vented Volume
    1.7 liters
    Vented F3
    75 Hz

    Reviews

    5 from 5Based on 5 reviews
    Schrijf een review
    5 van 5
    Voldoed aan wat ik nodig had.
    Zeer snelle levering
    Door Rene B. on 3 December 2020
    5 van 5
    used 2 of these as full range speakers in a 3.5l vented encosure and they sound realy good for how small they are.
    Door tamas on 30 Oktober 2020
