- Artikelnummer

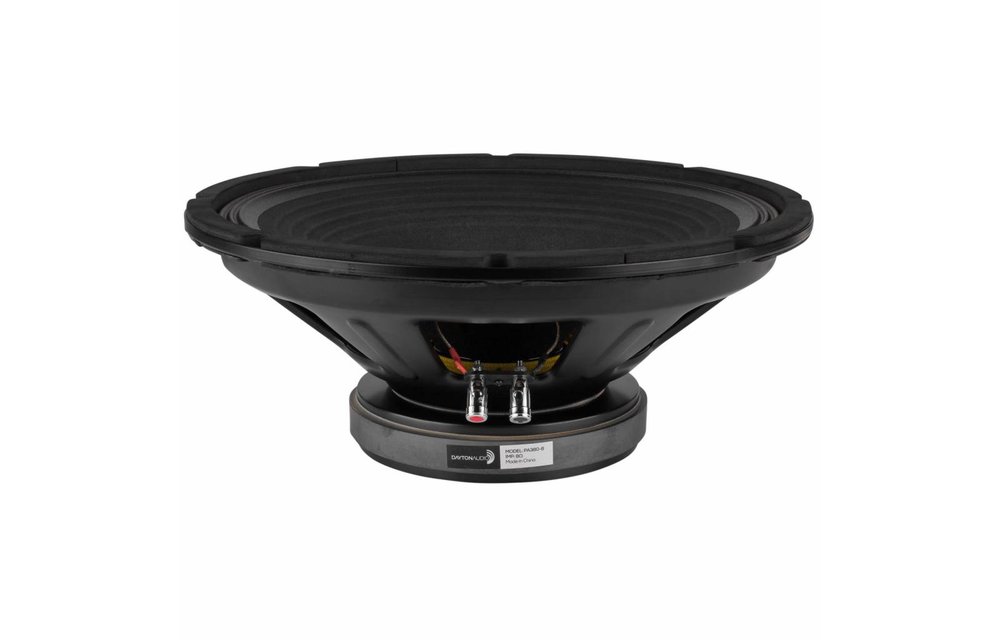

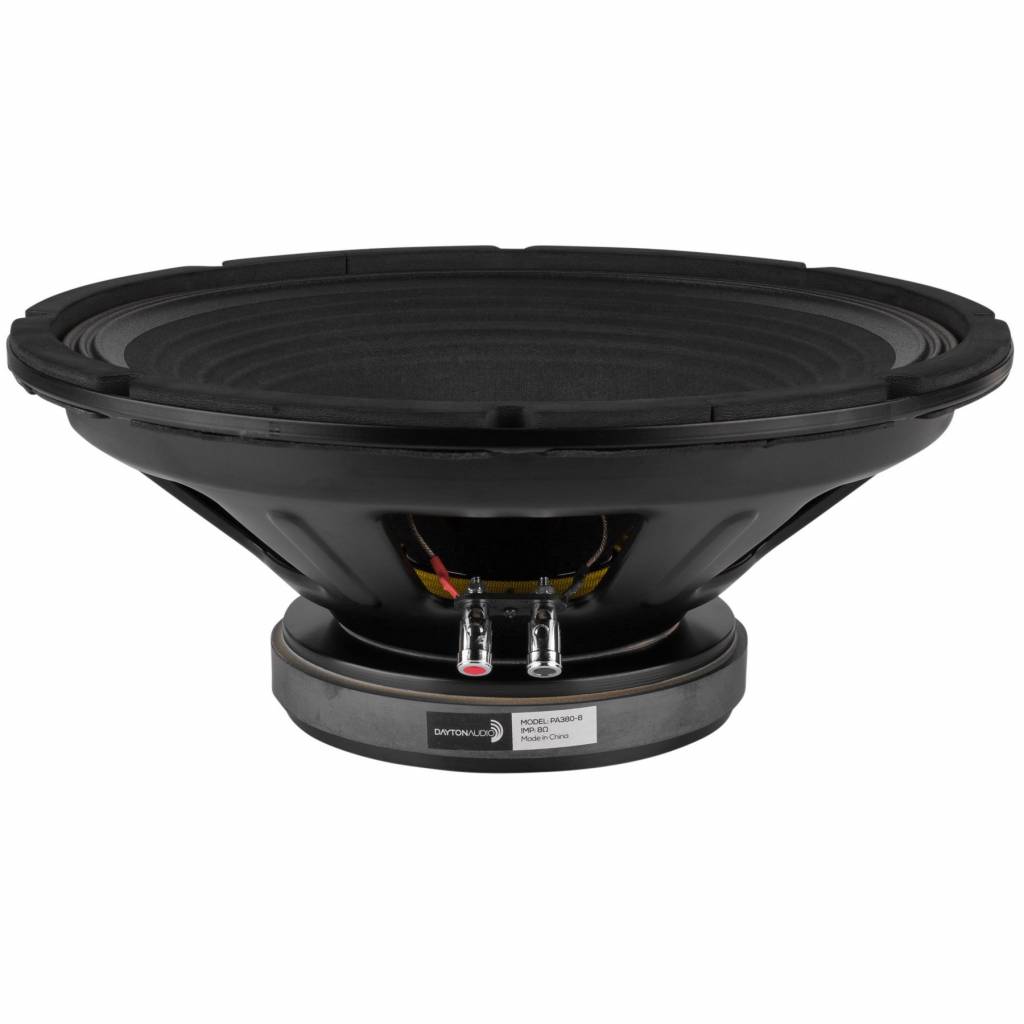

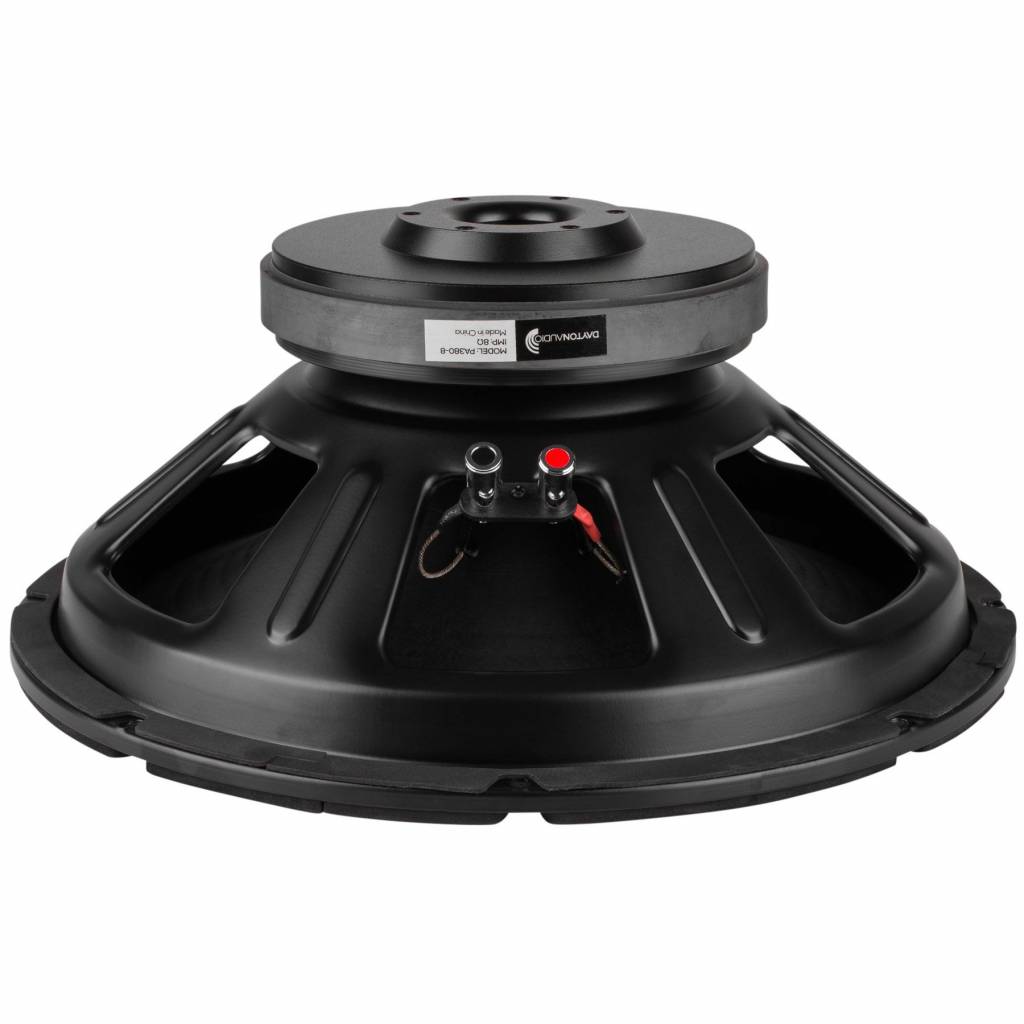

- PA380-8
- Woofer Series
- Pro Audio Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 15"
- Power Handling (RMS)
- 500 watts
- Power Handling (max)
- 1000 watts
- Impedance
- 8 ohms
- Sensitivity
- 96.1 dB @ 2.83V/1m
- Frequency Response
- 28 - 3,500 Hz
- Voice Coil Diameter
- 76 mm
- Magnet Weight
- 80 oz.
- DC Resistance (Re)
- 6.3 ohms
- Voice Coil Inductance (Le)
- 4.12 mH @ 1 kHz
- Resonant Frequency (Fs)
- 31.6 Hz
- Mechanical Q (Qms)
- 12.20
- Electromagnetic Q (Qes)
- 0.27
- Total Q (Qts)
- 0.27
- Diaphragm Mass Inc. Airload (Mms)
- 147g
- Mechanical Compliance of Suspension (Cms)
- 0.17 mm/N
- Surface Area of Cone (Sd)
- 845.0 cm²
- Volume of Displacement (Vd)
- 422.5 cm³
- BL Product (BL)
- 25.8 Tm
- Compliance Equivalent Volume (Vas)
- 175 liters
- Maximum Linear Excursion (Xmax)
- 5.0 mm
- Cone / Diaphragm Material
- Paper / Carbon Fiber Cone
- Surround Material
- Cloth
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Kapton® / Polyimide
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 380 mm
- Overall Depth
- 163 mm
- Baffle Cutout Diameter
- 355 mm
- # Mounting Holes
- 8
- Sealed Volume
- 0.7 ft.³
- Sealed F3
- 101 Hz
- Vented Volume
- 1.55 ft.³
- Vented F3
- 65 Hz
