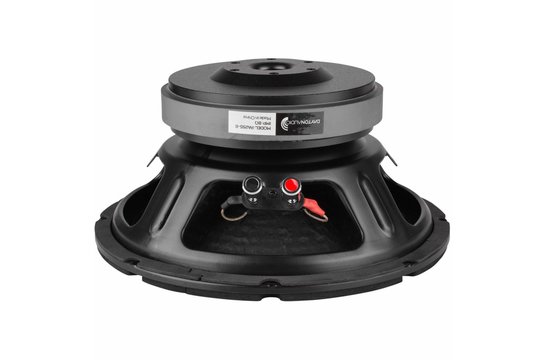

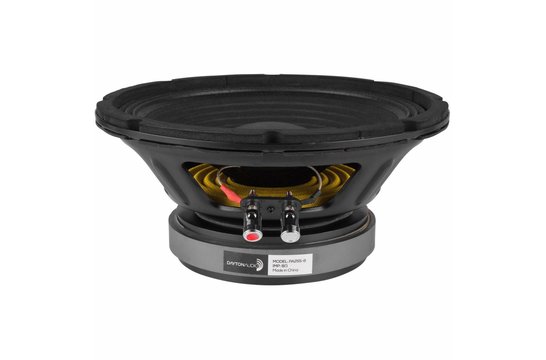

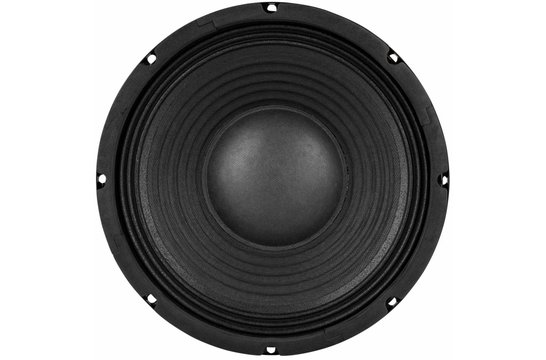

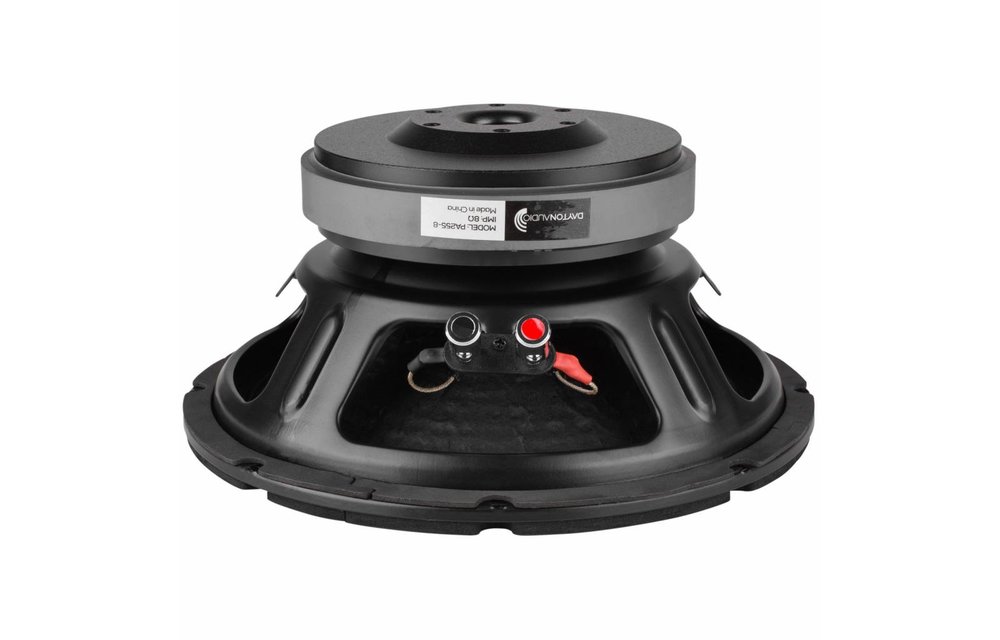

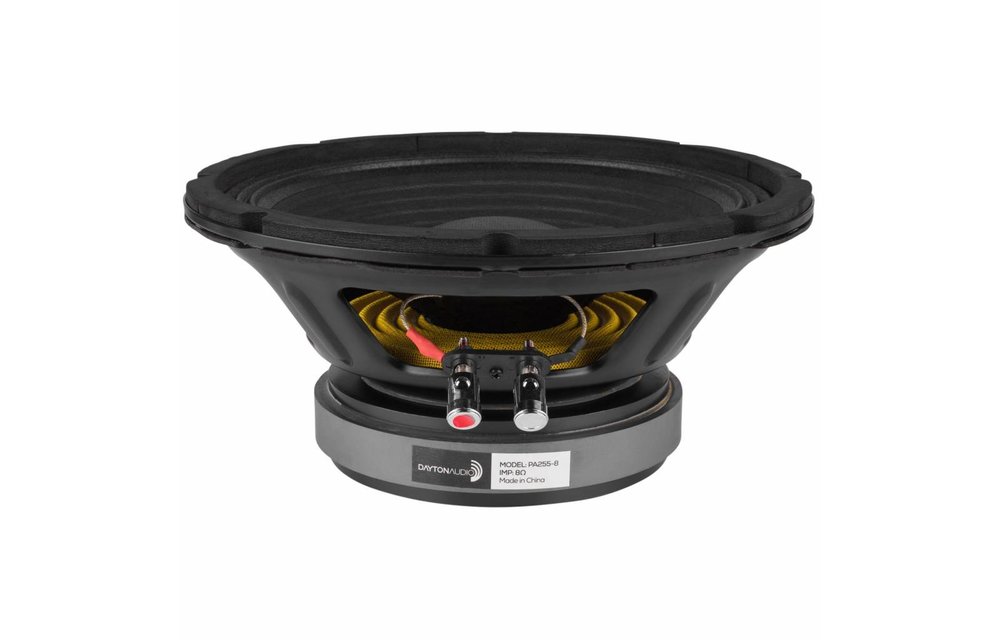

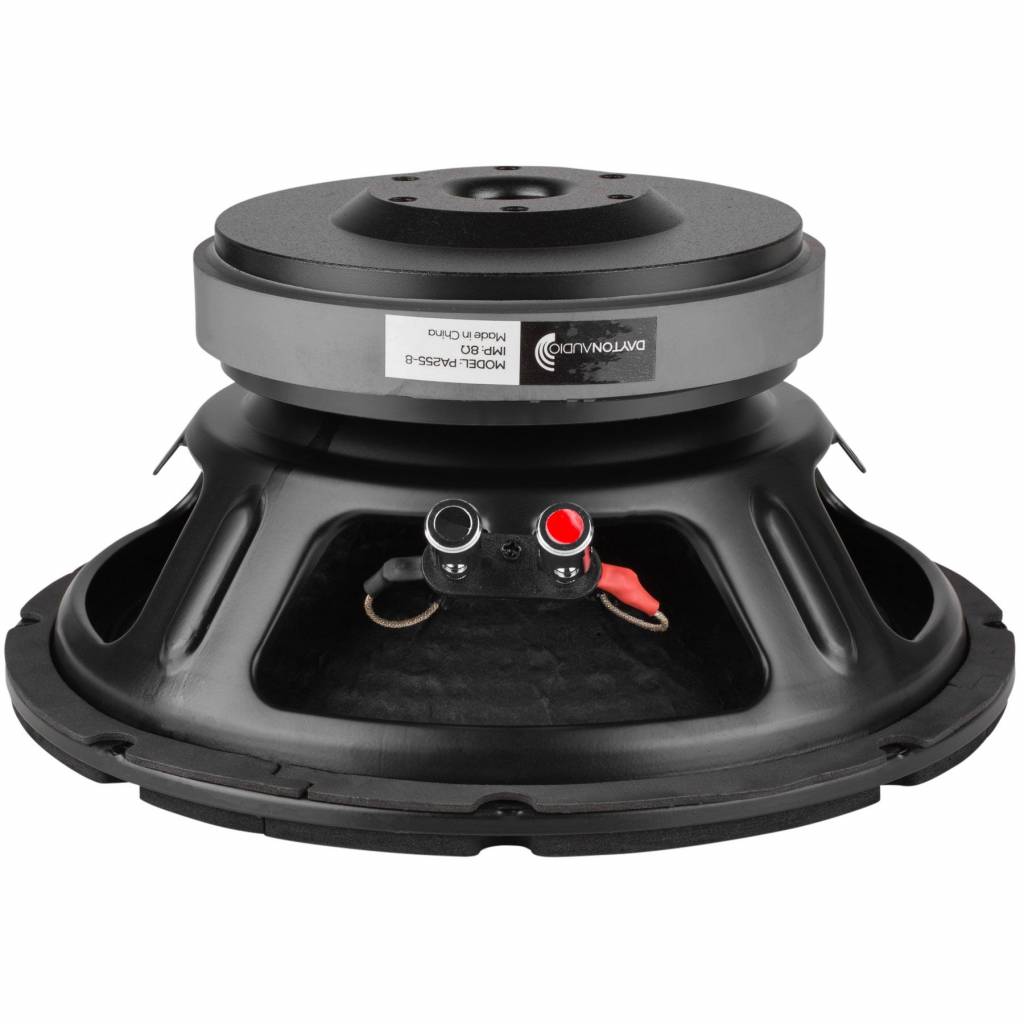

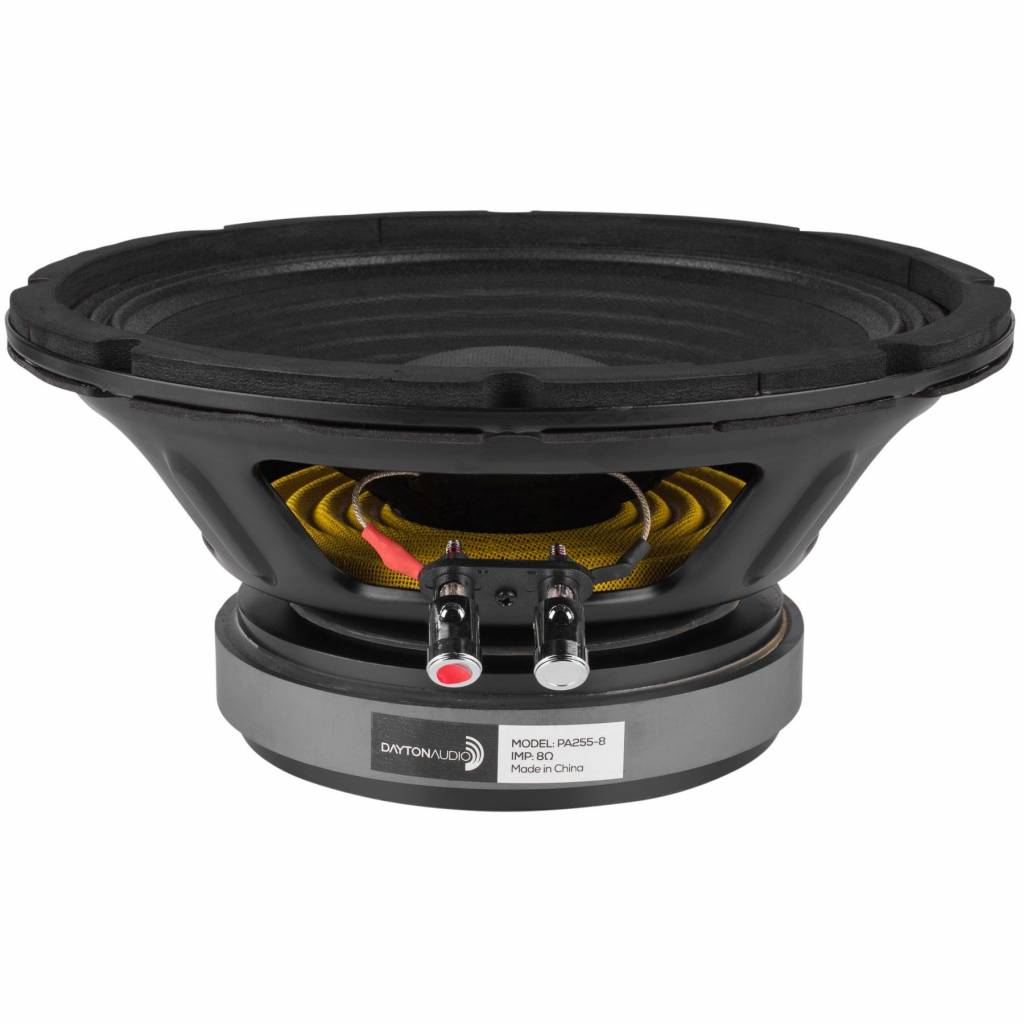

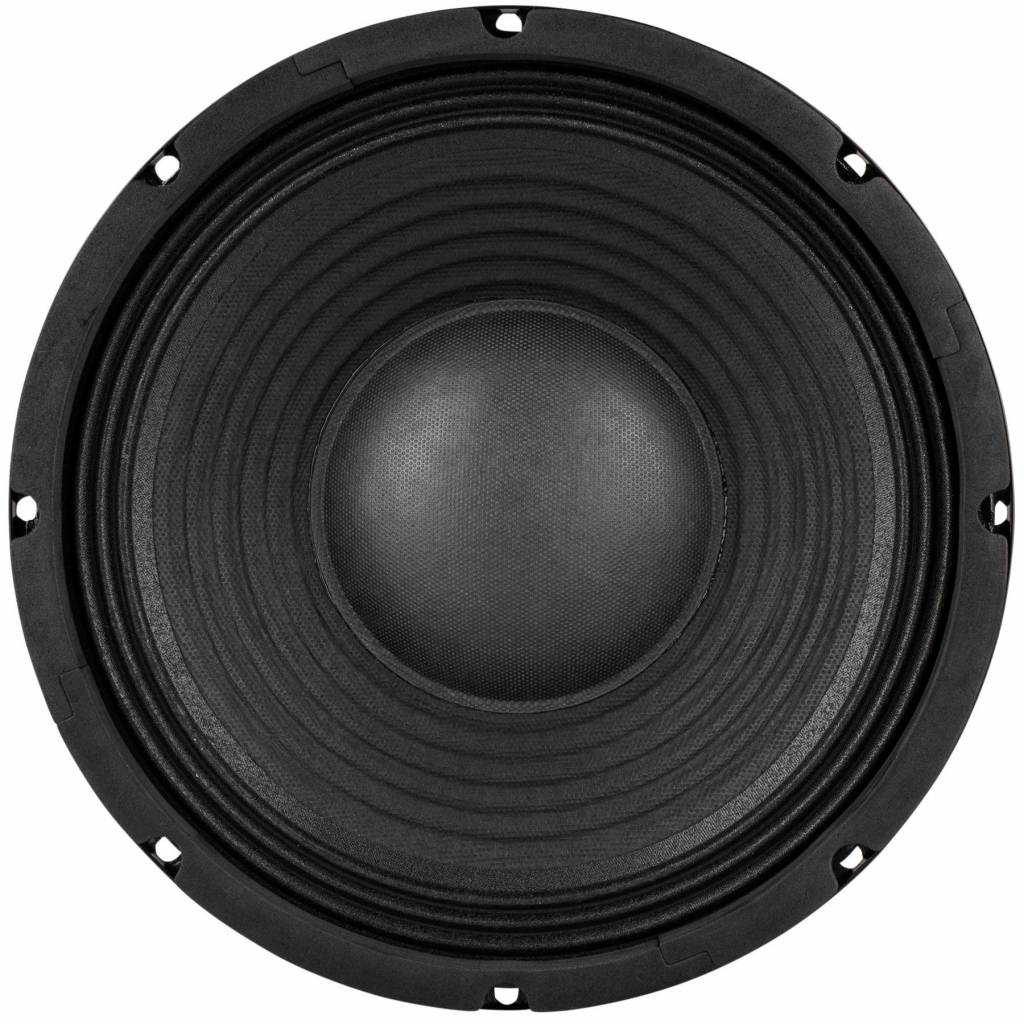

    Dayton Audio PA255-8 10" Pro Woofer

    € 72,45 >10 Op voorraad: levertijd 1 werkdag
    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €68,83 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.



    Highlights

    • Strong, low-mass carbon fiber impregnated paper cone
    • I-beam rolled edge 1.2 mm steel frame
    • Low distortion motor system w/copper cap
    • Powerful 50 oz. ceramic ferrite magnet
    • Vented pole piece/vented voice coil gap improve thermal management
    • Black motor parts and black polyimide voice coil former dissipate heat
    • Bumped back plate for unrestricted excursion



    Product details

    Dayton Audio PA255-8 10" Pro Woofer



    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

    Specificaties

    Artikelnummer
    PA255-8
    Woofer Series
    Pro Audio Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    10"
    Power Handling (RMS)
    300 watts
    Power Handling (max)
    600 watts
    Impedance
    8 ohms
    Sensitivity
    92.6 dB @ 2.83V/1m
    Frequency Response
    46 - 3,500 Hz
    Voice Coil Diameter
    51 mm
    Magnet Weight
    50 oz
    DC Resistance (Re)
    5.5 ohms
    Voice Coil Inductance (Le)
    1.49 mH
    Resonant Frequency (Fs)
    50.5 Hz
    Mechanical Q (Qms)
    8.49
    Electromagnetic Q (Qes)
    0.66
    Total Q (Qts)
    0.61
    Diaphragm Mass Inc. Airload (Mms)
    42.3g
    Mechanical Compliance of Suspension (Cms)
    0.24 mm/N
    Surface Area of Cone (Sd)
    346.4 cm²
    Volume of Displacement (Vd)
    173.2 cm³
    BL Product (BL)
    10.6 Tm
    Compliance Equivalent Volume (Vas)
    41.2 liters
    Maximum Linear Excursion (Xmax)
    5 mm
    Cone / Diaphragm Material
    Paper / Carbon Fiber Cone
    Surround Material
    Cloth
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    254 mm
    Overall Depth
    125 mm
    Baffle Cutout Diameter
    232 mm
    # Mounting Holes
    8
    Sealed Volume
    0.89 ft.³
    Sealed F3
    83 Hz
    Vented Volume
    2.94 ft.³
    Vented F3
    42 Hz

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    4 van 5
    Used it in my restoration of the JBL L26 Decade; it fit almost perfectly, I just had to enlarge the cabinet hole slightly with sandpaper (in spite of the measurements in the datasheet). It sounds terrific! It's very efficient, the bass is great in a ported enclosure (could get down to about 45Hz, 42 from the port), and the midrange is really punchy but not too warm. It also includes the gasketing material already installed. Highly recommended!
    Door Leonardo C. on 15 April 2020
    5 van 5
    It's a good woofer , it 's a good for bass
    Door yassine s. on 26 November 2019
