      Dayton Audio PA200-8 Bass-midwoofer

      € 64,83€ 78,45 9 Op voorraad
      • -5% Bestelling 4 voor slechts € 74,53 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Dayton Audio's PA200-8 PA Series 8" professional woofer is a great upgrade for musical instrument or sound reinforcement cabinets, and also excels in custom-built speaker systems.



      Highlights

      • Strong, low-mass carbon fiber impregnated paper cone
      • Low distortion motor system with copper cap
      • Vented pole piece and voice coil gap improve thermal management
      • Black motor parts and black polyimide voice coil former dissipate heat
      • Bumped back plate for unrestricted excursion



      Product details

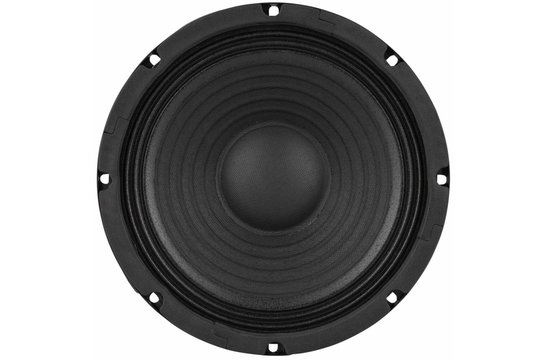

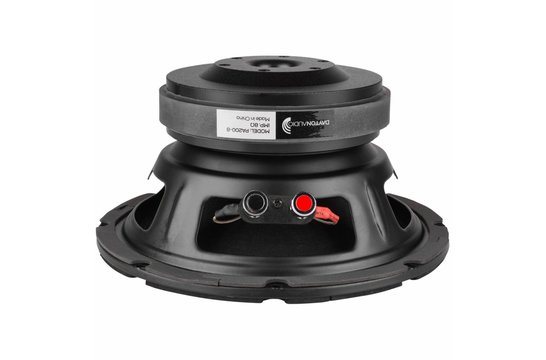

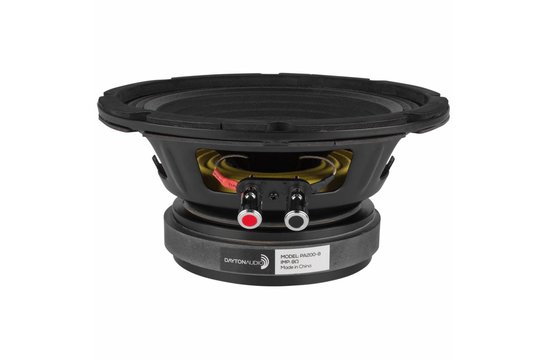

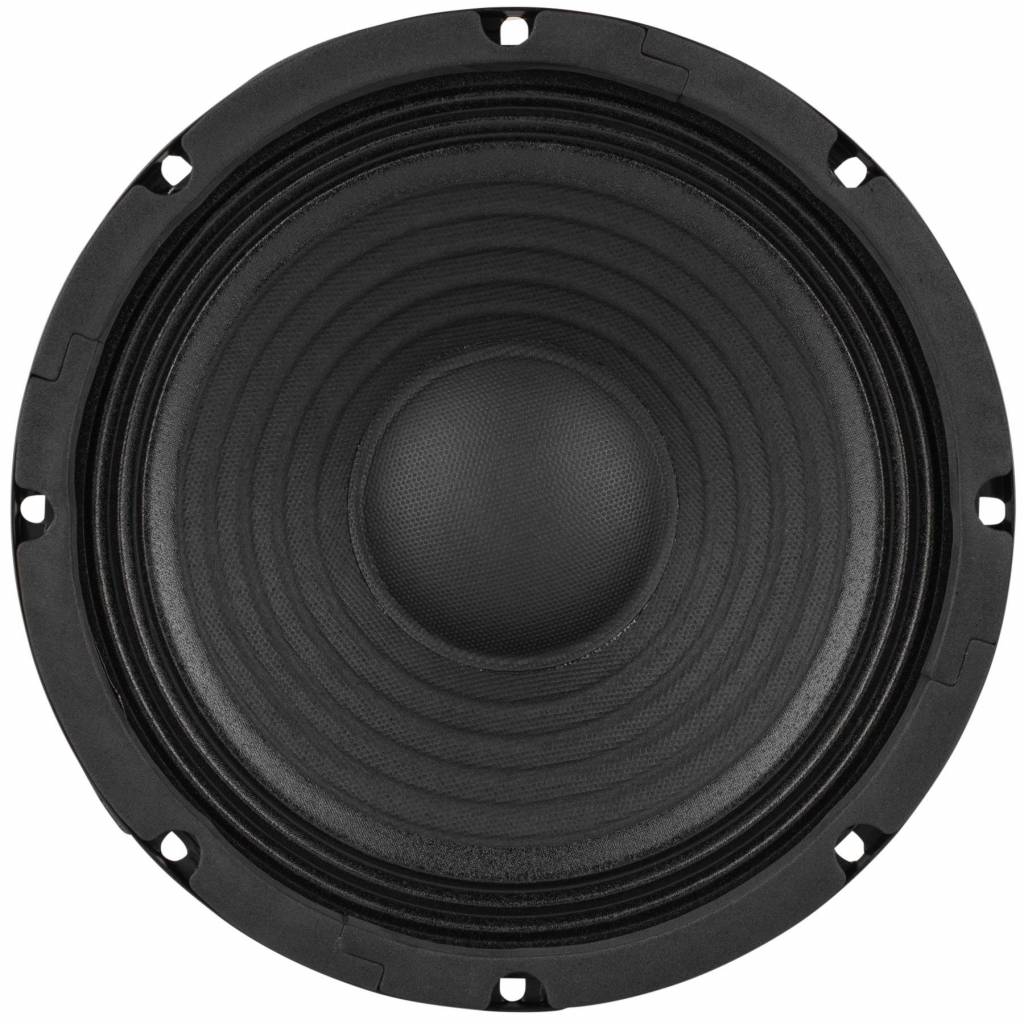

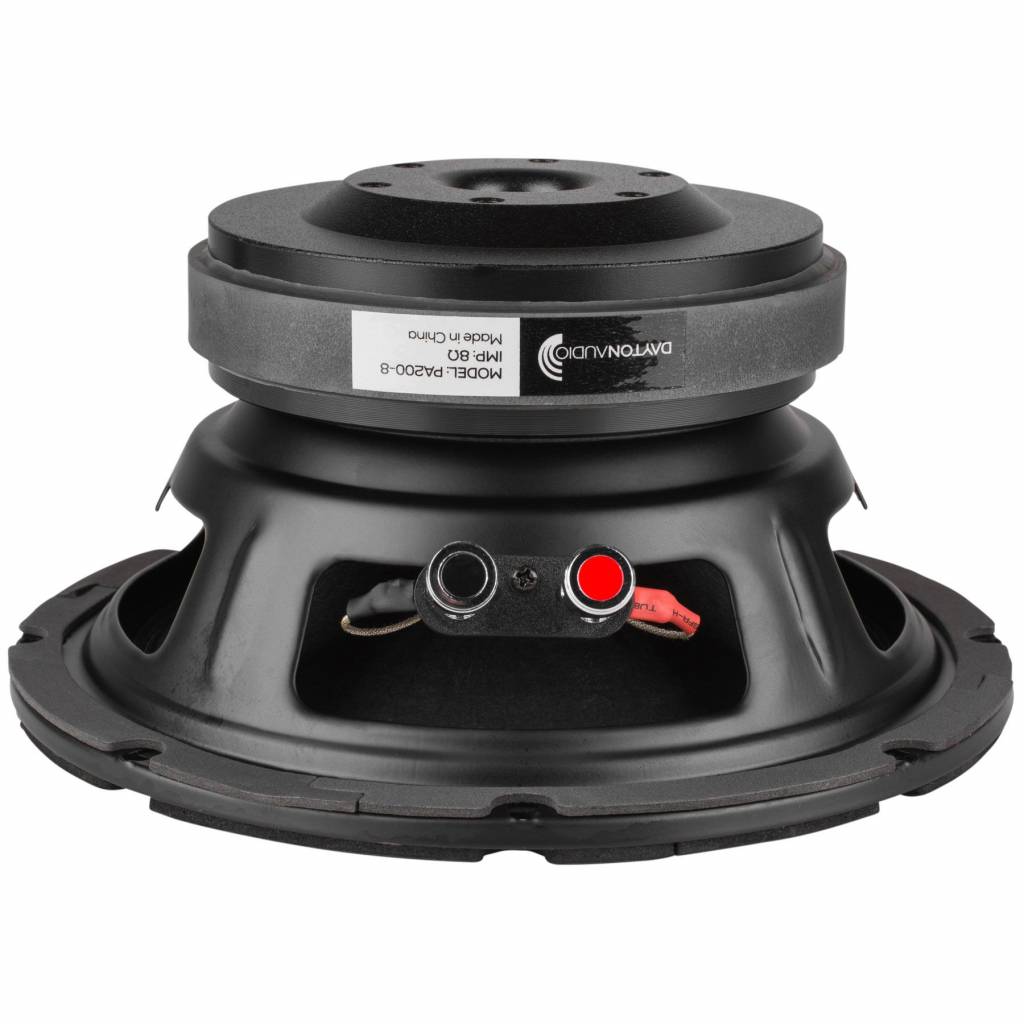

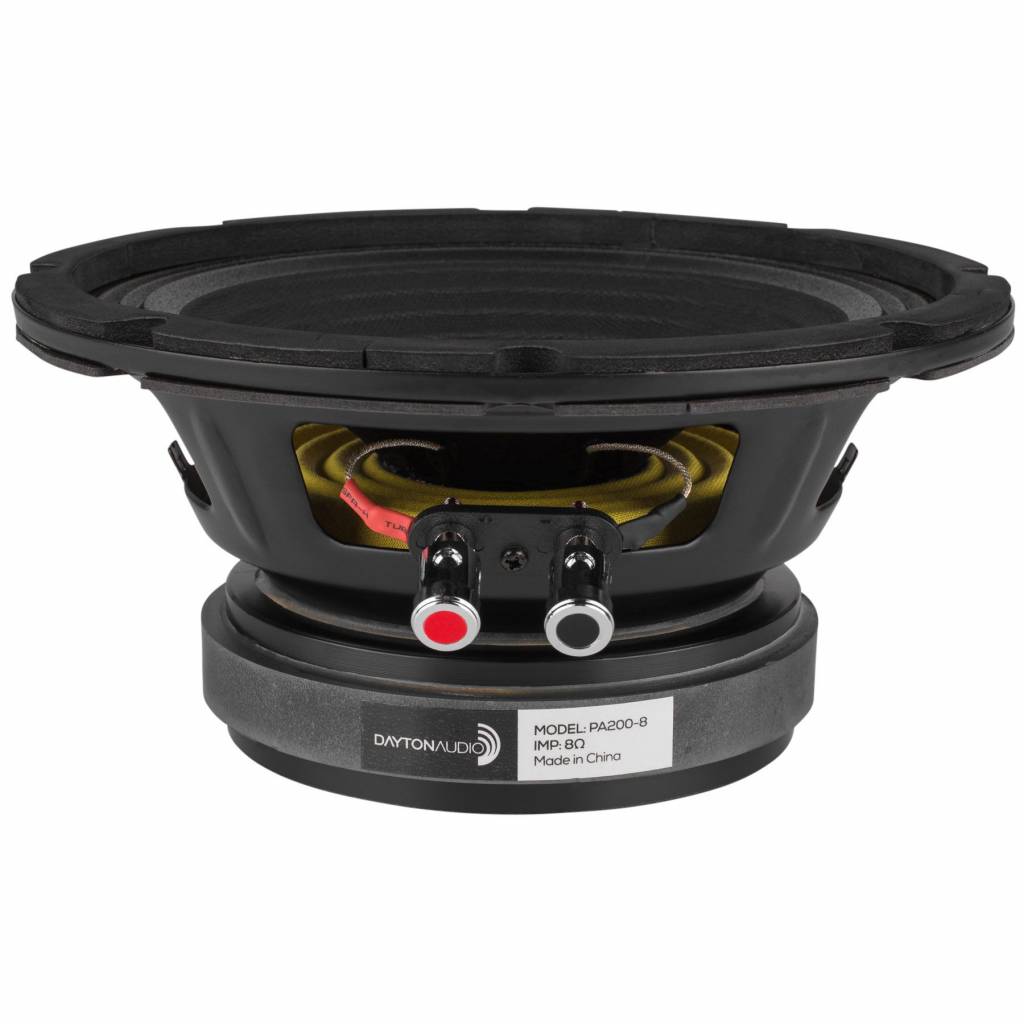

      Dayton Audio PA200-8 8" Pro Woofer Speaker



      The PA200-8 8" professional audio woofer, from Dayton Audio, features high power handling by using a vented pole piece and voice coil gap. Black motor parts (including a black polyimide voice coil) help dissipate heat away from the voice coil and help to minimize power compression.



      Extended, smooth frequency response and low distortion are achieved through the use of a powerful 50 ounce ceramic ferrite magnet, combined with a copper cap on the pole piece to reduce stray eddy currents and minimize voice coil inductance.



      A strong, low-mass, carbon fiber-impregnated paper cone, together with an I-beam rolled-edge 1.2 mm steel frame provides the rugged durability needed to handle the rigors of touring and for stage use, while still offering the sensitivity and punchy bass that you need.



      Dayton Audio's PA Series woofer packs all of these premium features into a value-priced 8" driver that is great for use as an upgrade to sound reinforcement or musical instrument speakers. The PA200-8 also excels in custom-built speakers.

      Toon meer

      Specificaties

      Artikelnummer
      PA200-8
      Woofer series
      Pro Audio Series
      Woofer type
      Midwoofer
      Nominale diameter
      8"
      Belastbaarheid (RMS)
      250 watts
      Belastbaarheid (max)
      500 watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      92.4 dB 2.83V/1m
      Frequentierespons
      70 - 9,000 Hz
      Spreekspoeldiameter
      50 mm
      Gelijkstroomweerstand (Re)
      6.2 ohms
      Spreekspoelinductie (Le)
      1.09 mH
      Resonantiefrequentie (Fs)
      55.2 Hz
      Mechanische Q (Qms)
      6.17
      Elektrische Q (Qes)
      0.51
      Totale Q (Qts)
      0.48
      Bewegende massa (Mms)
      20.5g
      Compliantie van de ophanging (Cms)
      0.4 mm/N
      Effectief oppervlak (Sd)
      210.4 cm²
      Maximaal verplaatst volume (Vd)
      0.631 cm³
      Krachtsfactor (BL)
      9.28 Tm
      Equivalentvolume (Vas)
      26.6 liters
      Maximale excursie (Xmax)
      3.0 mm
      Cone / Diaphragm Material
      Paper / Kevlar Cone
      Surroundmateriaal
      Cloth
      Spreekspoel vormermateriaal
      Kapton® / Polyimide
      Mand- /framemateriaal
      Steel
      Magneetmateriaal
      Ferrite
      Totale buitendiameter
      210 mm
      Totale diepte
      108 mm
      Montagegatdiameter
      182 mm
      Gesloten volume
      0.57 ft.³
      Gesloten F3
      96 Hz
      Gepoort volume
      1.1 ft.³
      Gepoort F3
      48 Hz

      Toon meer

      Reviews

      5 from 5Based on 4 reviews
      Schrijf een review
      4 van 5
      Received timely and works well.
      Door Øyvind A. on 10 November 2020
      5 van 5
      This is a really good speaker for this price. I like it. The sound quality isn't the best but these speakers are really loud!
      Door Levente Vas on 12 Mei 2020
