    Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

    € 16,45 Niet op voorraad: binnen 1 week leverbaar
    The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive r... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €15,63 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.



    Highlights

    • Rigid black anodized aluminum alloy cone
    • High excursion capability: 10 mm peak to peak
    • Same "family look" as ND Series woofers
    • Mass adjustable for a vast range of tuning frequencies



    Product details

    Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

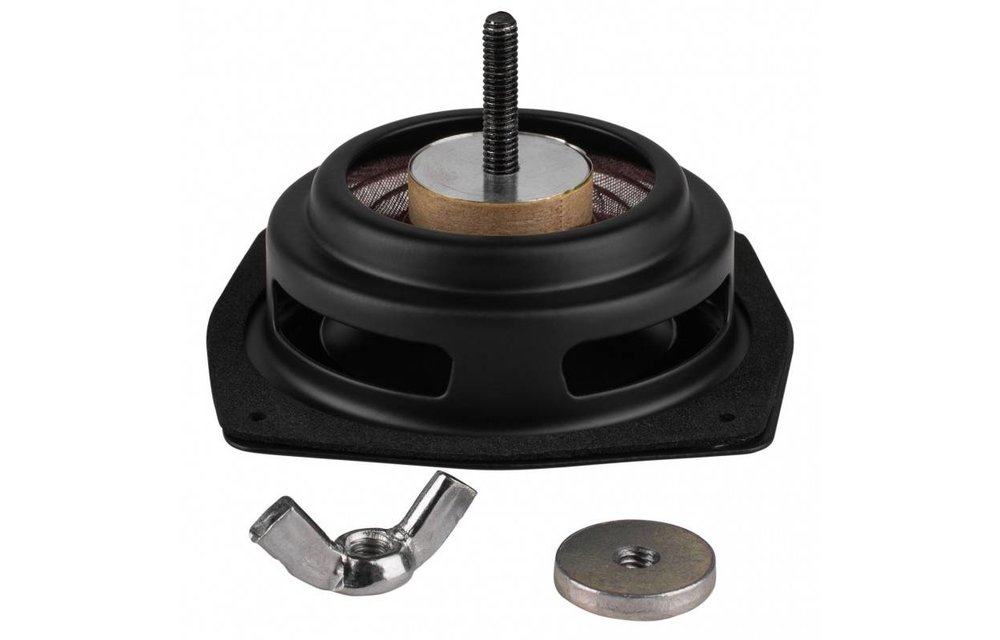

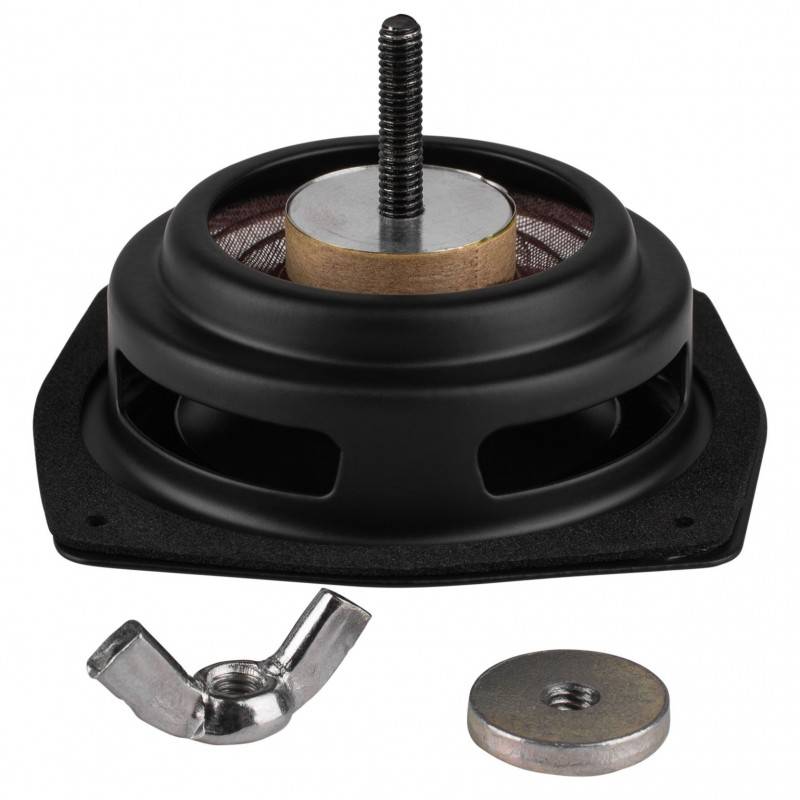

    Tune small enclosures with Dayton Audio's ND65-PR 2-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities.



    The ND65-PR 2-1/2" passive radiator includes:

    (1) Passive radiator

    (1) 4.3 gram disk weight

    (1) Wing nut



    Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

    Specificaties

    Artikelnummer
    ND65-PR
    Woofer Series
    ND Series
    Woofer Type
    Passive Radiator
    Nominal Diameter
    2.50"
    Resonant Frequency (Fs)
    73.0 Hz
    Mechanical Q (Qms)
    2.69
    Diaphragm Mass Inc. Airload (Mms)
    3.2g
    Mechanical Compliance of Suspension (Cms)
    1.45 mm/N
    Surface Area of Cone (Sd)
    15.6 cm²
    Compliance Equivalent Volume (Vas)
    0.5 liters
    Maximum Linear Excursion (Xmax)
    5 mm
    Driver's Mechanical Losses (Rms)
    0.56 kg/s
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Rubber
    Basket / Frame Material
    Steel
    Overall Outside Diameter
    2.52"
    Overall Depth
    1.89"
    Baffle Cutout Diameter
    2.05"
    # Mounting Holes
    4

    Reviews

    4 from 5Based on 1 reviews
    Schrijf een review
    4 van 5
    Es wurde keine Beschreibung gegeben.
    Door Daniel E. on 19 Februari 2021
