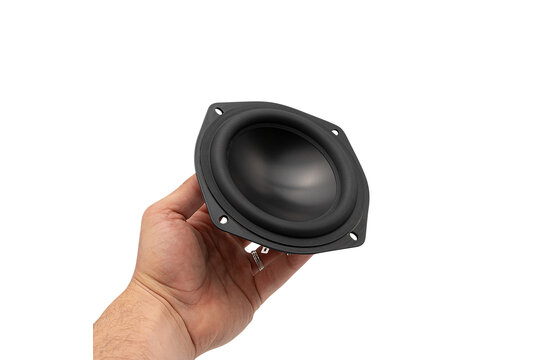

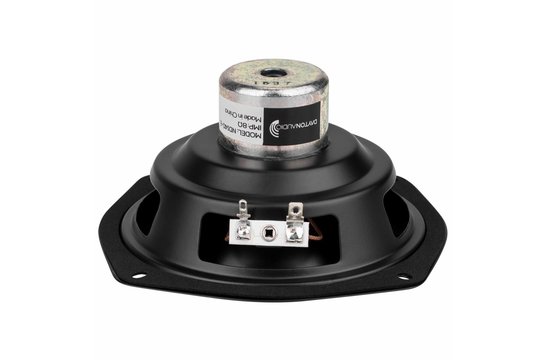

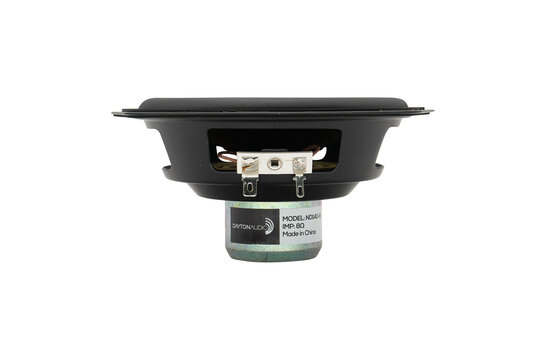

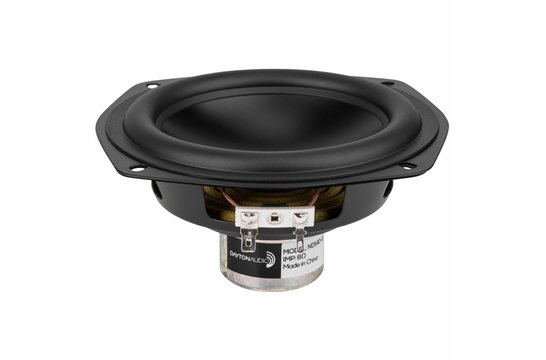

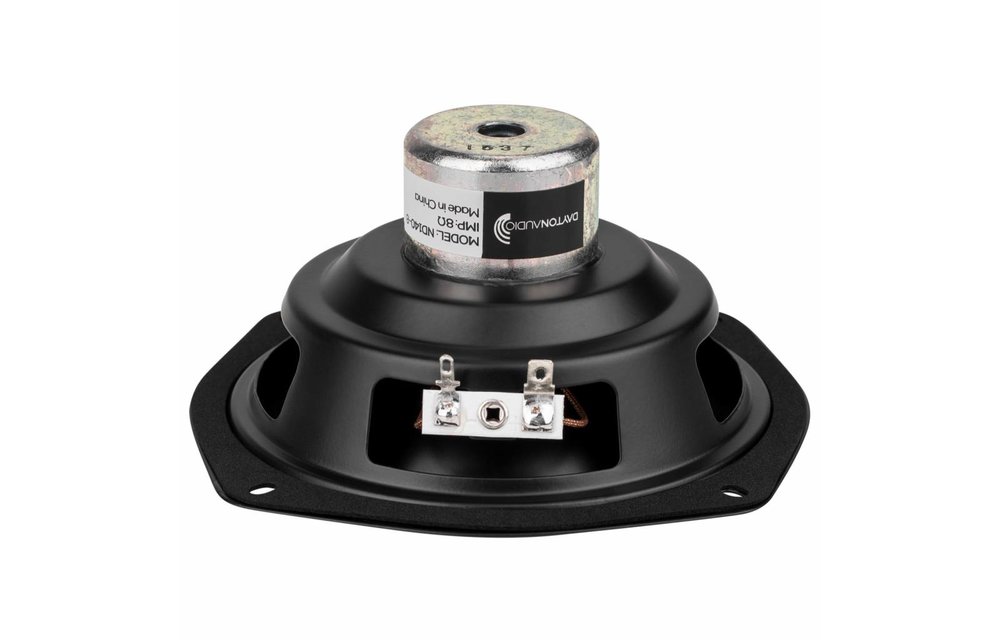

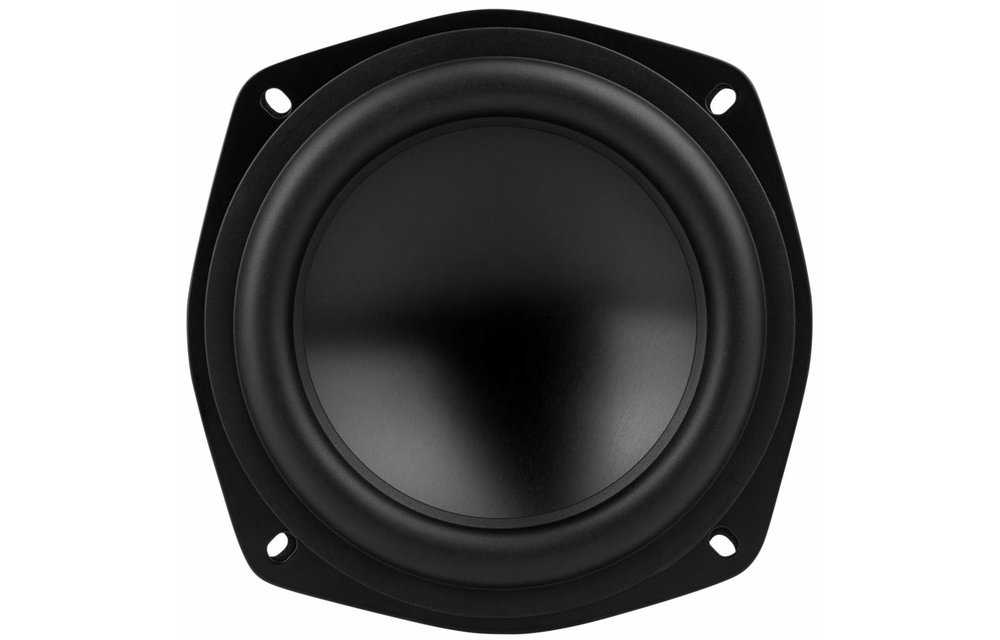

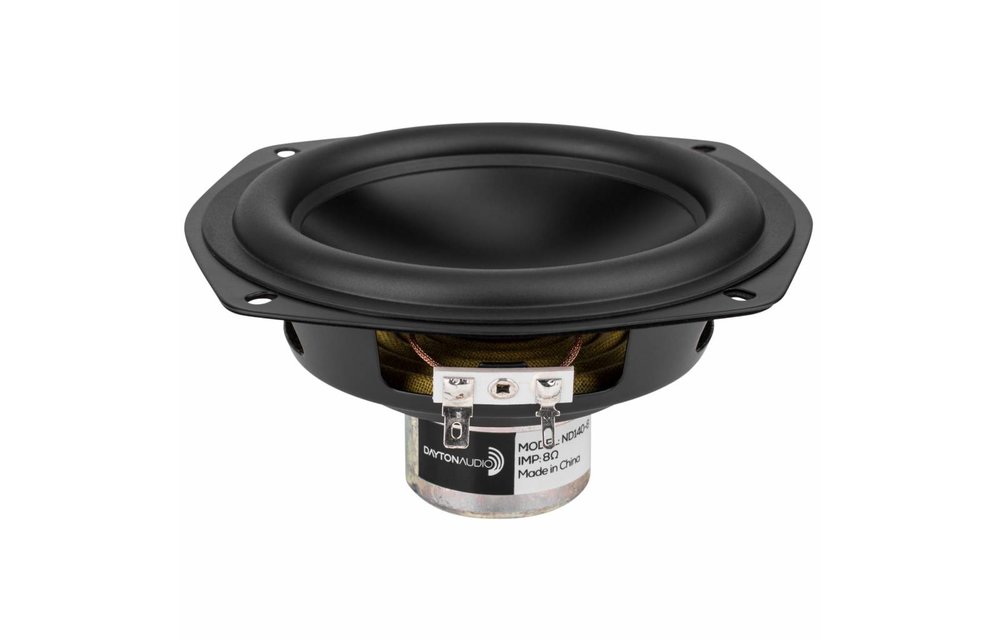

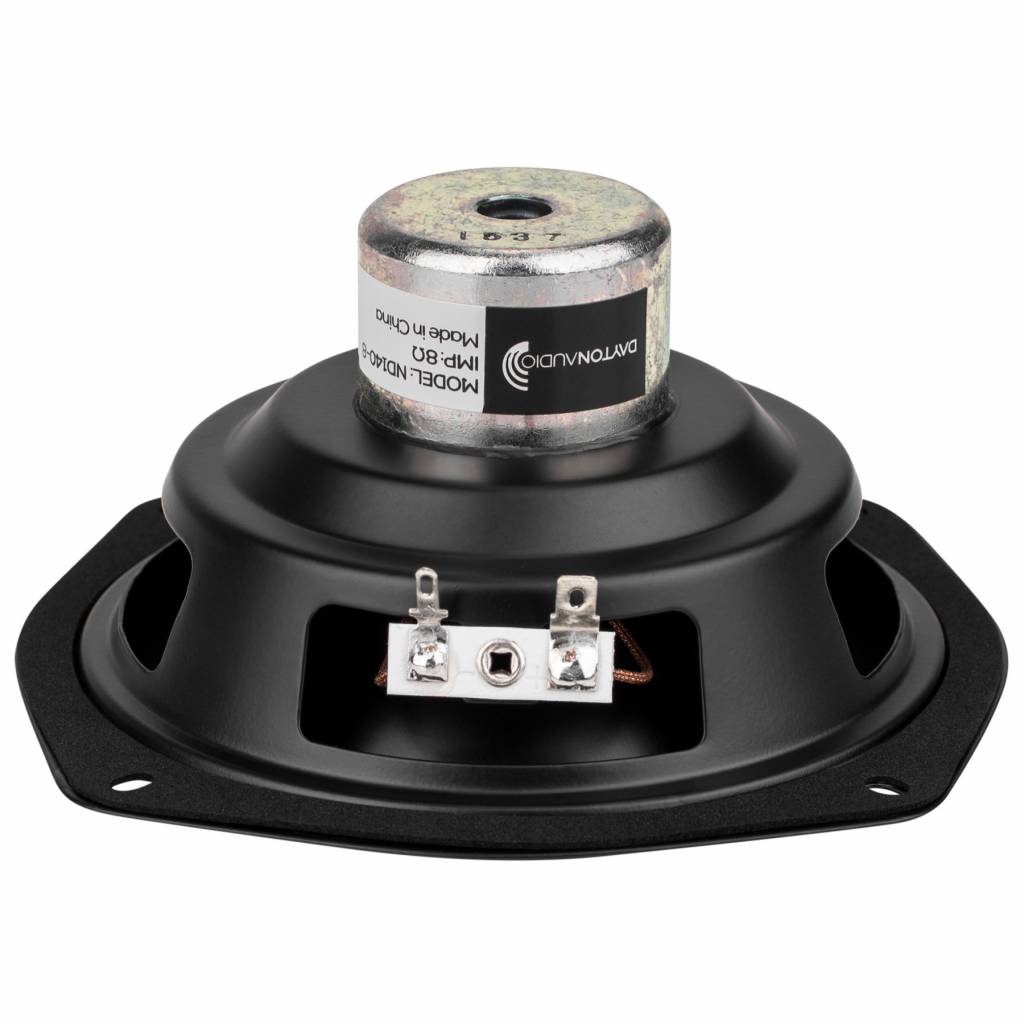

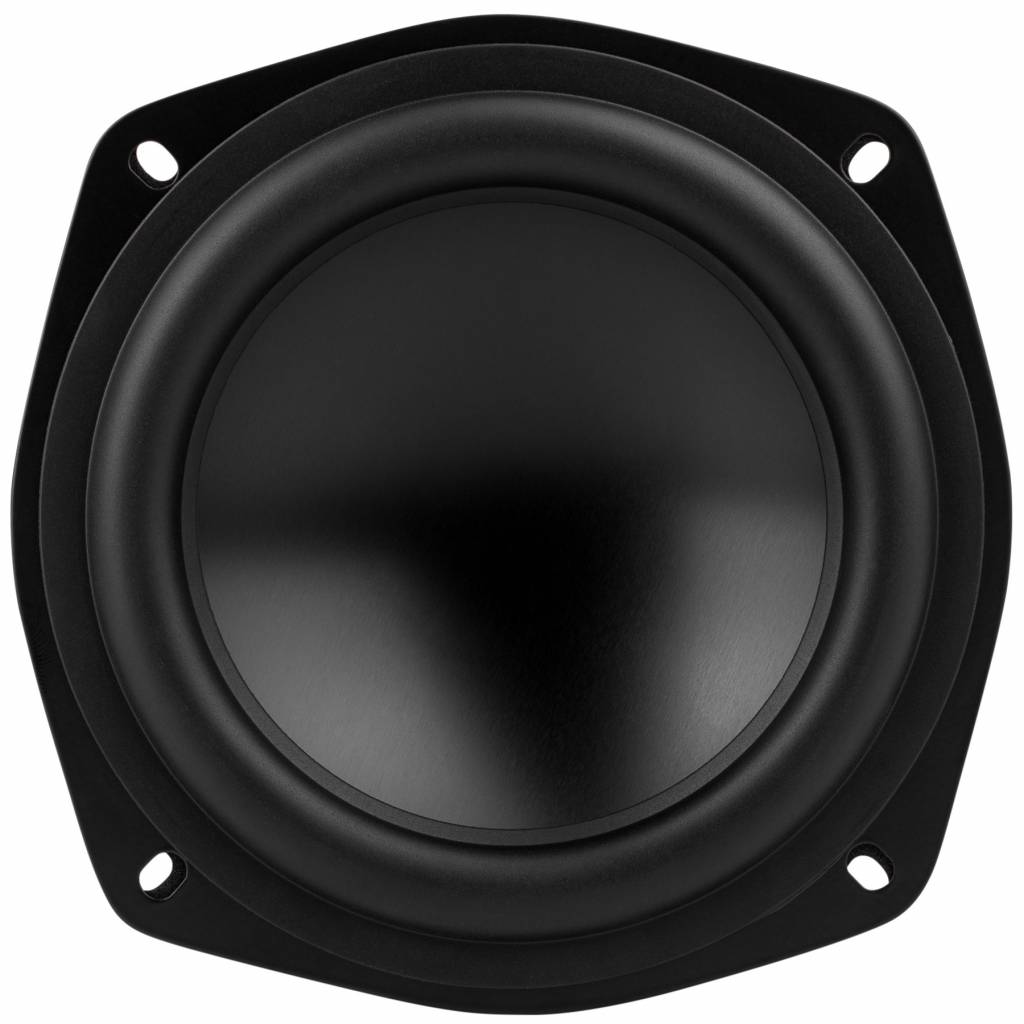

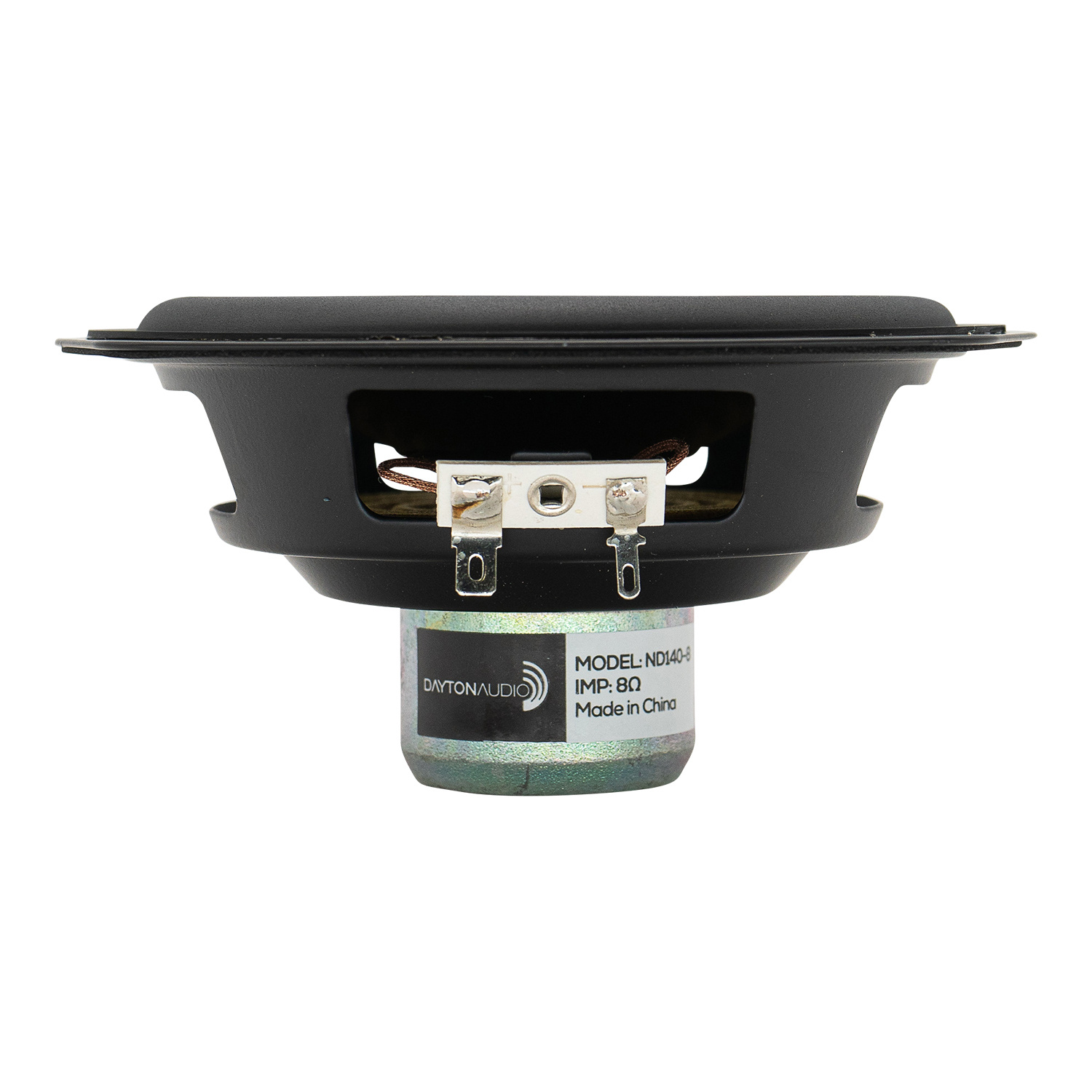

    Dayton Audio ND140-8 5-1/4" Aluminum Cone Midbass Driver 8 Ohm

    € 28,88€ 34,95 >10 Op voorraad: levertijd 1 werkdag
    Dayton Audio's ND140-8's compact aluminum cone demonstrates the latest advances in high-excursion design processes. Its compact size and high output make it perfect for your next point-source or line array speaker project.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €33,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio's ND140-8's compact aluminum cone demonstrates the latest advances in high-excursion design processes. Its compact size and high output make it perfect for your next point-source or line array speaker project.



    Highlights

    • Extended-range 54 Hz to 8 kHz performance
    • Rubber-edged aluminum alloy cone
    • Large excursion capability—4 mm Xmax, 20 mm peak
    • Self-shielded Neo-Balanced motor structure
    • 1" 4-layer underhung voice coil with polyimide former
    • 40 watts RMS power handling



    Product details

    Dayton Audio ND140-8 5-1/4" Aluminum Cone Midbass Driver 8 Ohm



    Dayton Audio's ND140-8 midbass driver features an efficient, low-distortion Neo-Balanced motor that is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

    Specificaties

    Artikelnummer
    ND140-8
    Woofer Series
    ND Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5.25"
    Power Handling (RMS)
    40 watts
    Power Handling (max)
    80 watts
    Impedance
    8 ohm
    Sensitivity
    84.5 dB @ 2.83V/1m
    Frequency Response
    54 - 8,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    7.8 ohms
    Voice Coil Inductance (Le)
    1.44 mH @ 1 kHz
    Resonant Frequency (Fs)
    56.5 Hz
    Mechanical Q (Qms)
    5.01
    Electromagnetic Q (Qes)
    0.79
    Total Q (Qts)
    0.68
    Diaphragm Mass Inc. Airload (Mms)
    10.4g
    Mechanical Compliance of Suspension (Cms)
    0.76 mm/N
    Surface Area of Cone (Sd)
    86.6 cm²
    Volume of Displacement (Vd)
    34.6 cm³
    BL Product (BL)
    6.05 Tm
    Compliance Equivalent Volume (Vas)
    7.74 liters
    Maximum Linear Excursion (Xmax)
    4.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Steel
    Magnet Material
    Neodymium
    Shielded
    Yes
    Overall Outside Diameter
    138 mm
    Overall Depth
    70.5 mm
    Baffle Cutout Diameter
    120 mm
    # Mounting Holes
    4
    Sealed Volume
    0.36 ft.³
    Sealed F3
    75 Hz
    Vented Volume
    0.84 ft.³
    Vented F3
    37 Hz
