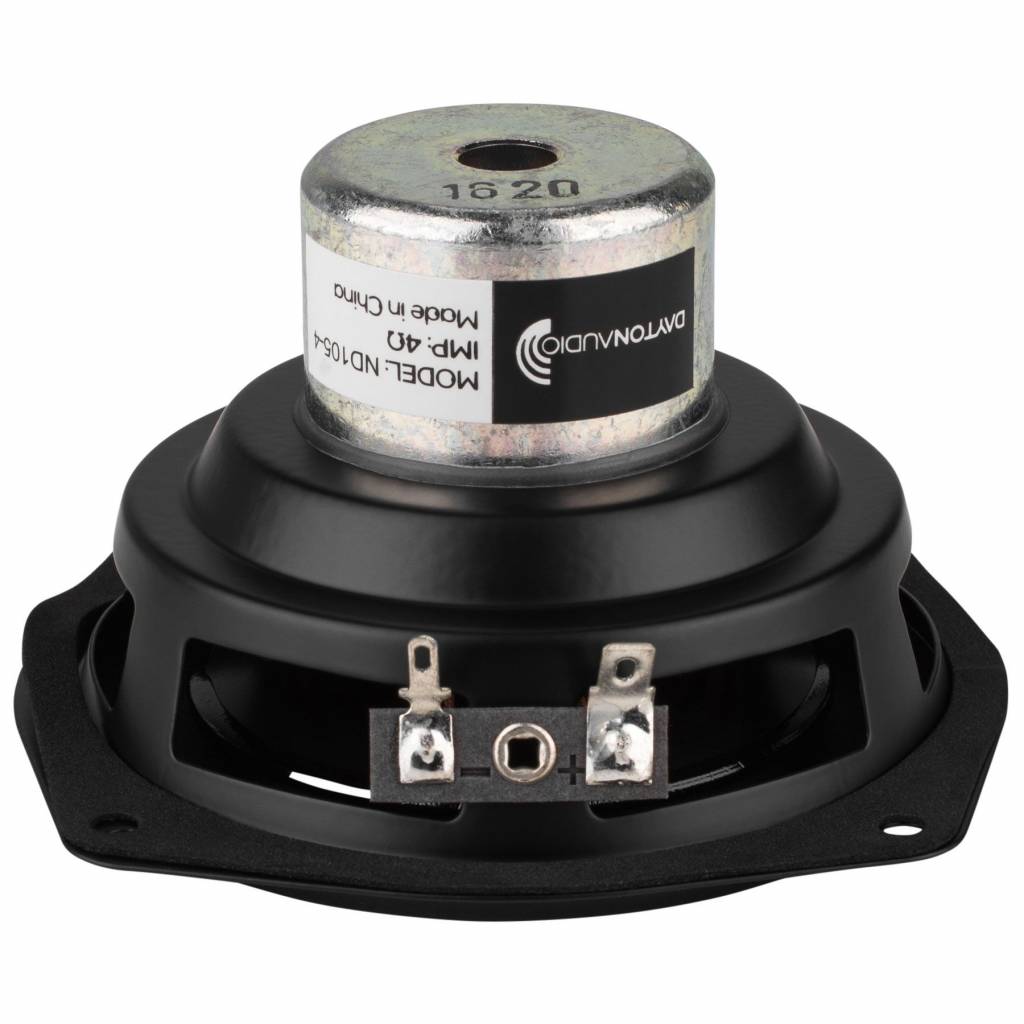

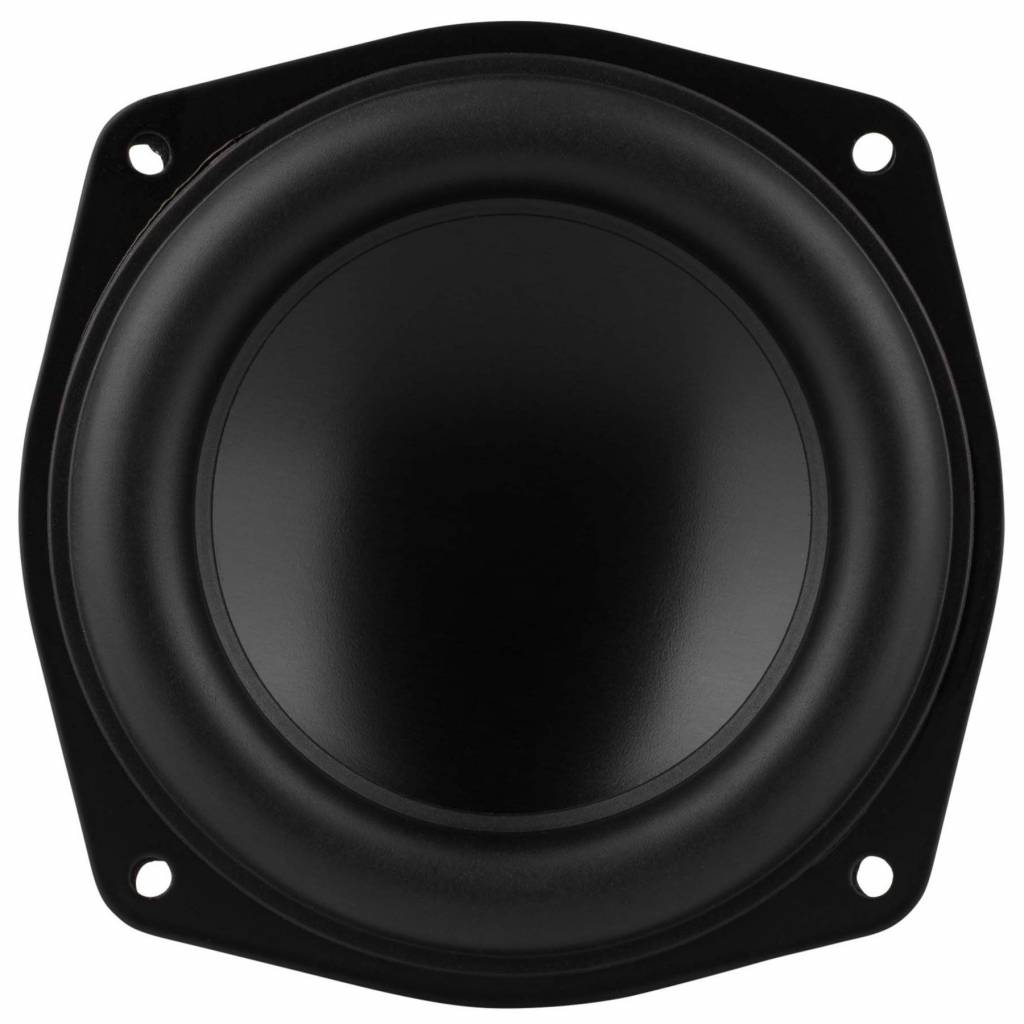

    Dayton Audio ND105-4 4" Aluminum Cone Midbass Driver 4 Ohm

    € 29,95 >10 Op voorraad: levertijd 1 werkdag
    Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes.



    Highlights

    • Extended-range 60 Hz to 10 kHz performance
    • Rubber-edged aluminum alloy cone
    • Large excursion capability—4 mm Xmax, 20 mm peak
    • Self-shielded Neo-Balanced motor structure
    • 1" 4-layer underhung voice coil with polyimide former
    • 30 watts RMS power handling



    Product details

    Dayton Audio ND105-4 4" Aluminum Cone Midbass Driver 4 Ohm



    Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

    Specificaties

    Artikelnummer
    ND105-4
    Woofer Series
    ND Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    60 watts
    Impedance
    4 ohms
    Sensitivity
    86.8 dB @ 2.83V/1m
    Frequency Response
    60 - 10,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    3.7 ohms
    Voice Coil Inductance (Le)
    0.76 mH @ 1 kHz
    Resonant Frequency (Fs)
    78.7 Hz
    Mechanical Q (Qms)
    7.42
    Electromagnetic Q (Qes)
    0.66
    Total Q (Qts)
    0.61
    Diaphragm Mass Inc. Airload (Mms)
    7.4g
    Mechanical Compliance of Suspension (Cms)
    0.55 mm/N
    Surface Area of Cone (Sd)
    51.5 cm²
    Volume of Displacement (Vd)
    20.6 cm³
    BL Product (BL)
    4.52 Tm
    Compliance Equivalent Volume (Vas)
    1.97 liters
    Maximum Linear Excursion (Xmax)
    4.0 mm
    Cone / Diaphragm Material
    Black Anodized Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Steel
    Magnet Material
    Neodymium
    Shielded
    Yes
    Overall Outside Diameter
    105 mm
    Overall Depth
    67 mm
    Baffle Cutout Diameter
    93 mm
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    84 Hz
    Vented Volume
    0.3 ft.³
    Vented F3
    41 Hz

    Reviews

    5 from 5Based on 6 reviews
    Schrijf een review
    5 van 5
    No description was given
    Door Jaroslav K. on 11 Februari 2021
    4 van 5
    I used it in MTM with two matching PRs. Very very nice low end, however there's an ugly dip at 4kHz, which complicates crossover design a little bit. It's interesting its smaller brother (ND90) doesn't have this problem and is more or less linear up to 8kHz. ND90 and 91 are better drivers.
    Door tk. on 19 Oktober 2019
