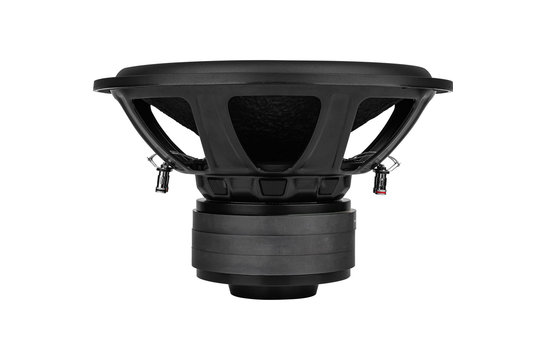

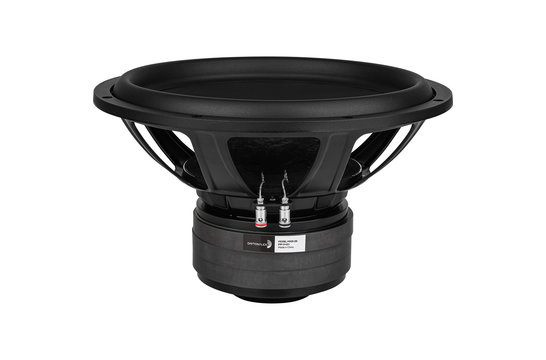

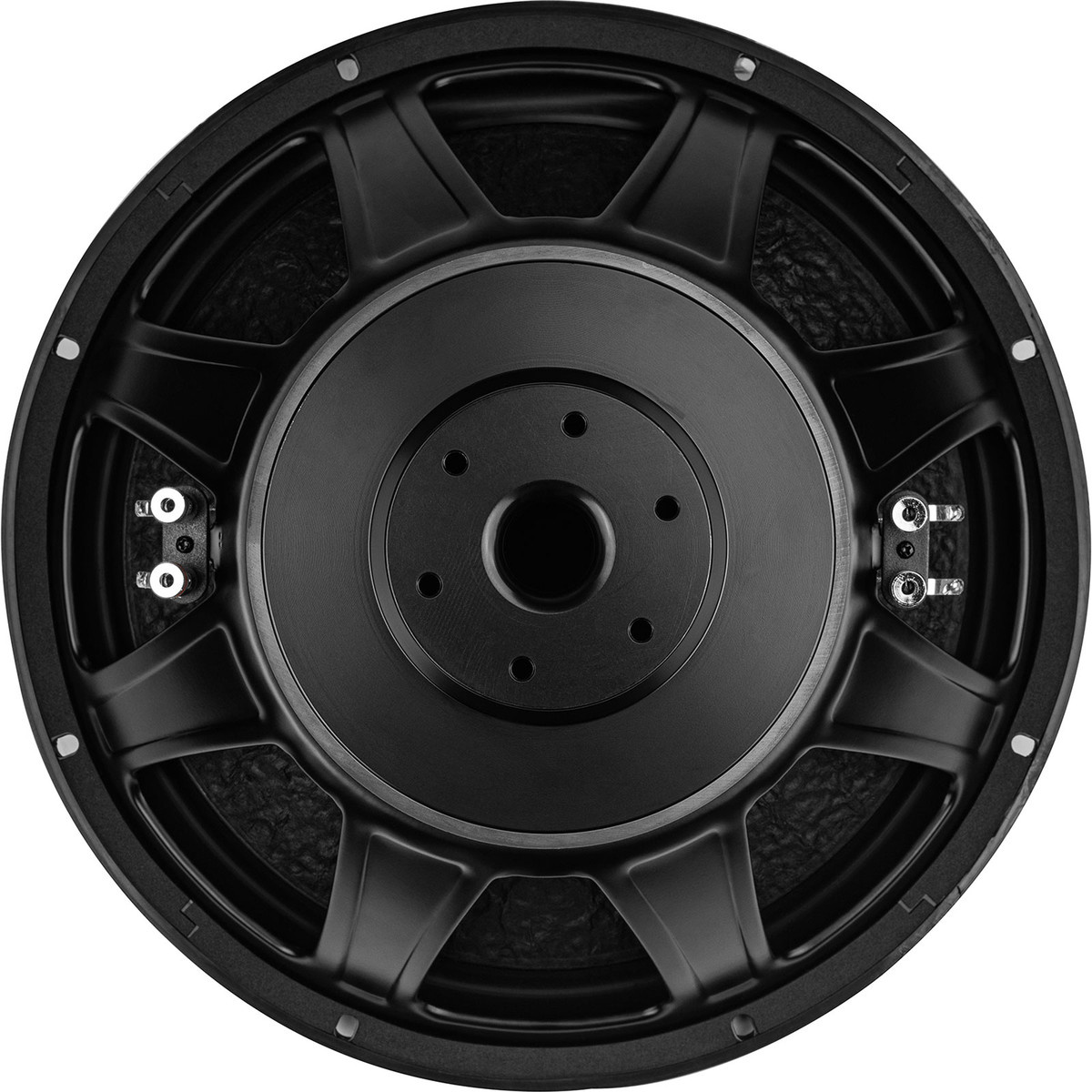

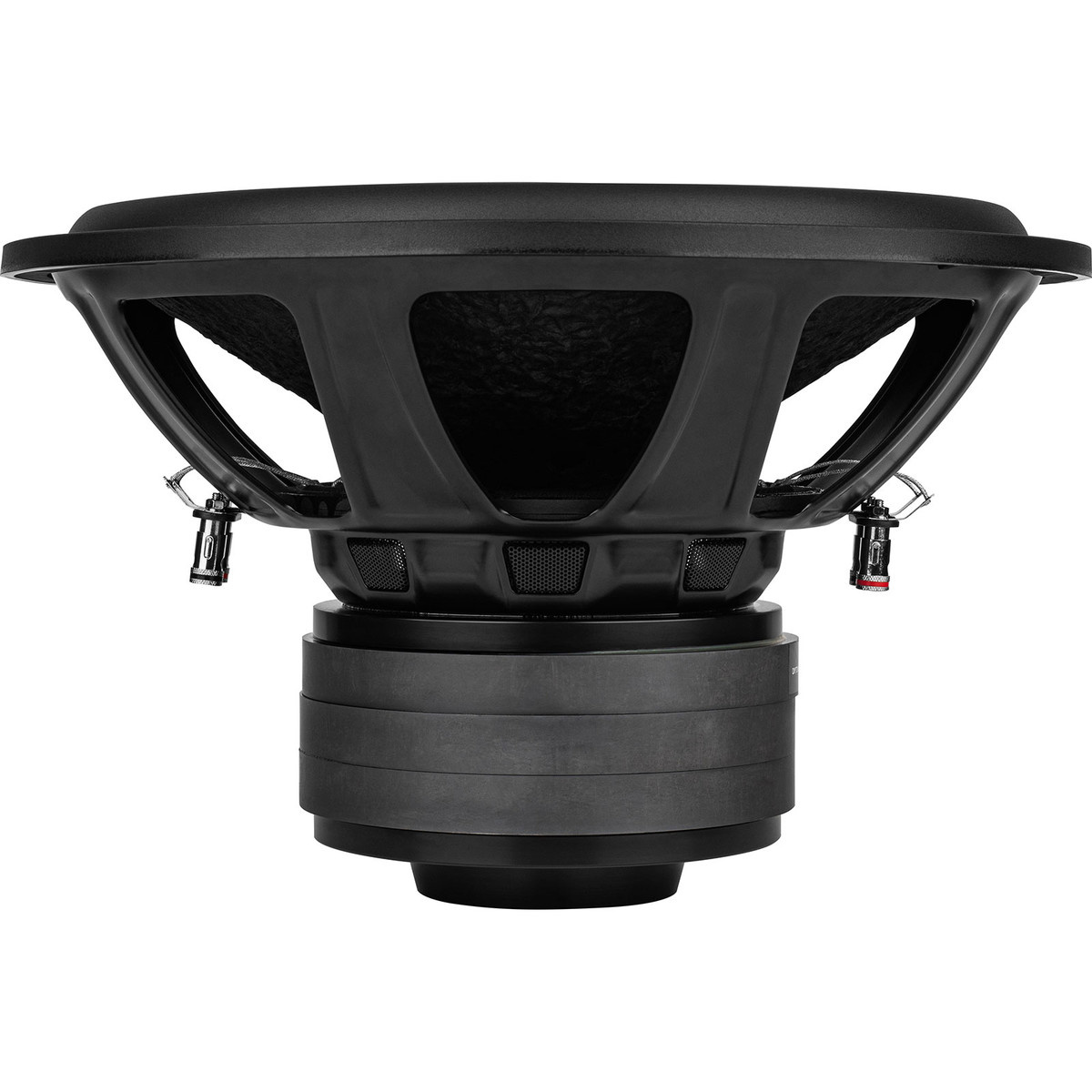

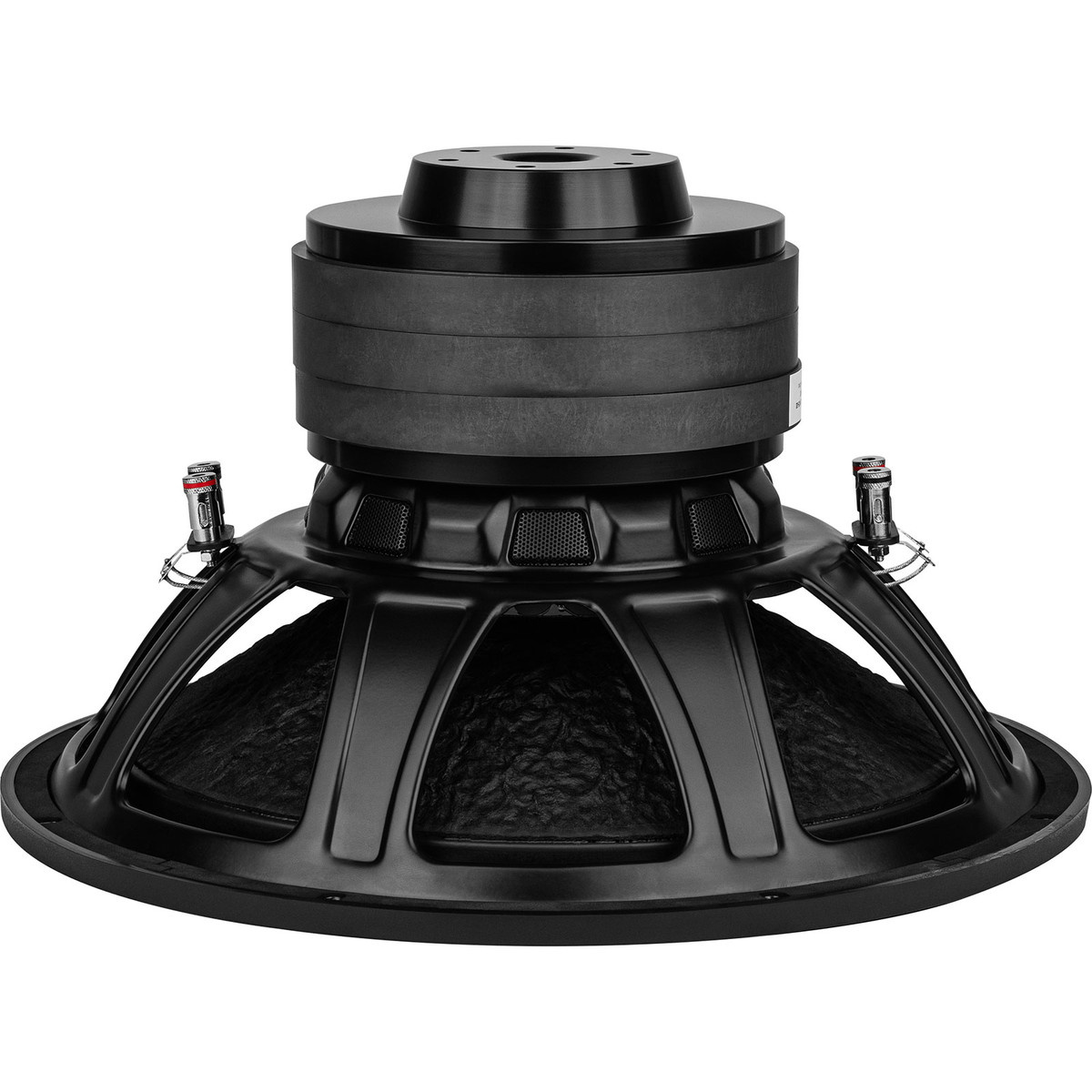

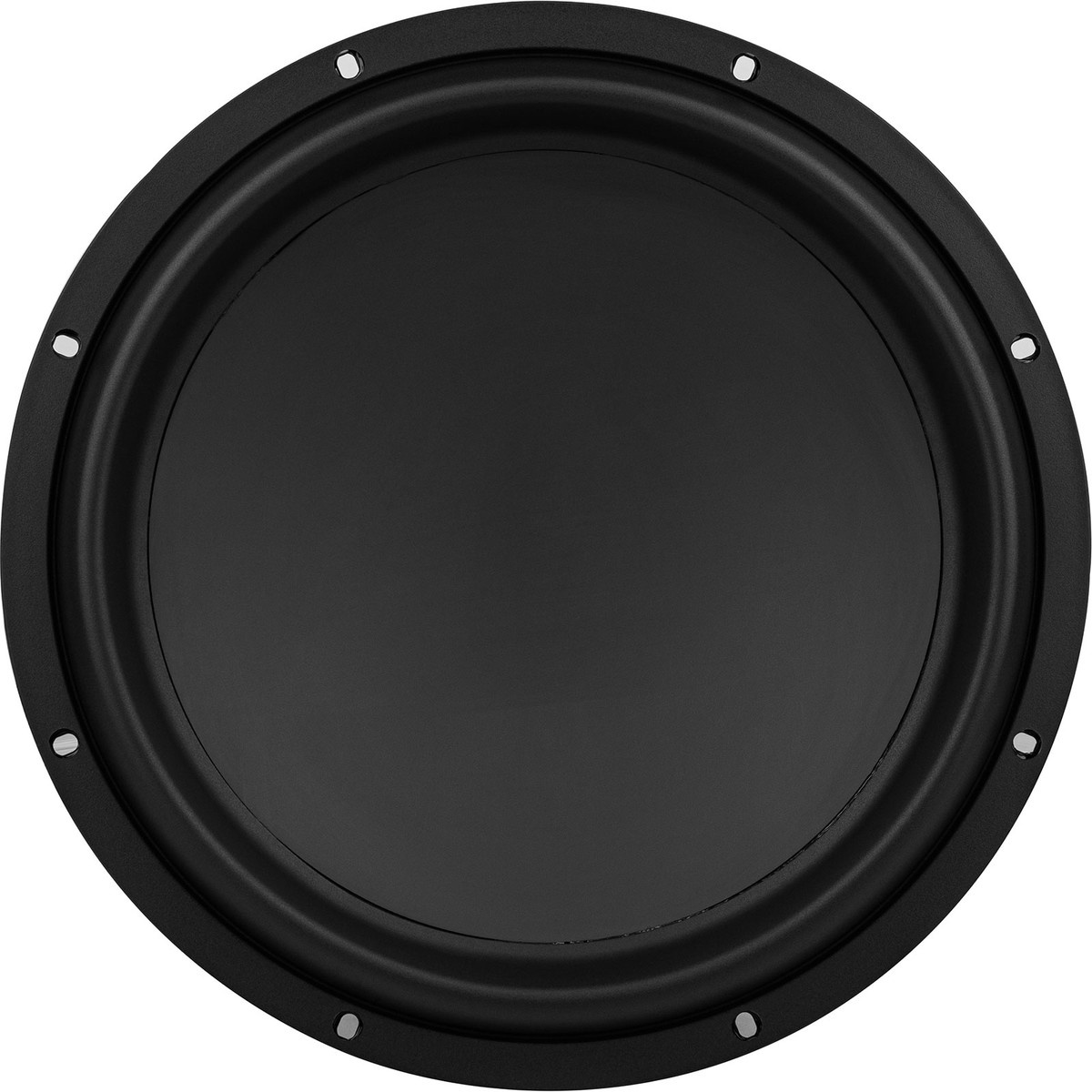

    Dayton Audio MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil

    € 206,57€ 249,95 1 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €237,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Max-X MX15-22 15" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker that will deliver the deepest bass with power and authority. Optimized for use in compact enclosures this driver is ideal for home subwoofer designs and high impact car audio systems.



    Highlights

    • ±24 mm Klippel verified excursion and maximized surface area for excellent displacement capability
    • Seamless dish cone is extremely rigid and durable with a sleek and modern look

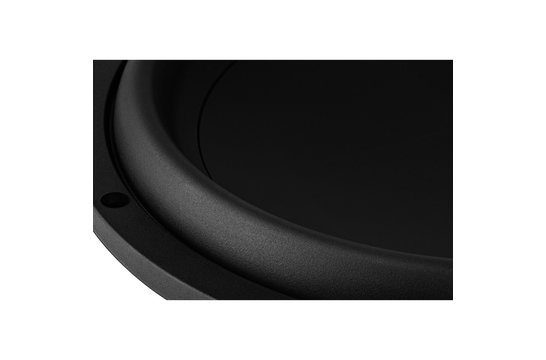

    • Custom tooled surround allows long throw while maximizing cone surface area
    • Extensive venting cools the voice coil enabling high power handling with low power compression
    • Dual spiders maintain linear excursion for lower distortion even when pushed to the limit
    • The dual 2 ohm voice coils give you the ability to get the most out of any amplifier



    Product Details

    Dayton Audio MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil



    Designed to produce maximum output for an unbeatable value, Dayton Audio's MX15-22 Max-X 15" dual voice coil subwoofer driver has all of the features and performance you expect from premium subwoofers without the high price tag. Capable of high output low frequency response with remarkably low distortion, the MX15-22 is built for use in compact enclosures making it perfect for both home and car audio sounds systems. With 48 mm of peak to peak excursion capability (Klippel verified at 70% Bl) this driver is capable of moving serious amounts of air.



    It's about more than just looks

    Many budget subwoofer drivers look powerful, but just don't offer high performance.

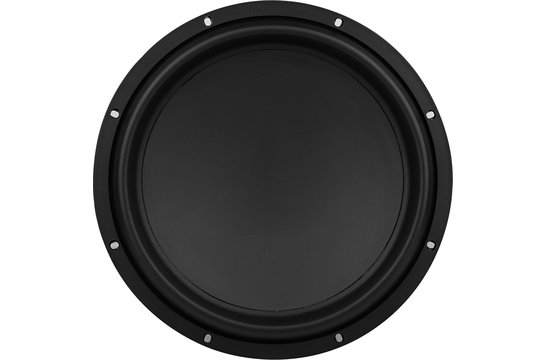

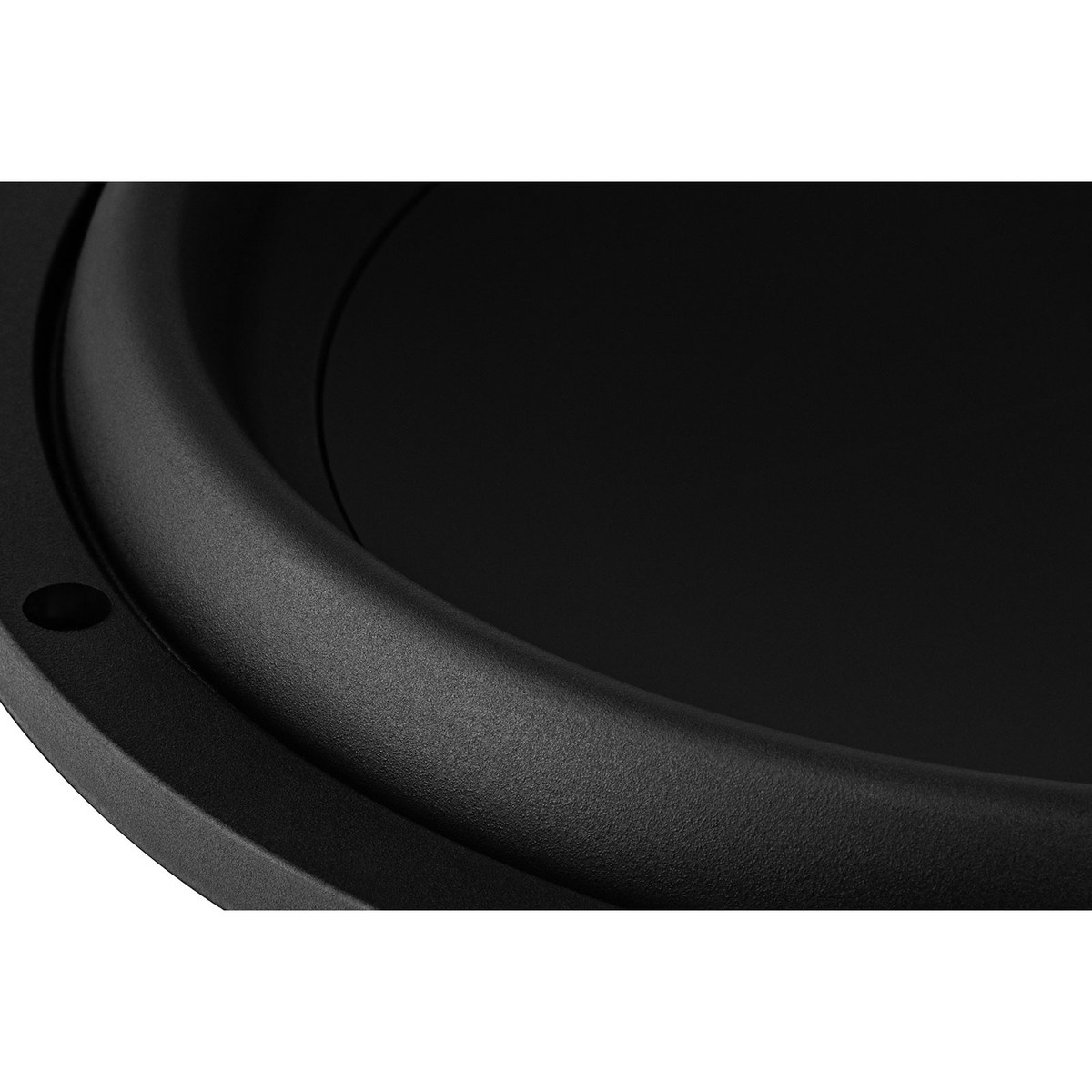

    When designing the MX15-22, Dayton Audio did everything possible to keep the cost down without sacrificing performance or reliability. A large inverted dust cap completely covers the rigid pulp paper cone to create an extremely stiff layered diaphragm with a sleek and modern look. The narrow but tall custom tooled surround has been optimized to allow high excursion without reducing cone area to ensure maximum displacement with improved efficiency. In addition, the surround actually wraps around to the rear side of the mounting flange for maximum gluing surface area to handle the stress of high excursion without issue. To keep the cone linear, the MX15-22 uses dual spiders with ample spacing to make sure there is no rocking even when driven to its limit.



    Extensive venting to keep everything cool

    High output subwoofers can generate a lot of heat. Excess heat build-up increases temperature which in turn causes resistance to climb. This will lead to lower output, power compression, and even premature failure.

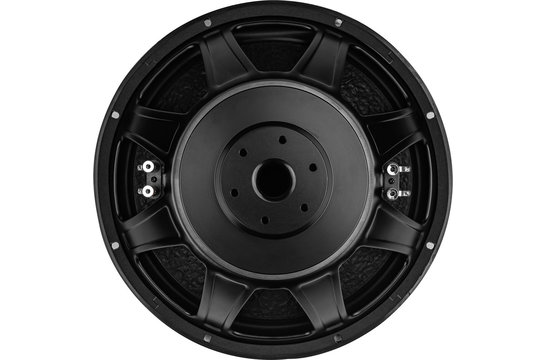

    The MX15-22 has everything it takes to move as much air as possible across the 2-1/2" voice coil to dissipate this excess heat. Six Large diameter vents in the cone combined with a flared pole piece vent creates a continuous flow of air directly through the center of the voice coil. The outside of the coil is cooled by eight under spider vents in the frame and six peripheral gap vents through the back plate. All of this airflow makes sure that power compression is kept to a minimum, but it also gives the MX15-22 extremely quiet operation even at high excursion, nearly eliminating the mechanical noise that is all to common with many of today's subwoofer drivers.



    A powerful motor for incredible flexibility

    Another common problem with many of today's budget subwoofer drivers is a lack of motor strength. This leads to drivers that are inefficient or are only capable of the "one note" bass that is the result of high Q drivers.

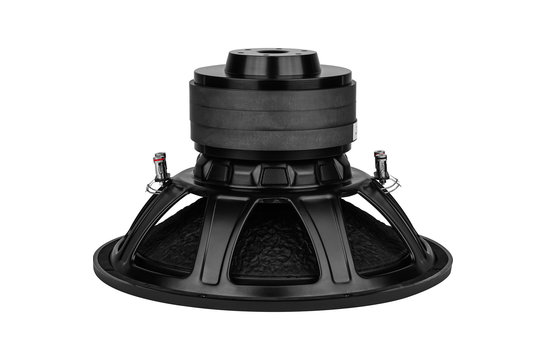

    The massive triple stacked high energy ferrite magnets have been optimized to drive the 2-1/2" voice coil efficiently with accuracy and precision. Also, the magnetic gap has been kept narrow to guarantee that there is as little loss of magnetic force as possible. This powerful motor assembly gives the MX15-22 an impressive Bl of 20.6 T/m with a Qts of 0.40, making it suitable for use in compact sealed or vented enclosures with excellent low frequency extension.

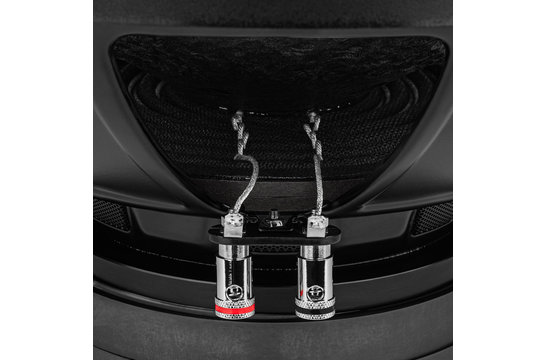

    Finally, with dual 2 ohm voice coils, the MX15-22 can be used in a number of configurations to make sure that you get maximum performance from your amplifier in almost any application. In most home audio designs the coils will be wired in series for a 4 ohm load. When used in car audio systems you have the option of running the coils separately for a dual 2 ohm load, or wired in parallel at 1 ohm to get the most power out of today's high current amplifiers.



    Maximum value to performance ratio

    Thanks to extensive optimization and advanced design, the Dayton Audio MX15-22 is a low-cost high-performance subwoofer that truly delivers incredible output capability and low distortion from compact designs. The Max-X drivers the perfect choice for building a powerful home stereo subwoofer, high SPL mobile audio system, or a sound quality based car audio system without breaking the bank.



    Note: All specifications measured with the voice coils wired in series for a 4 ohm load.

    Specificaties

    Artikelnummer
    MX15-22
    Woofer series
    Max-X
    Woofer type
    Subwoofer
    Nominale diameter
    15"
    Belastbaarheid (RMS)
    800 Watts
    Belastbaarheid (max)
    1600 Watts
    Impedantie (Z)
    4 Ohms (2 Ohms Per Coil)
    Gevoeligheid
    90.2dB 2.83V/1m
    Frequentierespons
    18 to 400Hz
    Spreekspoeldiameter
    2.5"
    Gelijkstroomweerstand (Re)
    3.99Ω
    Spreekspoelinductie (Le)
    5.51mH
    Resonantiefrequentie (Fs)
    21.7Hz
    Mechanische Q (Qms)
    4.27
    Elektrische Q (Qes)
    0.46
    Totale Q (Qts)
    0.4
    Bewegende massa (Mms)
    348g
    Compliantie van de ophanging (Cms)
    0.16mm/N
    Effectief oppervlak (Sd)
    819.8cm²
    Krachtsfactor (BL)
    20.6T·m
    Equivalentvolume (Vas)
    5.16ft³
    Maximale excursie (Xmax)
    19mm
    Cone / Diaphragm Material
    Paper / Glass Fiber
    Surroundmateriaal
    Rubber
    Mand- /framemateriaal
    Steel
    Magneetmateriaal
    Ferrite
    Totale buitendiameter
    15.42"
    Totale diepte
    9.13"
    Montagegatdiameter
    14.01"
    # Bevestigingsgaten
    8
    Diameter bevestigingsgaten
    14.65
    Gesloten volume
    2.2ft³
    Gesloten F3
    38Hz
    Gepoort volume
    3ft³
    Gepoort F3
    25Hz
