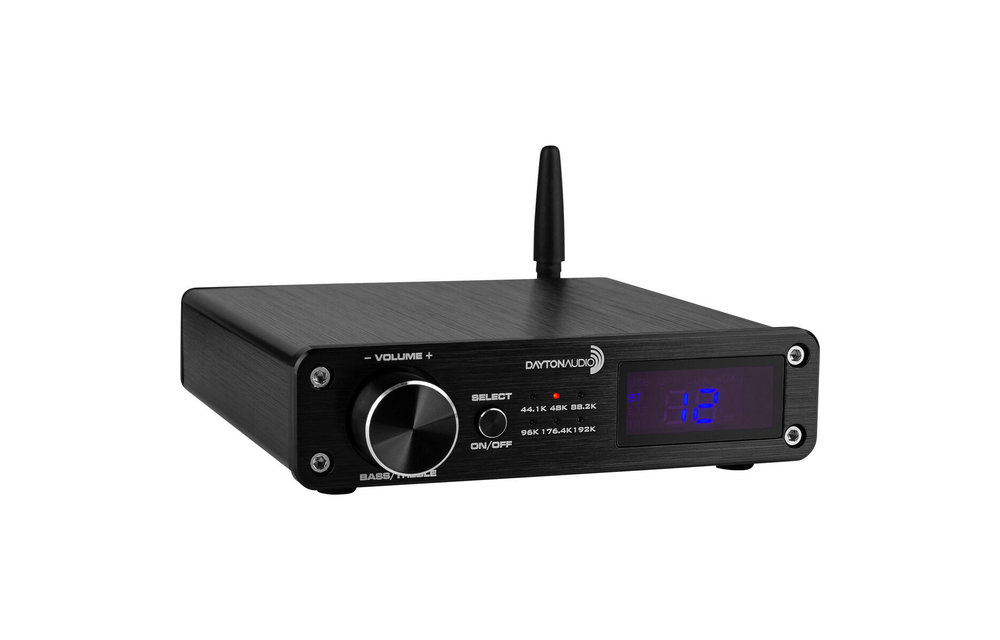

    Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

    Productomschrijving

    The Dayton Audio DTA Pro provides a rich feature set including Bluetooth, USB DAC, and even a wireless remote control. With 50 watts per channel at 4 ohms, the DTA-Pro provides enough power to run even the most demanding speakers. High efficiency paired with low THD offers up an impeccably clean, uncolored audio experience.



    Highlights

    • Powerful remote controlled amplifier and DAC all in a small package

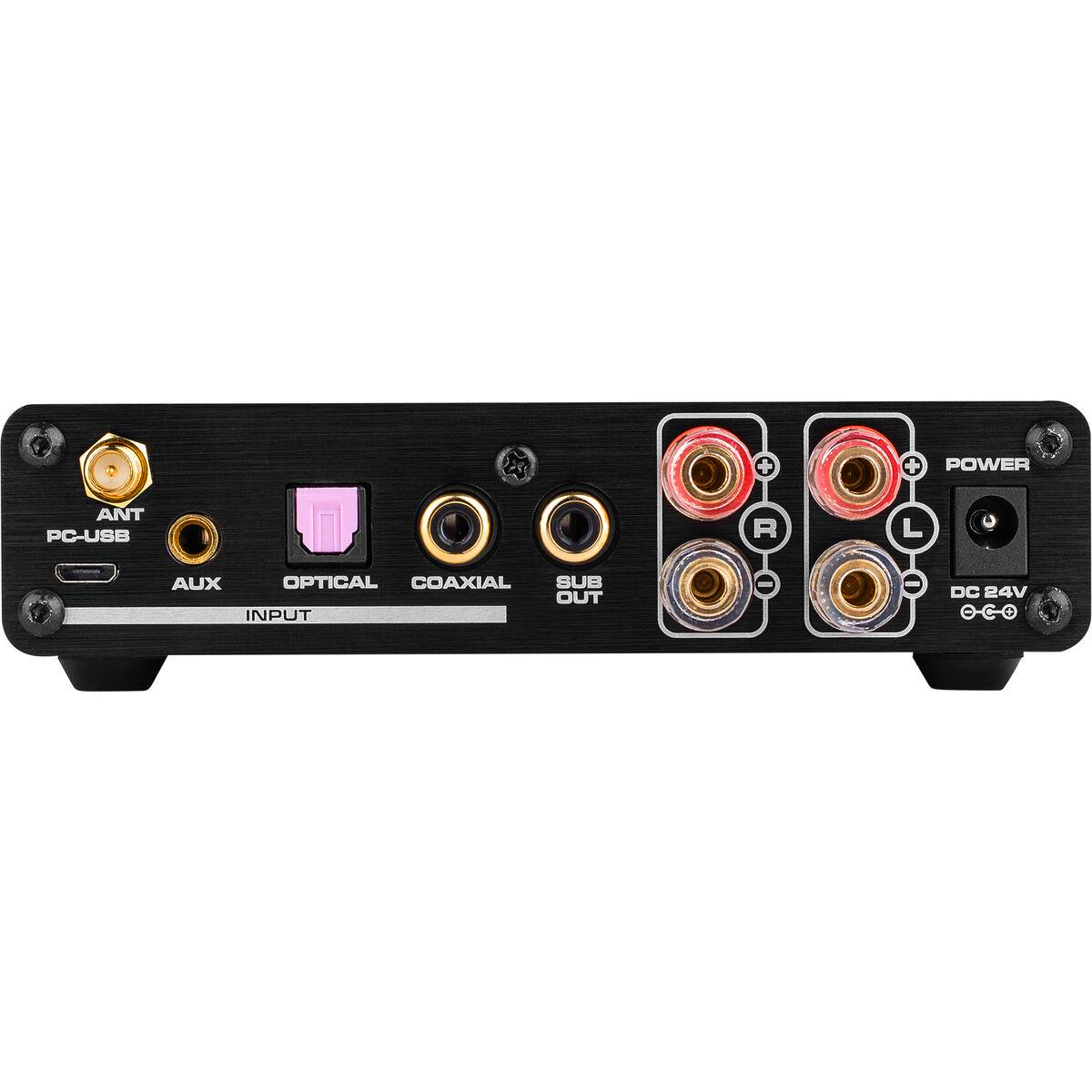

    • Several input options: Bluetooth, 3.5 mm, coaxial, optical, and USB
    • Wireless remote controls source input, EQ, and volume
    • High speed 192 kHz/24-bit DAC sampling rate





    Product details

    Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC IR Remote and Sub Output

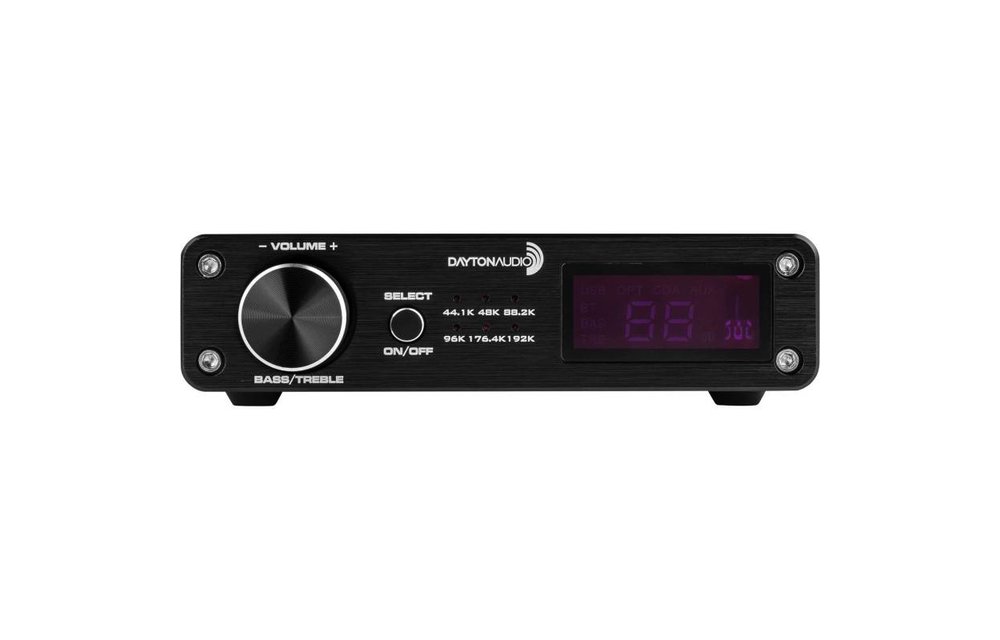

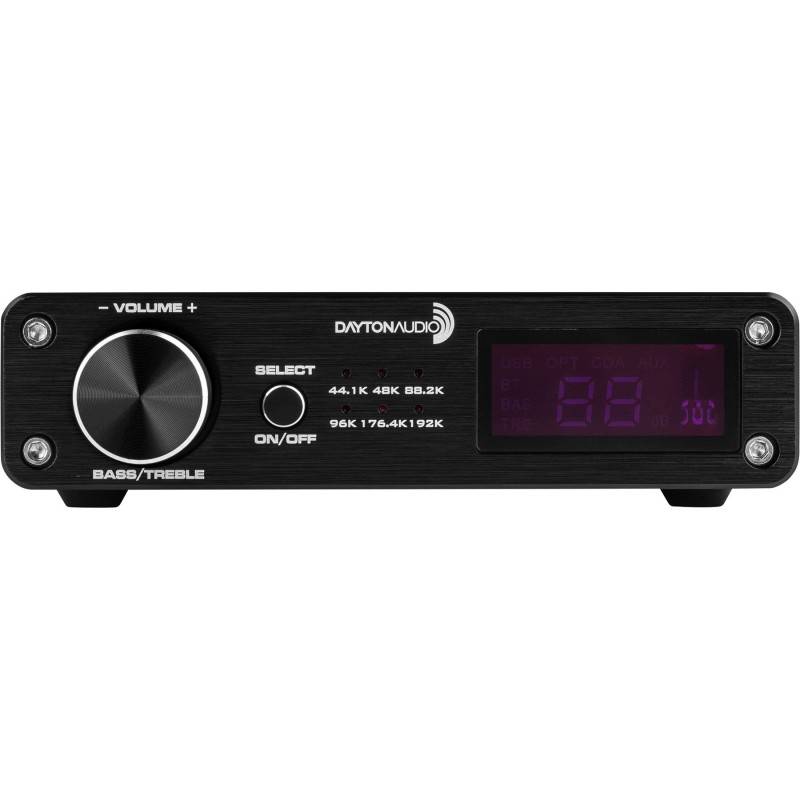

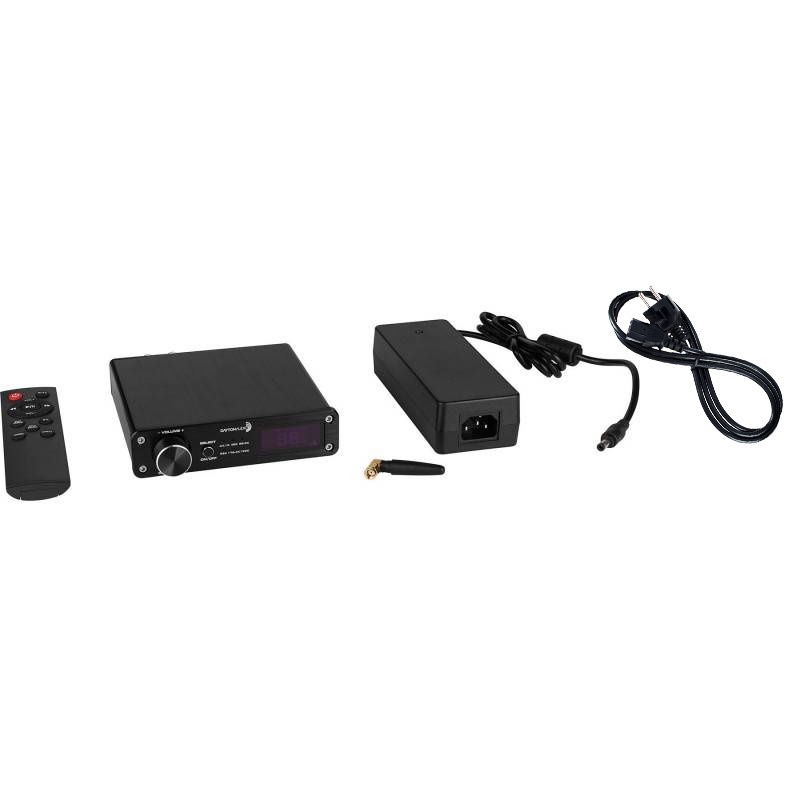

    Rediscover your favorite music with the DTA-PRO. This all-in-one amplifier starts with a refined, brushed aluminum case and fills it chock full of features. This powerful 50 watt per channel amplifier offers clean and precise sound with a number of convenient input options. For convenience and usability the DTA-PRO comes equipped with Bluetooth 4.2 with aptX. For the very best in audio quality the DTA-PRO offers an optical / coaxial input capable of 192 kHz/24-bit sampling rate. Other input methods also include USB and a 3.5mm stereo jack.

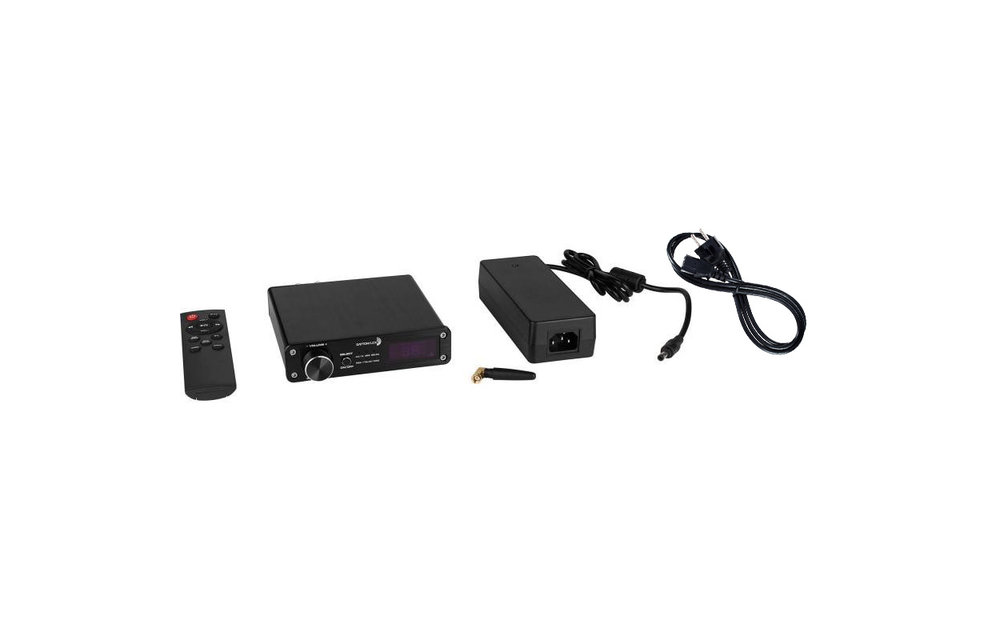

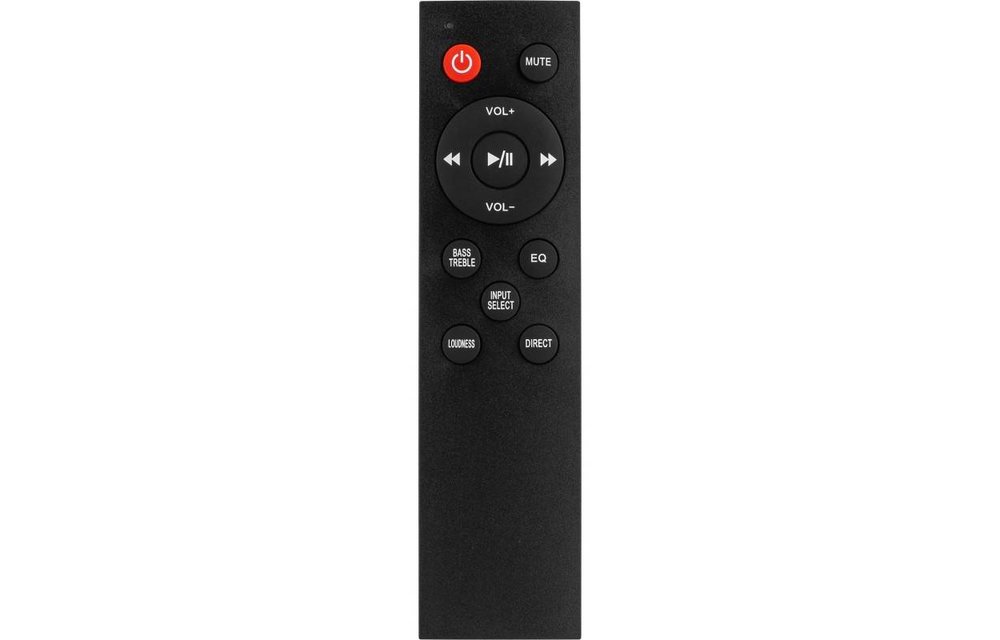

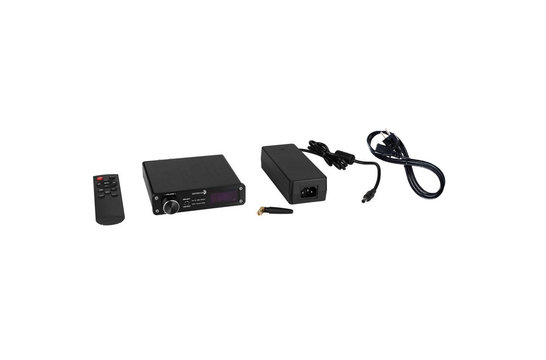

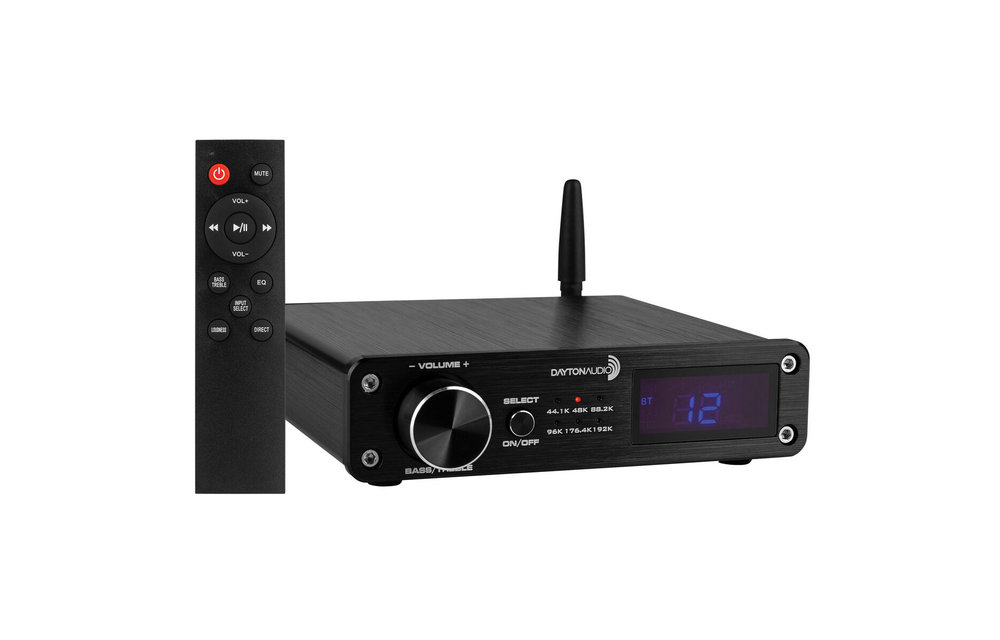

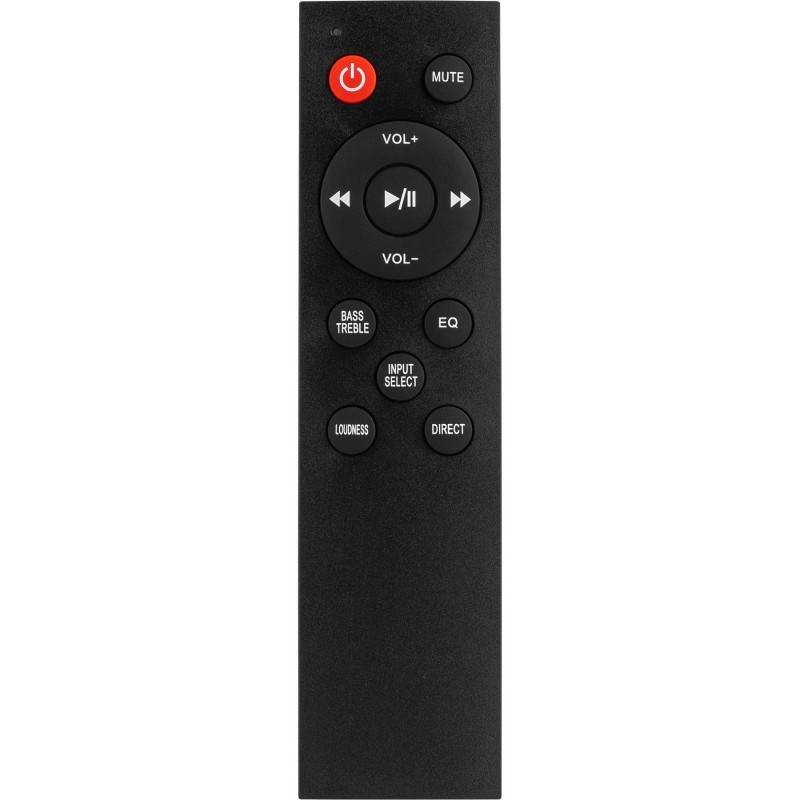

    Included with the DTA-PRO is a full function wireless remote which allows for total control over the amplifiers number of presets and features including EQ presets, bass / treble adjustment, and even track control when utilizing the Bluetooth or DAC input.



    The DTA-PRO also offers a powerful line level output for connecting a powered subwoofer. At nearly 3 VRMS the subwoofer output provides a powerful signal to give your powered subwoofer the signal it needs to really pound.



    Specifications: Power output: 2 x 50 watts @ 4 ohms • Frequency response: -1.5 dB (20 Hz-20 kHz) • THD+N: 0.09% at 100mV input • Dynamic range: 129 dB at 1 kHz • SNR: -107 dB at 1 kHz • Inputs: USB, digital optical, digital coaxial, stereo 3.5 mm, Bluetooth • Sub level: 2.7VRMS maximum • Sampling bit rate: 192 kHz/24-bit (coaxial and optical), 96 kHz/24-bit (USB) • Electrical requirement: 24V-32V • Minimum input sensitivity: 1.1V • Maximum input sensitivity: 2.5V • Channel separation: -60 dB • Efficiency: 88% • Chipset: SA9023+CS8416+TAS5342A+TAS5508C+DAC PCM1808+NE5532 •  Dimensions: 1.2" H x 5.2" W x 5" D.

    Specificaties

    Artikelnummer
    DTA-PRO
    Vermogen (RMS)
    2 x 50 Watts at 4 ohms
    Vermogen gebrugd (RMS)
    -
    Minimale belasting
    4 ohms
    Signaal-ruisverhouding (SNR)
    -107dB (at 1KHz)
    Vervorming
    0.09% at 100 mV input THD+N
    Vervorming gebrugd
    -
    Efficiëntie
    88%
    Frequentierespons
    20 - 20,000 kHz (-1.5 dB)
    Input impedance
    20 Kohms (AUX)
    Ingangsgevoeligheid
    1.1 - 2.5 V
    Inschakelgevoeligheid
    -
    DSP
    -
    DAC
    check
    Maximale sample rate

    Coaxial/optical: 192 kHz / 24 bit
    USB: 96 kHz / 24 bit

    Versterkertopologie

    SA9023, CS8416, TAS5342A, TAS5508C
    DAC PCM1808, NE5532

    Versterkerklasse
    D
    Uitgangskanalen
    2
    Subwoofer uitgangskanaal
    -
    Analoog in / uit
    -/-
    S/PDIF in / uit
    1/-
    Coaxial in / uit
    1/-
    RCA in / uit
    -/-
    AUX in / uit
    1/-
    Bus in / uit
    -/-
    XLR in / uit
    -/-
    USB
    check
    Geheugenkaartslot
    -
    Netwerkverbinding
    -
    Koptelefoonaansluiting
    -
    Subwoofer pre-out
    check
    Bluetooth
    check 4.2 aptX
    NFC
    -
    Wi-Fi
    -

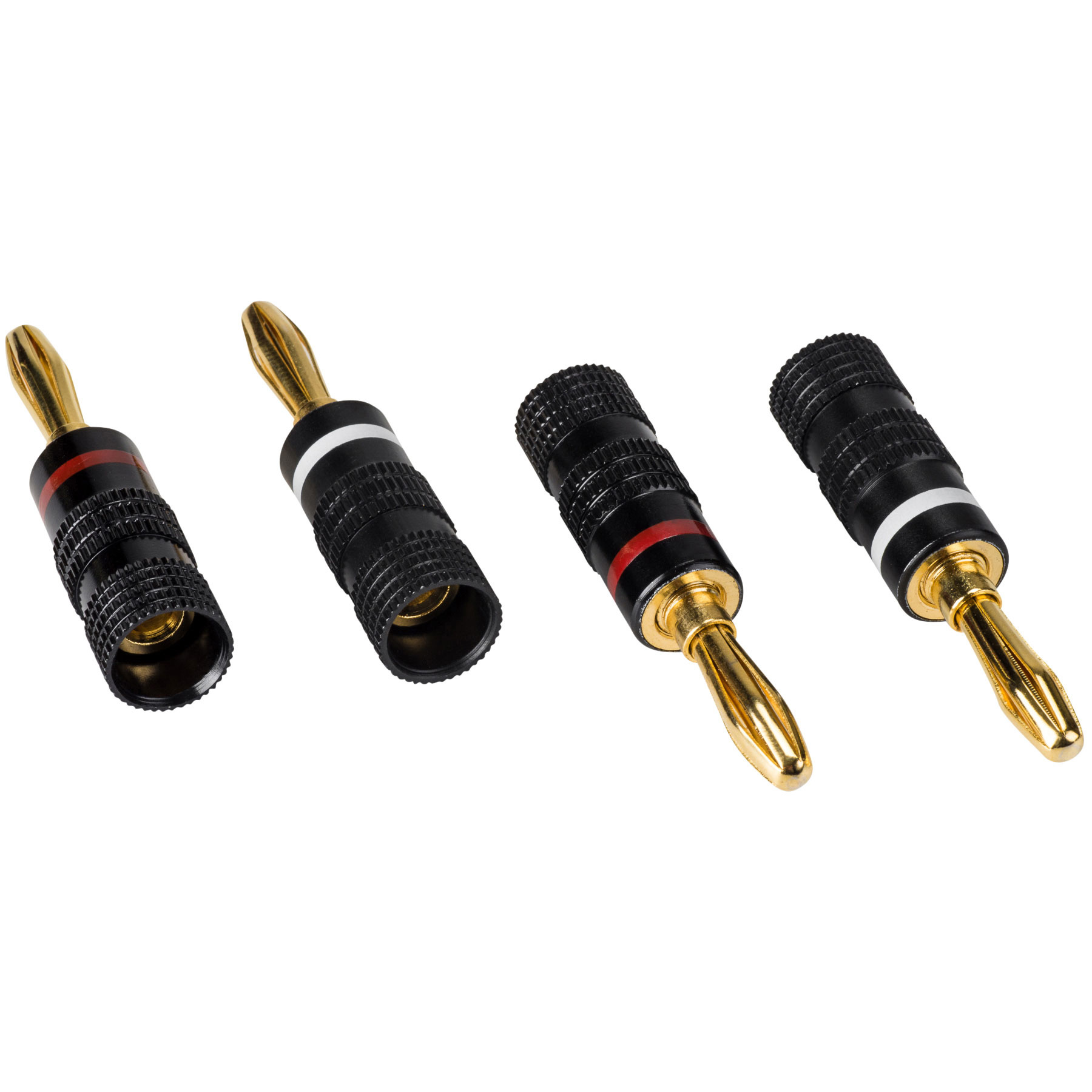

    Banaanstekker
    check
    Afstandsbediening
    check
    App-bediening
    -
    Auto aan / uit
    -
    Ondersteunde bestandsformaten
    -
    EQ-correctie
    check
    EQ-profielen
    check
    Multi zone / kamer
    -
    Instelbare kantelfrequentie
    150 Hz fixed low pass
    Brugbaar
    -
    Voedingsvereisten
    24V - 32 VDC
    Voedingsaansluiting
    DC jack
    Stroomverbruik
    -
    Standby stroomverbruik
    -
    Afmetingen (D x B x H)
    127 x 132 x 30.5 mm
    Behuizingsmateriaal
    Brushed aluminum
