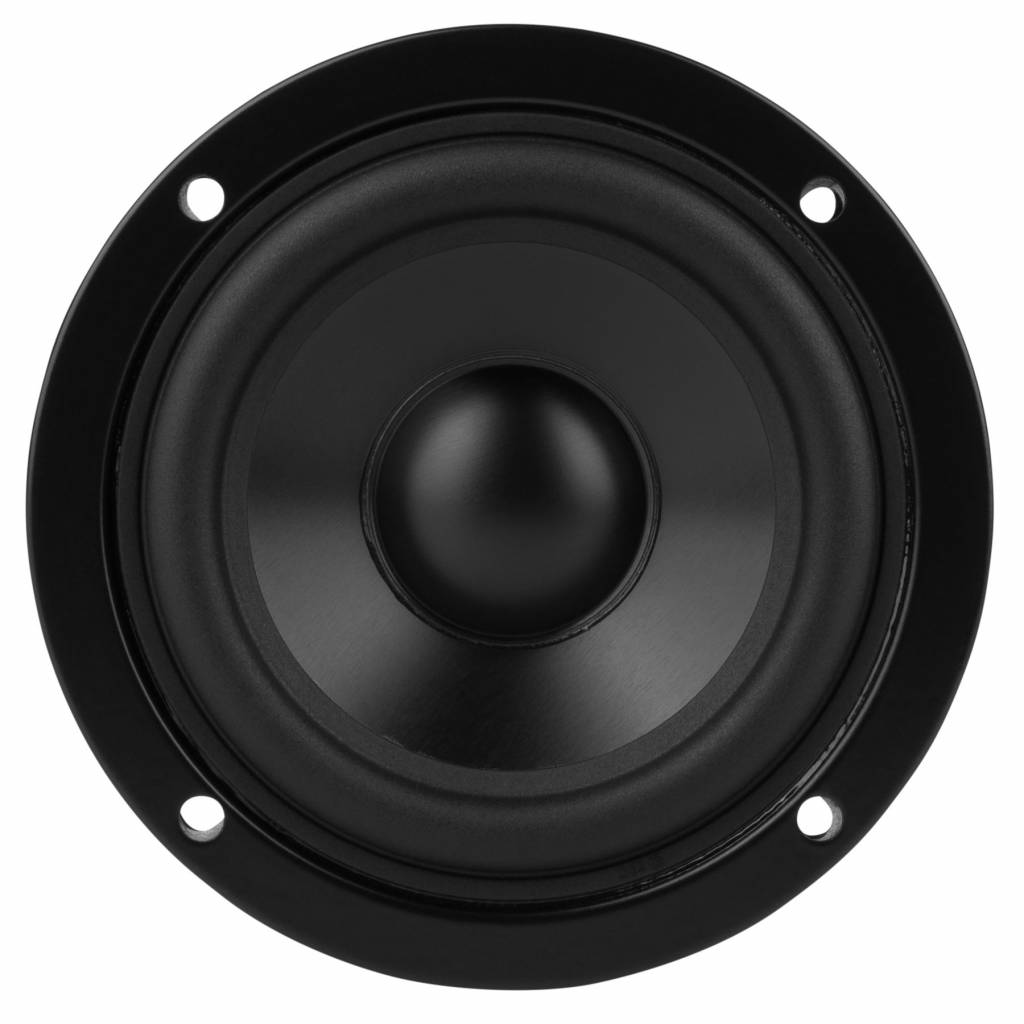

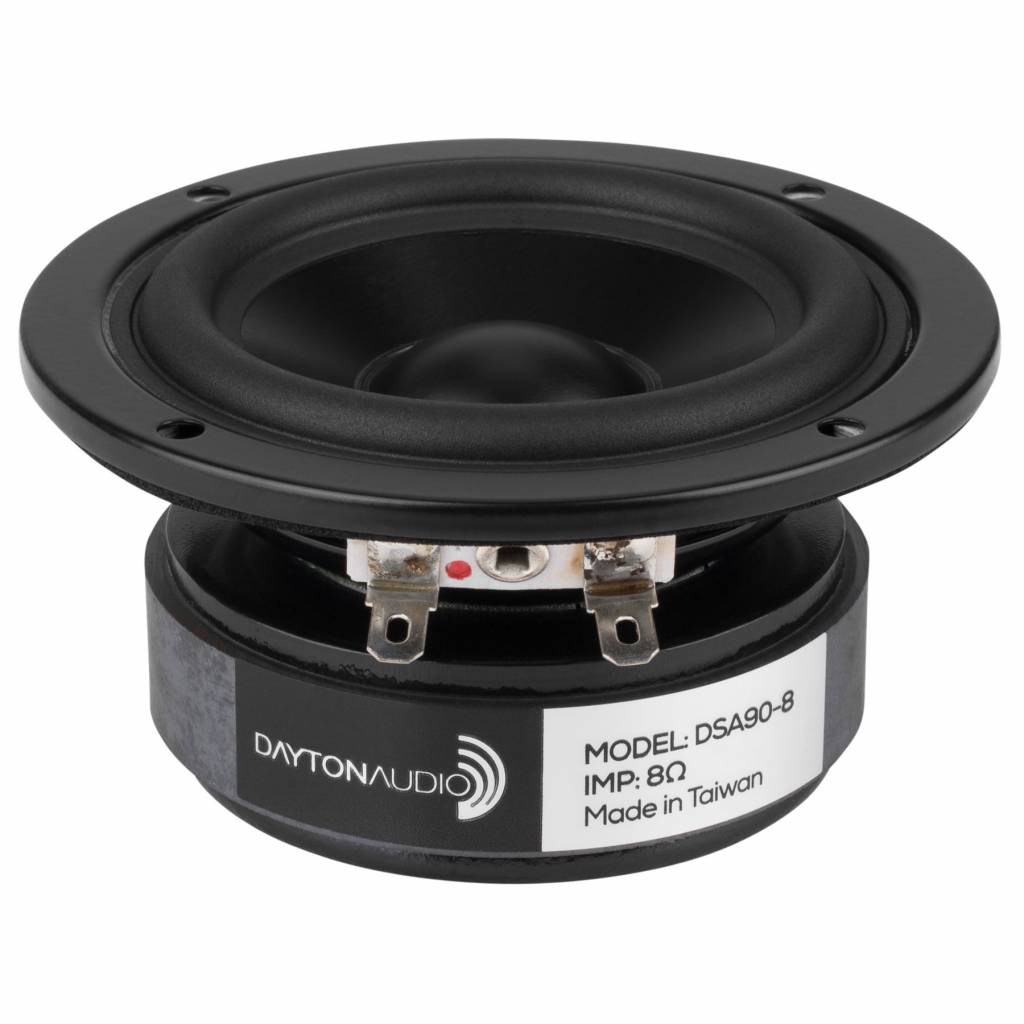

Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DSA90-8
  • Voorraad: 8 Op voorraad

The Dayton Audio Designer Series DSA90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.

€ 23,45 Incl. 21% btw

  • Bestel 4 voor €22,28 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm

The Dayton Audio Designer Series DSA90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response



Product details

Dayton Audio DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Specificaties

Specificaties voor: DSA90-8 3" Designer Series Aluminum Cone Full-Range Driver 8 Ohm

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Designer Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-Range
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 3"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 40 watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84.7 dB @ 2.83V/1m
  • Frequency Response 66 - 15,000 Hz
  • Voice Coil Diameter 20.4 mm
  • Magnet Weight 8 oz.
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 0.53 mH @ 1 kHz
  • Resonant Frequency (Fs) 66.62 Hz
  • Mechanical Q (Qms) 2.15
  • Electromagnetic Q (Qes) 0.45
  • Total Q (Qts) 0.37
  • Diaphragm Mass Inc. Airload (Mms) 3.5g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.64 mm/N
  • Surface Area of Cone (Sd) 31.2 cm²
  • Volume of Displacement (Vd) 7.8 cm³
  • BL Product (BL) 4.61 Tm
  • Compliance Equivalent Volume (Vas) 2.27 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum Cone
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 92.3 mm
  • Overall Depth 44.6 mm
  • Baffle Cutout Diameter 70 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.04 ft.³
  • Sealed F3 152 Hz
  • Vented Volume 0.05 ft.³
  • Vented F3 88 Hz
