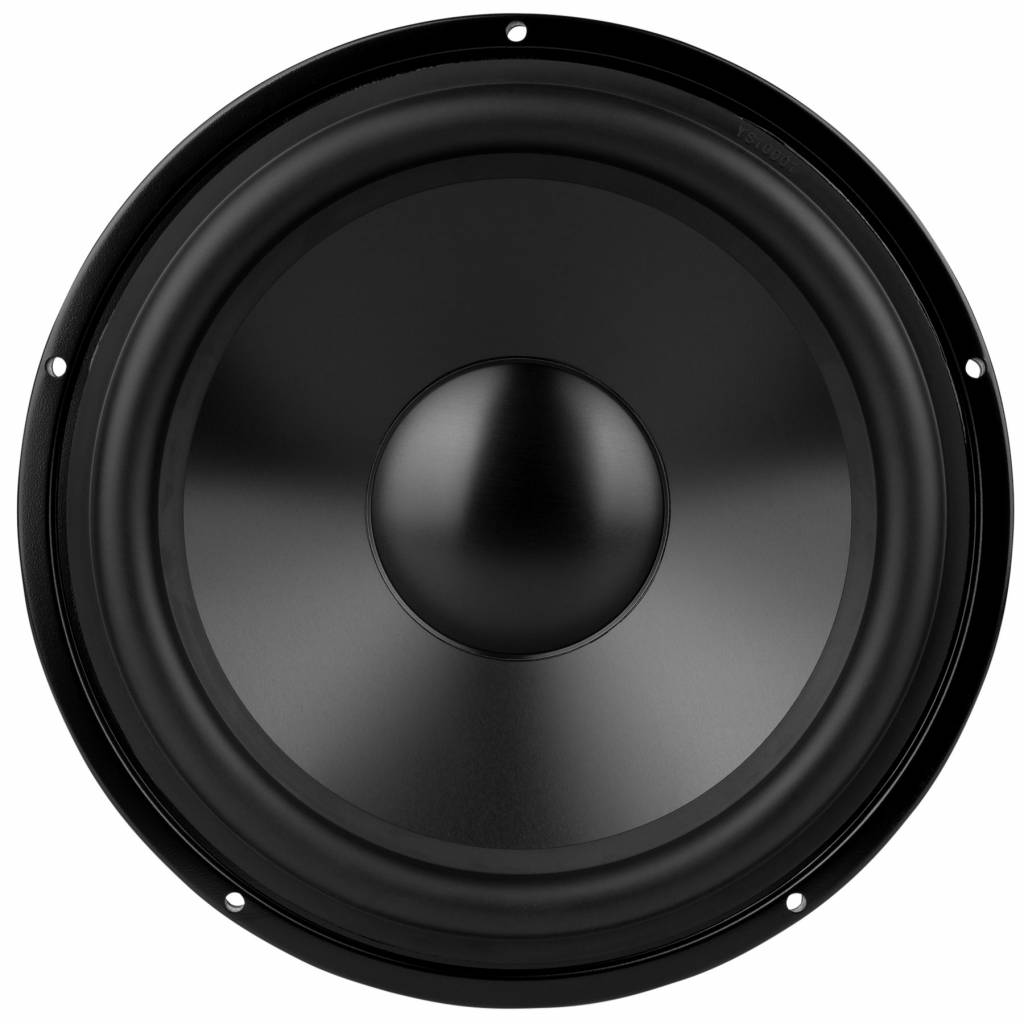

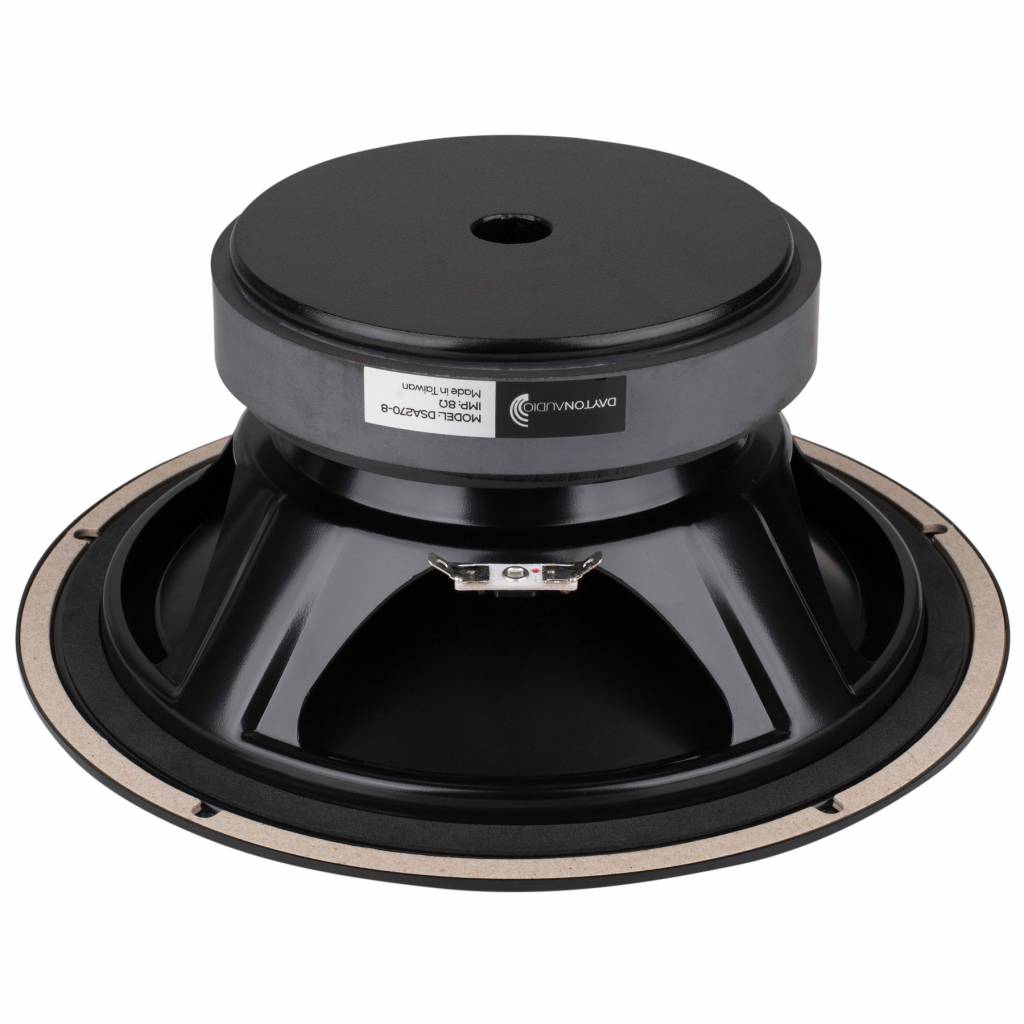

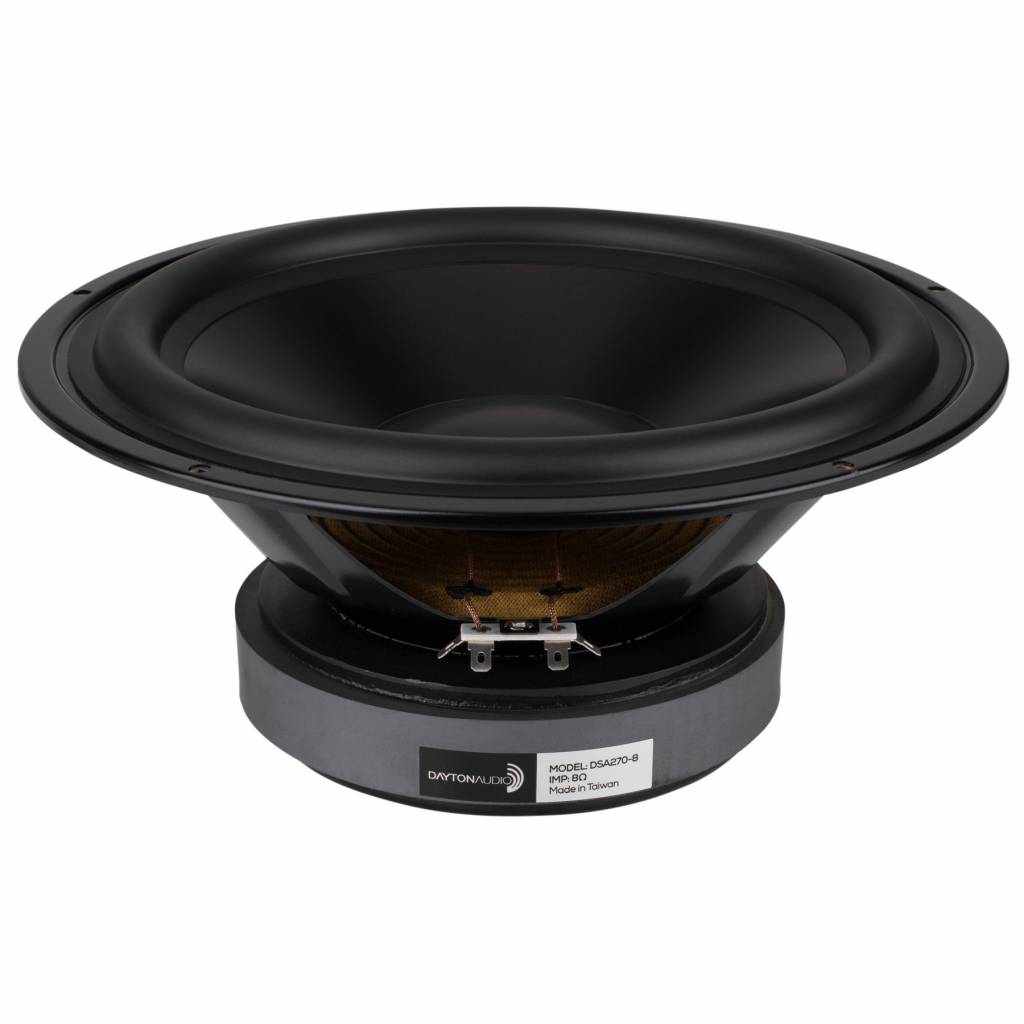

Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer

    € 92,45 >10 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €87,83 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support


    The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Low distortion motor system with copper shorting ring
    • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
    • Smooth frequency response and linear roll-off simplify filter design
    • Vented pole piece for minimized power compression and maximized reliability
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response


    Product details

    Dayton Audio DSA270-8 10" Designer Series Aluminum Cone Woofer


    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.


    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.


    Woofer Series
    Designer Series
    Woofer Type
    Nominal Diameter
    Power Handling (RMS)
    100 watts
    Power Handling (max)
    200 watts
    8 ohms
    90.4 dB @ 2.83V/1m
    Frequency Response
    29 - 6,000 Hz
    Voice Coil Diameter
    38.5 mm
    Magnet Weight
    62 oz.
    DC Resistance (Re)
    5.4 ohms
    Voice Coil Inductance (Le)
    1.07 mH @ 1 kHz
    Resonant Frequency (Fs)
    29.61 Hz
    Mechanical Q (Qms)
    Electromagnetic Q (Qes)
    Total Q (Qts)
    Diaphragm Mass Inc. Airload (Mms)
    Mechanical Compliance of Suspension (Cms)
    0.49 mm/N
    Surface Area of Cone (Sd)
    353 cm²
    Volume of Displacement (Vd)
    194.1 cm³
    BL Product (BL)
    11.2 Tm
    Compliance Equivalent Volume (Vas)
    88.1 liters
    Maximum Linear Excursion (Xmax)
    5.5 mm
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Voice Coil Wire Material
    Voice Coil Former
    Basket / Frame Material
    Magnet Material
    Overall Outside Diameter
    270 mm
    Overall Depth
    112 mm
    Baffle Cutout Diameter
    227 mm
    # Mounting Holes
    Sealed F3
    65 Hz
    Vented Volume
    2.13 ft.³
    Vented F3
    37 Hz


    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Met de Specs van deze luidspreker in de juiste kast en aan deze prijs, zeker een aanrader. Verwacht uiteraard geen highend ,maar doet prima zijn ding.
    Door Frank C. on 26 November 2020
