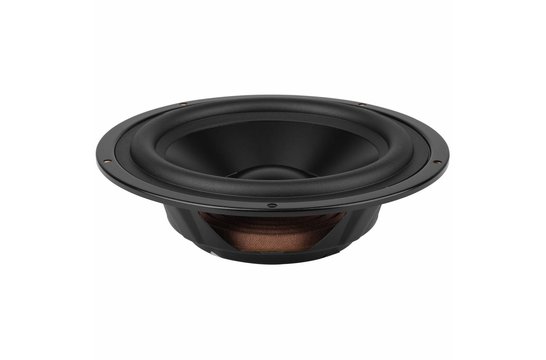

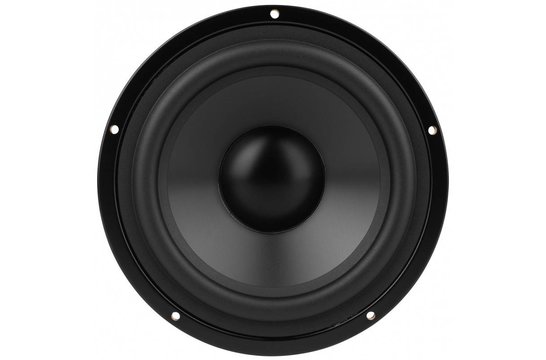

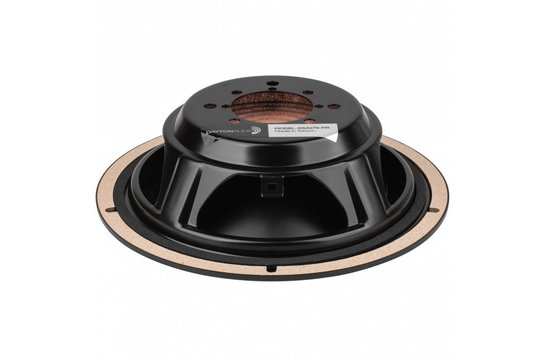

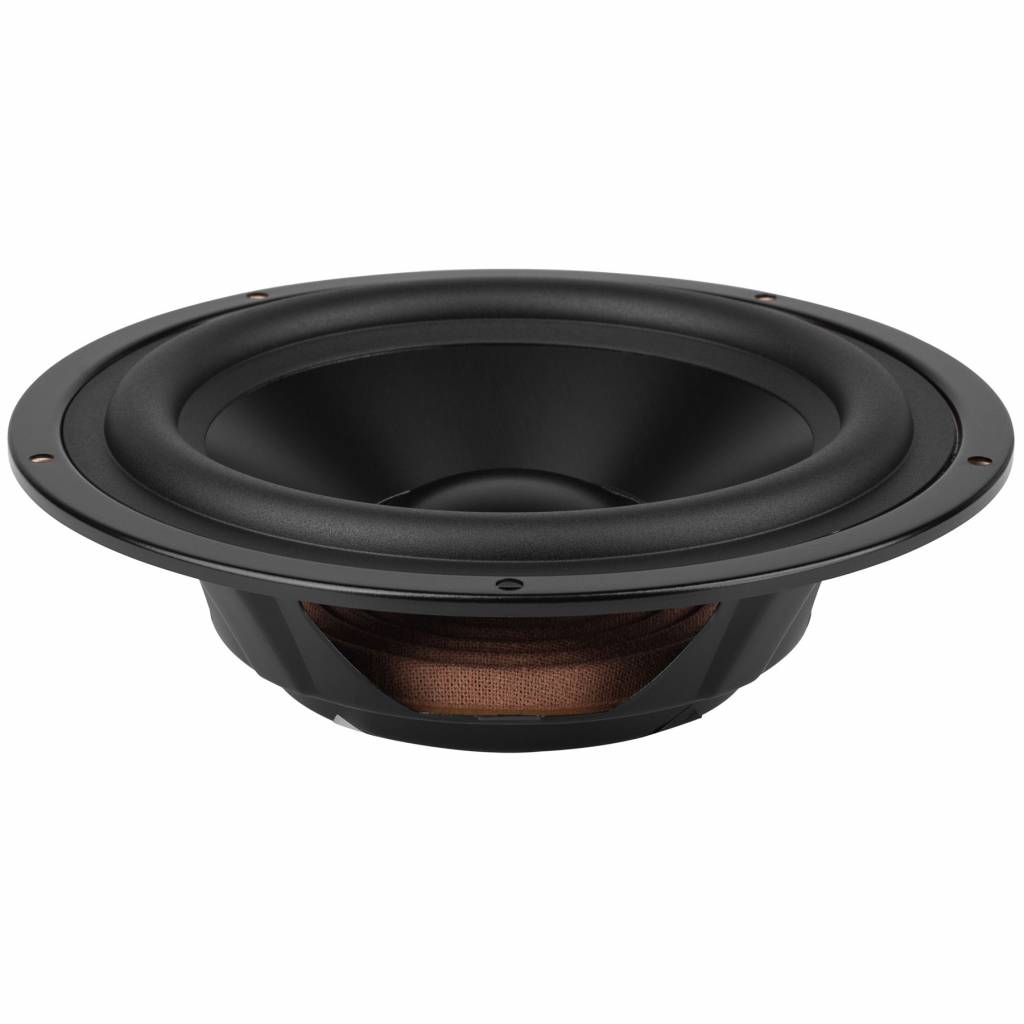

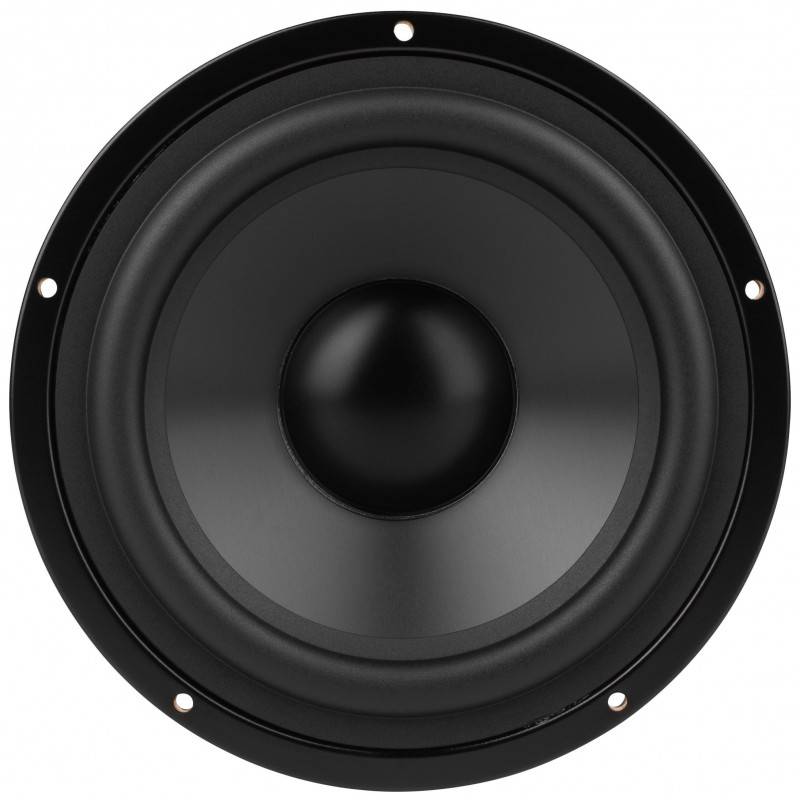

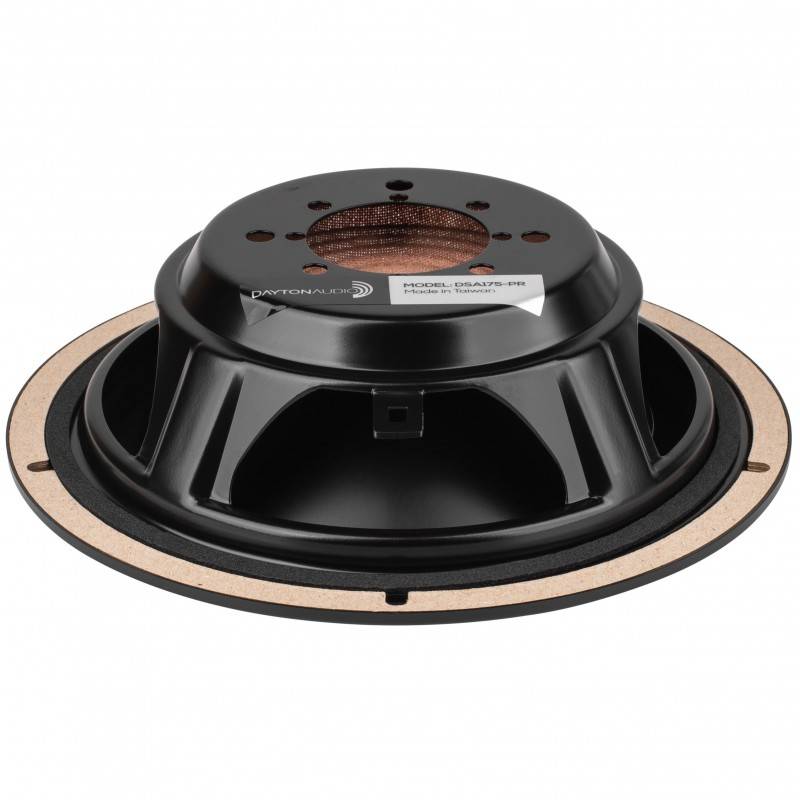

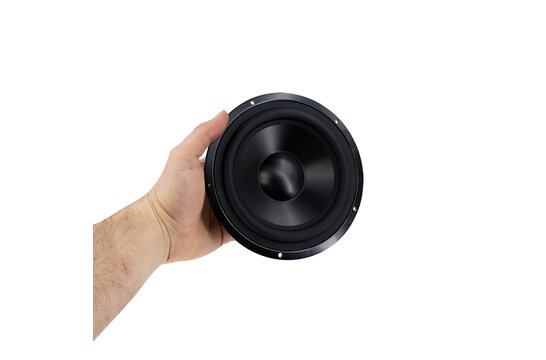

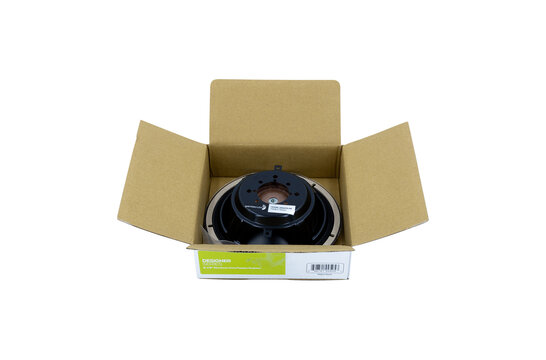

        Designer DSA175-PR Passive Radiator

        Dayton Audio Designer DSA175-PR Passive Radiator

        €28,95

        2 verwacht op 20-11-2026

        Toevoegen aan winkelwagen

        Dayton Audio Designer DSA175-PR Passive Radiator

        4 klantbeoordelingen
        5 van 5
        4 klantbeoordelingen
        5 sterren
        75%
        4 sterren
        25%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Dayton Audio
        passive | 6.5"
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        € 23,93€ 28,95 Niet op voorraad2 verwacht op 20-11-2026
        • -5% Bestel 4 voor slechts € 27,50 per stuk
        € 28,95
        +-
        Toevoegen aan winkelwagen
        🔒 Veilig betalen
        iDEALBancontactMastercardBank TransferApple PayGoogle Paypaypal

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator
        Designer DSA175-PR Passive Radiator

        Productomschrijving Dayton Audio Designer DSA175-PR Passive Radiator

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



        Highlights

        • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
        • Allows tuning small enclosures lower than using conventional ports
        • Rear mounted screw allows easy mass adjustment for custom tuning
        • Cosmetic frame edge looks great even when surface mounted



        Product details

        Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

        The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems.



        Specifications: • Fs: 26.8 Hz • Vas: 0.95 cu. ft. • Qms: 4.30 • Cms: 1.15 mm/N • Rms: 1.2 kg/s • Mms: 30.7 g • Sd: 128.7 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 6.91", Cutout diameter: 5.67", Depth: 1.85".



        Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

        Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

        To calculate Vd: Sd x Xmax = Vd

        Toon meer

        Specificaties

        Artikelnummer
        DSA175-PR
        EAN
        0848791005053
        Woofer series
        Dayton Audio Designer series
        Woofer type
        Passive Radiator
        Nominale diameter
        6.5"
        Belastbaarheid (RMS)
        100 Watt
        Continuous Program Power
        200 Watt
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        92 dB
        Frequentierespons
        30 - 5000 Hz
        Spreekspoeldiameter
        50 mm
        Gelijkstroomweerstand (Re)
        6.5 Ω
        Spreekspoelinductie (Le)
        1.14 mH
        Resonantiefrequentie (Fs)
        26.8 Hz
        Mechanische Q (Qms)
        4.3
        Totale Q (Qts)
        0.39
        Bewegende massa (Mms)
        30.7 g
        Compliantie van de ophanging (Cms)
        1.15 mm/N
        Effectief oppervlak (Sd)
        128.7 cm²
        Maximaal verplaatst volume (Vd)
        103 cm³
        Equivalentvolume (Vas)
        26.9 L
        Maximale excursie (Xmax)
        8 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        175.51 mm
        Totale diepte
        46.99 mm
        Montagegatdiameter
        144.02 mm
        Bolt Circle Diameter
        6.54"
        # Bevestigingsgaten
        5
        Diameter bevestigingsgaten
        6.0 mm

        Toon meer

        Reviews

        4 klantbeoordelingen
        Schrijf een review
        5 van 5
        Schöner tiefer Spielpartner für einen 5.25er SLS von Peerless by T. in 12 Litern.
        Door Florian on 17 Juni 2025
        4 van 5
        Products (Dayton Audio passive radiators 6.5'') seems to be of good quality. I had some problems of delivery and it took too much time and that's why I gave ****stars.
        Door Juha on 7 Maart 2024
