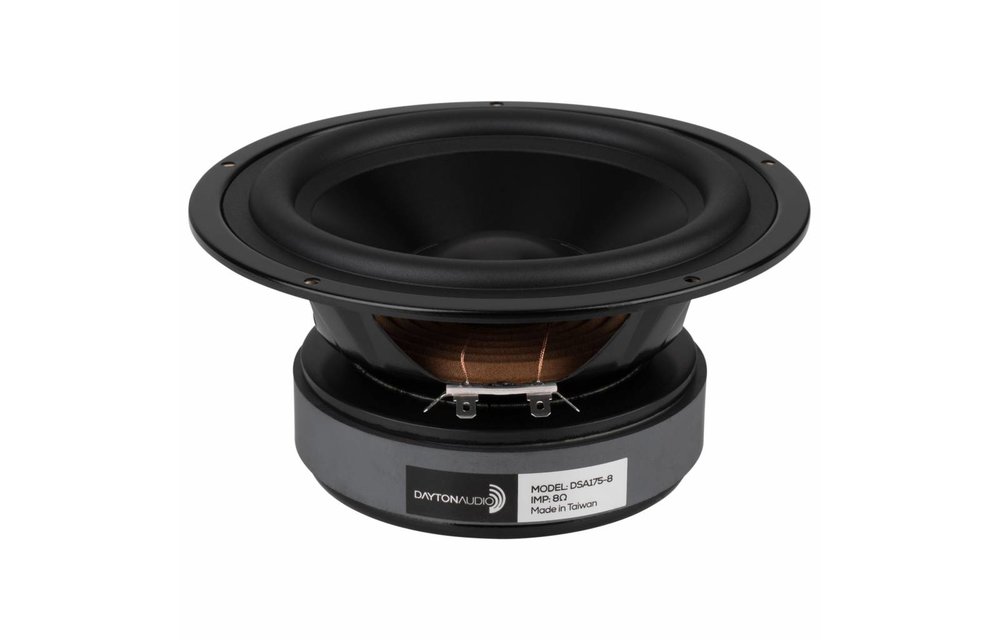

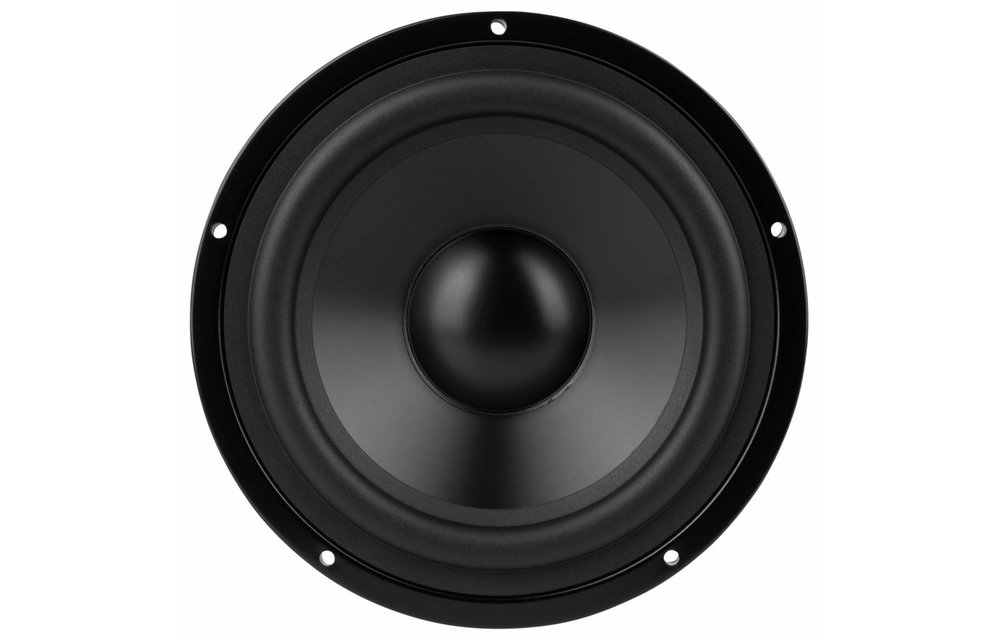

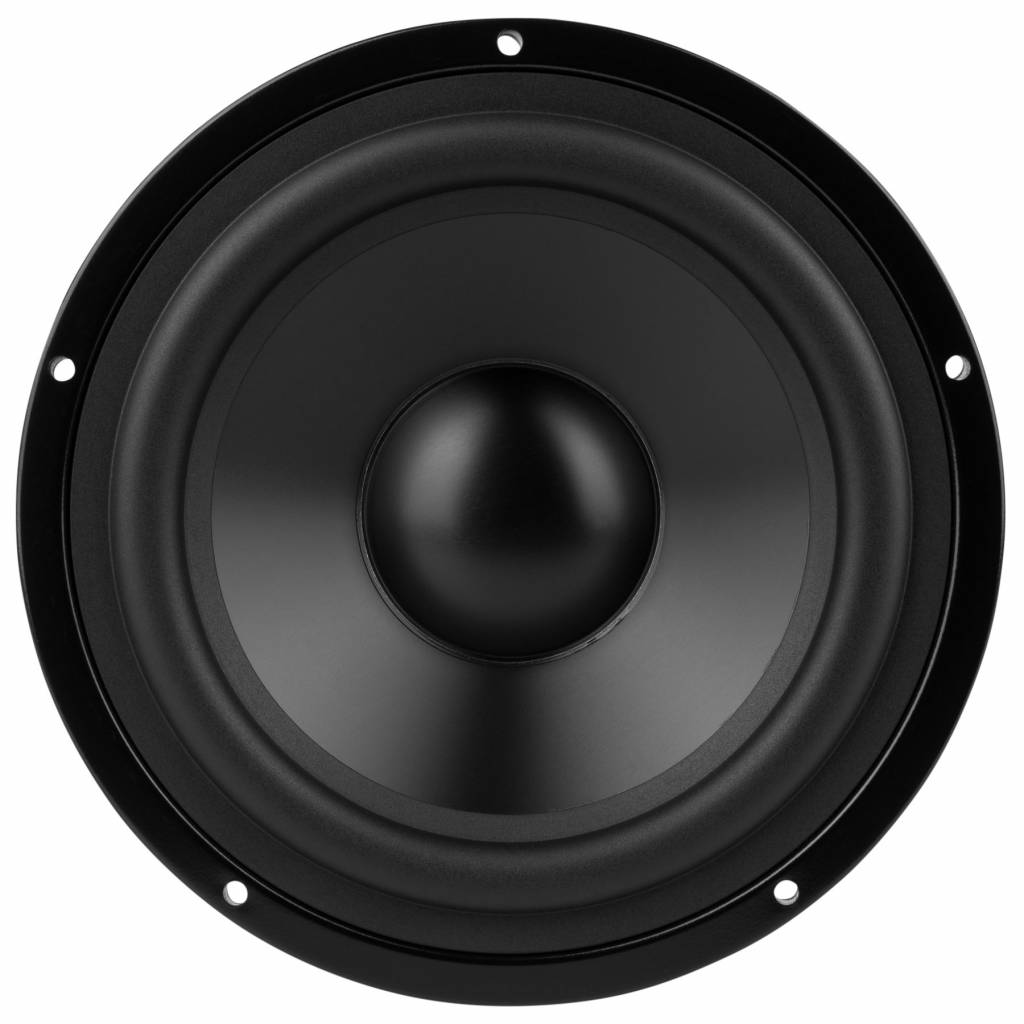

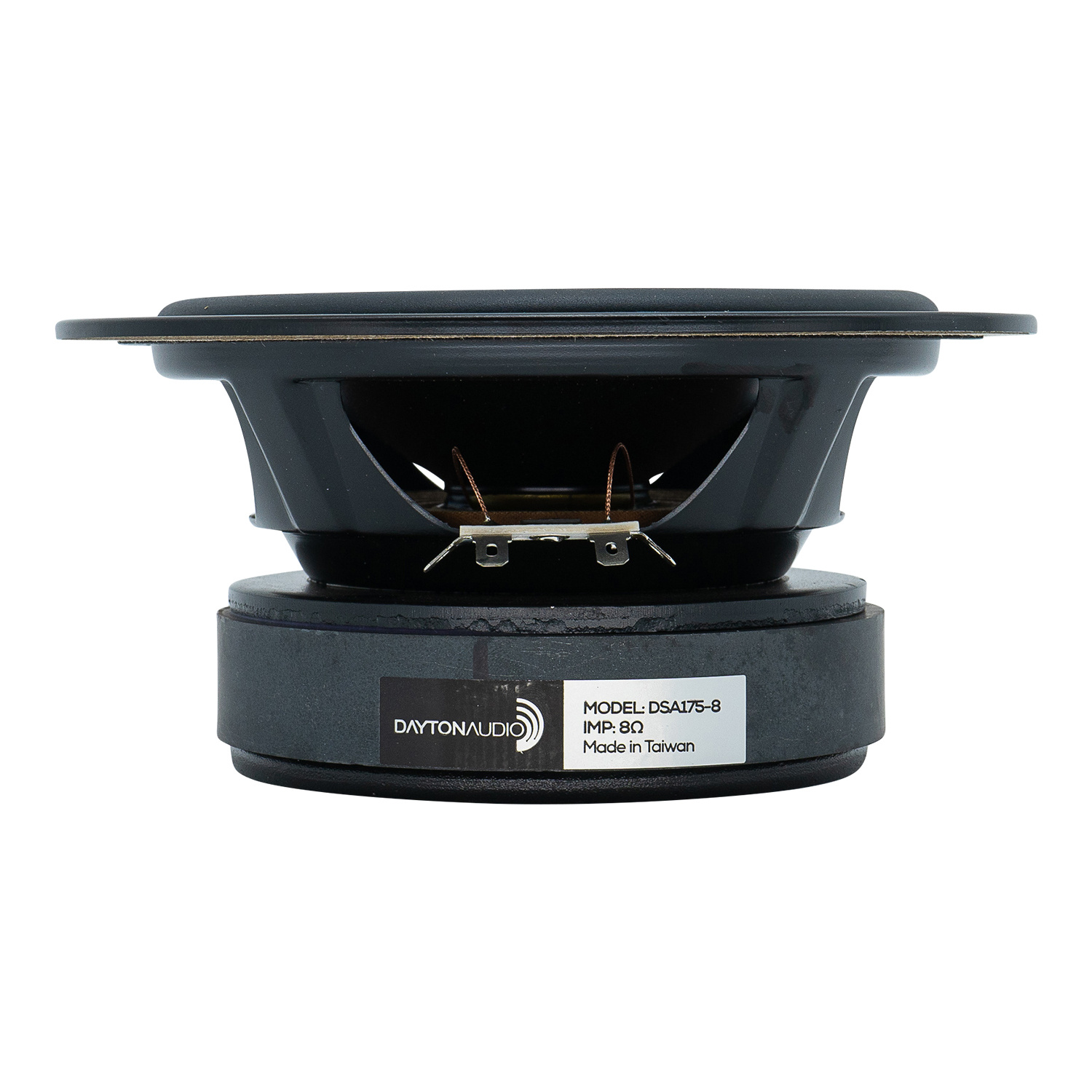

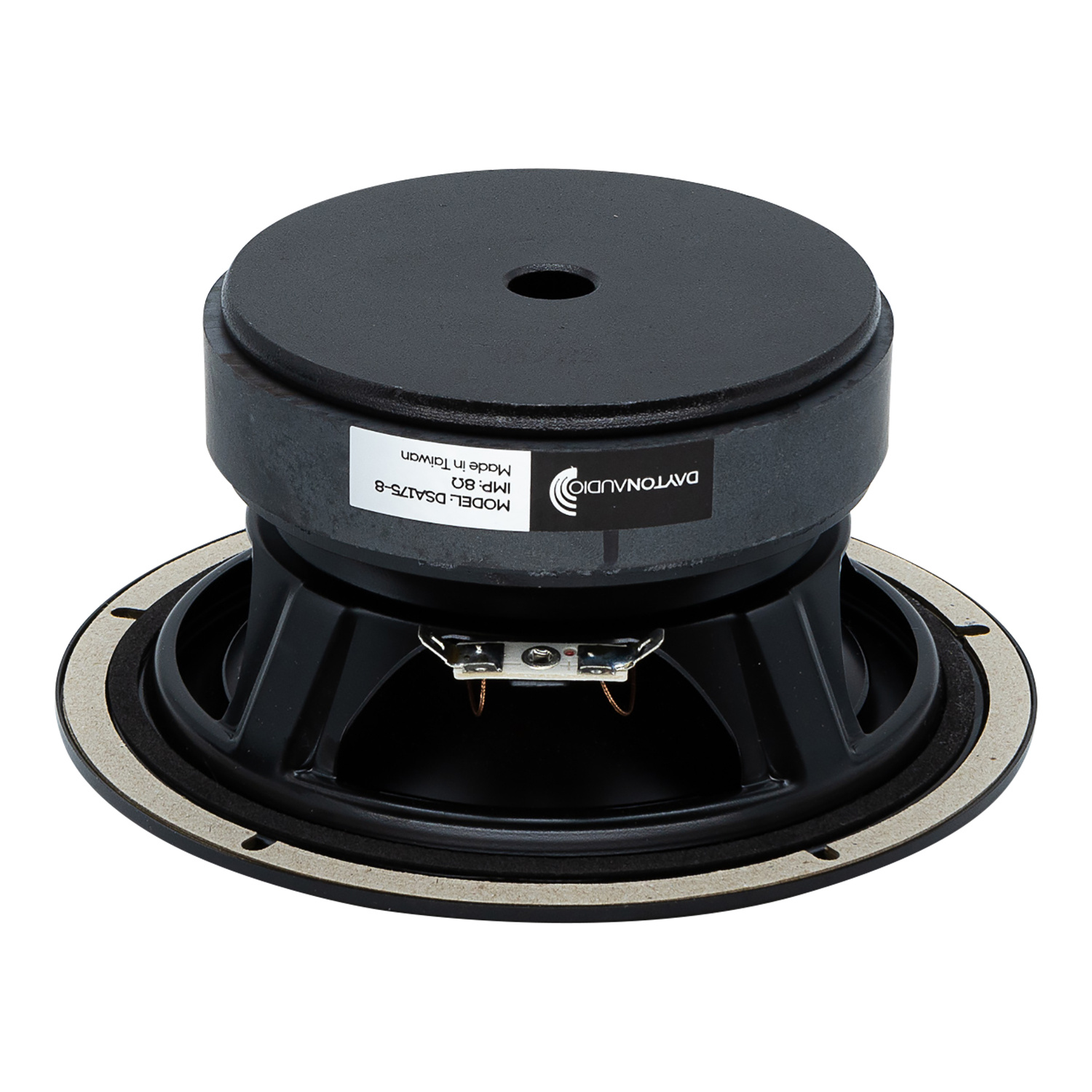

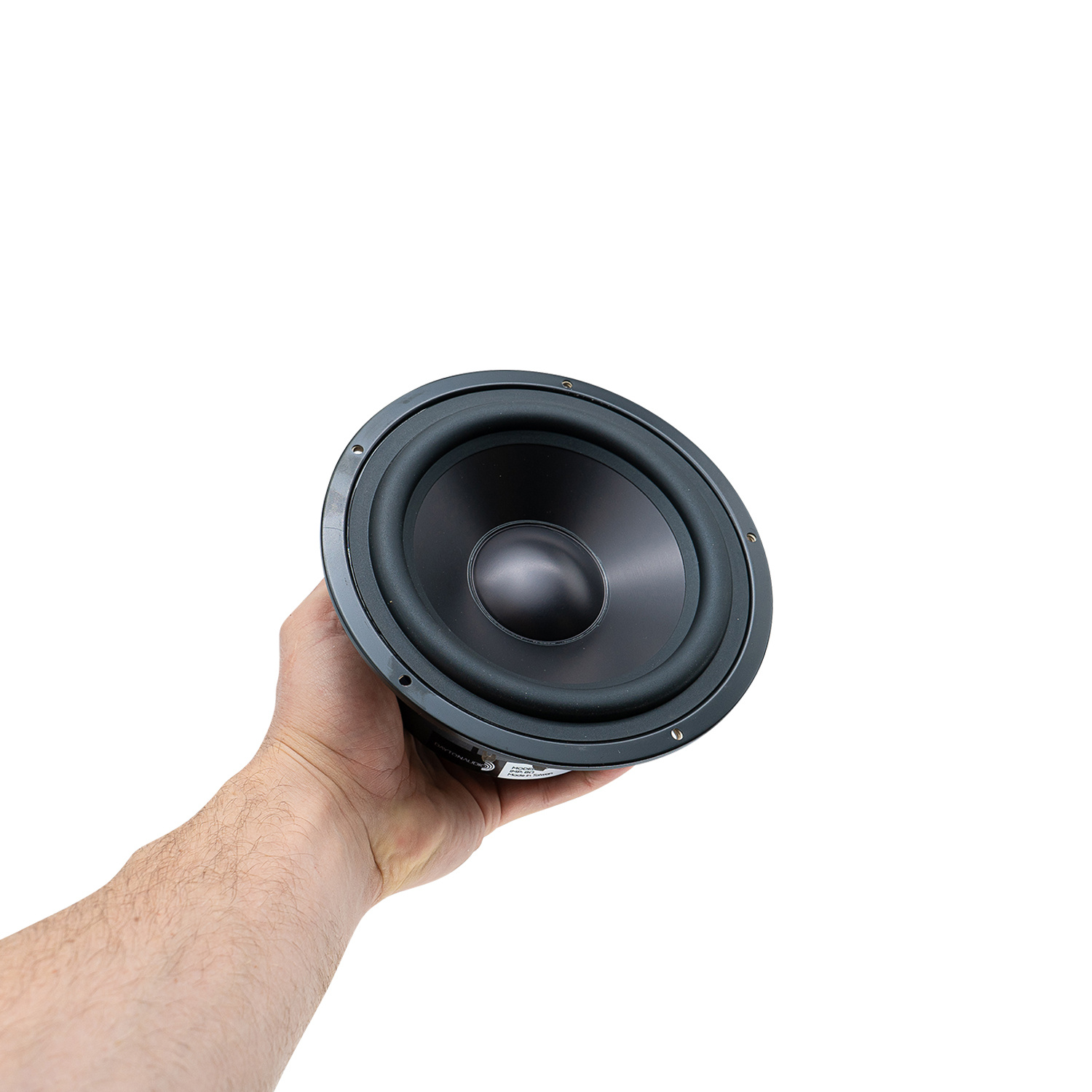

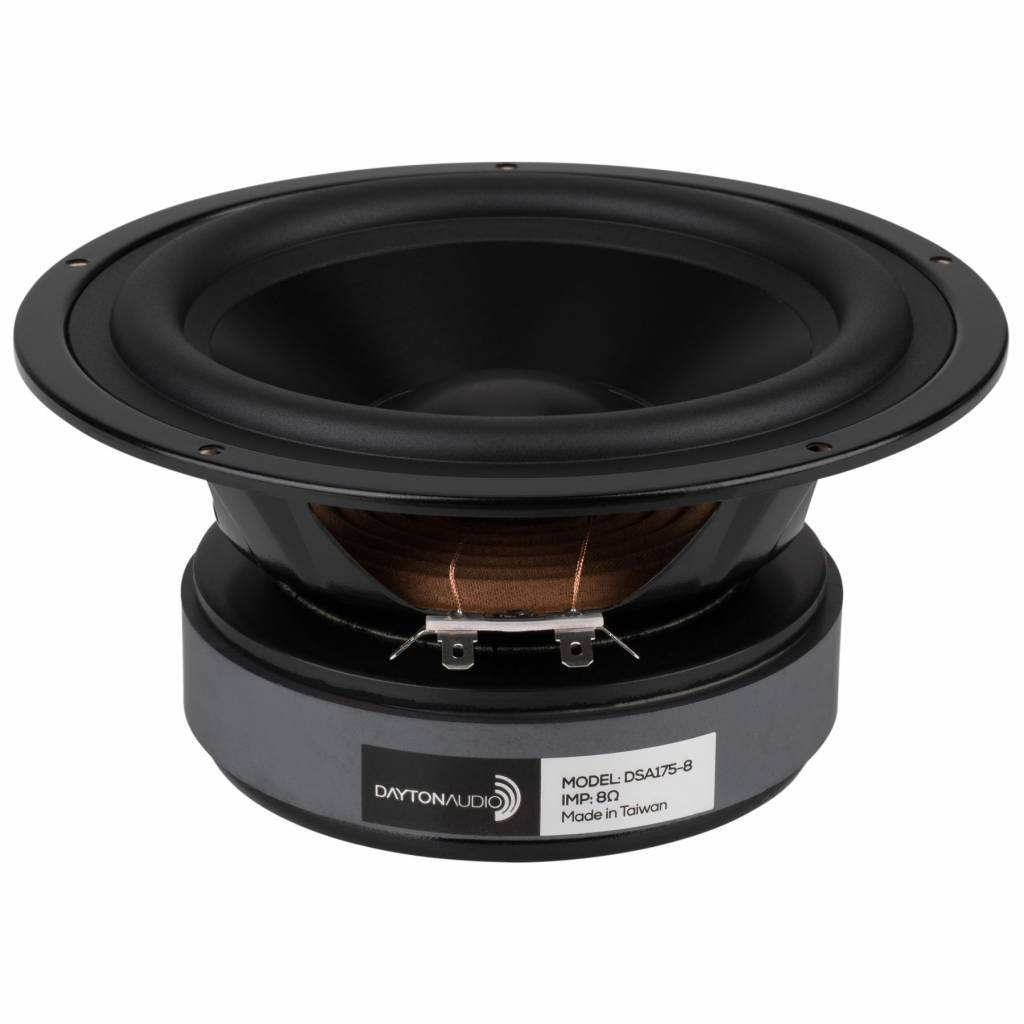

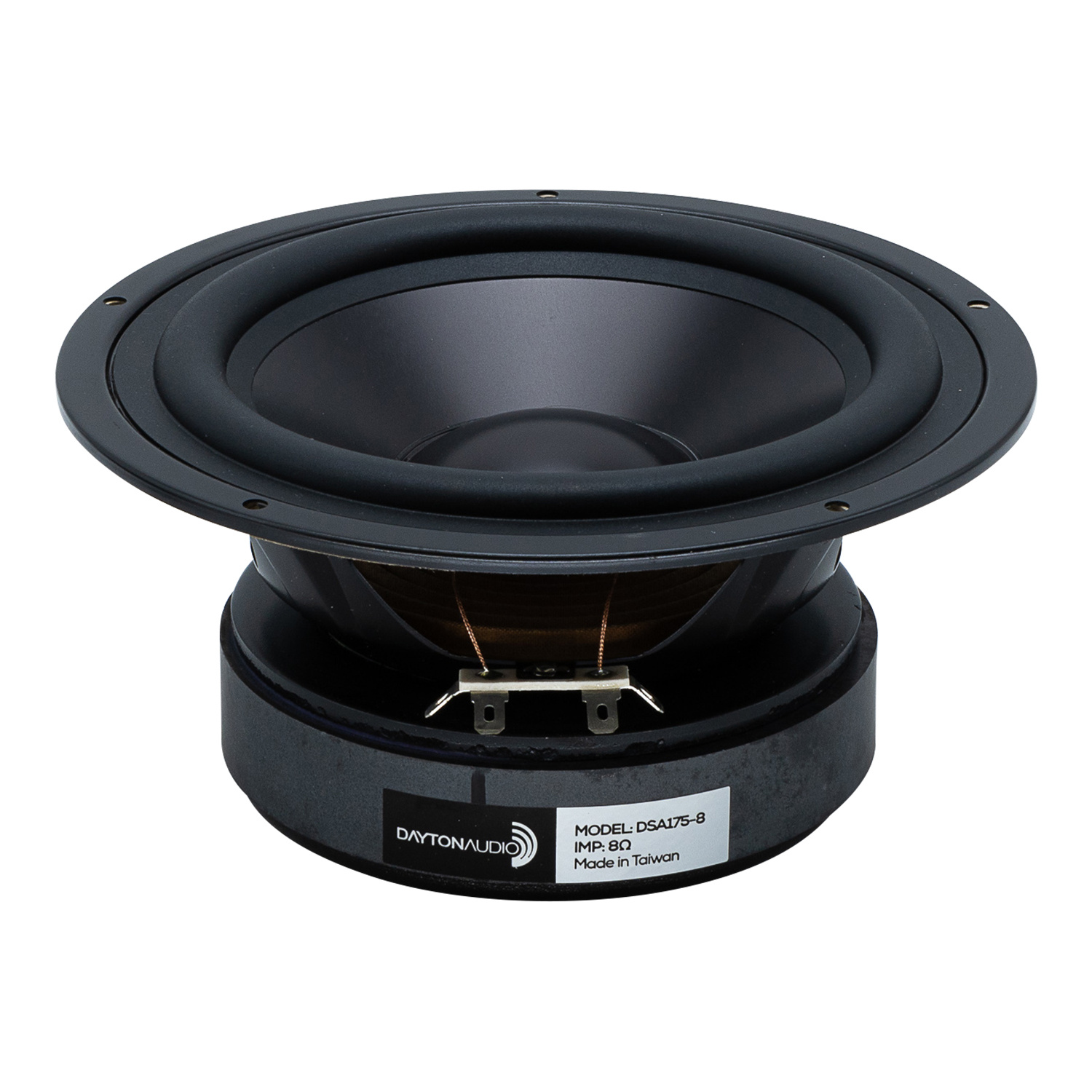

    Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

    € 48,45 Niet op voorraad: 3-6 weken levertijd
    Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €46,03 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!



    Highlights

    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Low distortion motor system with copper shorting ring
    • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
    • Smooth frequency response and linear roll-off simplify filter design
    • Vented pole piece for minimized power compression and maximized reliability
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response



    Product details

    Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer



    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

    Specificaties

    Artikelnummer
    DSA175-8
    Woofer Series
    Designer Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.50"
    Power Handling (RMS)
    70 watts
    Power Handling (max)
    140 watts
    Impedance
    8 ohms
    Sensitivity
    88.1 dB @ 2.83V/1m
    Frequency Response
    38 - 7,500 Hz
    Voice Coil Diameter
    35.5 mm
    Magnet Weight
    33 oz.
    DC Resistance (Re)
    5.8 ohms
    Voice Coil Inductance (Le)
    0.85 mH @ 1 kHz
    Resonant Frequency (Fs)
    38.36 Hz
    Mechanical Q (Qms)
    1.66
    Electromagnetic Q (Qes)
    0.35
    Total Q (Qts)
    0.29
    Diaphragm Mass Inc. Airload (Mms)
    24.2g
    Mechanical Compliance of Suspension (Cms)
    0.71 mm/N
    Surface Area of Cone (Sd)
    128.7 cm²
    Volume of Displacement (Vd)
    67.6 cm³
    BL Product (BL)
    9.75 Tm
    Compliance Equivalent Volume (Vas)
    18.7 liters
    Maximum Linear Excursion (Xmax)
    5.3 mm
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    175.6 mm
    Overall Depth
    80.6 mm
    Baffle Cutout Diameter
    144 mm
    # Mounting Holes
    5
    Sealed Volume
    0.17 ft.³
    Sealed F3
    112 Hz
    Vented Volume
    0.19 ft.³
    Vented F3
    71 Hz

    Reviews

    5 from 5Based on 5 reviews
    Schrijf een review
    5 van 5
    Es wurde keine Beschreibung gegeben.
    Door Martin I. on 7 April 2021
    5 van 5
    This mid/bass unit was used in a two way speaker combo. 22 wide 33 height and 35 deep.
    Previous was used a Fenton audio unit which I felt 'moved' to slowly and great steps had to taken in order to get a nice low end. The Dayton audio didn't require any it moves fast and is really really smooth. Great value for money. But it requires good quality crossover parts then it will shine. It will play beautiful with sand-cast resistor and electrolytic caps but gives it some mundorf and it will shine.
    Door Anders J. on 23 December 2020
