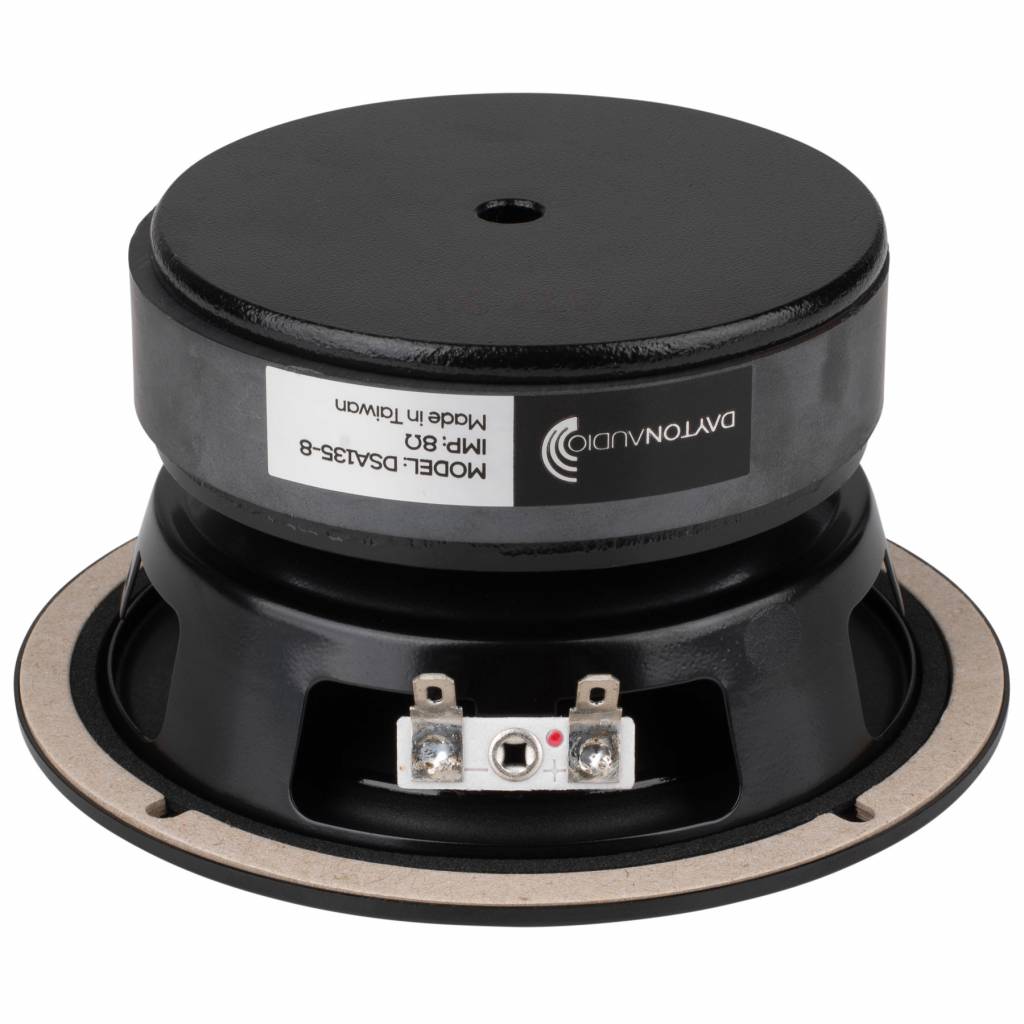

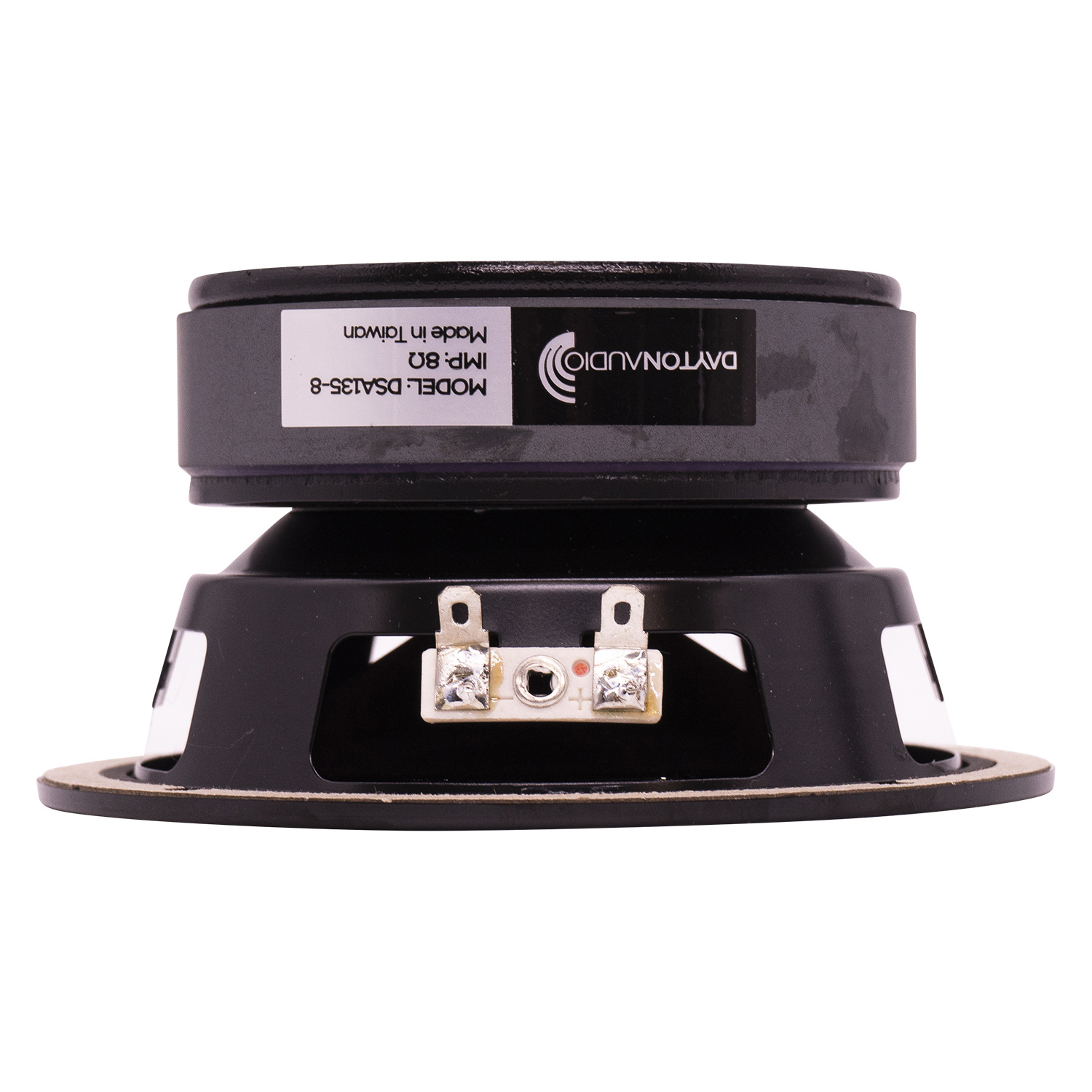

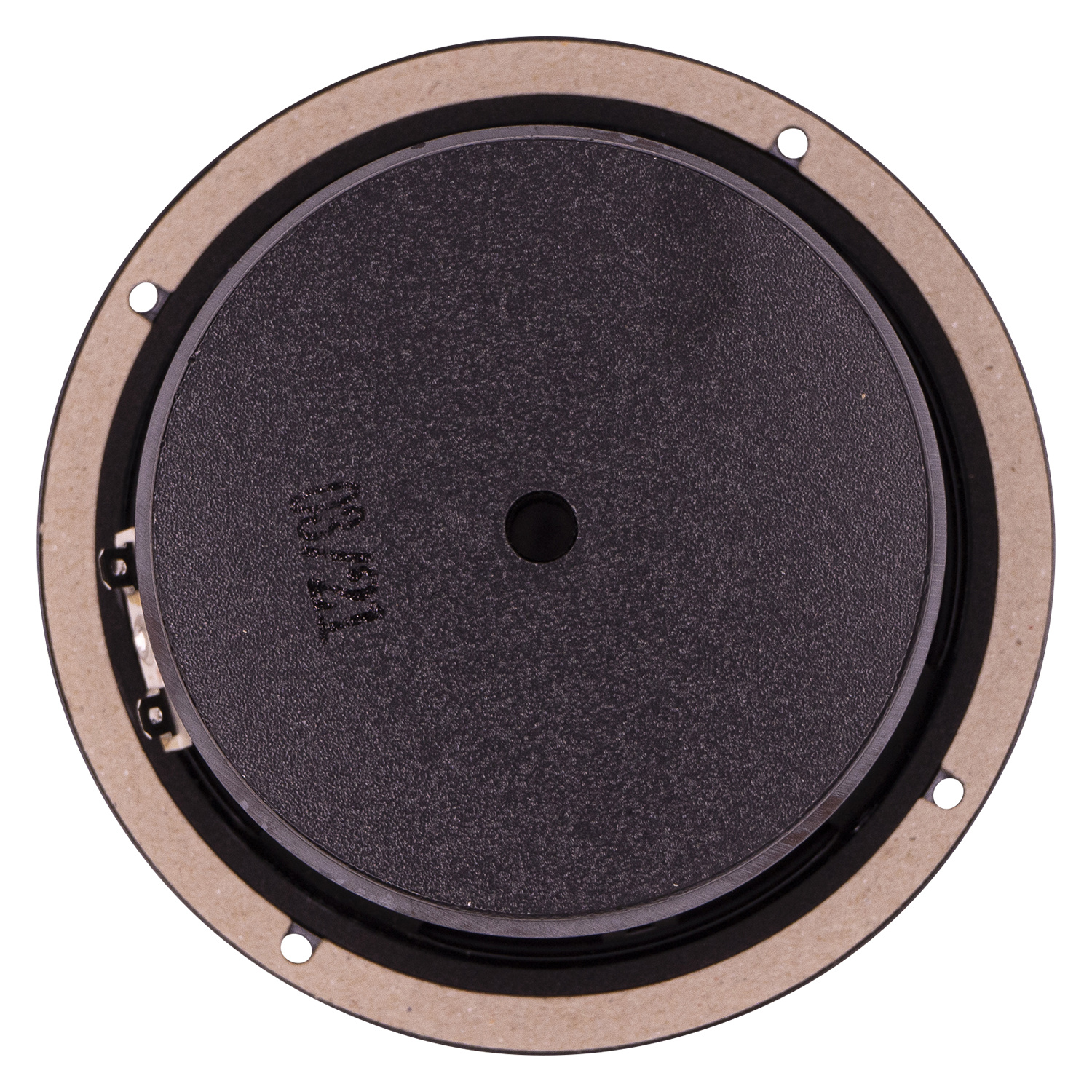

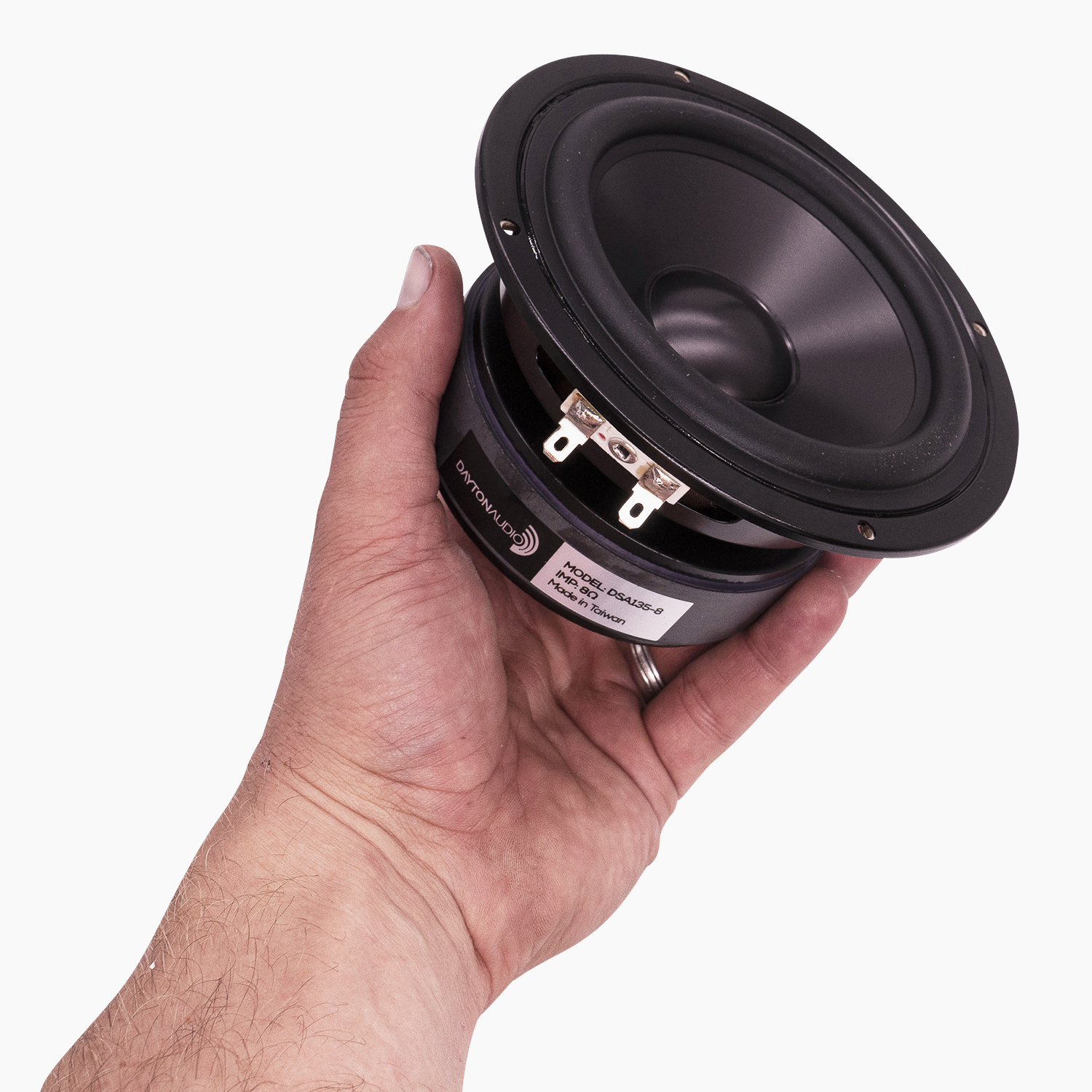

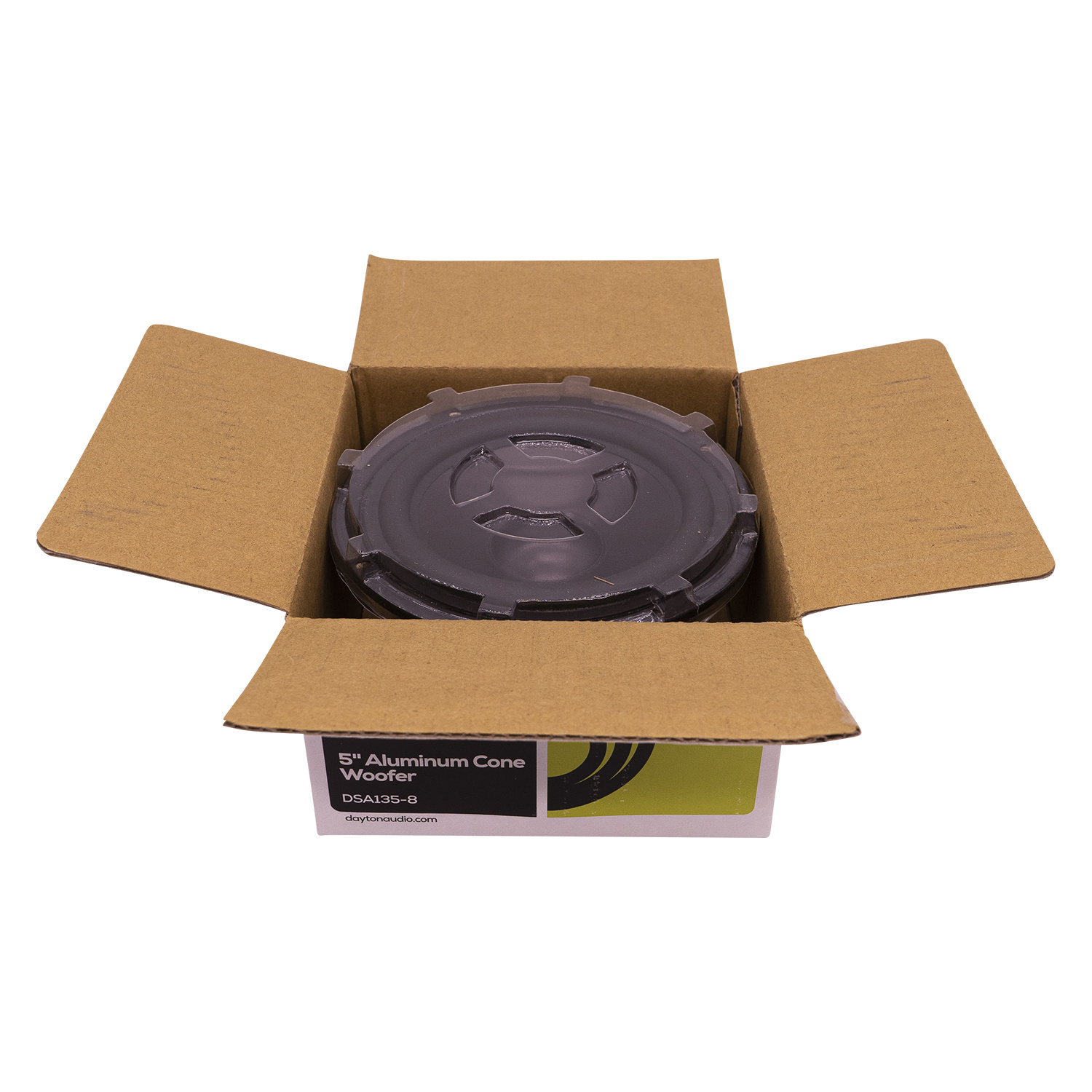

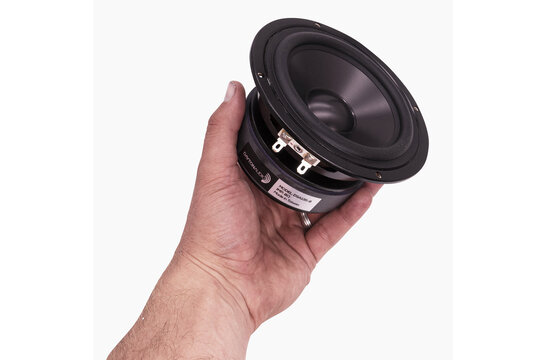

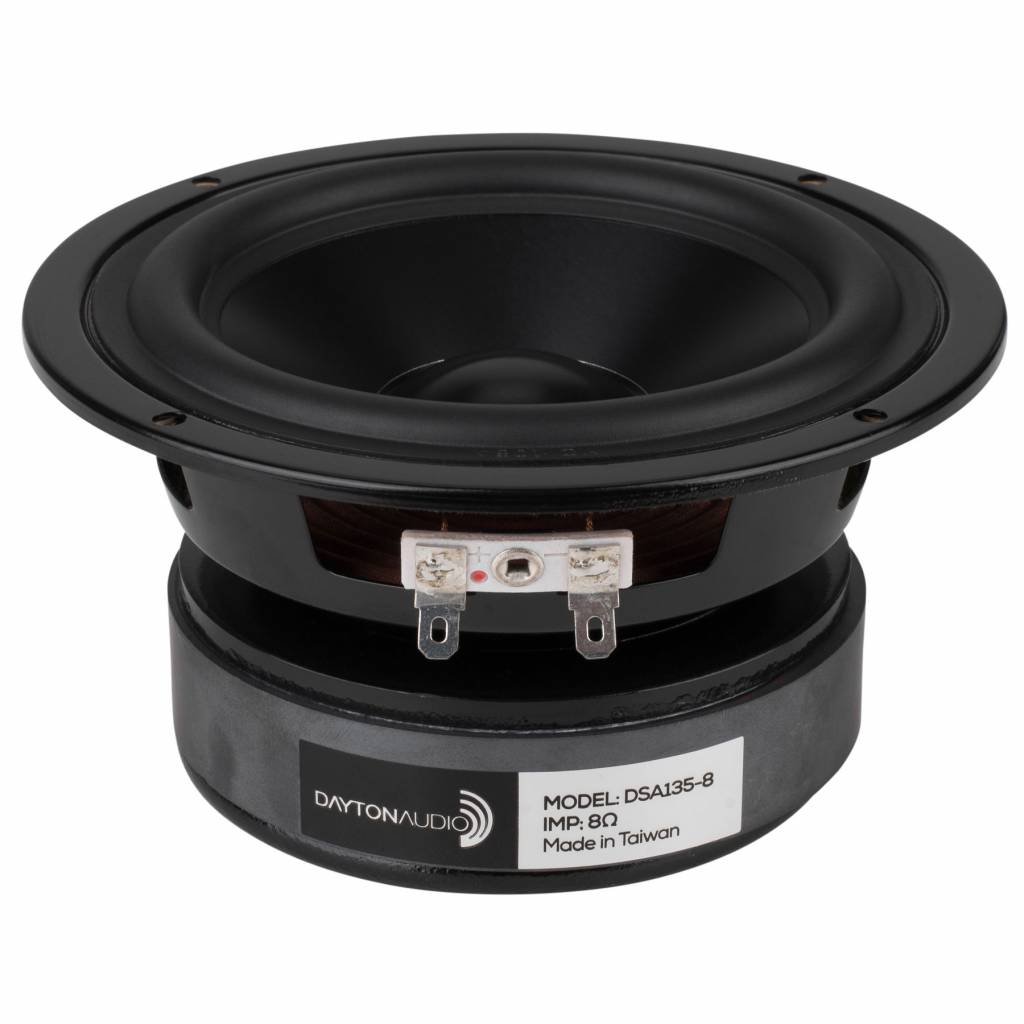

    Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer

    € 32,45 >10 Op voorraad: levertijd 1 werkdag
    The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €30,83 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Designer Series DSA135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



    Highlights

    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Low distortion motor system with copper shorting ring

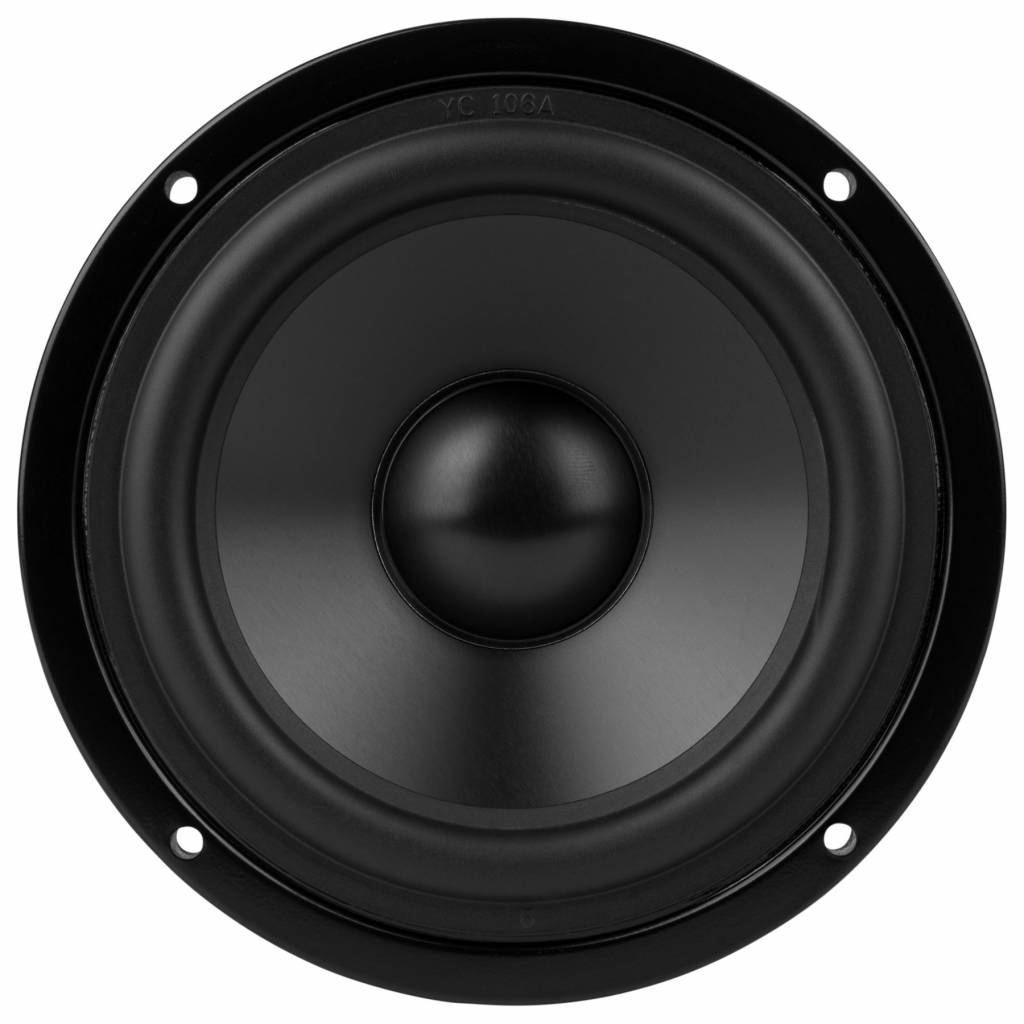

    • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
    • Smooth frequency response and linear roll-off simplify filter design
    • Vented pole piece for minimized power compression and maximized reliability
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response



    Product details

    Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer



    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

    Specificaties

    Artikelnummer
    DSA135-8
    Woofer Series
    Specialty Drivers Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5.25"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    100 watts
    Impedance
    8 ohms
    Sensitivity
    85 dB @ 1W/1m
    Frequency Response
    50 - 15,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    0.97 mH
    Resonant Frequency (Fs)
    56.5 Hz
    Mechanical Q (Qms)
    2.61
    Electromagnetic Q (Qes)
    0.68
    Total Q (Qts)
    0.54
    Diaphragm Mass Inc. Airload (Mms)
    8.54g
    Mechanical Compliance of Suspension (Cms)
    0.93 mm/N
    Surface Area of Cone (Sd)
    75.4 cm²
    Volume of Displacement (Vd)
    22.6 cm³
    BL Product (BL)
    5.32 Tm
    Compliance Equivalent Volume (Vas)
    7.4 liters
    Maximum Linear Excursion (Xmax)
    3.0 mm
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    135 mm
    Overall Depth
    63.1 mm
    Baffle Cutout Diameter
    111.5 mm
    # Mounting Holes
    4
    Sealed Volume
    0.16 ft.³
    Sealed F3
    89 Hz
    Vented Volume
    0.47 ft.³
    Vented F3
    44 Hz

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Perfect bass-midwofer. I used it in BT soudbar medium power.
    Door Boris R. on 29 December 2020
    5 van 5
    Great replacement for my damaged speaker.
    Door Jon F. on 9 December 2020
