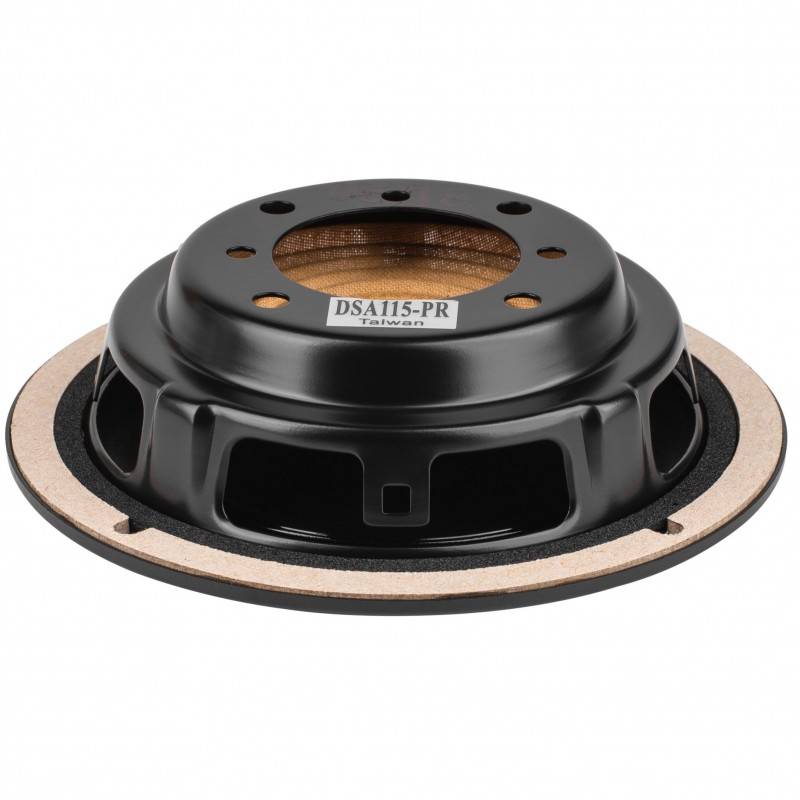

      Dayton Audio Designer DSA115-PR Passive Radiator

      € 19,38€ 23,45 1 Op voorraad9 verwacht op 10-02-2023
      • -5% Bestelling 4 voor slechts € 22,28 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Nu besteld, dinsdag bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!


      The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.



      • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
      • Allows tuning small enclosures lower than using conventional ports
      • Rear mounted screw allows easy mass adjustment for custom tuning
      • Cosmetic frame edge looks great even when surface mounted


      Product details

      Dayton Audio DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator

      The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems.


      Specifications: • Fs: 30.9 Hz • Vas: 0.33 cu. ft. • Qms: 3.48 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 11.7 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 4.55", Cutout diameter: 3.69", Depth: 1.17".


      Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

      Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

      To calculate Vd: Sd x Xmax = Vd

      Toon meer


      Woofer series
      Designer Series
      Woofer type
      Passive Radiator
      Nominale diameter
      Resonantiefrequentie (Fs)
      30.9 Hz
      Mechanische Q (Qms)
      Bewegende massa (Mms)
      Compliantie van de ophanging (Cms)
      2.27 mm/N
      Effectief oppervlak (Sd)
      54.1 cm²
      Equivalentvolume (Vas)
      0.33 ft.³
      Maximale excursie (Xmax)
      6 mm
      Cone / Diaphragm Material
      Mand- /framemateriaal
      Totale buitendiameter
      Totale diepte
      # Bevestigingsgaten

      Toon meer
