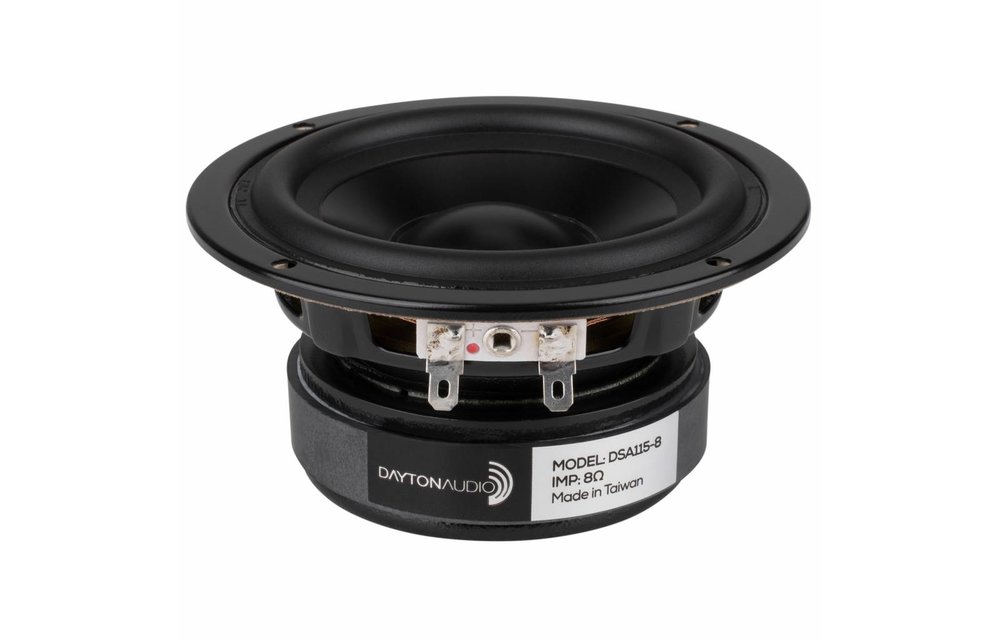

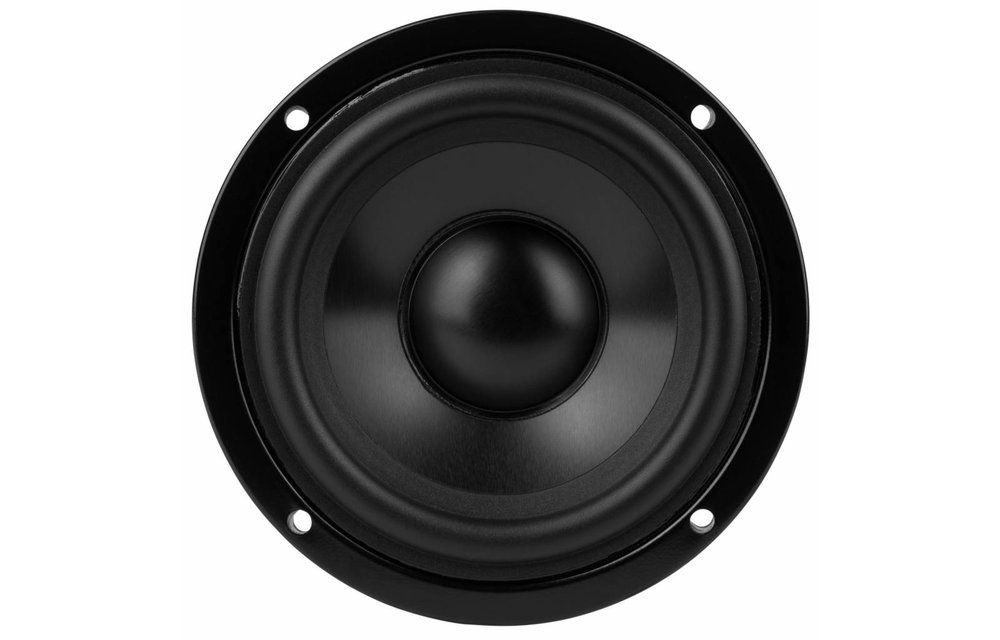

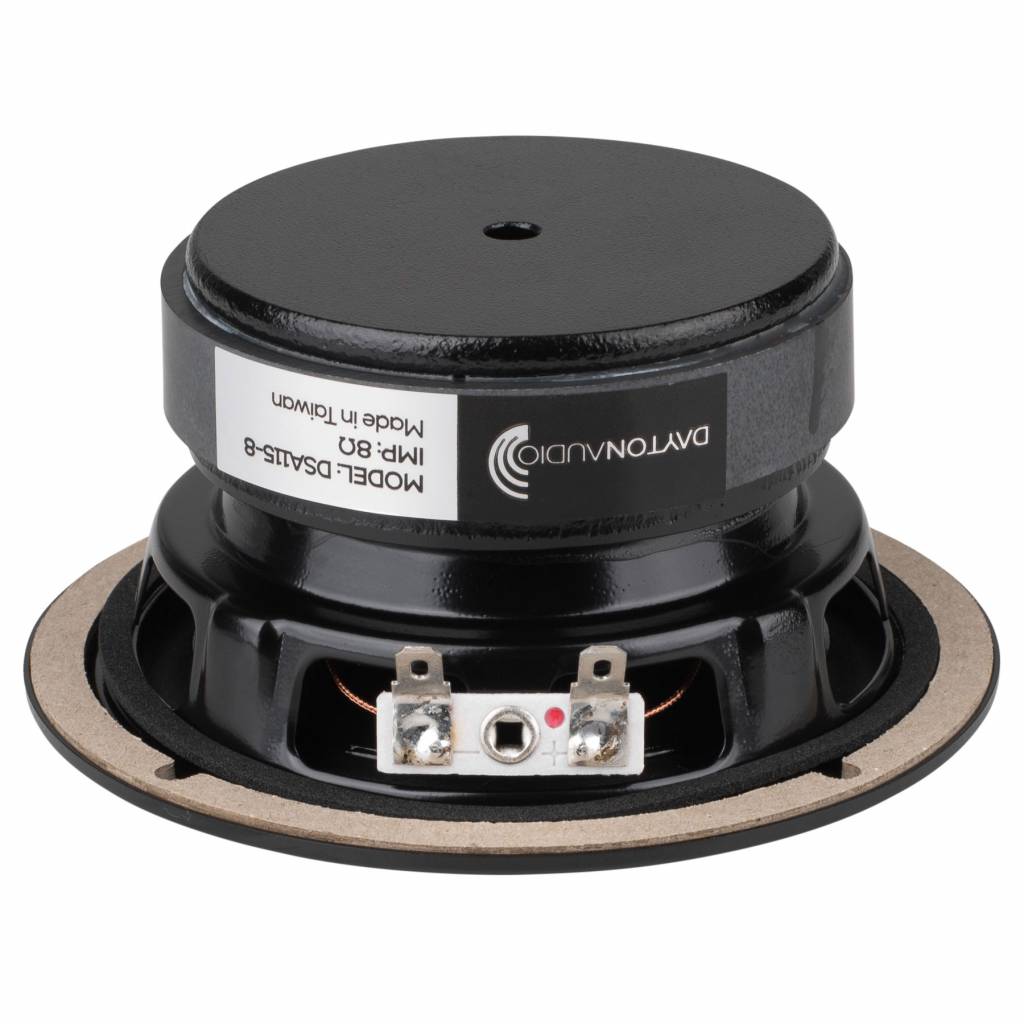

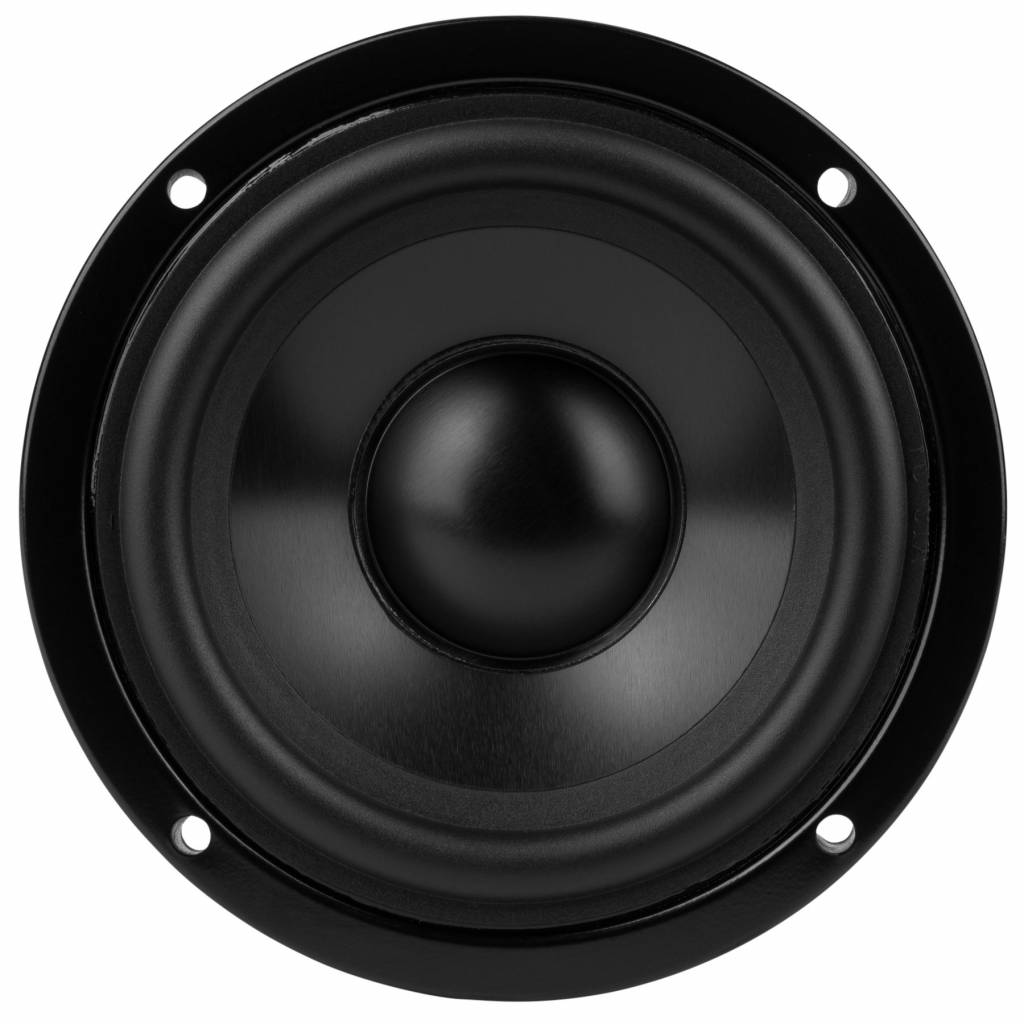

    Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer

    € 26,45 Niet op voorraad: binnen 1 week leverbaar
    More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €25,13 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    More than just a pretty speaker, the Dayton Audio Designer Series DSA115-8 4" woofer features an extremely neutral response and high Xmax capability.



    Highlights

    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Low distortion motor system with copper shorting ring
    • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
    • Smooth frequency response and linear roll-off simplify filter design
    • Vented pole piece for minimized power compression and maximized reliability
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response



    Product details

    Dayton Audio DSA115-8 4" Designer Series Aluminum Cone Woofer



    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.



    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

    Specificaties

    Artikelnummer
    DSA115-8
    Woofer Series
    Designer Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    35 watts
    Power Handling (max)
    70 watts
    Impedance
    8 ohms
    Sensitivity
    86.1 dB @ 2.83V/1m
    Frequency Response
    63 - 11,000 Hz
    Voice Coil Diameter
    25.4 mm
    Magnet Weight
    11 oz.
    DC Resistance (Re)
    5.9 ohms
    Voice Coil Inductance (Le)
    0.63 mH @ 1 kHz
    Resonant Frequency (Fs)
    63.25 Hz
    Mechanical Q (Qms)
    2.00
    Electromagnetic Q (Qes)
    0.53
    Total Q (Qts)
    0.42
    Diaphragm Mass Inc. Airload (Mms)
    6.7g
    Mechanical Compliance of Suspension (Cms)
    0.94 mm/N
    Surface Area of Cone (Sd)
    54.1 cm²
    Volume of Displacement (Vd)
    22.2 cm³
    BL Product (BL)
    5.44 Tm
    Compliance Equivalent Volume (Vas)
    3.96 liters
    Maximum Linear Excursion (Xmax)
    4.1 mm
    Cone / Diaphragm Material
    Aluminum Cone
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    115.6"
    Overall Depth
    54.7"
    Baffle Cutout Diameter
    93.6"
    # Mounting Holes
    4
    Sealed Volume
    0.06 ft.³
    Sealed F3
    127 Hz
    Vented Volume
    0.13 ft.³
    Vented F3
    70 Hz

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Gekocht ter vervanging van de TCP
    115-8 vanwege het groter frekwentie-
    bereik van de DSA. Uitstekende spea-
    ker, echt waar voor geld.
    Door HJJM j. on 11 Oktober 2019
    5 van 5
    Is een goede allround. Samen met kab-250v3 gebruikt, en werkt perfect. Klinkt goed. Heb nu een mooie en goed klinkende bt speaker
    Door Marco R. on 2 April 2019
