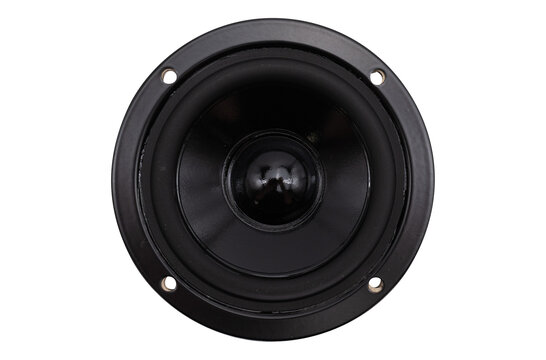

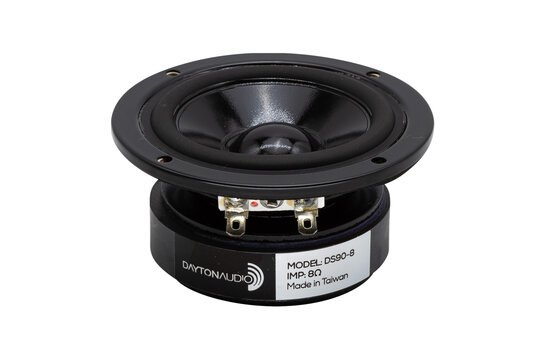

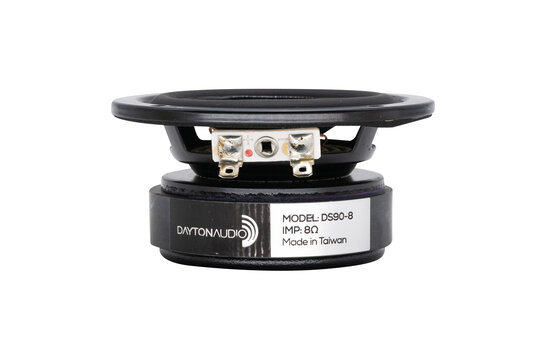

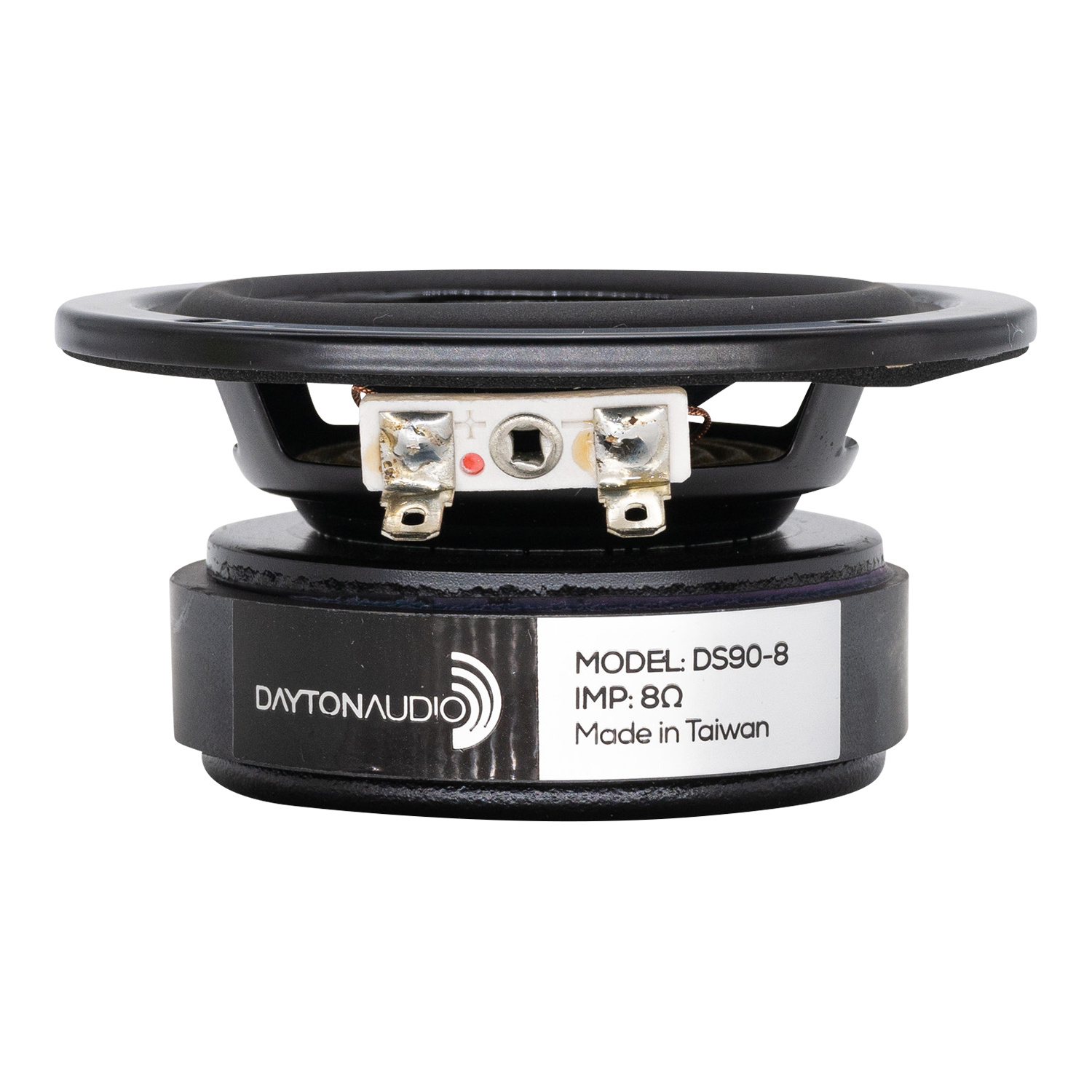

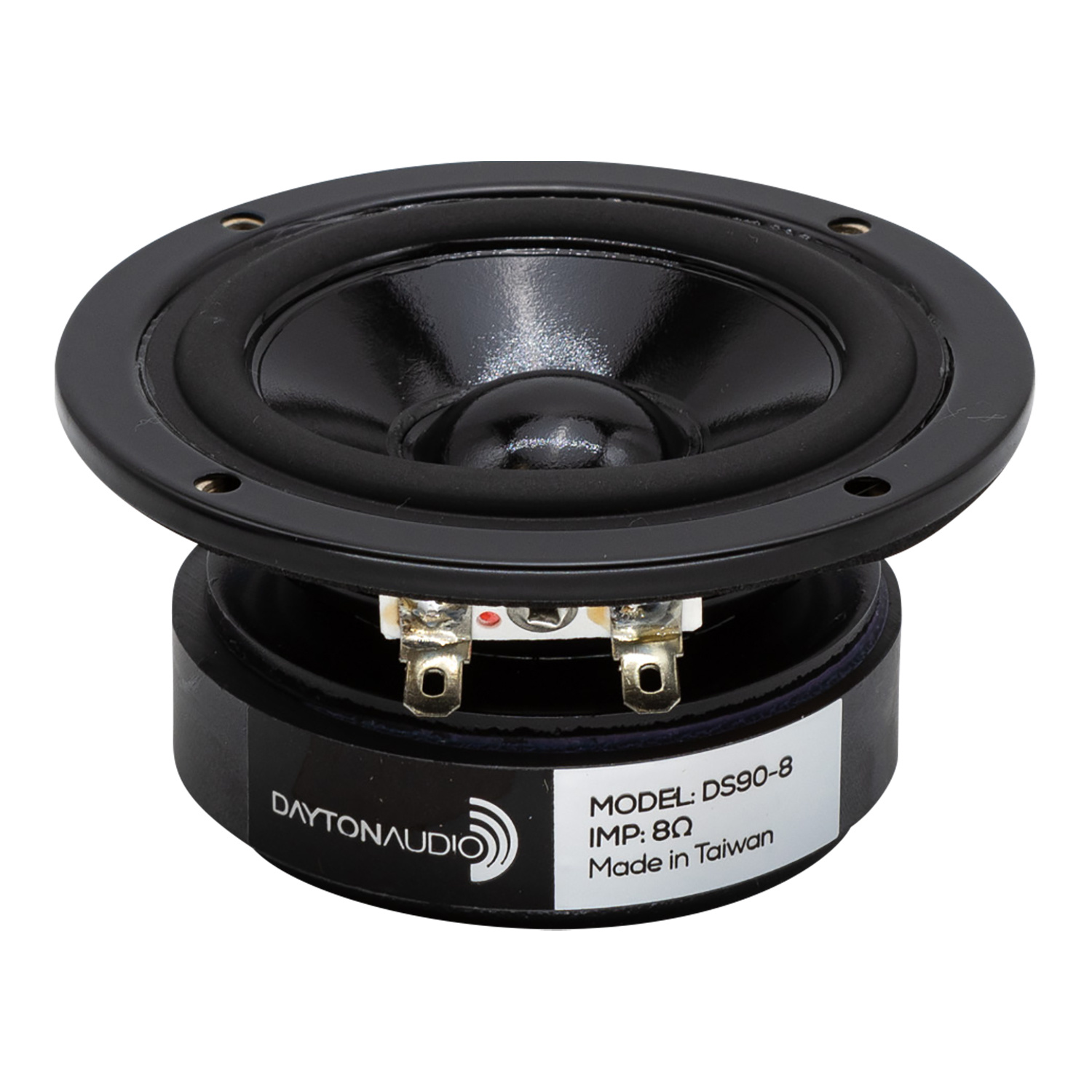

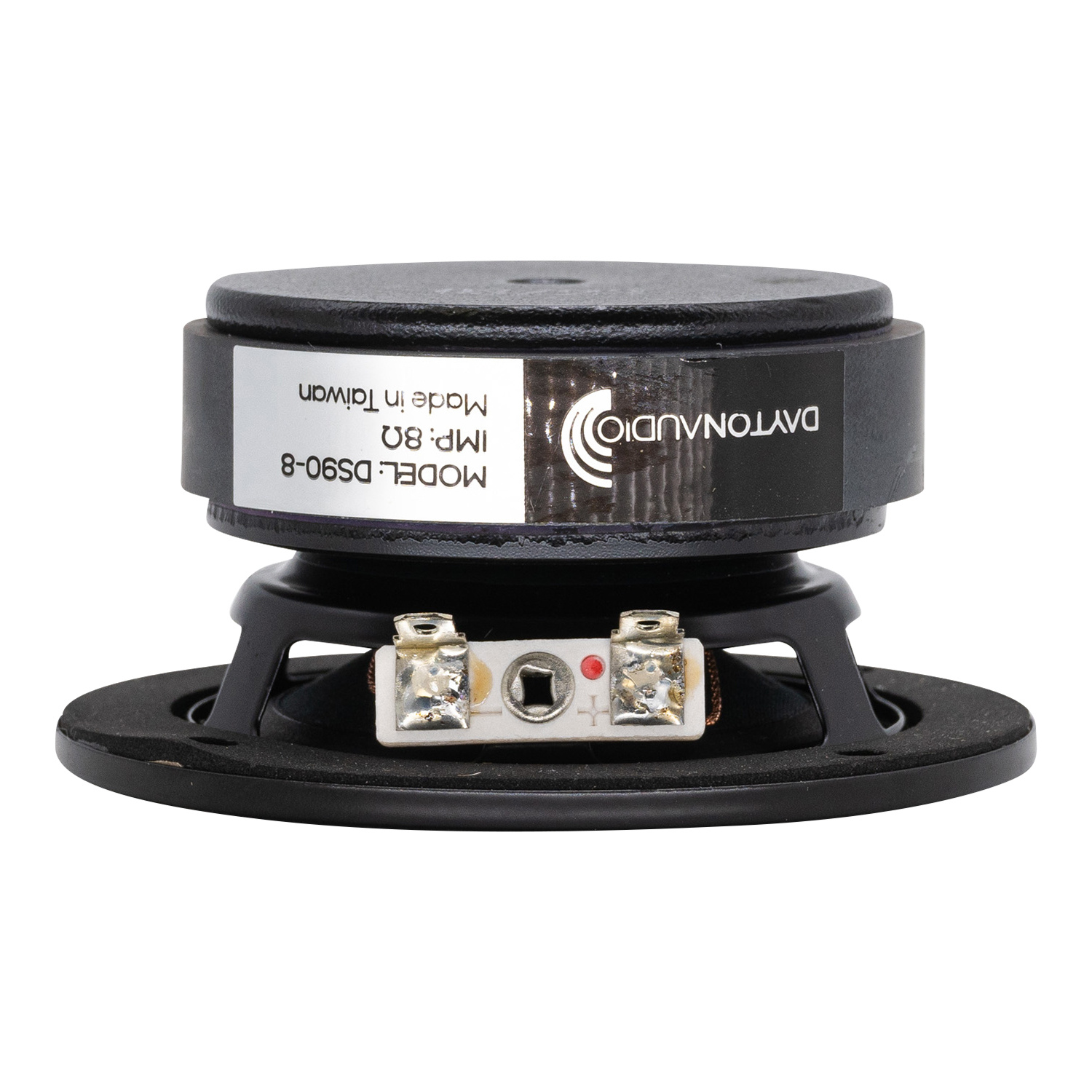

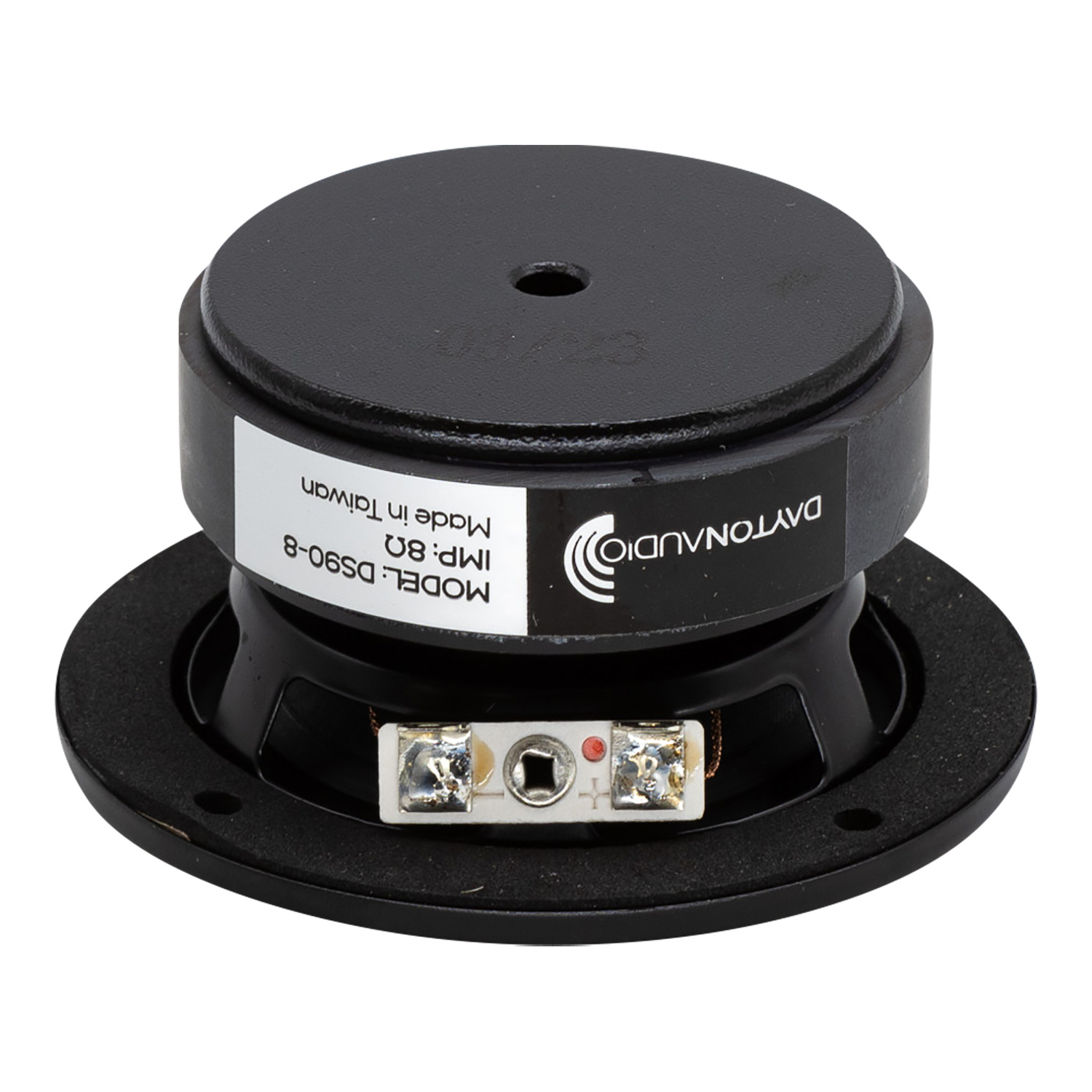

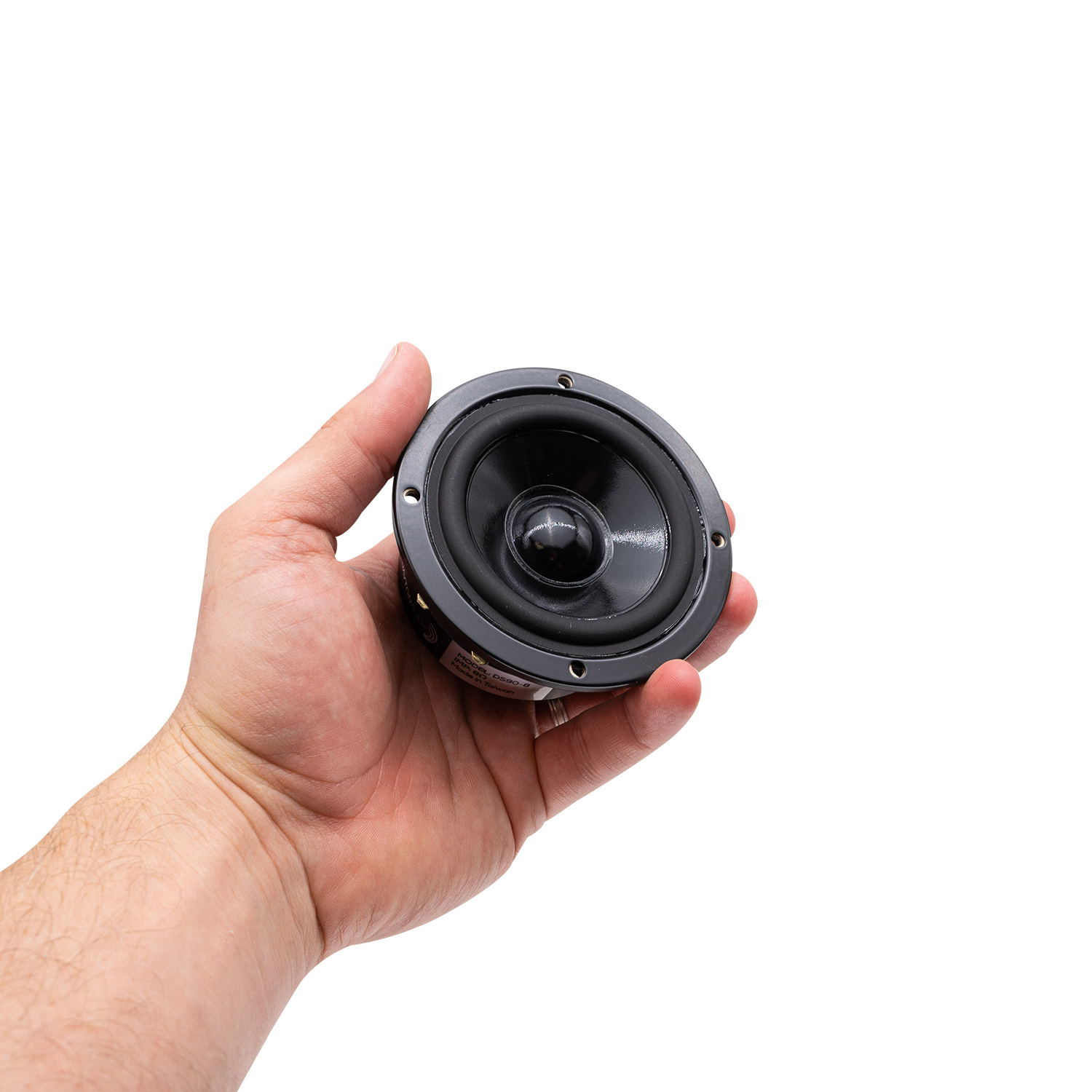

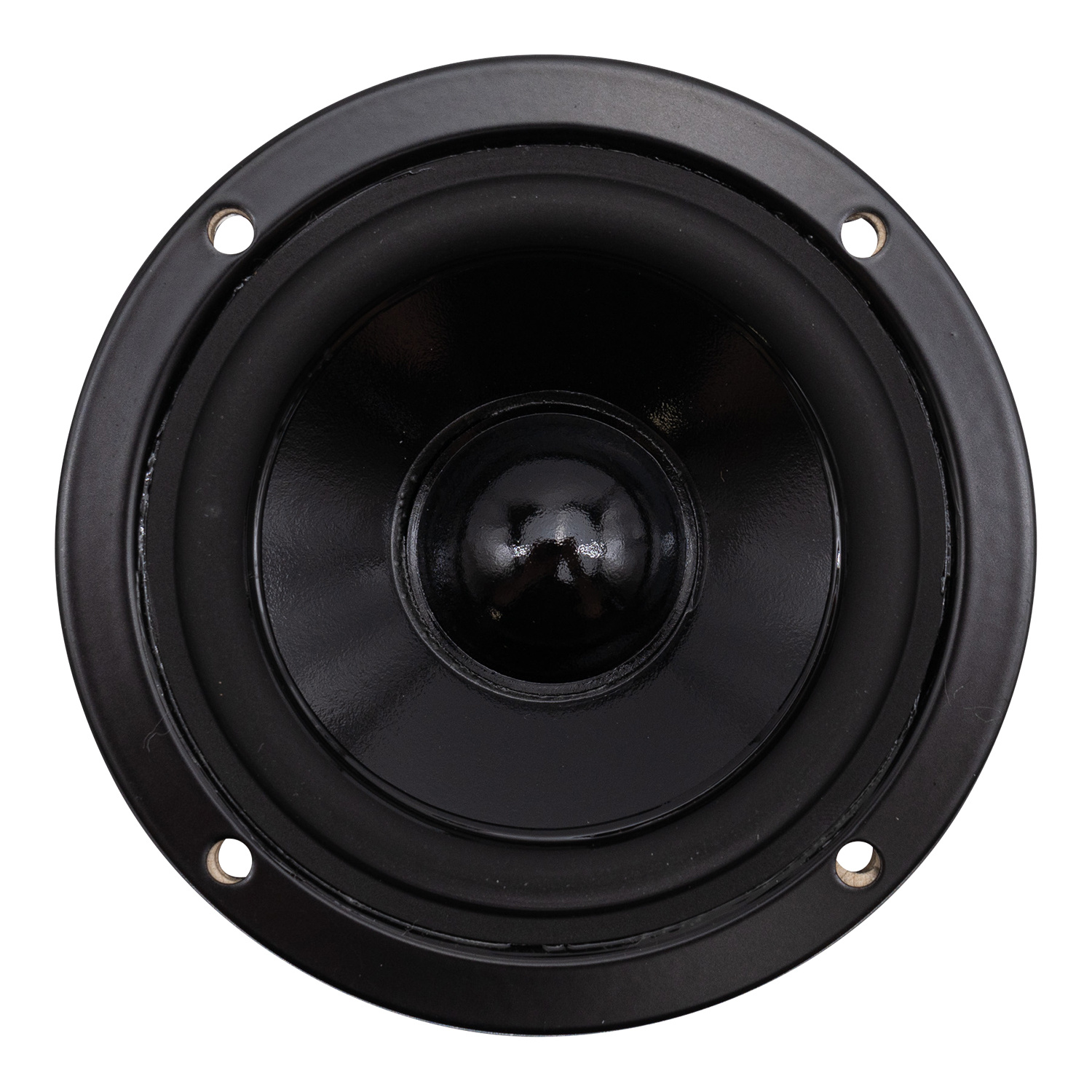

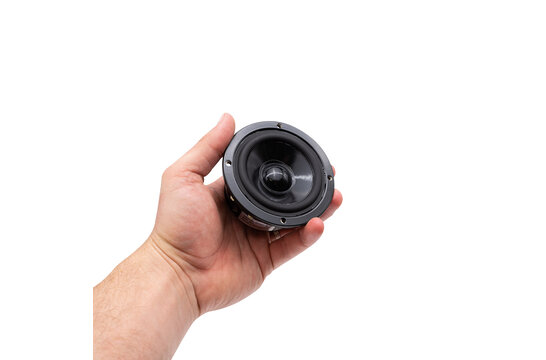

    Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker

    € 16,49€ 19,95 >10 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €18,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.



    Highlights

    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Coated paper cone, half roll rubber surround for durability and accurate reproduction
    • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
    • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
    • Vented pole piece for minimized power compression and maximized reliability
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



    Product details

    Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker



    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



    • Suggested enclosures:

    Sealed cabinet: Type: Acoustic suspension (alpha 3.5), Qtc 0.69; Size (internal) including volume displaced by driver: 0.03 ft³; Internal cabinet dimensions (golden ratio): 6-1/4"H x 3-7/8"W x 2-3/8"D. Typical results: 3 dB down-point (f3): 158 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 90 Hz.



    Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 7-3/4"H x 4-3/4"W x 3"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.



    Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



    Specificaties

    Artikelnummer
    DS90-8
    Woofer Series
    Designer Series
    Woofer Type
    Full-Range/Midwoofer
    Nominal Diameter
    3"
    Power Handling (RMS)
    20 watts
    Power Handling (max)
    40 watts
    Impedance
    8 ohms
    Sensitivity
    84.1 dB @ 2.83V/1m
    Frequency Response
    80 - 13,000 Hz
    Voice Coil Diameter
    20.4 mm
    Magnet Weight
    8 oz.
    DC Resistance (Re)
    6.3 ohms
    Voice Coil Inductance (Le)
    0.56 mH @ 1kHz
    Resonant Frequency (Fs)
    81.4 Hz
    Mechanical Q (Qms)
    2.19
    Electromagnetic Q (Qes)
    0.53
    Total Q (Qts)
    0.43
    Diaphragm Mass Inc. Airload (Mms)
    3.8g
    Mechanical Compliance of Suspension (Cms)
    1.02 mm/N
    Surface Area of Cone (Sd)
    31.2 cm²
    Volume of Displacement (Vd)
    7.8 cm³
    BL Product (BL)
    4.76 Tm
    Compliance Equivalent Volume (Vas)
    1.31 liters
    Maximum Linear Excursion (Xmax)
    2.5 mm
    Cone / Diaphragm Material
    Coated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    92.3 mm
    Overall Depth
    44.6 mm
    Baffle Cutout Diameter
    70 mm
    # Mounting Holes
    4
    Sealed Volume
    0.2 ft.³
    Sealed F3
    148 Hz
    Vented Volume
    0.05 ft.³
    Vented F3
    80 Hz
