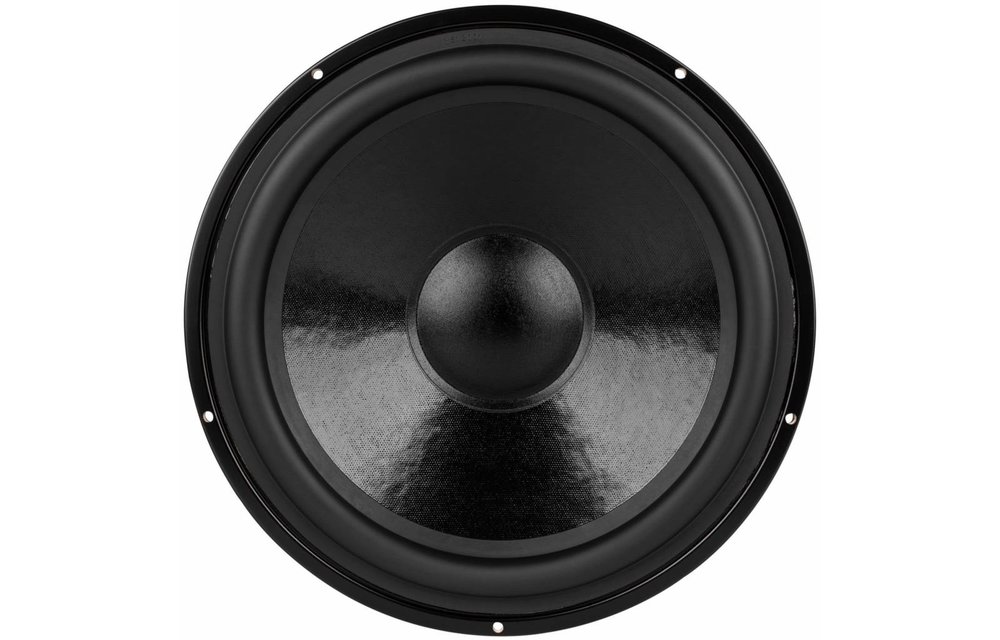

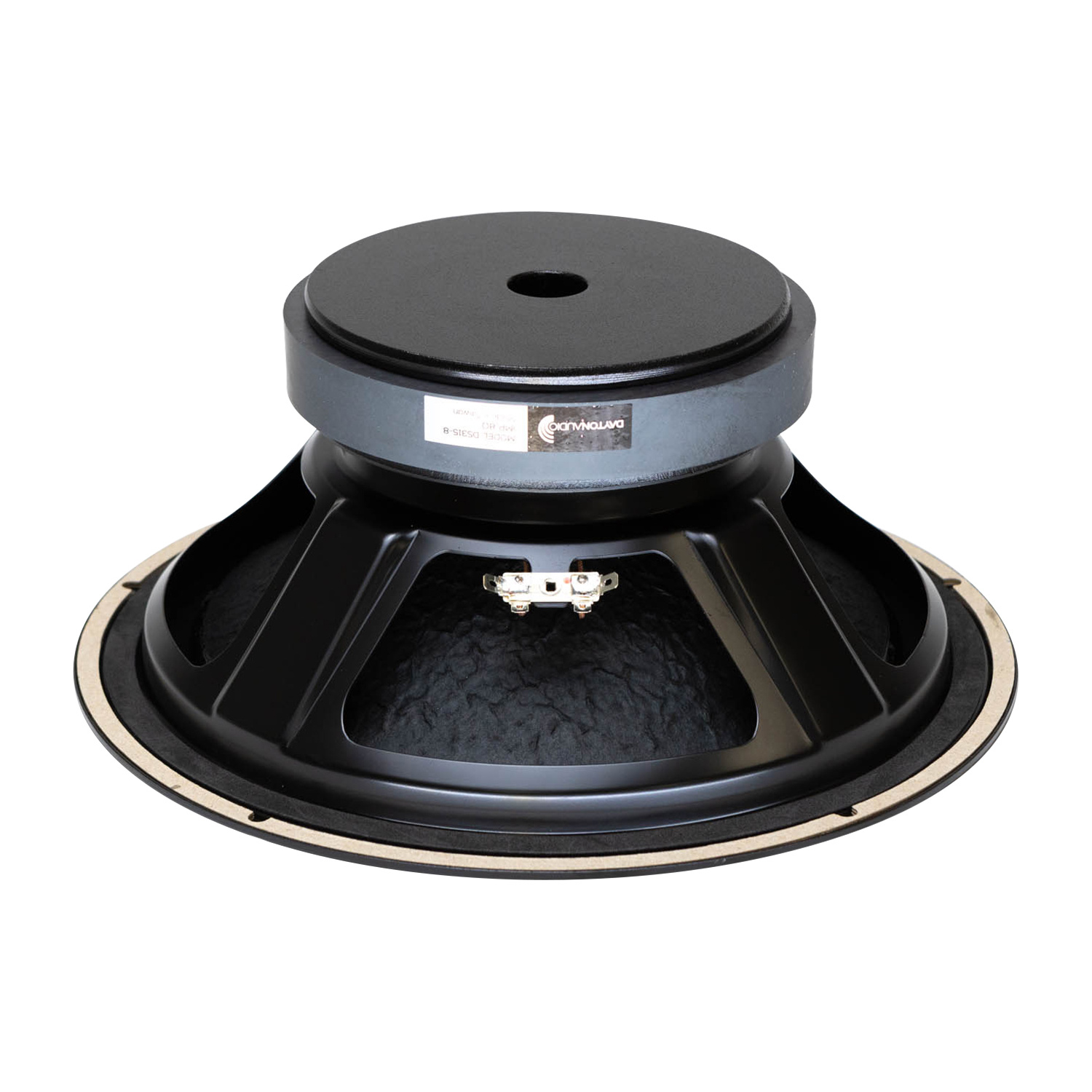

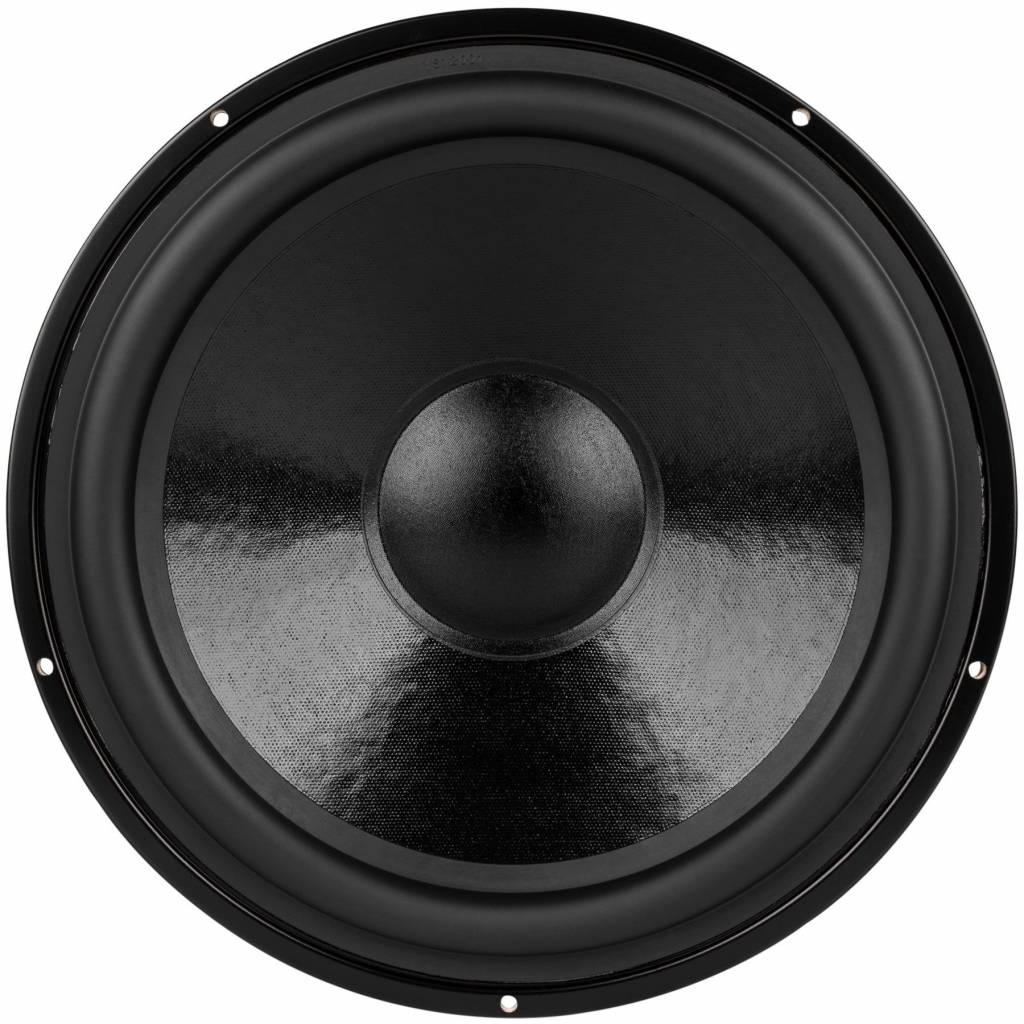

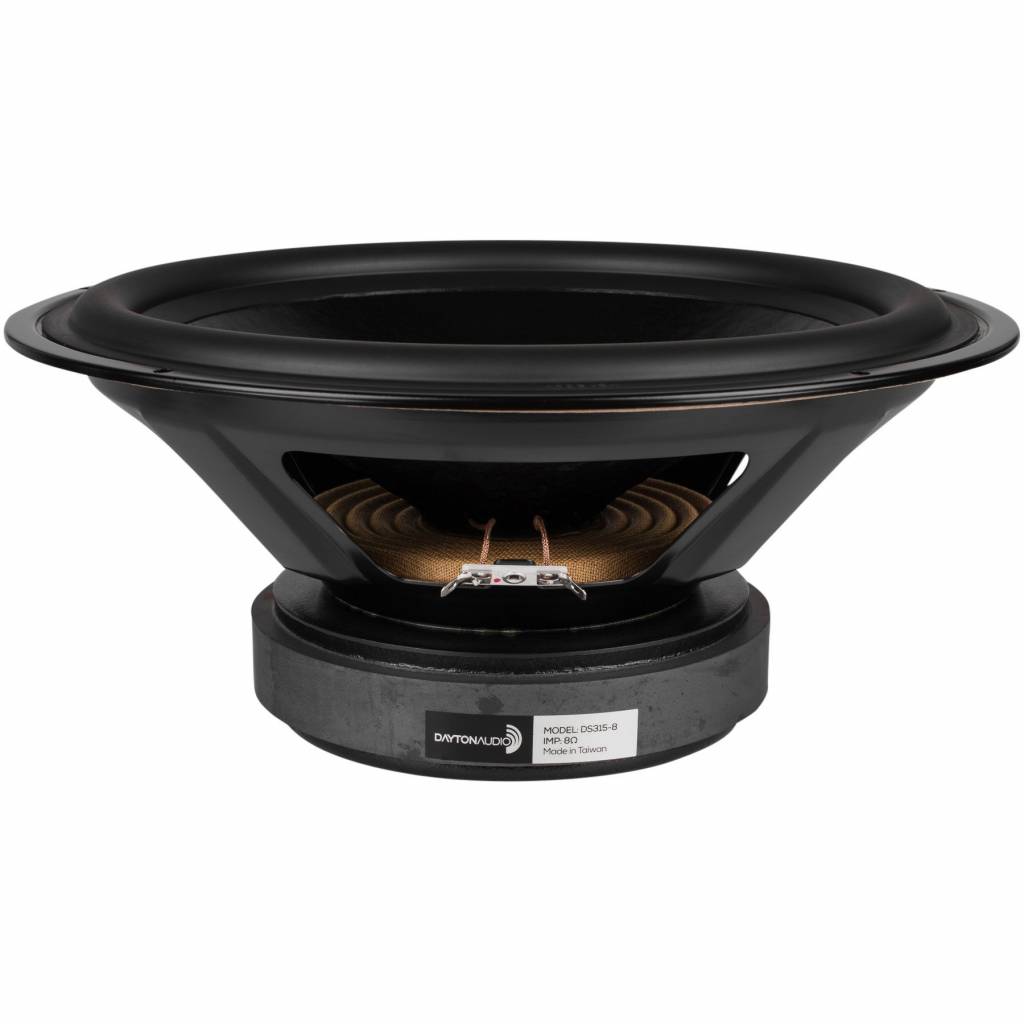

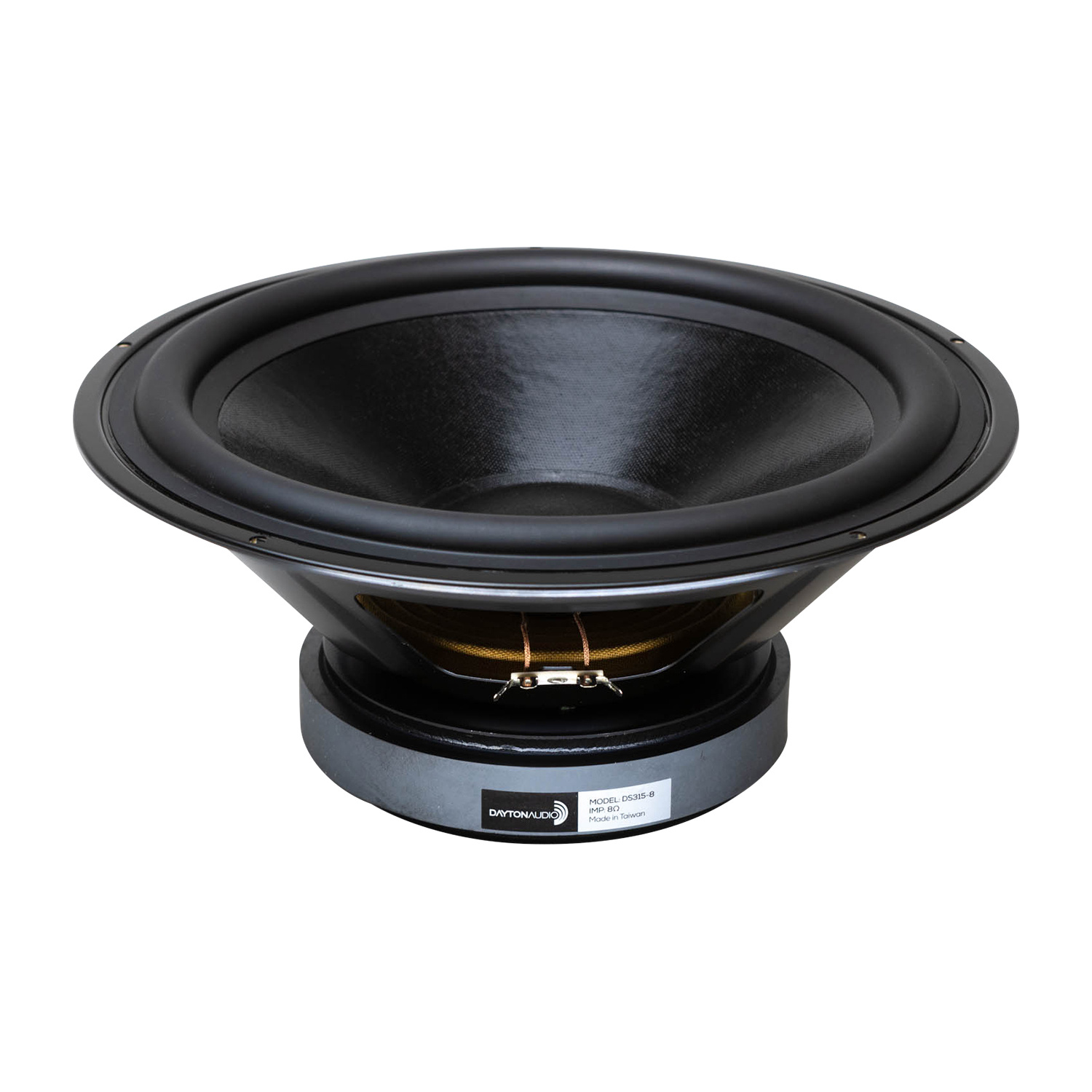

Dayton Audio DS315-8 12" Designer Series Woofer Speaker

    € 102,95 7 Op voorraad: levertijd 1 werkdag
    Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DS315-8 12" woofer.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €97,80 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support


    Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DS315-8 12" woofer.



    • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
    • Coated paper cone, half roll rubber surround for durability and accurate reproduction
    • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
    • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
    • Vented pole piece for minimized power compression and maximized reliability
    • Generous Xmax capability encourages use of moderate bass boost to tailor the response
    • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators


    Product details

    Dayton Audio DS315-8 12" Designer Series Woofer Speaker


    The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.


    These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



    Woofer Series
    Designer Series
    Woofer Type
    Nominal Diameter
    Power Handling (RMS)
    120 watts
    Power Handling (max)
    240 watts
    8 ohms
    91 dB @ 2.83V/1m
    Frequency Response
    25 - 2,500 Hz
    Voice Coil Diameter
    49.5 mm
    Magnet Weight
    77 oz.
    DC Resistance (Re)
    6.1 ohms
    Voice Coil Inductance (Le)
    1.43 mH @ 1 kHz
    Resonant Frequency (Fs)
    24.2 Hz
    Mechanical Q (Qms)
    Electromagnetic Q (Qes)
    Total Q (Qts)
    Diaphragm Mass Inc. Airload (Mms)
    Mechanical Compliance of Suspension (Cms)
    0.44 mm/N
    Surface Area of Cone (Sd)
    506.7 cm²
    Volume of Displacement (Vd)
    276.7 cm³
    BL Product (BL)
    15.6 Tm
    Compliance Equivalent Volume (Vas)
    159 liters
    Maximum Linear Excursion (Xmax)
    5.5 mm
    Cone / Diaphragm Material
    Coated Paper
    Surround Material
    Voice Coil Wire Material
    Voice Coil Former
    Basket / Frame Material
    Magnet Material
    Overall Outside Diameter
    314 mm
    Overall Depth
    130 mm
    Baffle Cutout Diameter
    272 mm
    # Mounting Holes
    Sealed Volume
    0.93 ft.³
    Sealed F3
    60 Hz
    Vented Volume
    1.9 ft.³
    Vented F3
    37 Hz


    3 from 5Based on 1 reviews
    Schrijf een review
    3 van 5
    Nice design acoustically, but let down by the fixing hole size & quantity for a pressed steel frame.
    6 or 8 holes would have been much better as they are only M4 size, hardly adequate for such a heavy driver.
    Door Paul G. on 24 April 2019
