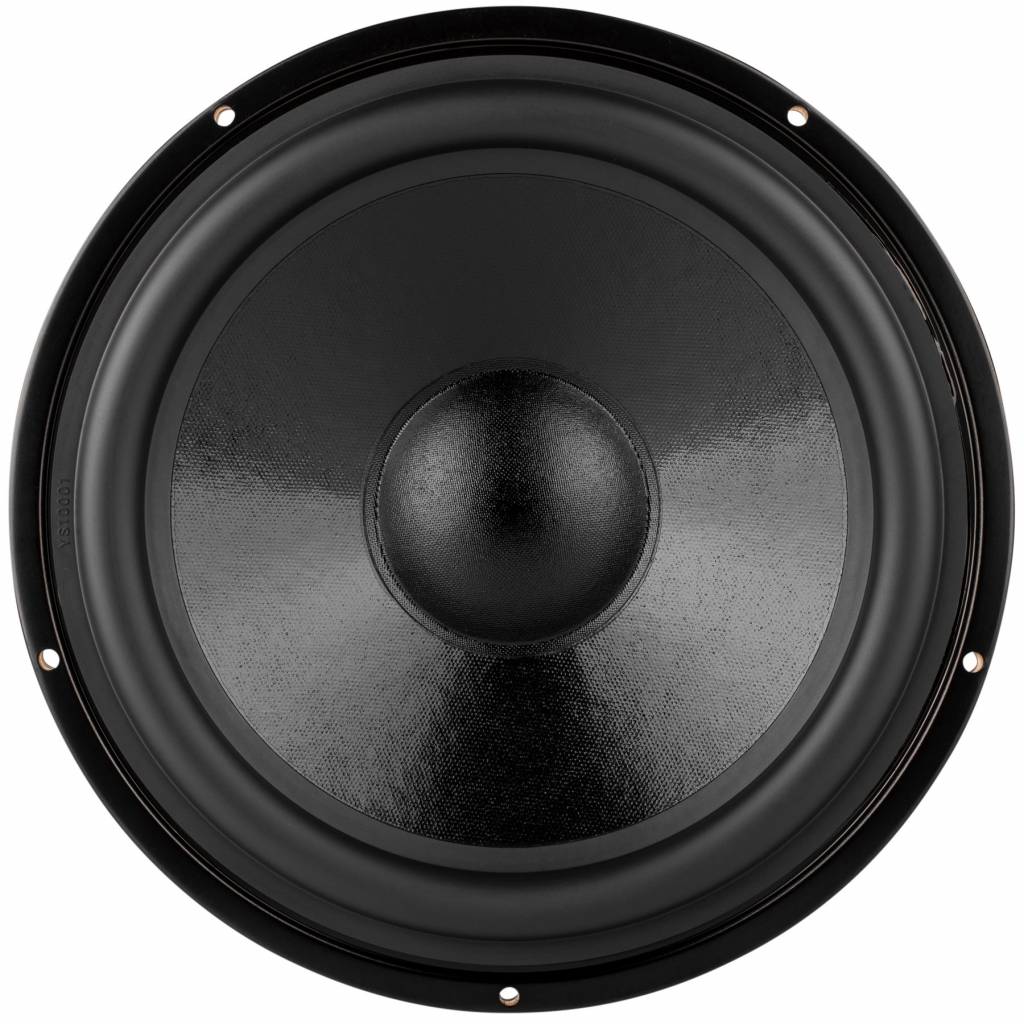

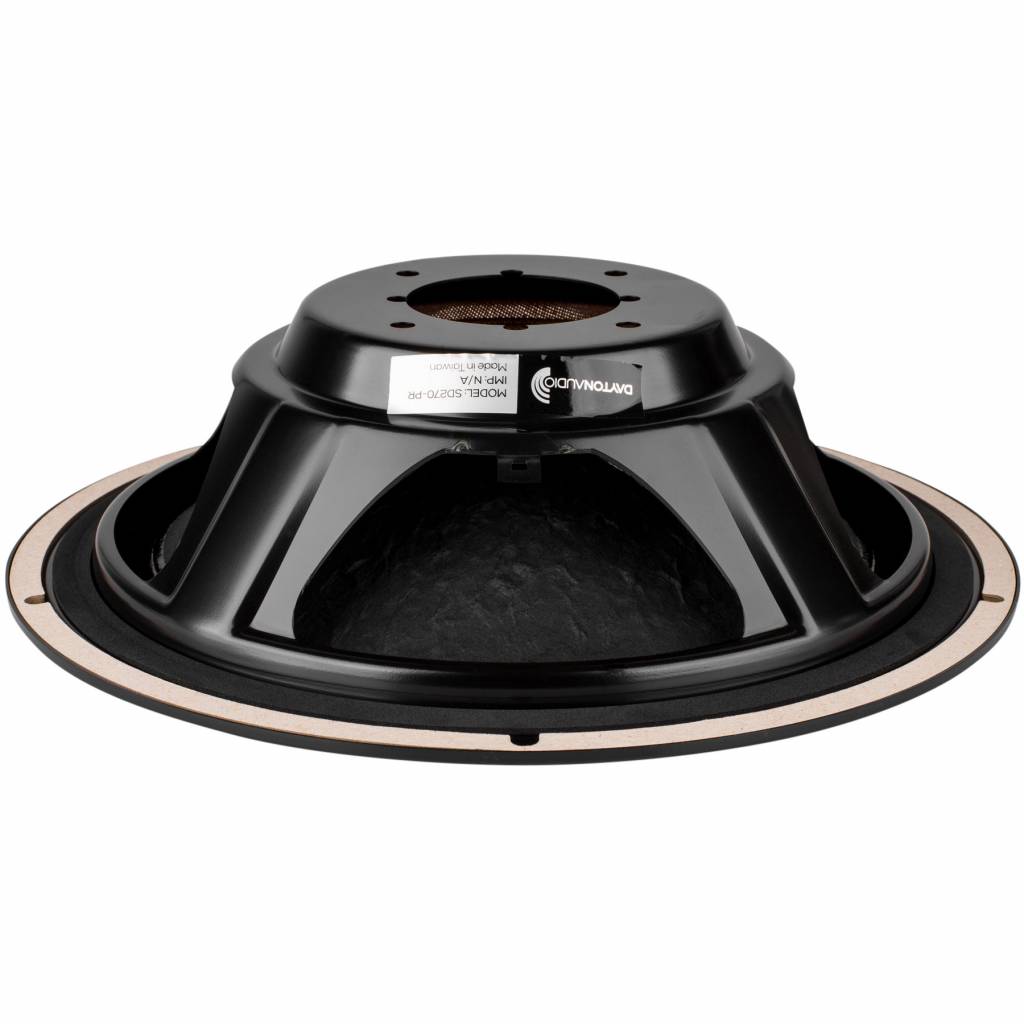

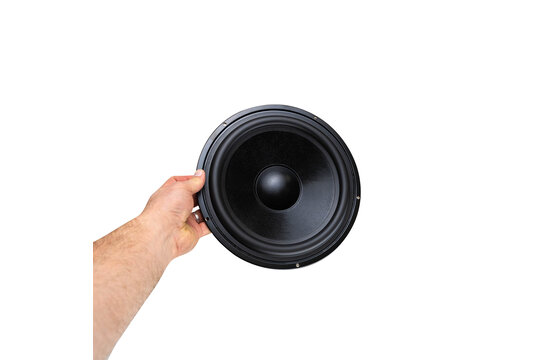

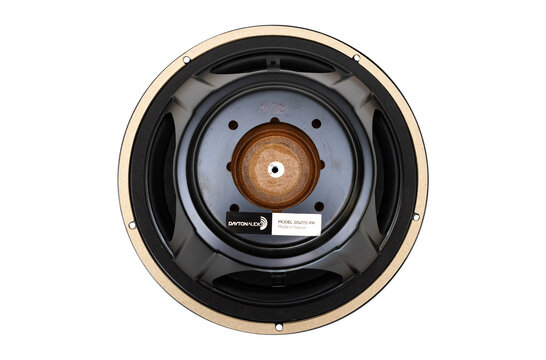

    Dayton Audio DS270-PR 10" Passive Radiator

    € 38,45 2 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €36,53 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.



    Product details

    Dayton Audio DS270-PR 10" Passive Radiator



    The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



    Specifications: • Fs: 19.5 Hz • Vas: 3.90 cu. ft. • Qms: 2.50 • Cms: 0.67 mm/N • Mms: 100 g • Rms: 4.89 kg/s • Sd: 340 sq. cm. • Xmax: 10 mm • Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.81".



    Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



    Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 10" woofer/subwoofer that has 10mm of X-max would require 2-10" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

    Specificaties

    Artikelnummer
    DS270-PR
    Woofer Series
    DVC Series
    Woofer Type
    Passive Radiator
    Nominal Diameter
    10"
    Resonant Frequency (Fs)
    19.5 Hz
    Mechanical Q (Qms)
    2.5
    Diaphragm Mass Inc. Airload (Mms)
    100.00 g
    Mechanical Compliance of Suspension (Cms)
    0.67 mm/N
    Surface Area of Cone (Sd)
    340.0 cm²
    Volume of Displacement (Vd)
    340.0 cm³
    Compliance Equivalent Volume (Vas)
    110.4 liters
    Maximum Linear Excursion (Xmax)
    10.0 mm
    Cone / Diaphragm Material
    Coated Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Steel
    Overall Outside Diameter
    270 mm
    Overall Depth
    71.4 mm
    Baffle Cutout Diameter
    227 mm
    # Mounting Holes
    5

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    As expected, great quality, looks nice, audio performance is great and super fast delivery
    Door Allan O. on 21 Juni 2019
