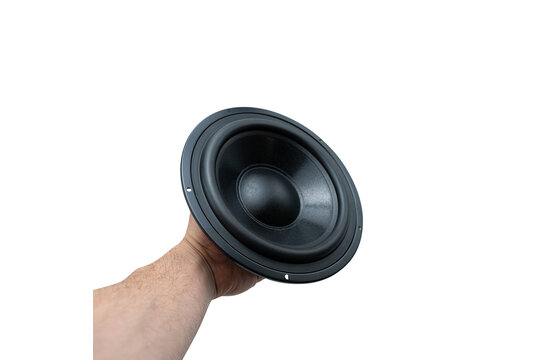

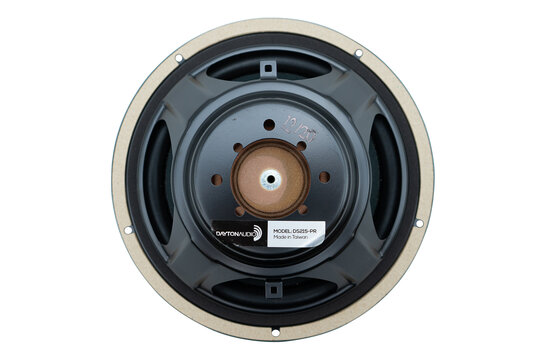

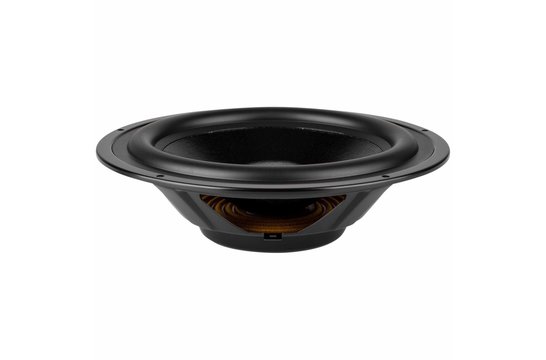

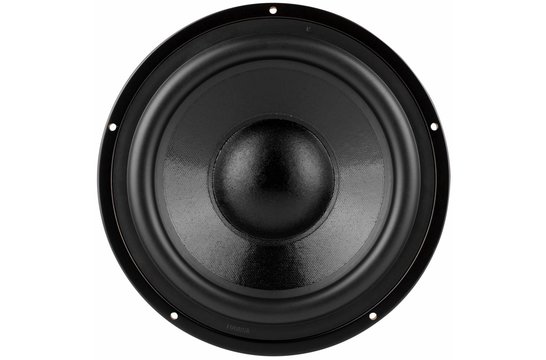

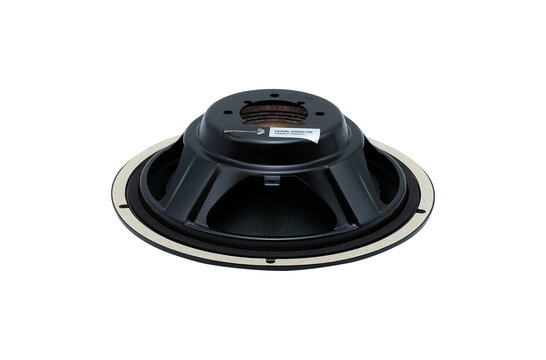

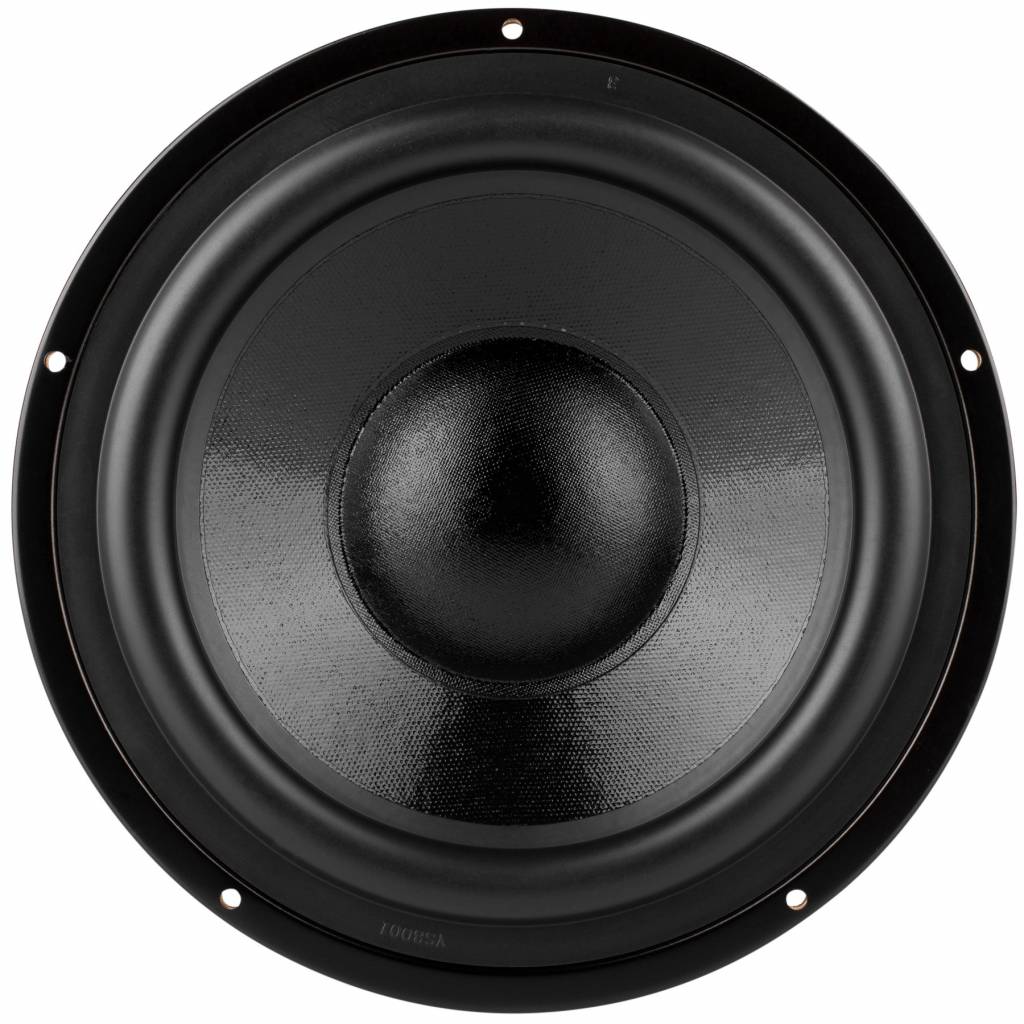

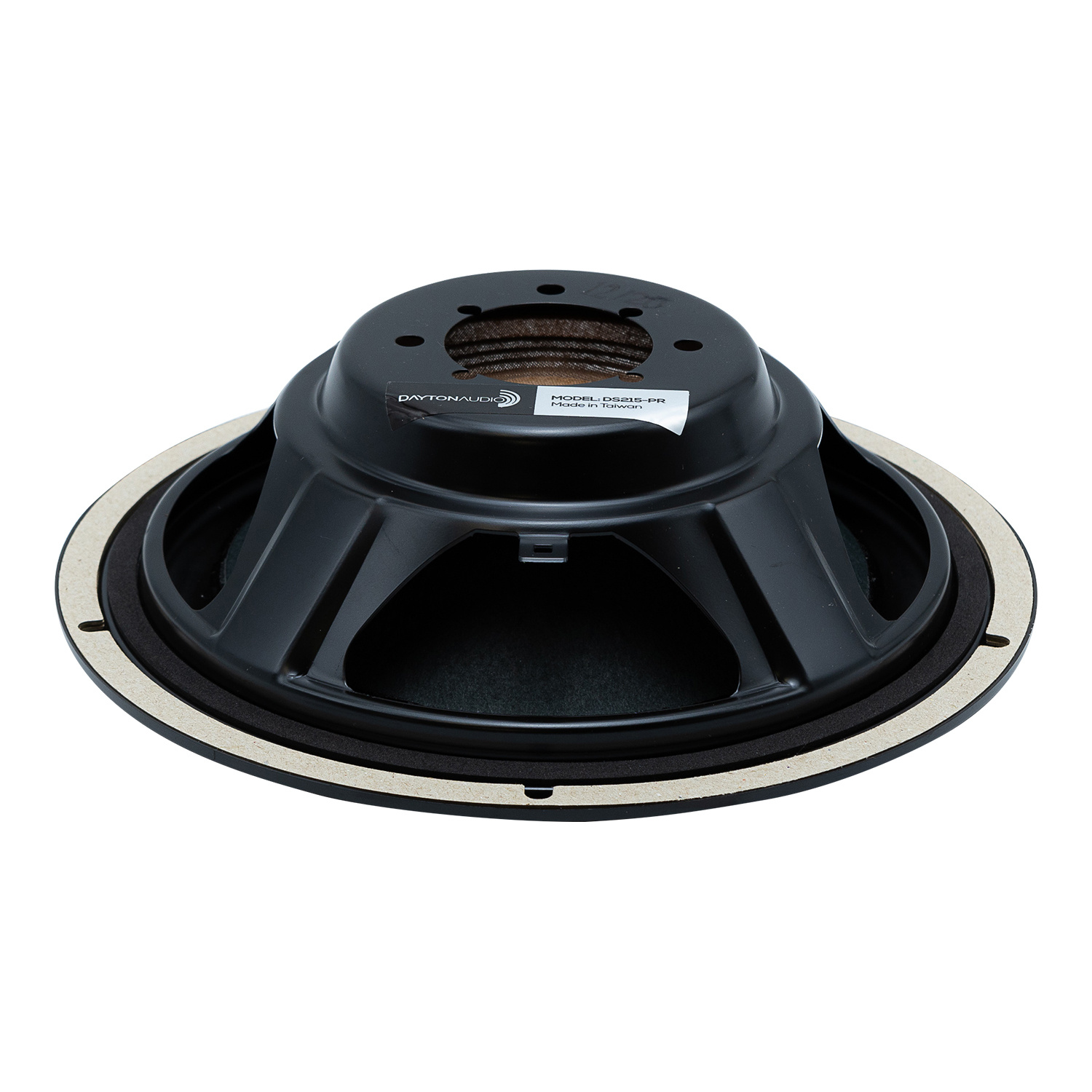

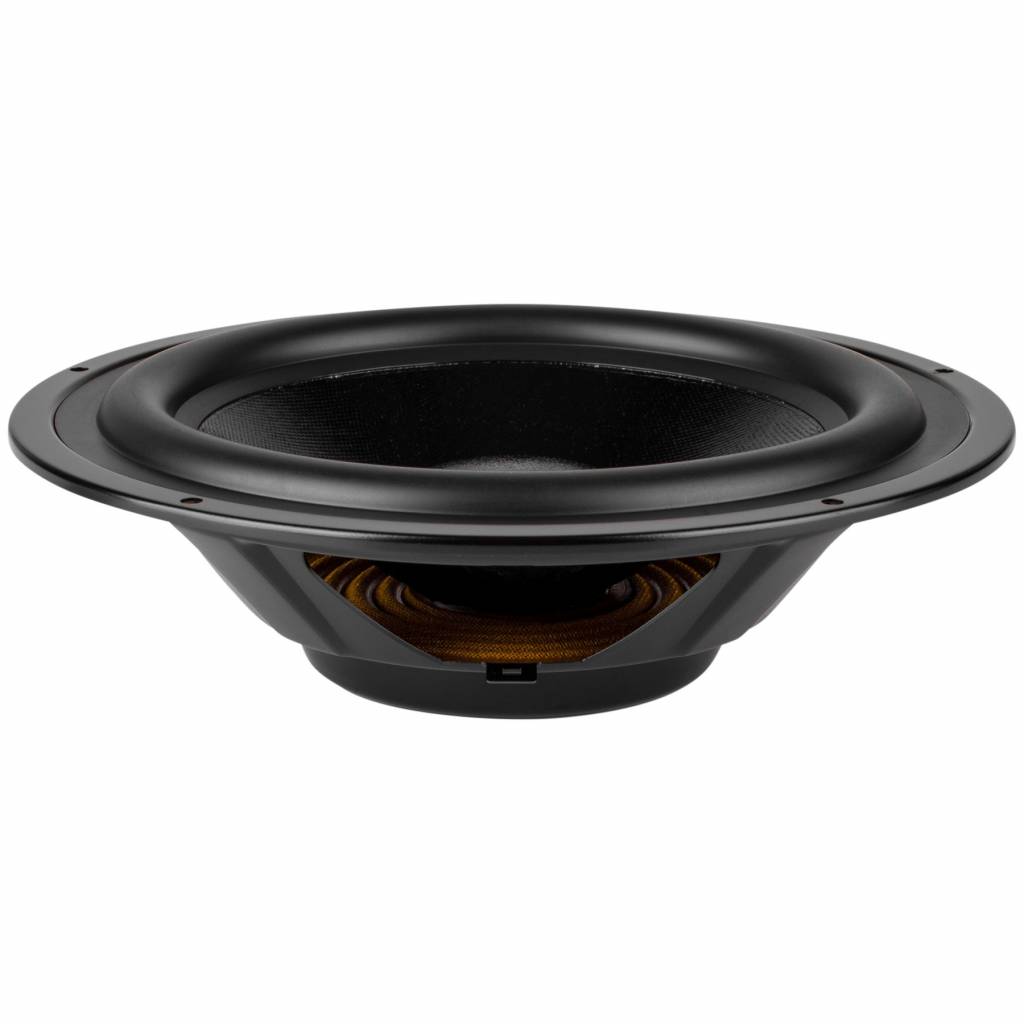

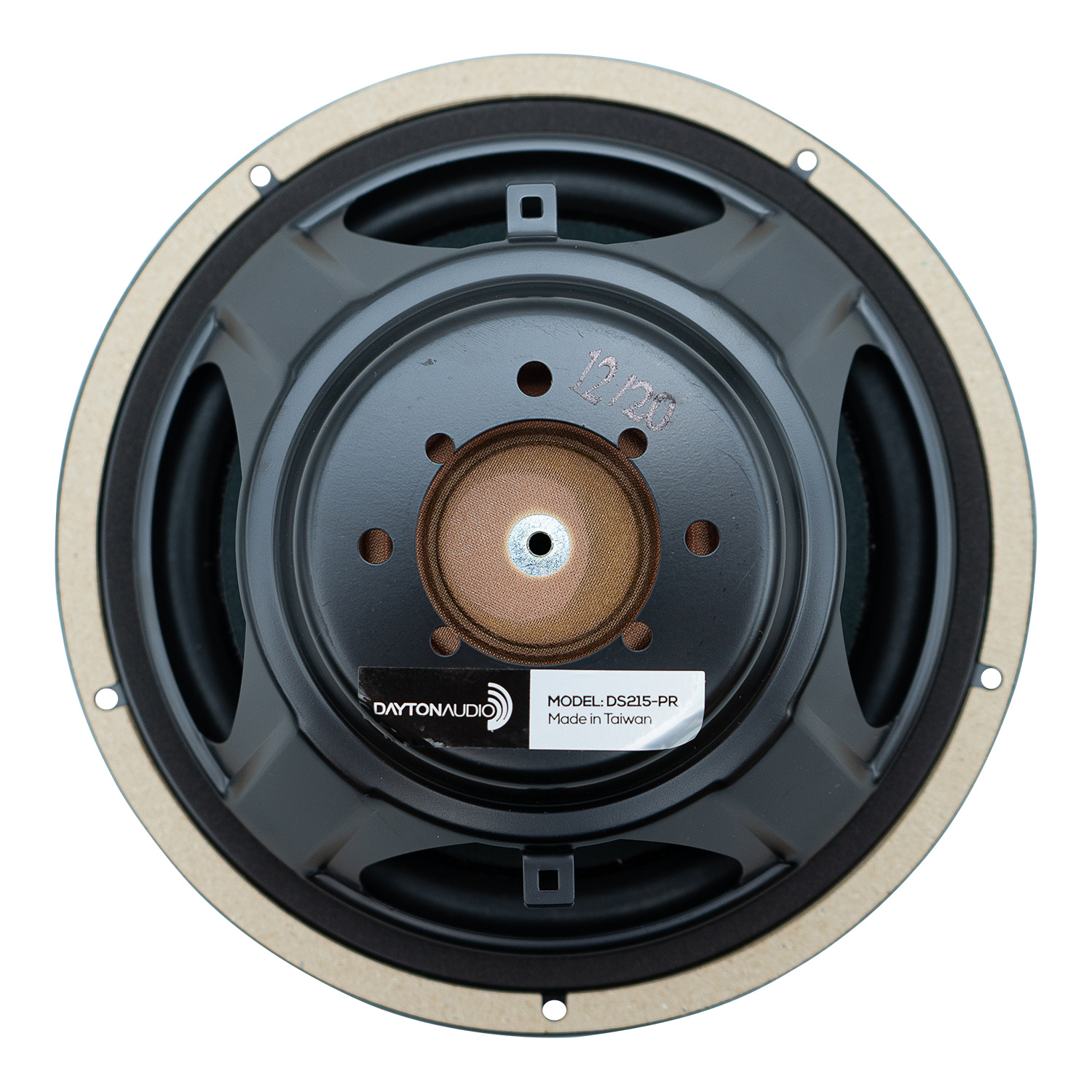

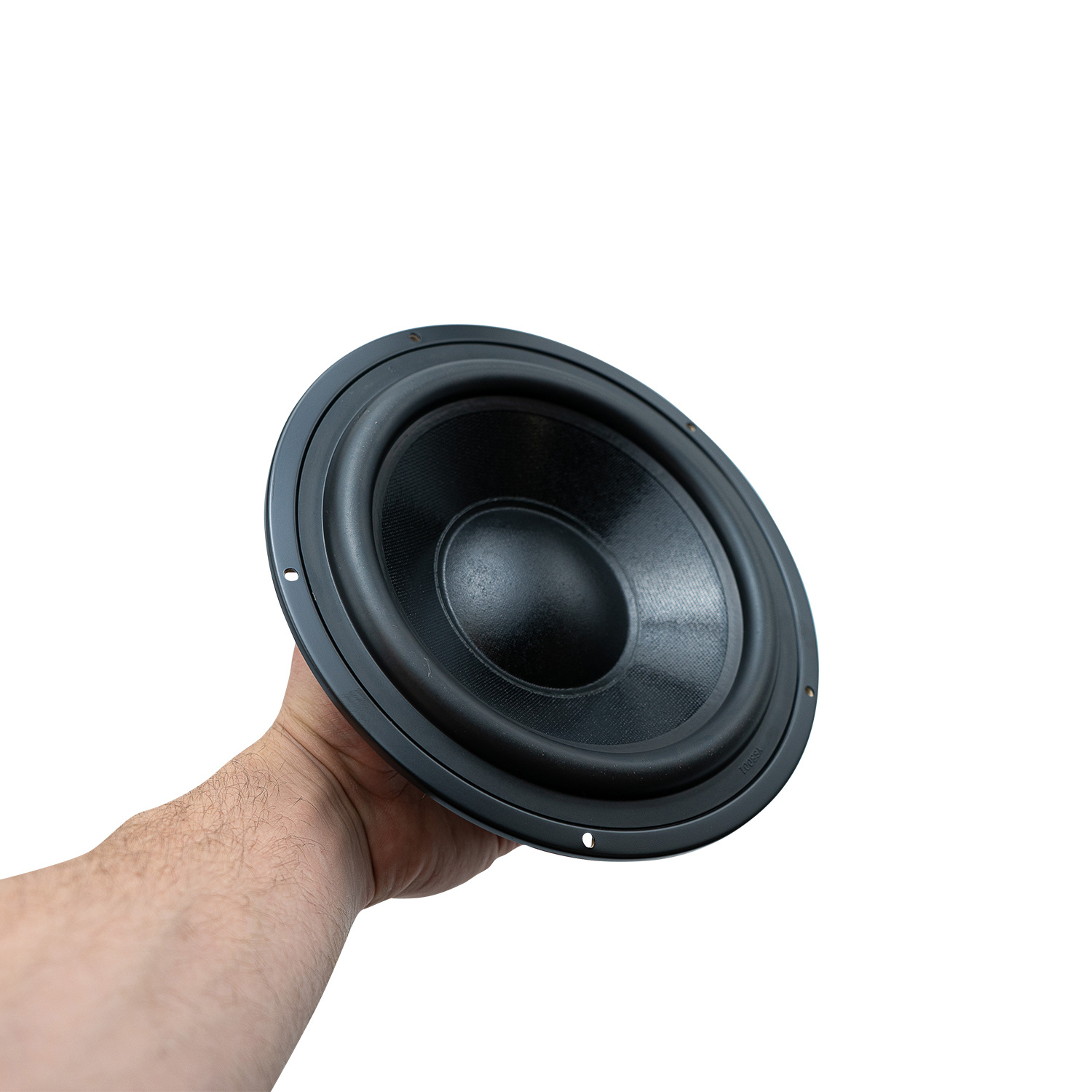

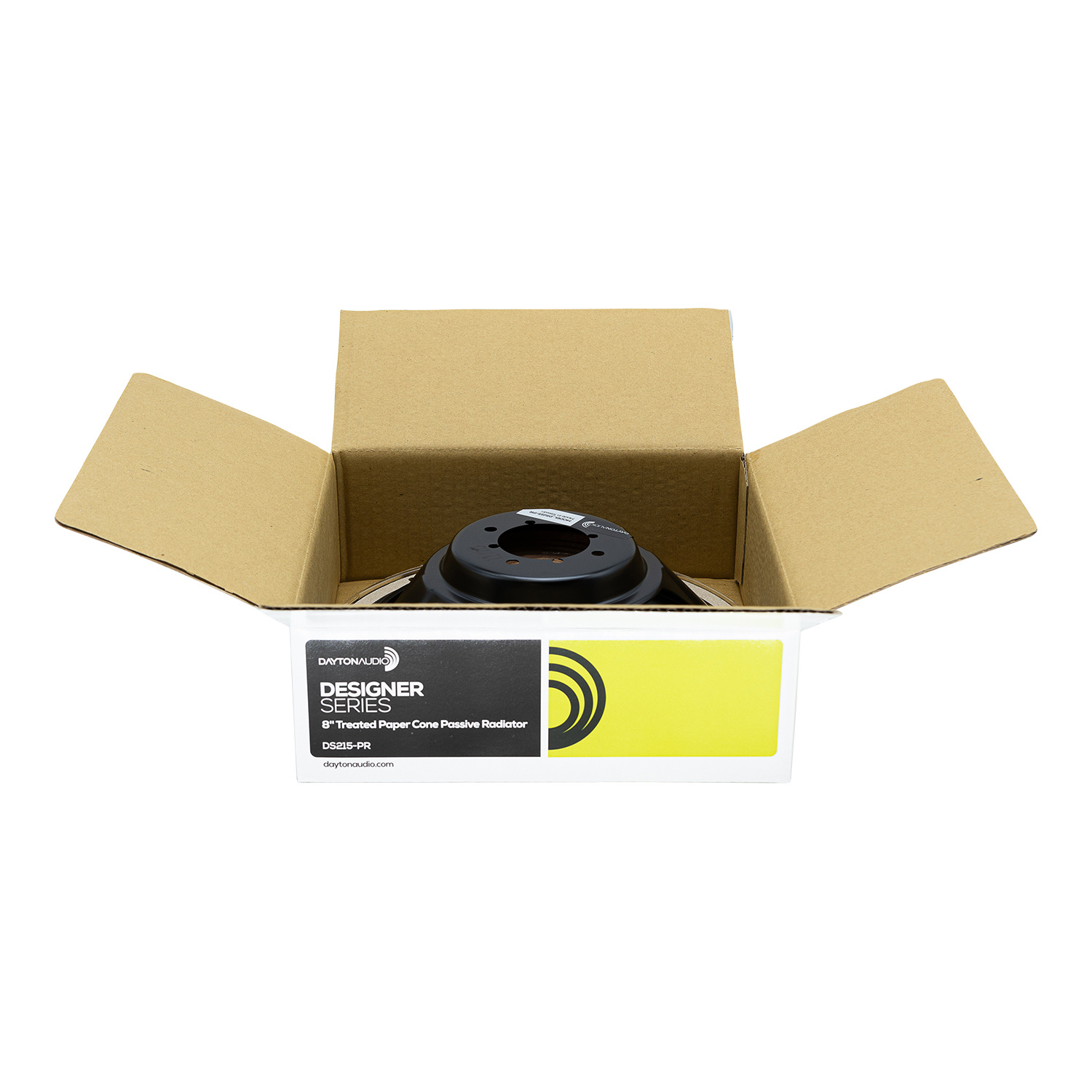

Dayton Audio DS215-PR 8" Passive Radiator

Levertijd: 1 werkdag

  • Artikelcode: DS215-PR
  • Voorraad: >10 Op voorraad

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

€ 29,95 Incl. 21% btw

  • Bestel 4 voor €28,45 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DS215-PR 8" Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.



Highlights

  • Long-throw suspension system for clean excursion
  • Durable coated paper cone and rubber surround
  • M5 threaded hole simplifies adding mass for lower tuning frequency
  • Cosmetically and mechanically matches the Designer Series line of drivers



Product details

Dayton Audio DS215-PR 8" Passive Radiator



The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Specifications: • Fs:• Fs: 23.3 Hz • Vas: 1.52 cu. ft. • Qms: 7.34 • Cms: 0.68 mm/N • Rms: 1.4 kg/s • Mms: 68.8 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 216 mm, Cutout diameter: 180 mm, Depth: 58 mm.



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 8" woofer/subwoofer that has 9mm of X-max would require 2-8" passive radiators with 9mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Specificaties

Specificaties voor: DS215-PR 8" Passive Radiator

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. DVC Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Passive Radiator
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 8"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square.
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt.
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 21.0 Hz
  • Mechanical Q (Qms) 2
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 68.8 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.75 mm/N
  • Surface Area of Cone (Sd) 211.2 sq. cm.
  • Volume of Displacement (Vd) 174.6 cm³
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 43.04 liters
  • Maximum Linear Excursion (Xmax) 11 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 216 mm
  • Overall Depth 58 mm
  • Baffle Cutout Diameter 180 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
