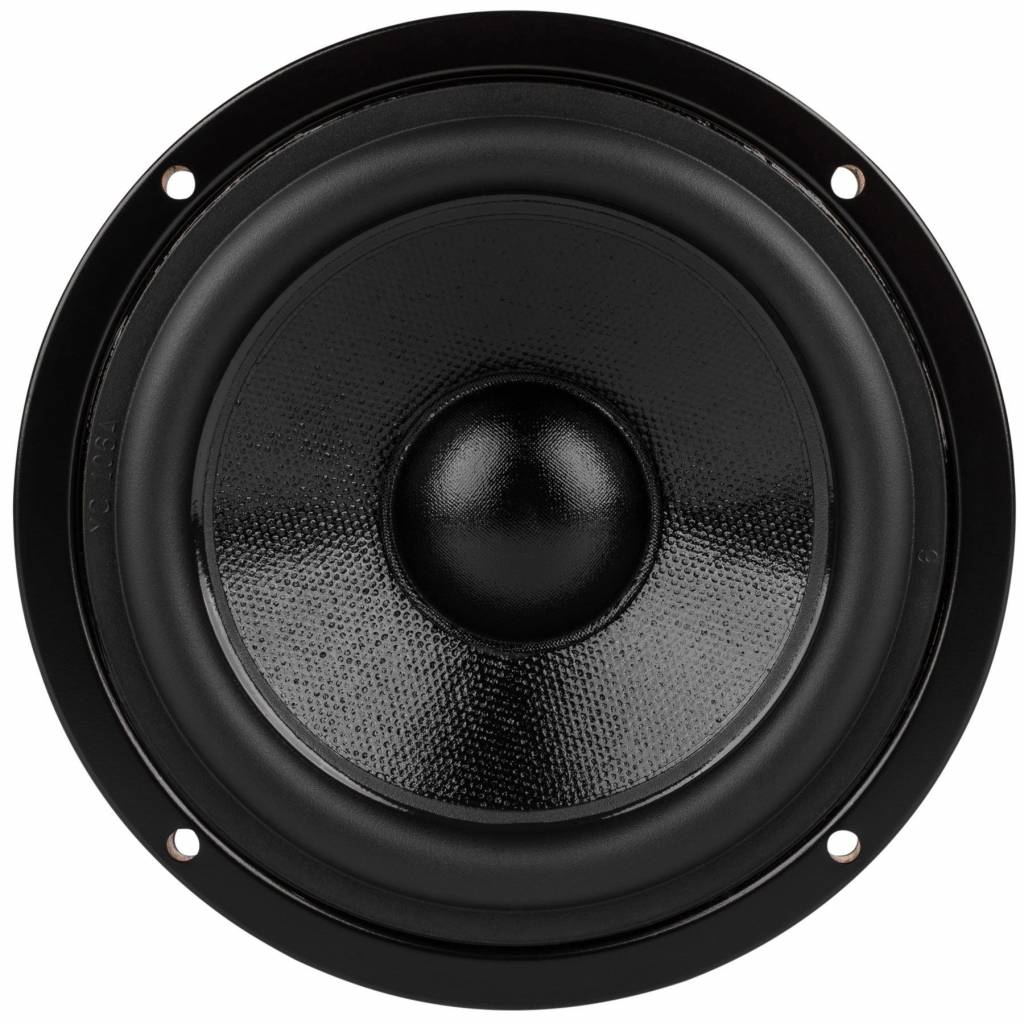

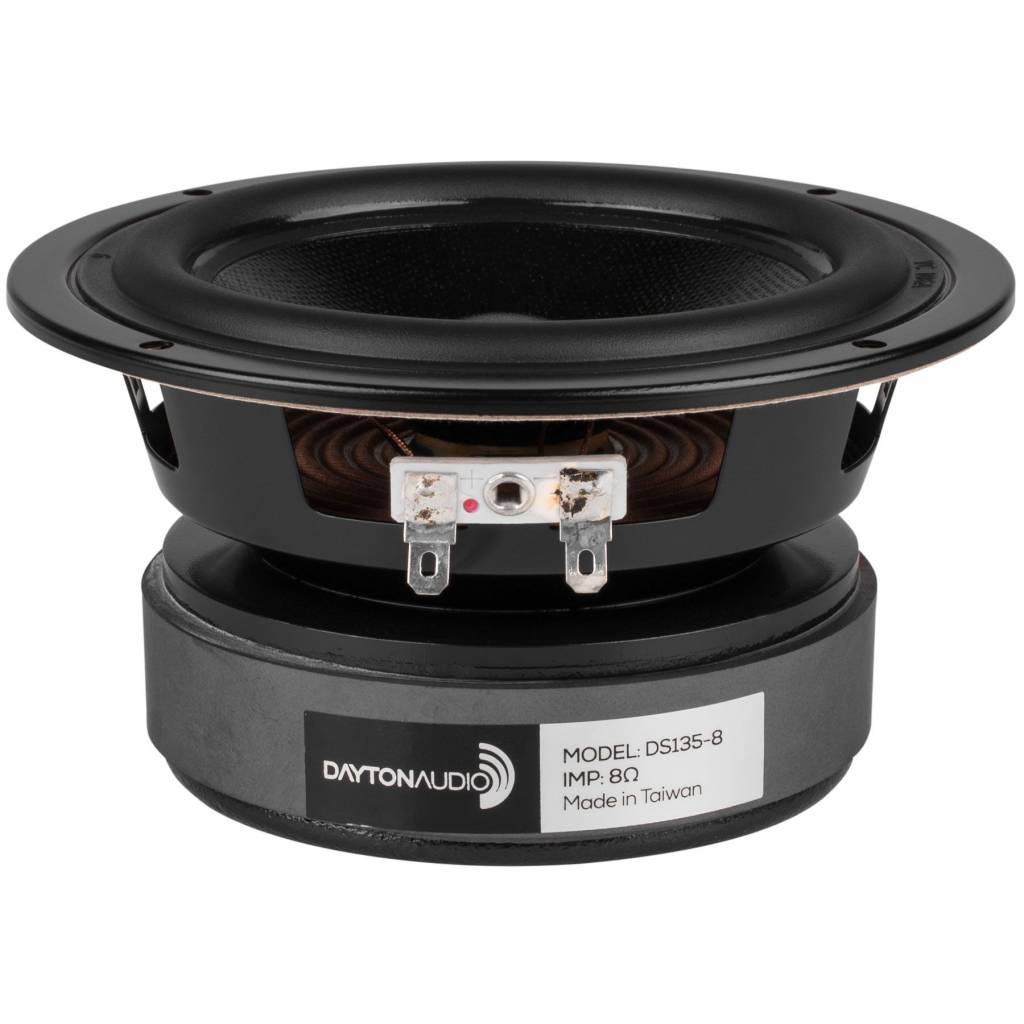

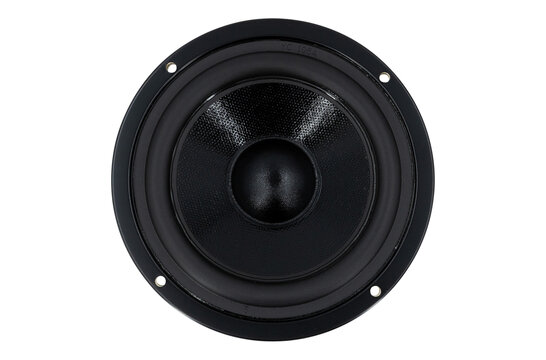

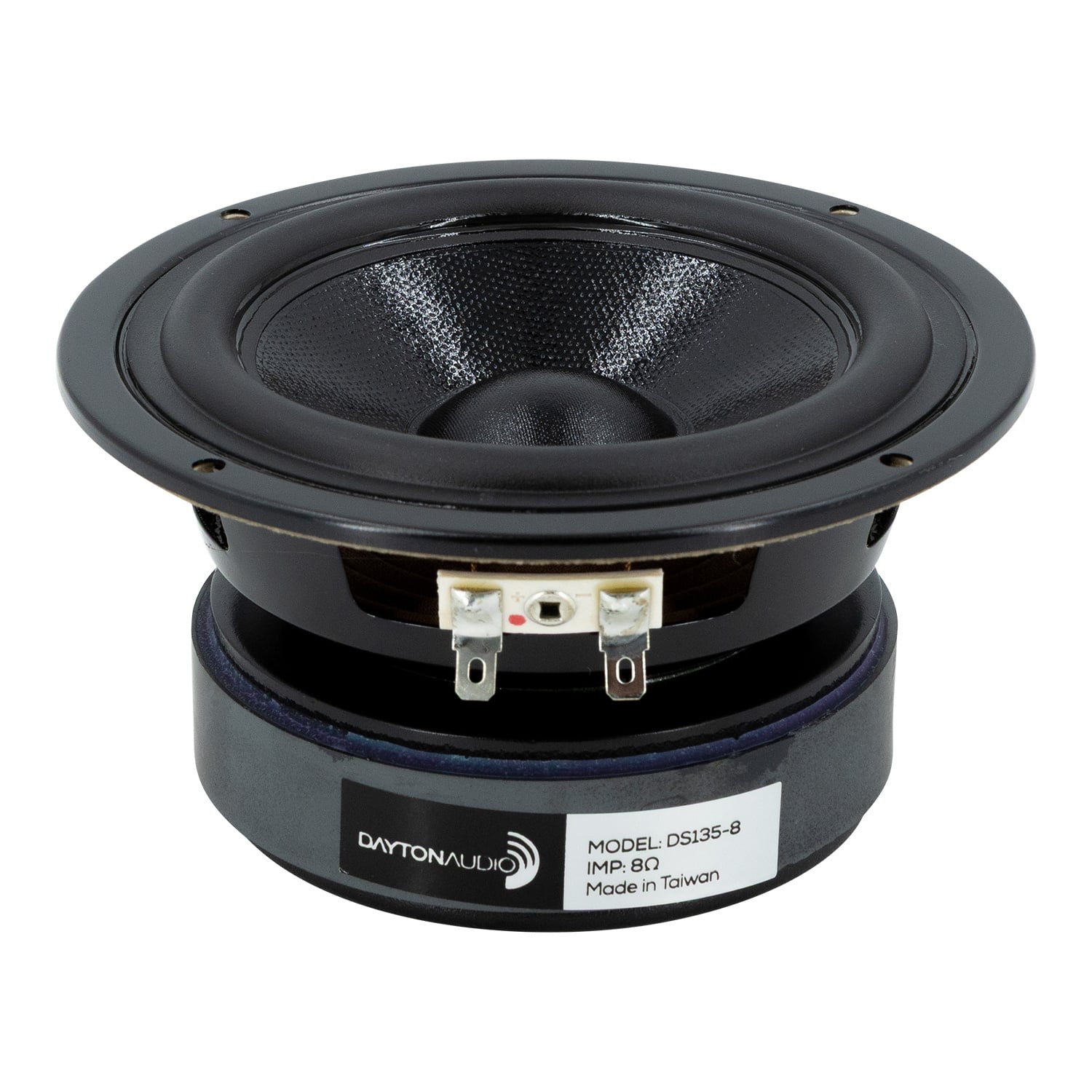

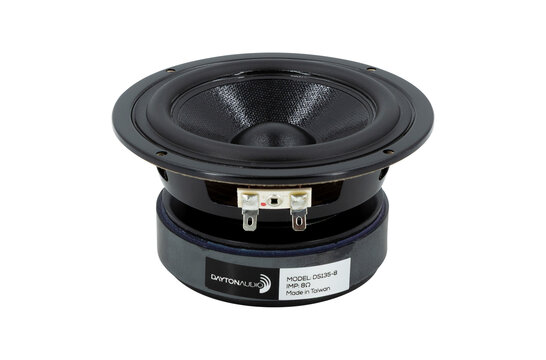

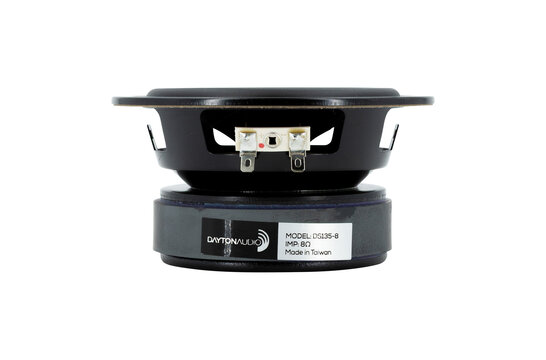

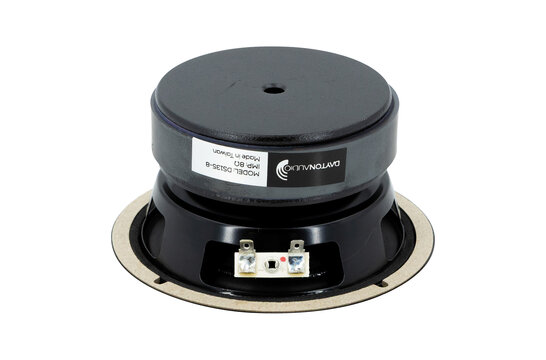

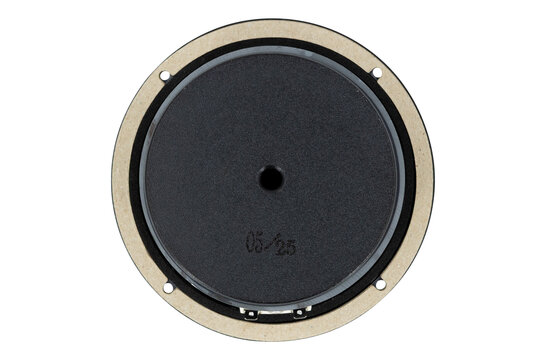

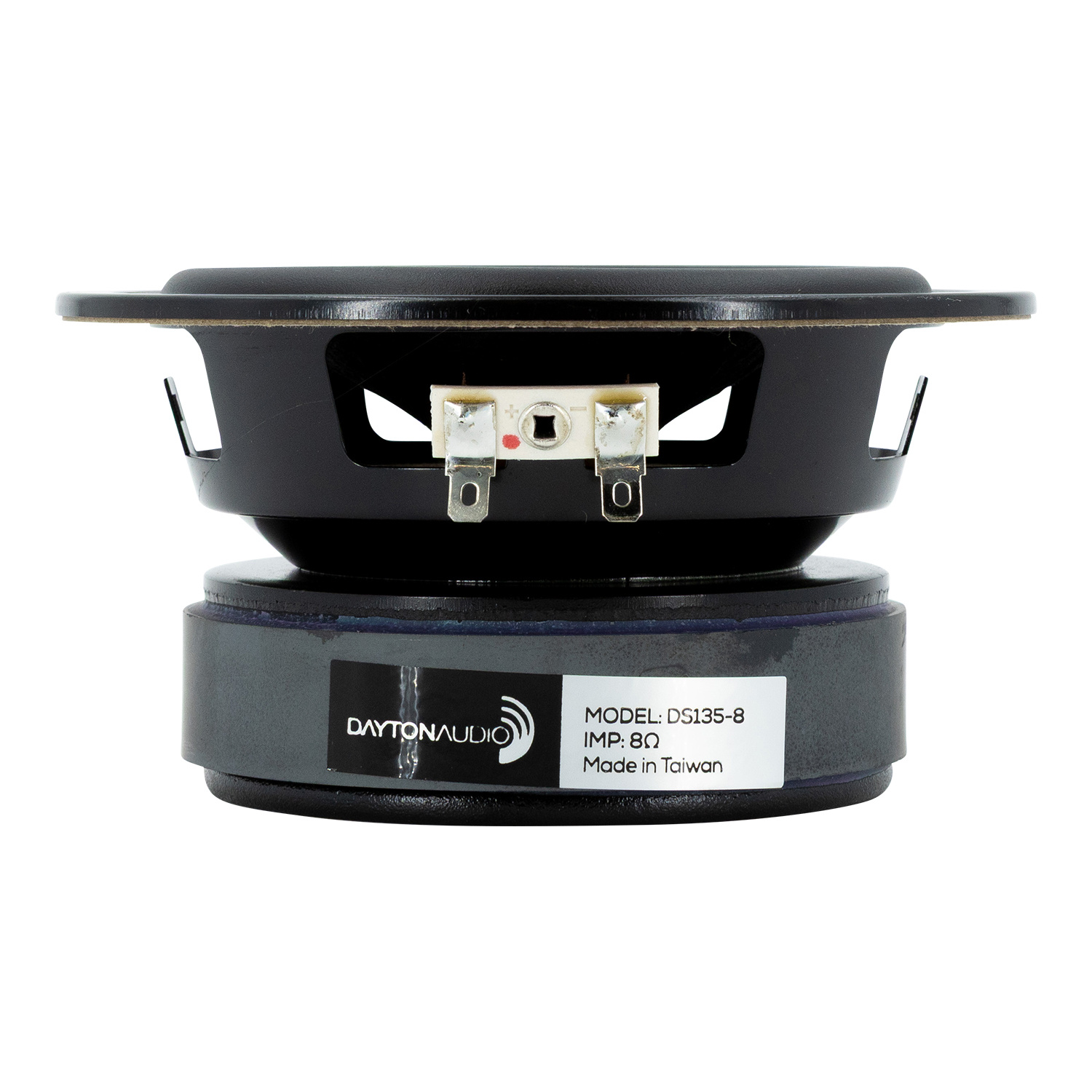

        Designer DS135-8 Bass-midwoofer

        Designer DS135-8 Bass-midwoofer

        €41,95

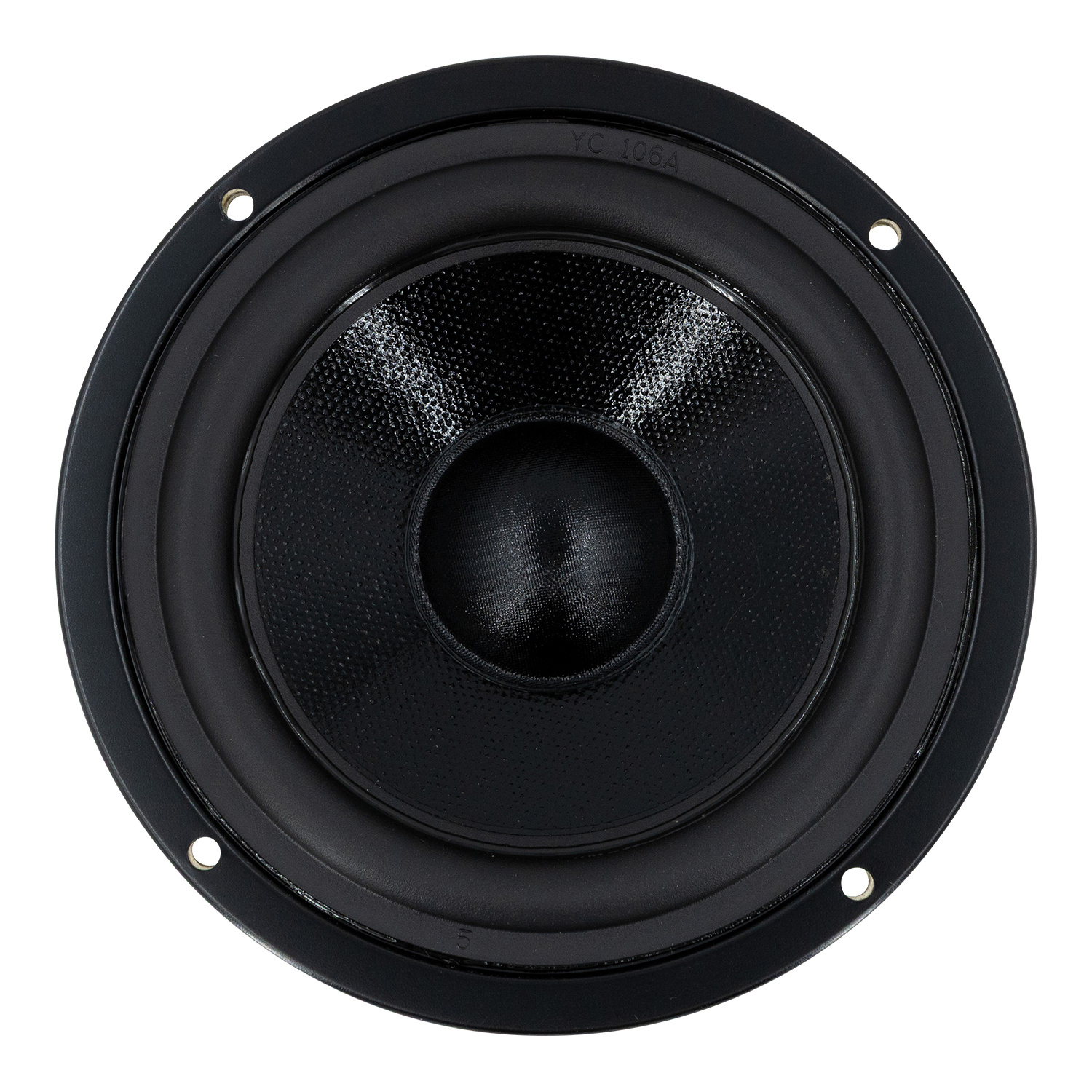

        Dayton Audio Designer DS135-8 Bass-midwoofer

        6 reviews
        5 van 5
        6 reviews
        5 sterren
        83%
        4 sterren
        17%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 34,67€ 41,95 1 Op voorraad10+ verwacht op 19-04-2024
        • -5% Bestel 4 voor slechts € 39,85 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, morgen verstuurd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.



        Highlights

        • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
        • Coated paper cone, half roll rubber surround for durability and accurate reproduction
        • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
        • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
        • Vented pole piece for minimized power compression and maximized reliability
        • Generous Xmax capability encourages use of moderate bass boost to tailor the response
        • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



        Product details

        Dayton Audio DS135-8 5" Designer Series Woofer Speaker



        The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



        These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



        • Suggested enclosures:

        Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz.



        Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz.



        Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



        Toon meer

        Specificaties

        Artikelnummer
        DS135-8
        Woofer series
        Designer Series
        Woofer type
        Midwoofer
        Nominale diameter
        3.50"
        Belastbaarheid (RMS)
        50 watts
        Belastbaarheid (max)
        100 watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.6 dB
        Frequentierespons
        50 - 7,000 Hz
        Spreekspoeldiameter
        25.4 mm
        Gewicht magneet
        21 oz.
        Gelijkstroomweerstand (Re)
        5.9 ohms
        Spreekspoelinductie (Le)
        0.84 mH @ 1 kHz
        Resonantiefrequentie (Fs)
        52.5 Hz
        Mechanische Q (Qms)
        2.02
        Elektrische Q (Qes)
        0.48
        Totale Q (Qts)
        0.39
        Bewegende massa (Mms)
        9.7g
        Compliantie van de ophanging (Cms)
        0.95 mm/N
        Effectief oppervlak (Sd)
        75.4 cm²
        Maximaal verplaatst volume (Vd)
        36.6 cm³
        Krachtsfactor (BL)
        6.23 Tm
        Equivalentvolume (Vas)
        7.27 liters
        Maximale excursie (Xmax)
        4.85 mm
        Cone / Diaphragm Material
        Coated Paper
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Copper
        Spreekspoel vormermateriaal
        Aluminum
        Mand- /framemateriaal
        Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        135 mm
        Totale diepte
        68.6 mm
        Montagegatdiameter
        111.5 mm
        # Bevestigingsgaten
        4
        Gesloten volume
        0.07 ft.³
        Gesloten F3
        113 Hz
        Gepoort volume
        0.15 ft.³
        Gepoort F3
        66 Hz
