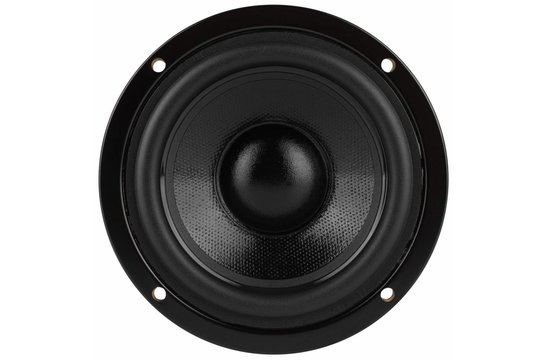

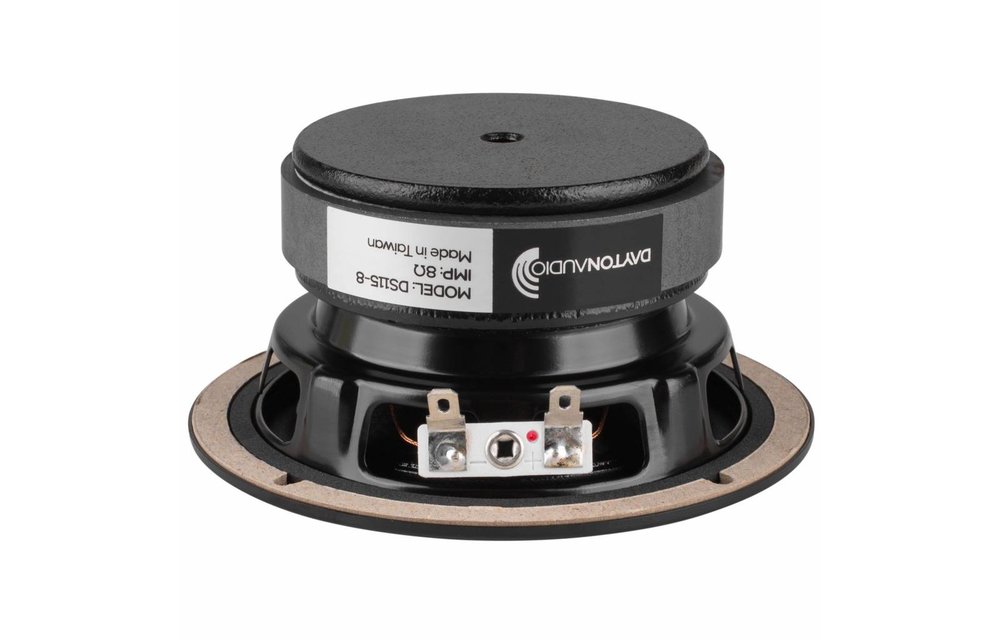

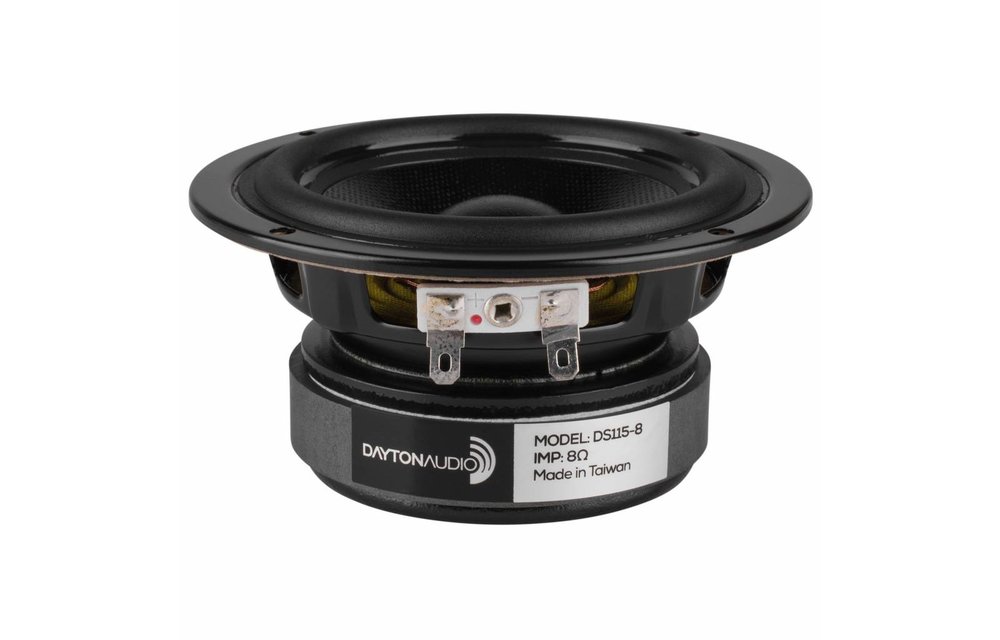

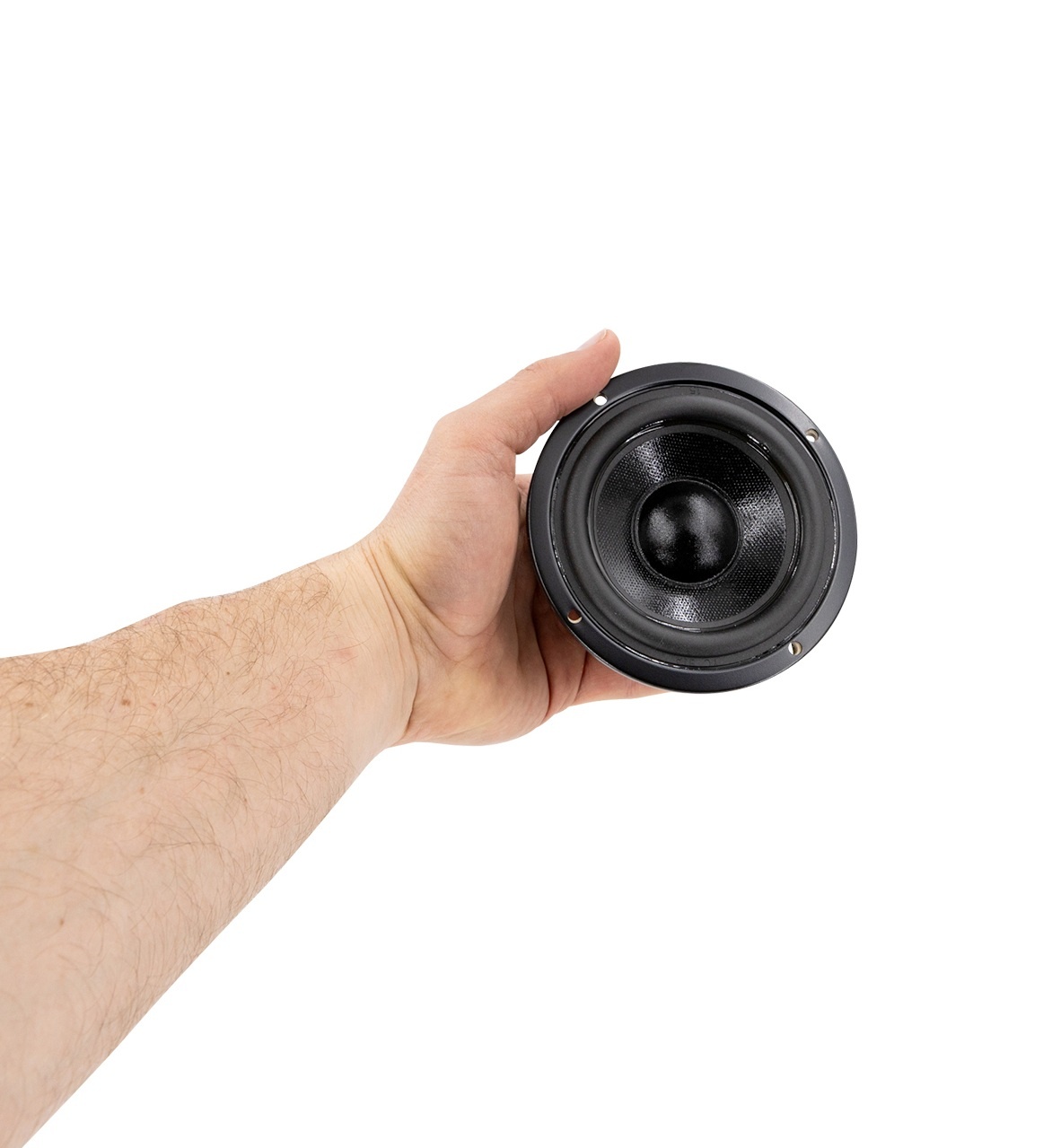

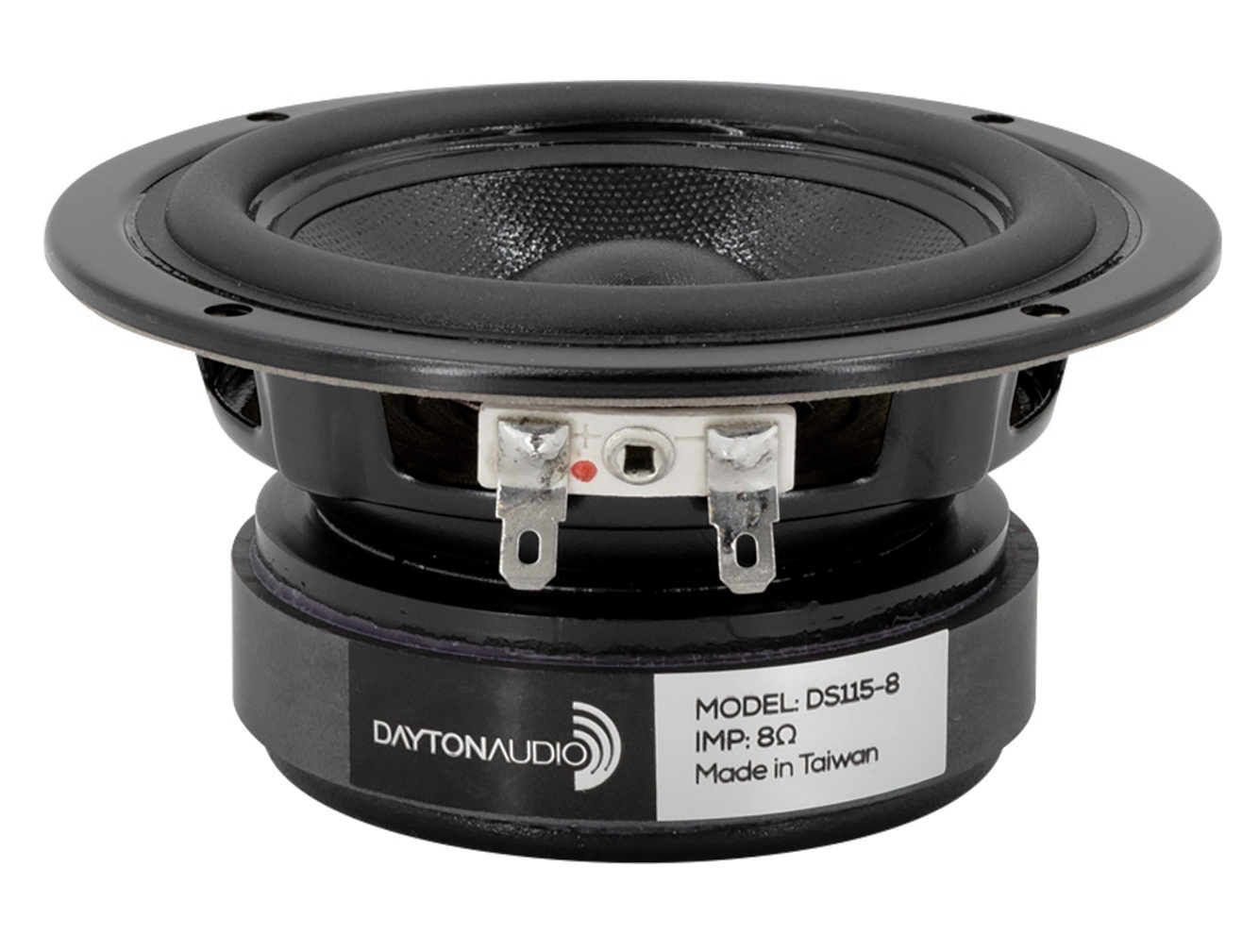

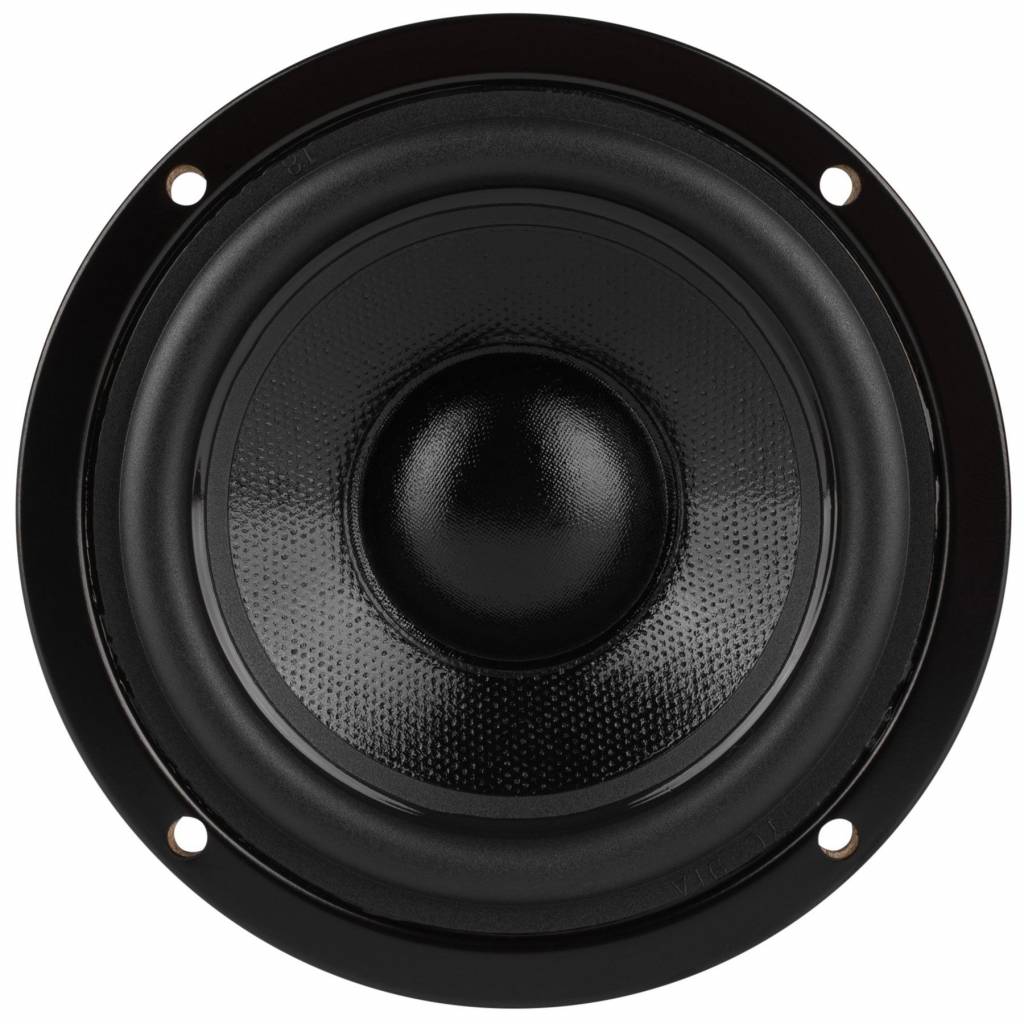

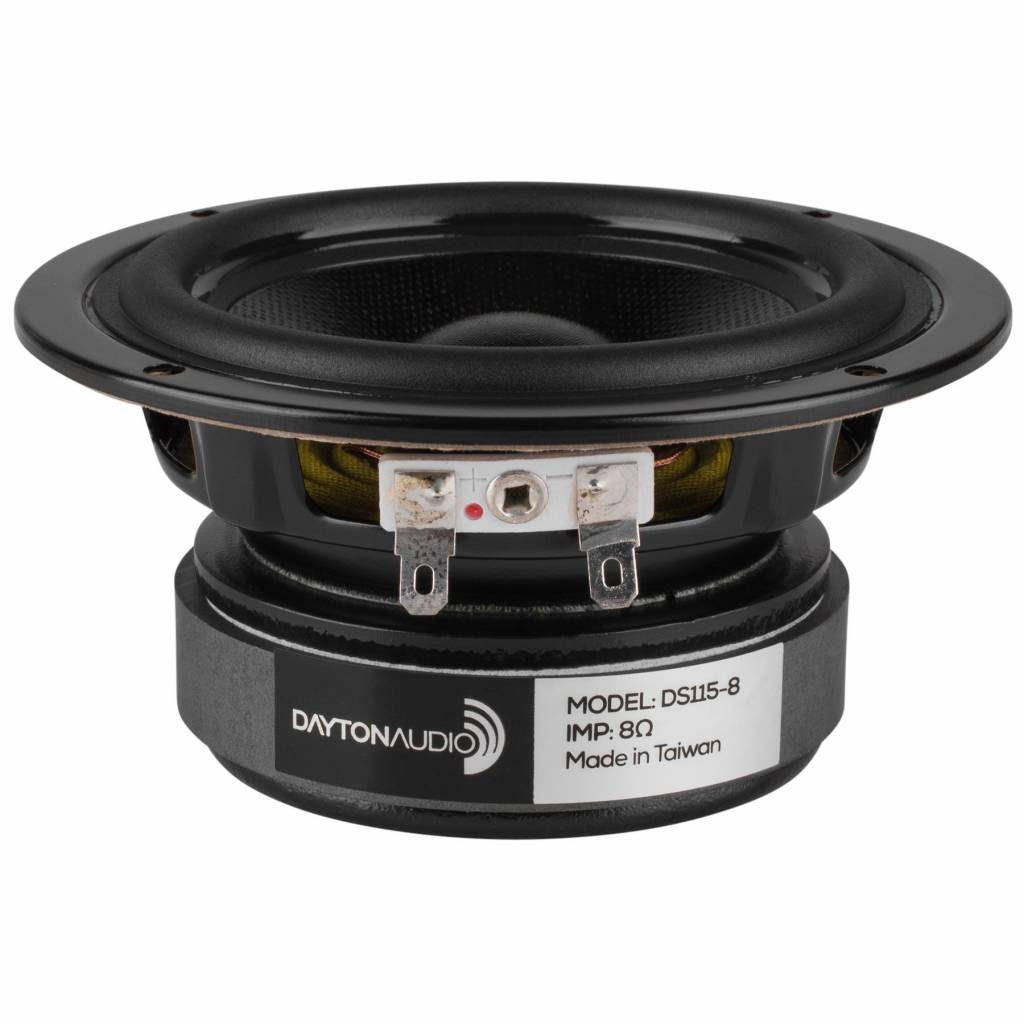

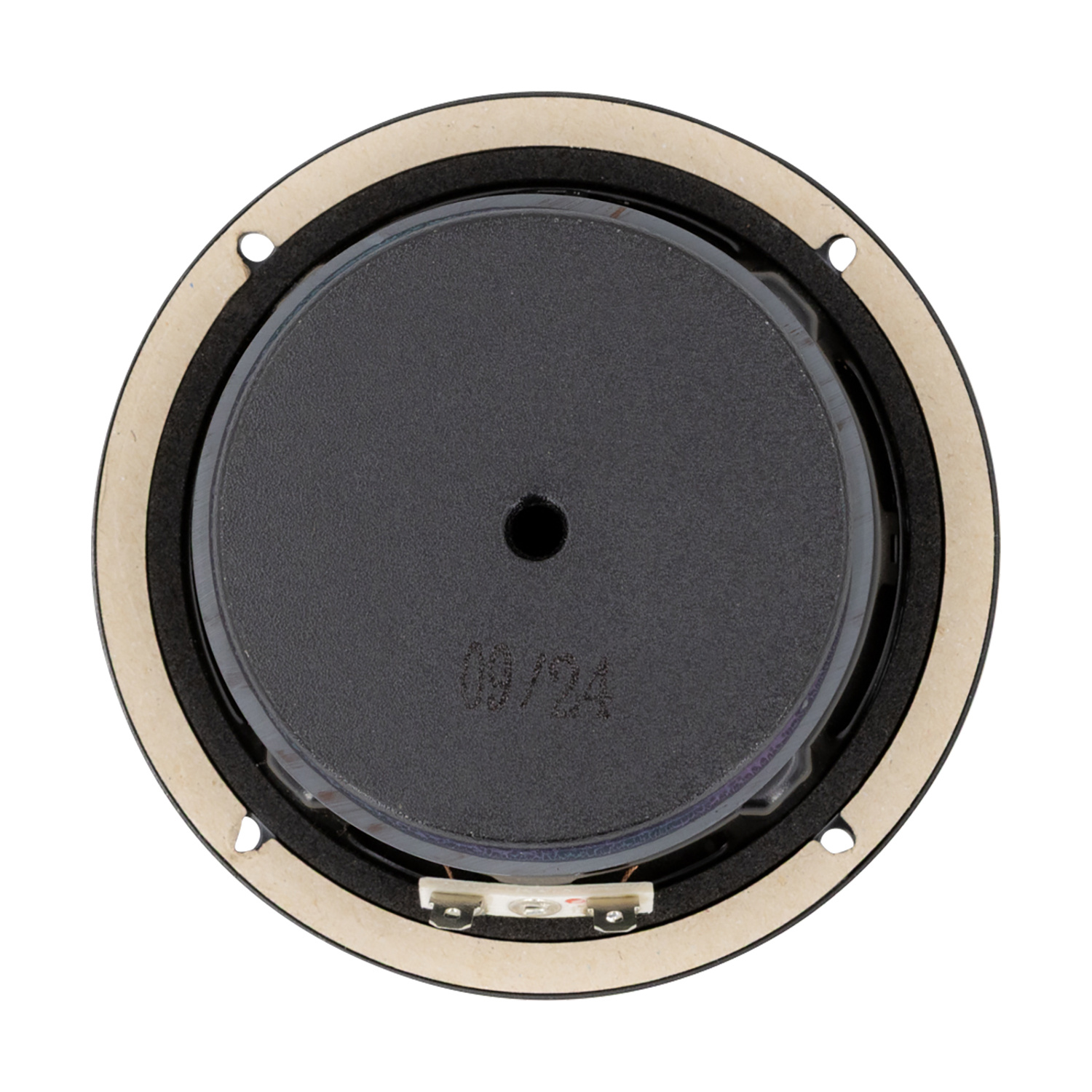

Dayton Audio DS115-8 4" Designer Series Woofer Speaker

Levertijd: 1 werkdag

  • Artikelcode: DS115-8
  • Voorraad: >10 Op voorraad

More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability.

€ 23,95 Incl. 21% btw

  • Bestel 4 voor €22,75 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DS115-8 4" Designer Series Woofer Speaker

More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability.



Highlights

  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Smooth frequency response and linear roll-off simplify filter design, assuring good results with off-the-shelf crossovers
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Product details

Dayton Audio DS115-8 4" Designer Series Woofer Speaker



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



  • Suggested enclosures:

Sealed cabinet: Type: Closed (alpha 1.9), Qtc 0.55; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9"H x 5-1/2"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 135 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.



Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 9-1/2"H x 5-7/8"W x 3-5/8"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 55 Hz.



Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.



Specificaties

Specificaties voor: DS115-8 4" Designer Series Woofer Speaker

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Designer Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Midwoofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 4"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 35 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 70 watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 85.3 dB @ 2.83V/1m
  • Frequency Response 60 - 8,000 Hz
  • Voice Coil Diameter 25.4 mm
  • Magnet Weight 11 oz
  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 0.8 mH @ 1 kHz
  • Resonant Frequency (Fs) 55.2 Hz
  • Mechanical Q (Qms) 2.10
  • Electromagnetic Q (Qes) 0.46
  • Total Q (Qts) 0.38
  • Diaphragm Mass Inc. Airload (Mms) 7.9g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.05 mm/N
  • Surface Area of Cone (Sd) 54.1 cm²
  • Volume of Displacement (Vd) 22.2 cm³
  • BL Product (BL) 5.88 Tm
  • Compliance Equivalent Volume (Vas) 4.33 liters
  • Maximum Linear Excursion (Xmax) 4.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 115.6 mm
  • Overall Depth 54.7 mm
  • Baffle Cutout Diameter 93.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.04 ft.³
  • Sealed F3 124 Hz
  • Vented Volume 0.09 ft.³
  • Vented F3 70 Hz

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (5)

  • AK Door Arjan K. aan 25-07-2020 13:43

    5 / 5

    Deze kleine potente midwoofer is ingezet in een compacte FAST waar dit speakertje tot ca. 500hz loopt. Het laag wat eruit komt is absurd voor zo'n klein 10cm woofertje, mensen vragen waar de subwoofer staat....

  • SD Door Sam D. aan 25-10-2019 14:17

    5 / 5

    goede luidspreker voor z'n prijsklasse

  • MJ Door Manuel J. aan 29-05-2019 18:48

    5 / 5

    Although I have not yet mounted the speakers in the designed boxes, the initial impression is good, good material and good finishes.

  • JG Door John G. aan 14-03-2019 21:12

    5 / 5

    Testing it in a 1.5m transmission line enclosure. Bass notes seem pleasing on the ear, separately produced so well defined, no booming. Voice from DAB radio sounded pretty realistic. Work in progress!

  • JS Door juli s. aan 06-03-2018 17:15

    5 / 5

    bon producte
