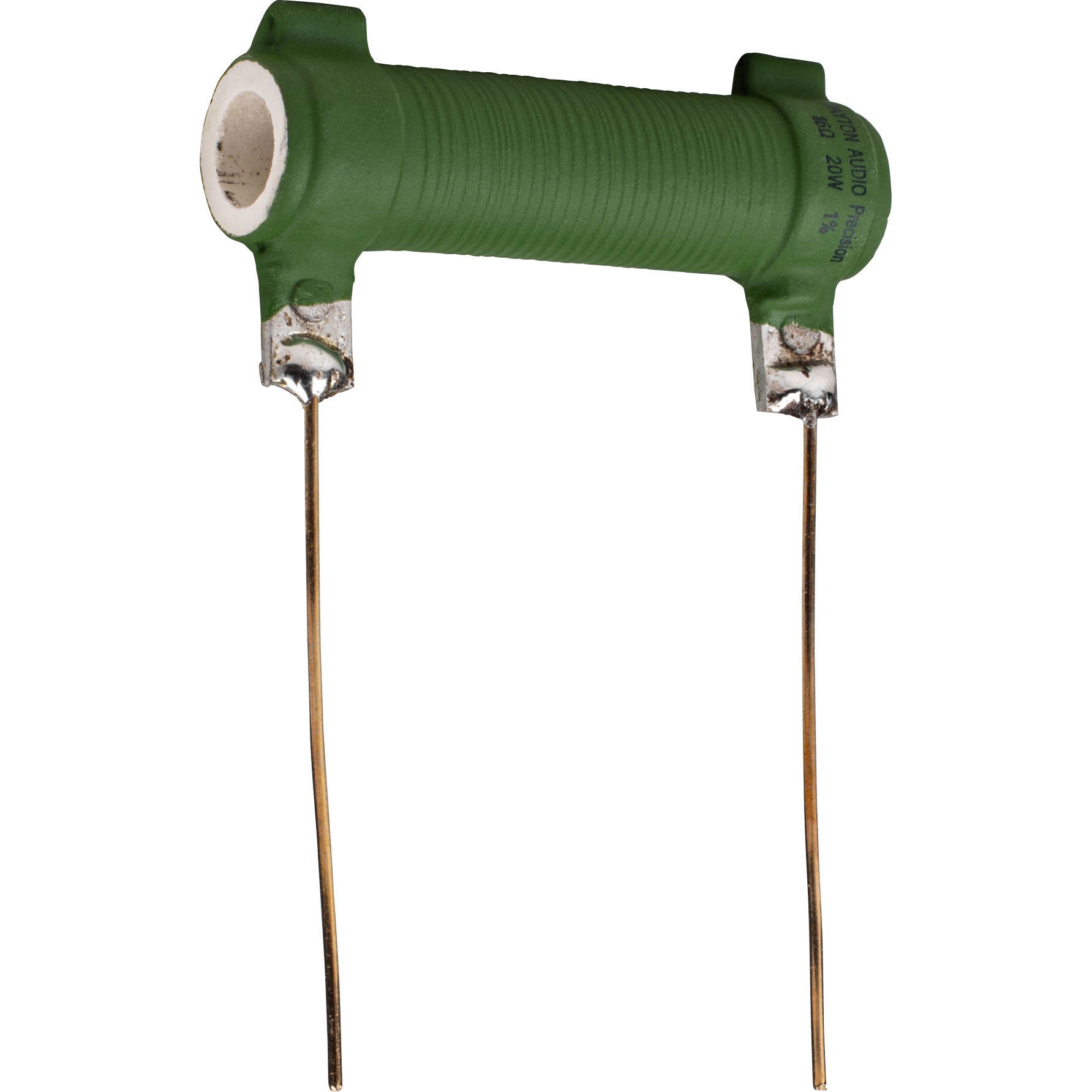

Dayton Audio DPR20-16 | 16.0 Ω | 20 W | 1% | Precision Audio Grade Bifilar Resistor

Levertijd: 1 werkdag

  • Artikelcode: DPR20-16
  • Voorraad: 8 Op voorraad

Designed for use in no compromise crossover designs, Dayton Audio's Precision 20 watt Audio Grade Bifilar Resistors are ideal for use in your next high end speaker design. The extremely low inductance, non-magnetic construction, tight 1% tolerance, copper

€ 4,95 Incl. 21% btw

  • Bestel 4 voor €4,70 per stuk en bespaar 5% Sale 5%
  • Bestel 10 voor €4,46 per stuk en bespaar 10% Sale 10%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DPR20-16 | 16.0 Ω | 20 W | 1% | Precision Audio Grade Bifilar Resistor

Highlights

  • Extremely low inductance to avoid any unexpected changes to the audio signal
  • Extra long 50 mm leads make these resistors ideal for use in point-to-point circuit designs
  • Non-magnetic construction includes nickel-chromium internal wire with copper endcaps and leads
  • Internal ceramic tube has great stability and heat dissipation for long life and reliable performance
  • Nickel-chromium wiring and non-flammable coating to withstand moisture and corrosion
  • Tight 1% tolerance to ensure expected and reliable operation



Product details

Dayton Audio DPR20-16 | 16 Ω | 20 W | 1% | Precision Audio Grade Resistor



Dayton Audio's Precision Series Audio Grade 20 watt resistors are designed specifically for use in high end, no compromise crossover networks. The nickel-chromium winding, a high thermal conductivity tubular ceramic core, welded construction, and completely non-magnetic components allow these resistors to pass audio signals while maintaining their original sonic character and detail. With a precision 1% tolerance, gold-plated oxygen free copper leads, and low-inductive wire wound construction, these resistors are an excellent choice for you next premium speaker design.



Dimensions: 51.5 mm L x 14 mm diameter • 50 mm leads.

Specificaties

Specificaties voor: DPR20-16 | 16.0 Ω | 20 W | 1% | Precision Audio Grade Bifilar Resistor

  • Resistance SPEC Resistance
  • Power rating SPEC Power rating 20 W
  • Tolerance De tolerantie in procenten van de gemeten capaciteit t.o.v. werkelijke capaciteit 1%

Documenten
