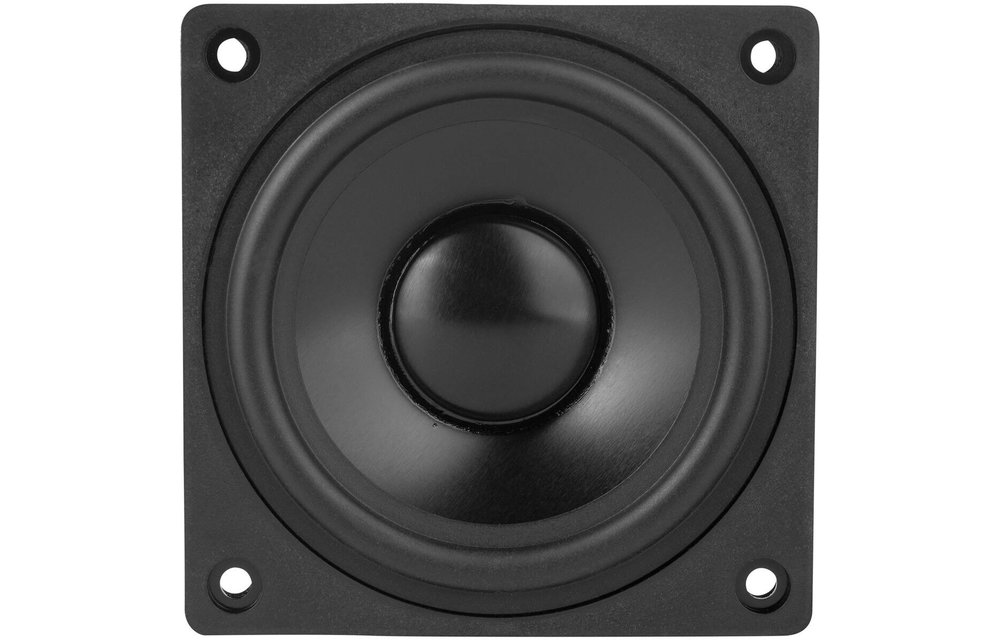

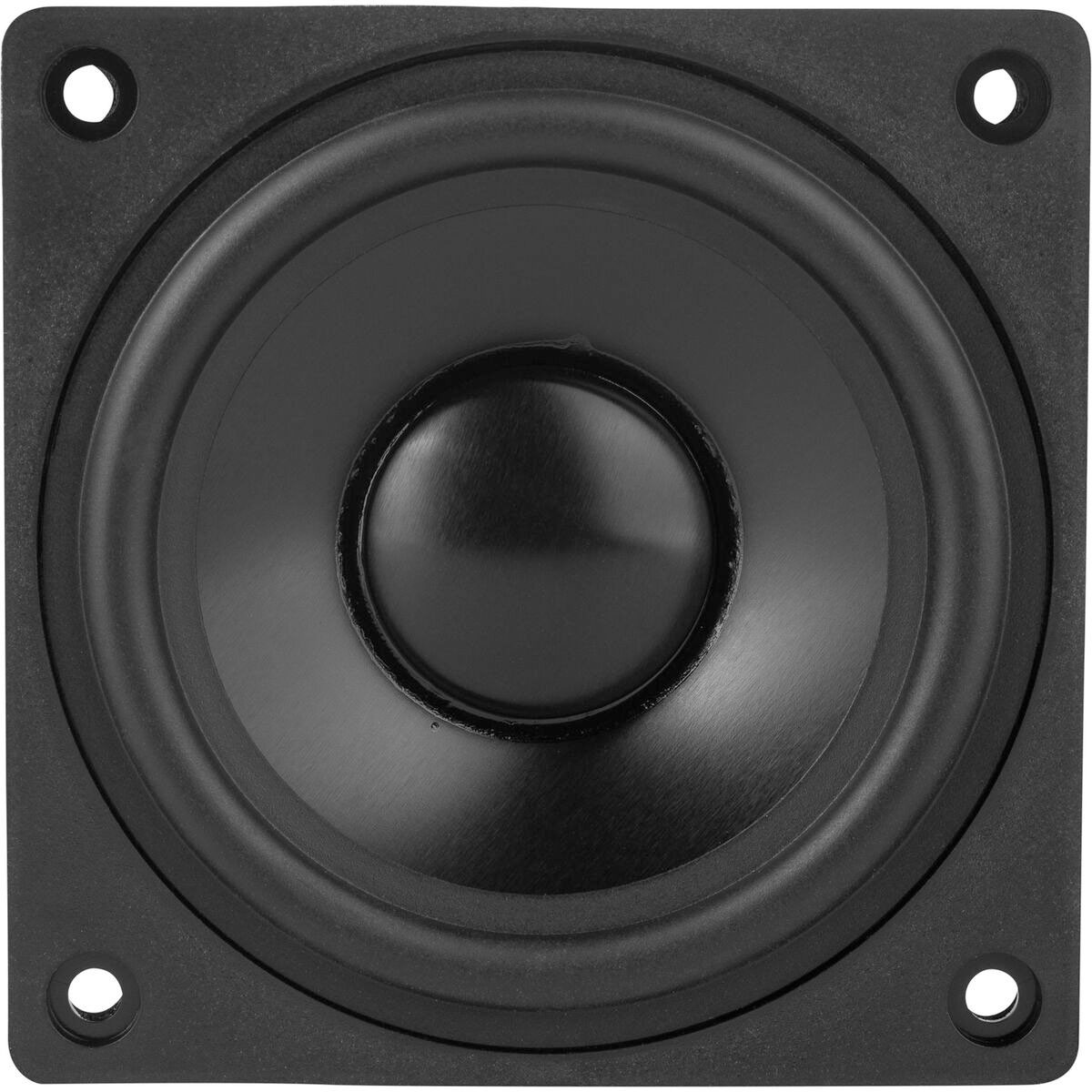

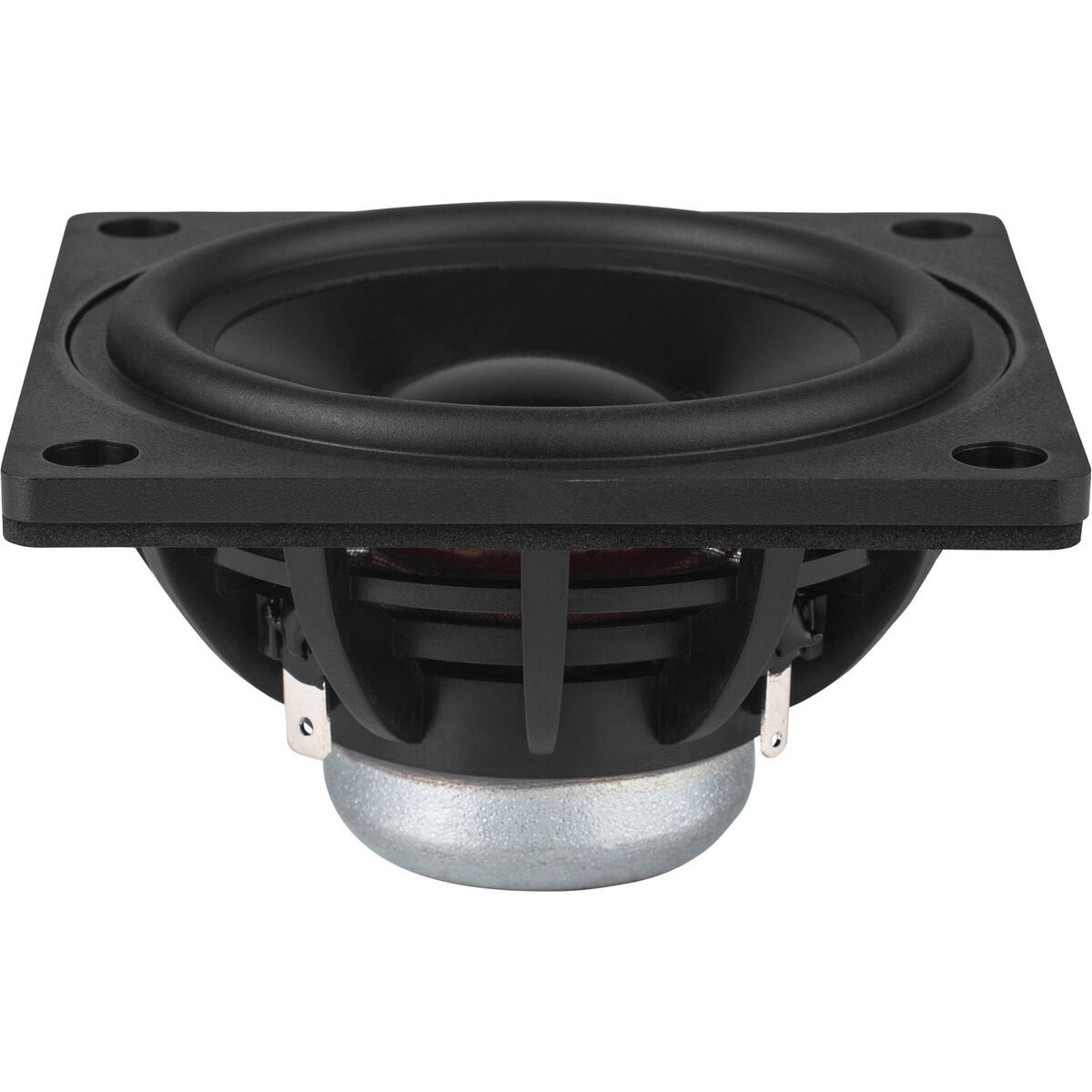

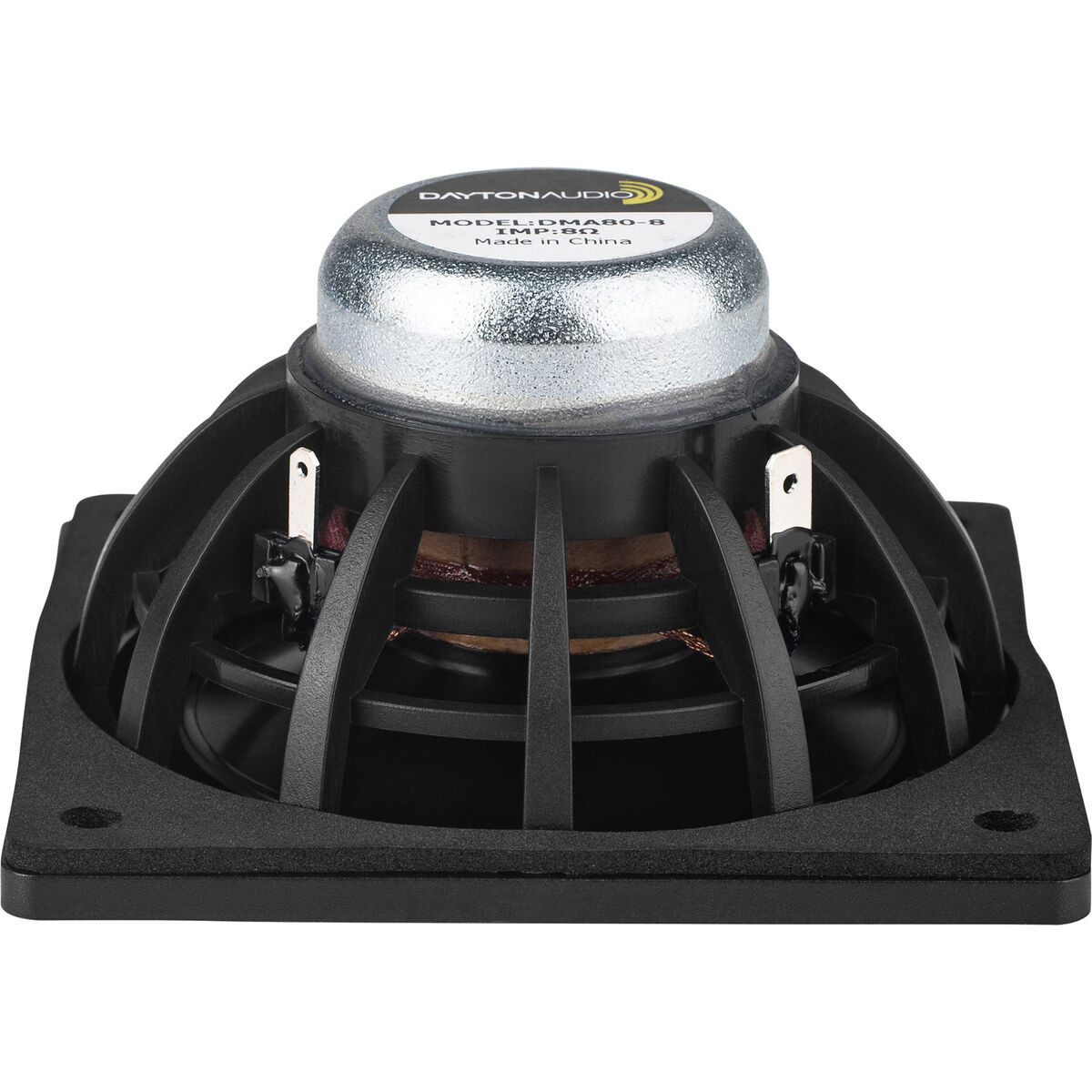

        DMA80-8 Full-range Woofer

        DMA80-8 Full-range Woofer

        €23,45

        Dayton Audio DMA80-8 Full-range Woofer

        4 reviews
        5 van 5
        4 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 19,38€ 23,45 5 Op voorraad8 verwacht op 19-07-2024
        • -5% Bestel 4 voor slechts € 22,28 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Vijf jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Dayton Audio's DMA80-8 3” high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA80-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



        Highlights

        • Excellent high frequency response for true full-range applications
        • Dual neodymium motor to create a symmetrical magnetic field for superb control
        • Large copper cap lowers distortion while improving high frequency response
        • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
        • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
        • DIY friendly, oversized mounting flange makes installation simple
        • Matching tunable passive radiators also available!



        Product details

        Dayton Audio DMA80-8 3” Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm



        Providing high efficiency with low distortion, Dayton Audio's DMA80-8 3” aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA80-8 is the perfect full-range for the job.

        Designed for the highest performance while delivering maximum value, the no compromise design of the DMA80-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

        Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/8" straight cut router bit.

        Toon meer

        Specificaties

        Artikelnummer
        DMA80-8
        Woofer series
        DMA series
        Woofer type
        Full-range
        Nominale diameter
        3”
        Belastbaarheid (RMS)
        25 Watts
        Belastbaarheid (max)
        50 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        85.3 dB
        Frequentierespons
        90 to 20,000 Hz
        Spreekspoeldiameter
        1"
        Gelijkstroomweerstand (Re)
        7.5 ohms
        Spreekspoelinductie (Le)
        0.5 mH
        Resonantiefrequentie (Fs)
        97.6 Hz
        Mechanische Q (Qms)
        2.06
        Elektrische Q (Qes)
        0.61
        Totale Q (Qts)
        0.47
        Bewegende massa (Mms)
        2.70g
        Compliantie van de ophanging (Cms)
        0.98 mm/N
        Effectief oppervlak (Sd)
        31.2 cm²
        Krachtsfactor (BL)
        4.52 Tm
        Equivalentvolume (Vas)
        0.04 ft.³
        Maximale excursie (Xmax)
        2.5 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Copper
        Spreekspoel vormermateriaal
        Aluminum
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        3.16" x 3.16"
        Totale diepte
        1.53"
        Montagegatdiameter
        2.93"
        # Bevestigingsgaten
        4
        Gesloten volume
        0.035ft.³
        Gesloten F3
        174 Hz
        Gepoort volume
        0.053 ft.³
        Gepoort F3
        91 Hz

        Toon meer

        5 van 5
        Deze luidsprekers passen ook in de Perfectpro Audisse Shirudo. Mooie upgrade; klinkt voller en de radio speelt met meer volume; het rendement van deze luidsprekers lijkt hoger.
        Door Marc on 12 Februari 2023
        5 van 5
        Heb de Daytons gekocht om de goedkope Creative JS78-122 speakers in mijn Audisse Shokunin bouwradio te vervangen. Dit zijn hele goedkope speakers (worden in de Inspire T10 gebruikt) dus er uit met die dingen. De Daytons pasten zonder enige aanpassingen dus het was een kwestie van vastschroeven, draden solderen en klaar is kees. Het klinkt al een stuk beter, vooral in het midden en hoog, en het zal nog meer verbeteren naarmate de Daytons inspelen....

        Toon meer

        Door Nicolaas Yme Willemsen on 23 April 2022
