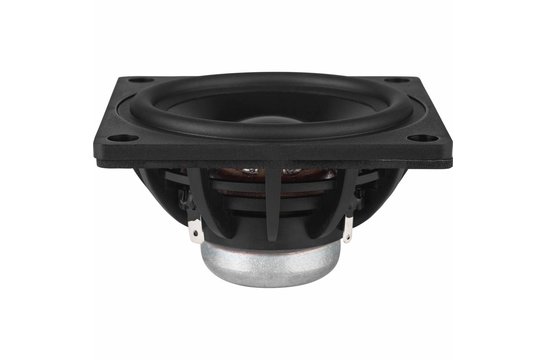

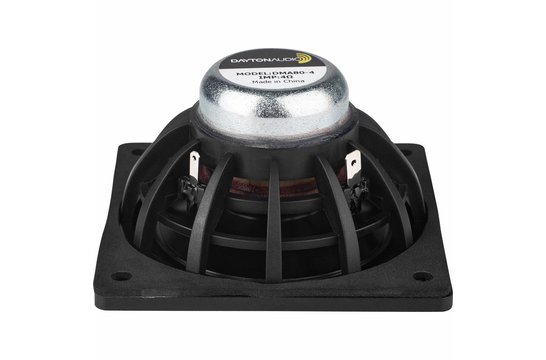

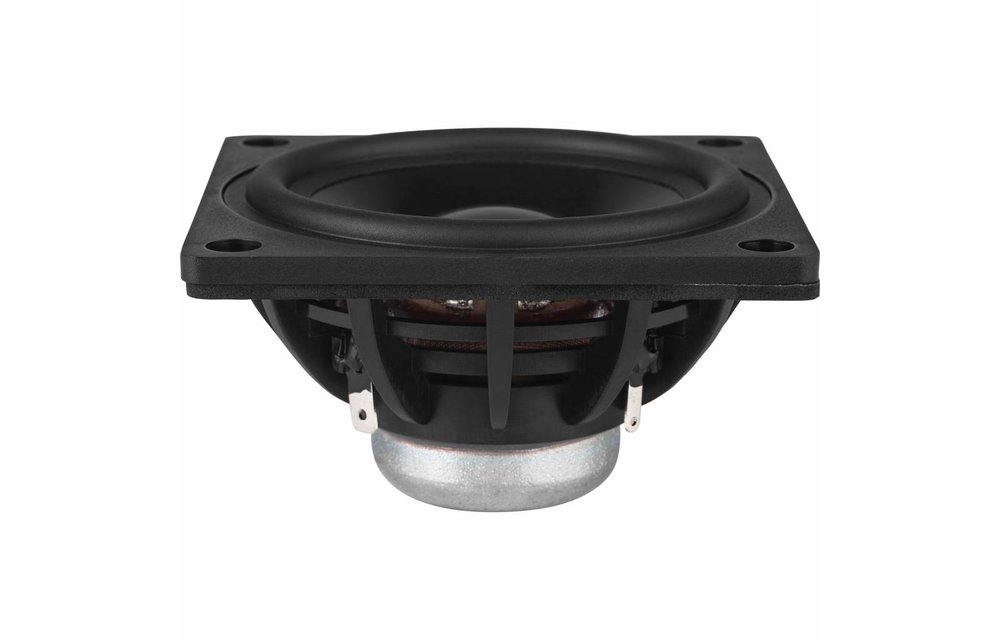

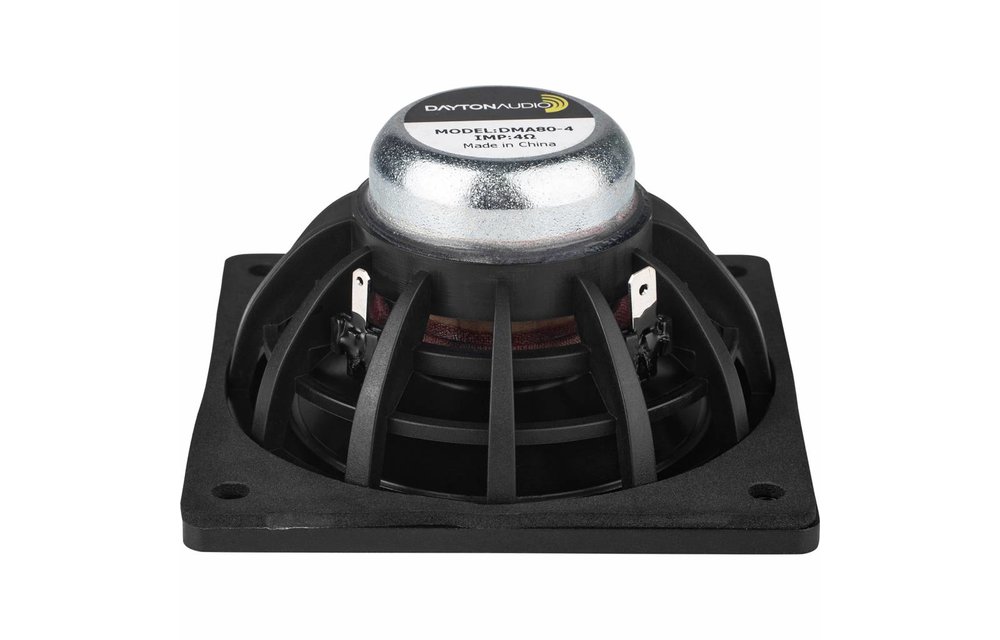

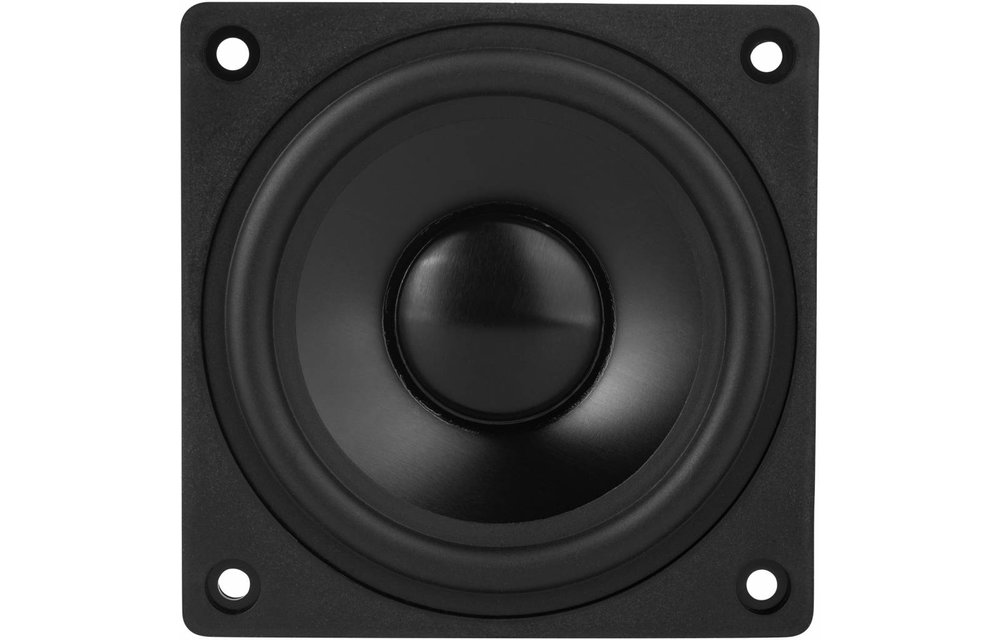

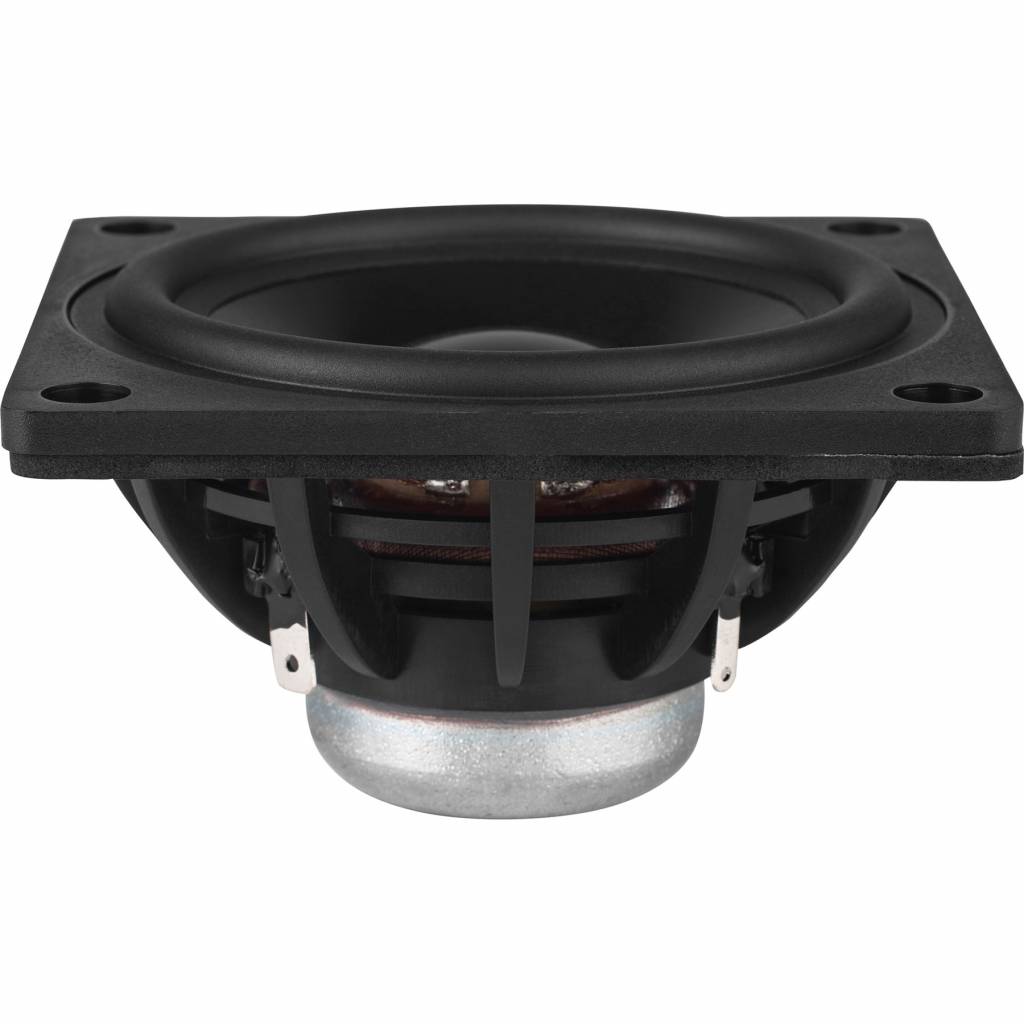

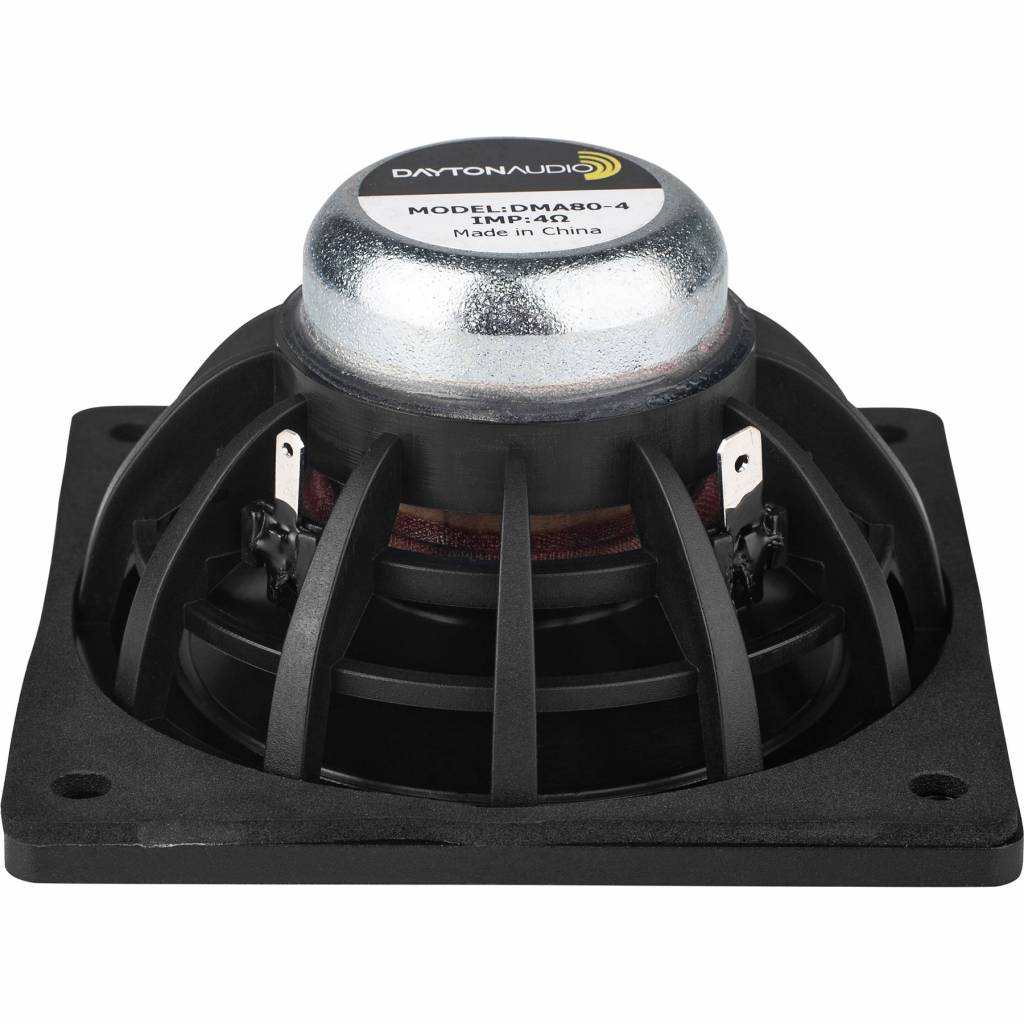

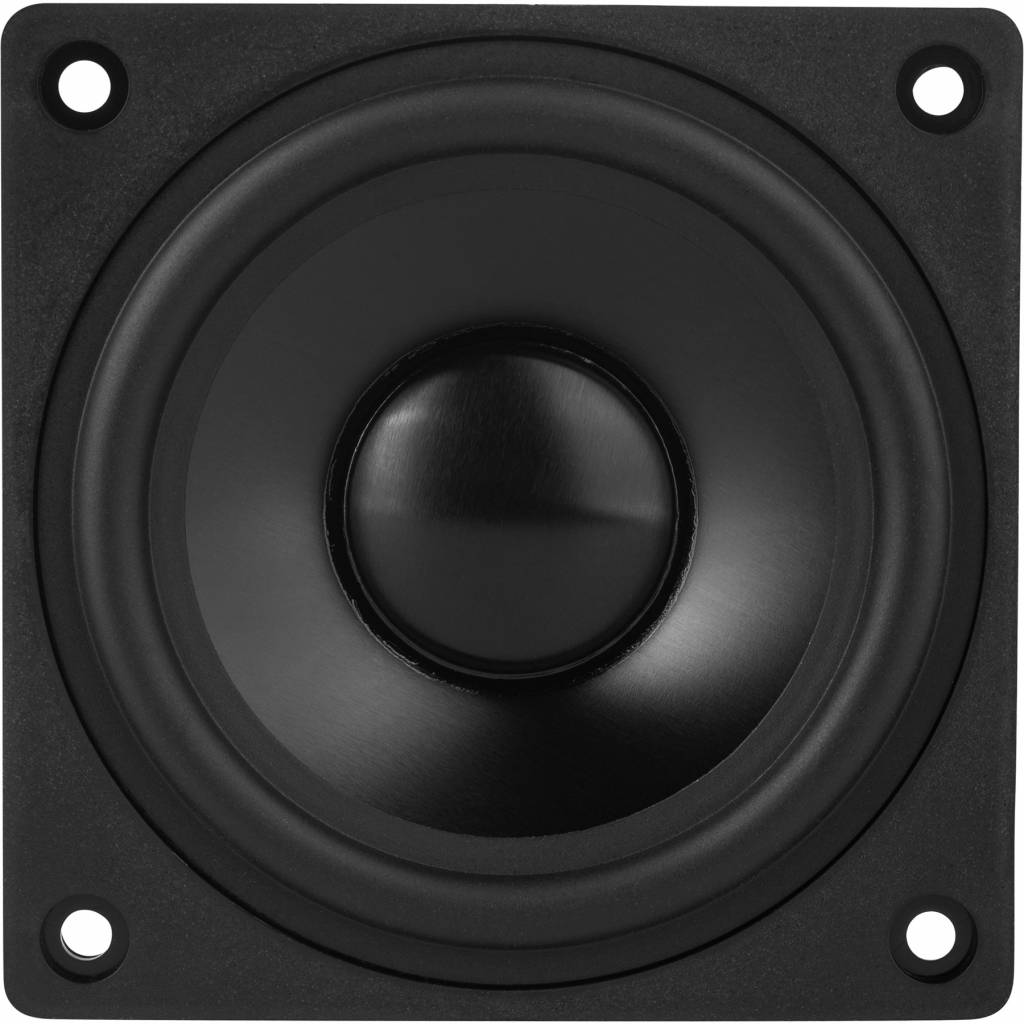

      Dayton Audio DMA80-4 Full-range Woofer

      € 17,31€ 20,95 Niet op voorraad10+ verwacht op 28-03-2023
      • -5% Bestelling 4 voor slechts € 19,90 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!


      Dayton Audio's DMA80-4 3” high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA80-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



      • Excellent high frequency response for true full-range applications
      • Dual neodymium motor to create a symmetrical magnetic field for superb control
      • Large copper cap lowers distortion while improving high frequency response
      • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
      • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
      • DIY friendly, oversized mounting flange makes installation simple
      • Matching tunable passive radiators also available!


      Product details

      Dayton Audio DMA80-4 3” Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm


      Providing high efficiency with low distortion, Dayton Audio's DMA80-4 3” aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA80-4 is the perfect full-range for the job.

      Designed for the highest performance while delivering maximum value, the no compromise design of the DMA80-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

      Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/8" straight cut router bit.

      Toon meer


      Woofer series
      WMA series
      Woofer type
      Nominale diameter
      Belastbaarheid (RMS)
      25 Watts
      Belastbaarheid (max)
      50 Watts
      Impedantie (Z)
      4 ohms
      88.1 dB 2.83V/1m
      90 to 20,000 Hz
      Gelijkstroomweerstand (Re)
      4 ohms
      Spreekspoelinductie (Le)
      0.2 mH
      Resonantiefrequentie (Fs)
      93.5 Hz
      Mechanische Q (Qms)
      Elektrische Q (Qes)
      Totale Q (Qts)
      Bewegende massa (Mms)
      Compliantie van de ophanging (Cms)
      0.96 mm/N
      Effectief oppervlak (Sd)
      31.2 cm²
      Krachtsfactor (BL)
      3.74 Tm
      Equivalentvolume (Vas)
      0.05 ft.³
      Maximale excursie (Xmax)
      2.5 mm
      Cone / Diaphragm Material
      Spreekspoel draadmateriaal
      Spreekspoel vormermateriaal
      Mand- /framemateriaal
      Totale buitendiameter
      3.16" x 3.16"
      Totale diepte
      # Bevestigingsgaten
      Gesloten volume
      Gesloten F3
      196 Hz
      Gepoort volume
      0.04 ft.³
      Gepoort F3
      109 Hz

      Toon meer


      5 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      Used DSP FIR filter and this unit gives VERY clean sound in the 200 - 3kHz range that I used it for. Tried 500-3kHz and could hear nasties from bass unit.
      Door Gareth J. on 29 April 2021
      5 van 5
      No description was given
      Door Balazs B. on 19 Juni 2020
