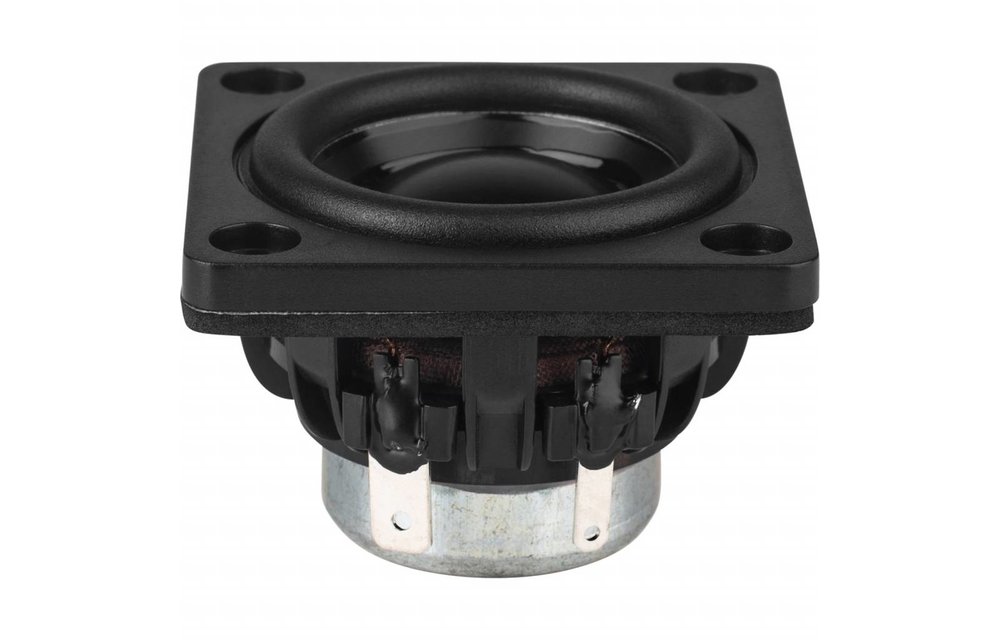

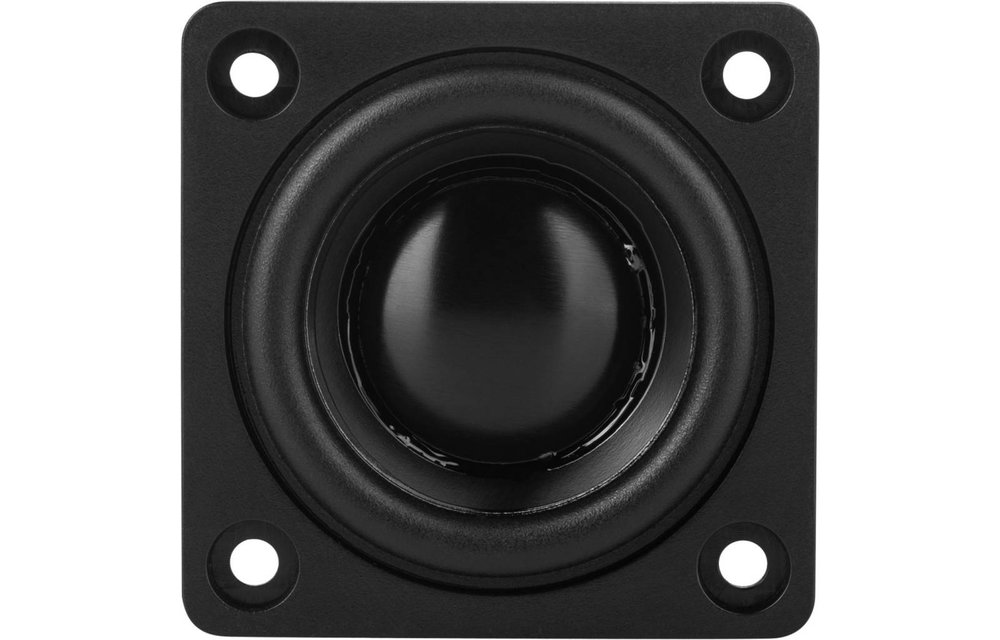

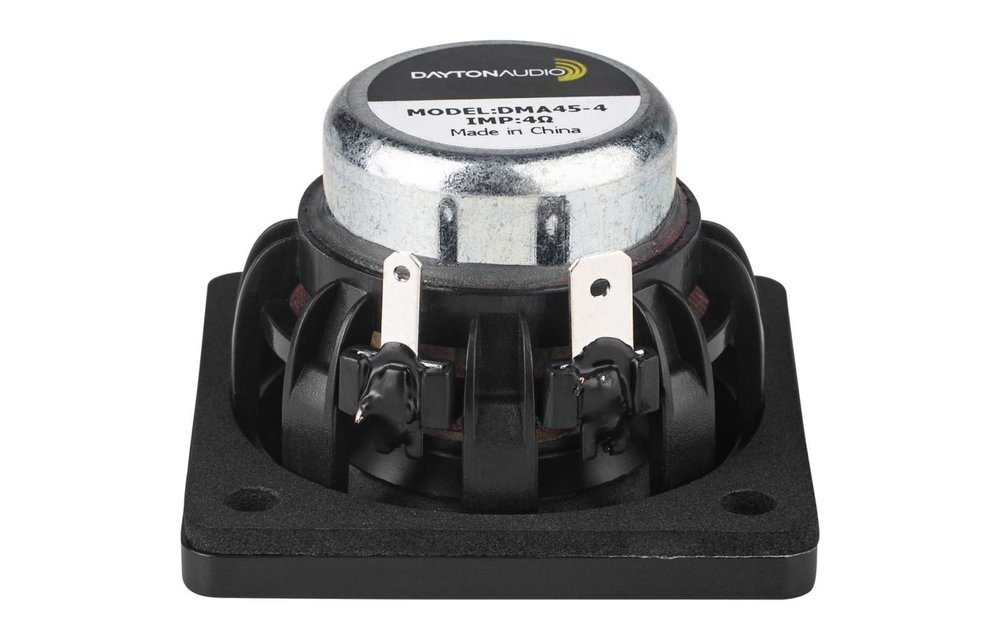

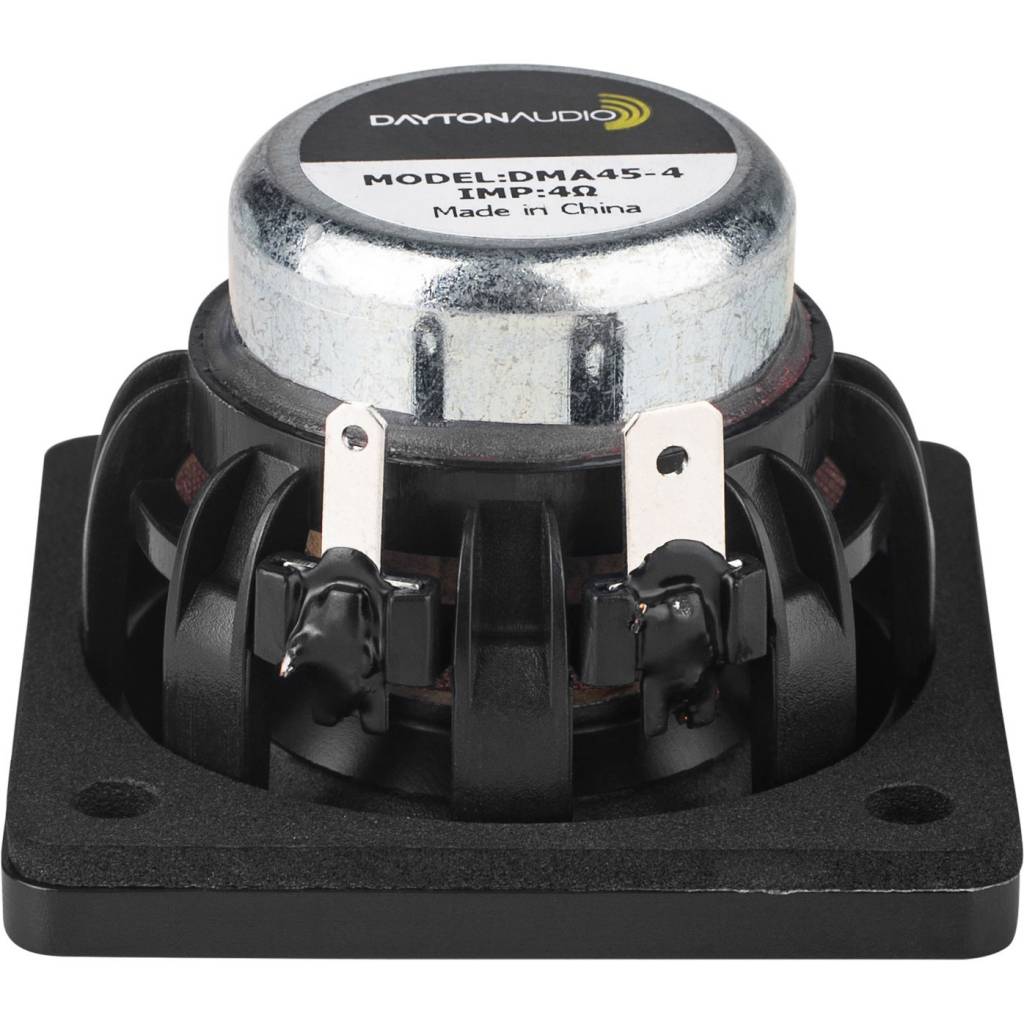

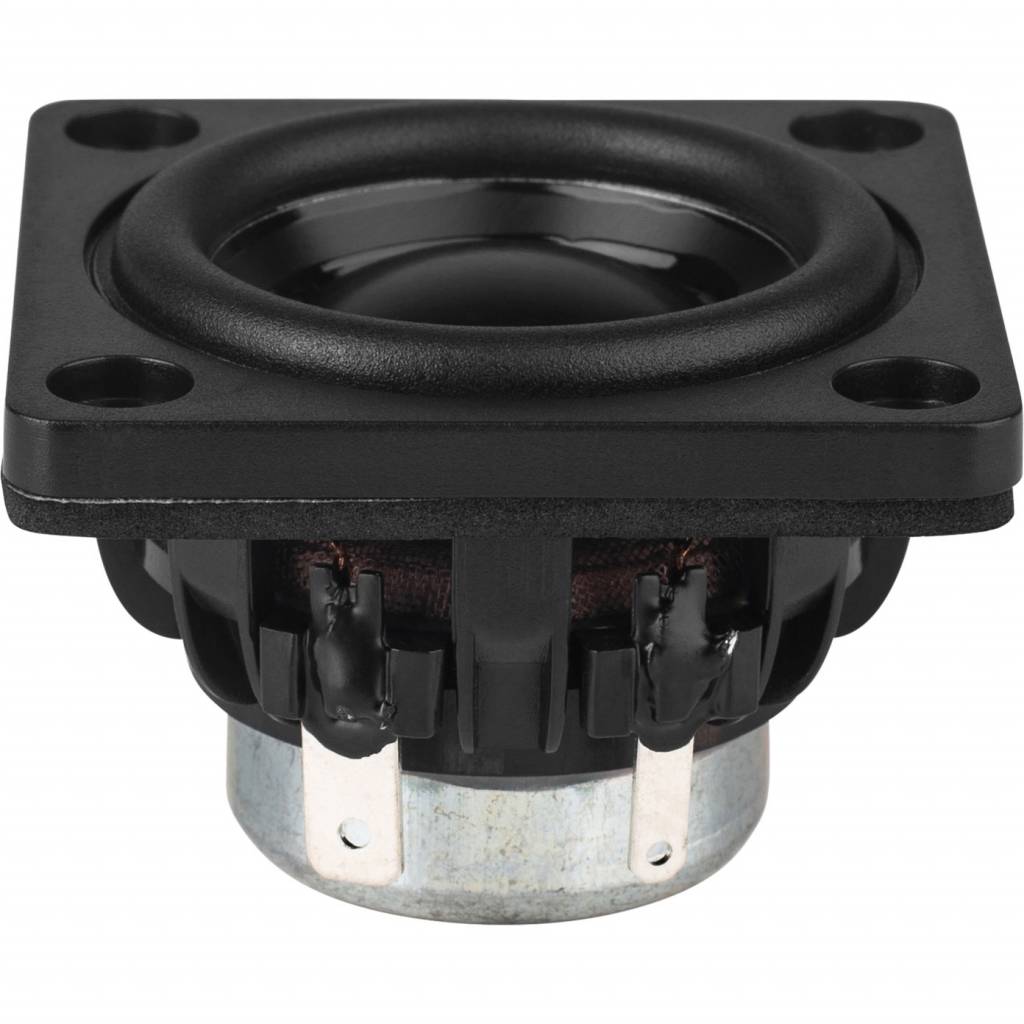

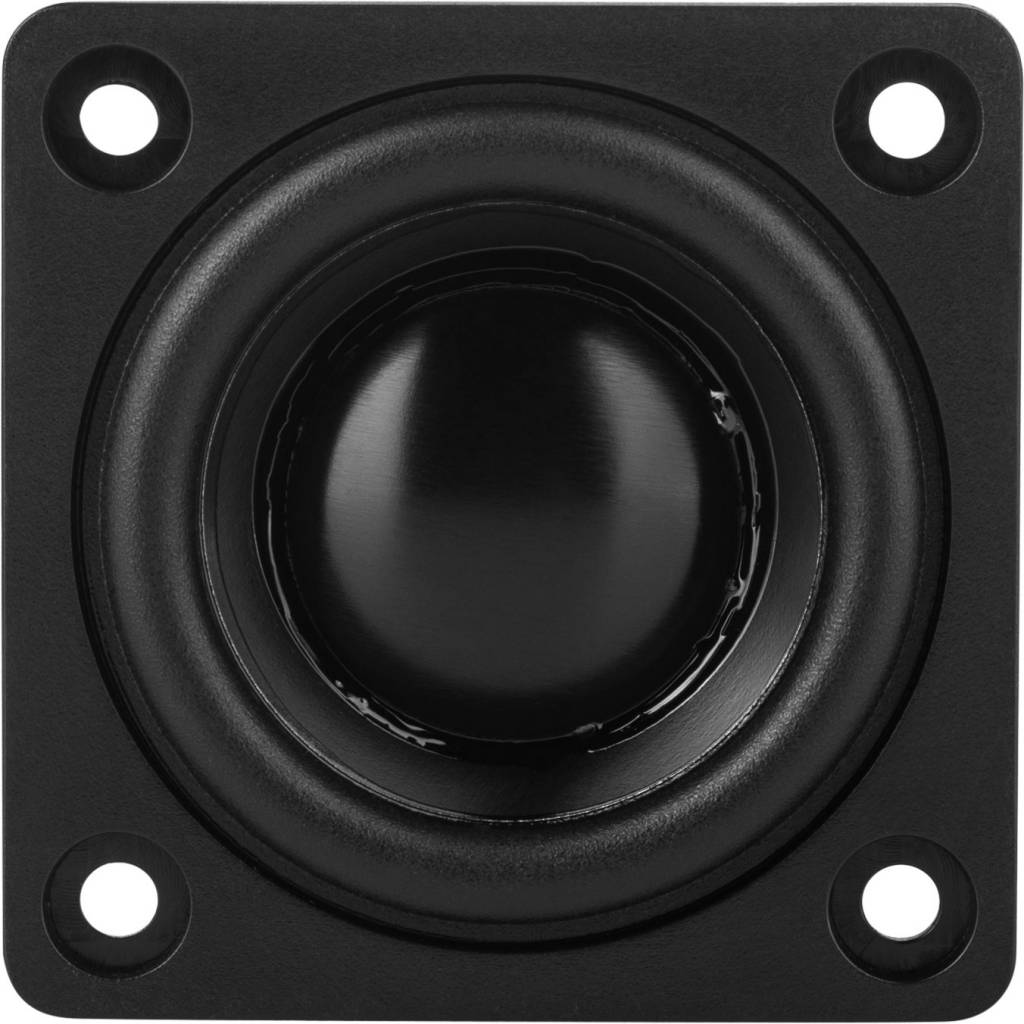

      Dayton Audio DMA45-8 Full-range Woofer

      € 11,53€ 13,95 >10 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €13,25 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Dayton Audio's DMA45-8 1.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA45-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



      Highlights

      • Excellent high frequency response for true full-range applications
      • Dual neodymium motor to create a symmetrical magnetic field for superb control
      • Remarkably flat full-range response with excellent off axis performance
      • Large copper cap lowers distortion while improving high frequency response
      • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
      • DIY friendly, oversized mounting flange makes installation simple
      • Matching tunable passive radiators also available!



      Product details

      Dayton Audio DMA45-8 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm



      Providing high efficiency with low distortion, Dayton Audio's DMA45-8 1.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA45-8 is the perfect full-range for the job.

      Designed for the highest performance while delivering maximum value, the no compromise design of the DMA45-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 0.75" voice coil is wound on a vented polyimide former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

      Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

      Specificaties

      Artikelnummer
      DMA45-8
      Woofer series
      DMA series
      Woofer type
      Full-range
      Nominale diameter
      1-1/2"
      Belastbaarheid (RMS)
      10 Watts
      Belastbaarheid (max)
      20 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      76.9 dB 2.83V/1m
      Frequentierespons
      150 to 20,000 Hz
      Spreekspoeldiameter
      0.75"
      Gelijkstroomweerstand (Re)
      7.0 ohms
      Spreekspoelinductie (Le)
      0.4 mH
      Resonantiefrequentie (Fs)
      151.7 Hz
      Mechanische Q (Qms)
      4.59
      Elektrische Q (Qes)
      0.68
      Totale Q (Qts)
      0.59
      Bewegende massa (Mms)
      1.8g
      Compliantie van de ophanging (Cms)
      0.60 mm/N
      Effectief oppervlak (Sd)
      8.6 cm²
      Krachtsfactor (BL)
      4.26 Tm
      Equivalentvolume (Vas)
      0.002 ft.³
      Maximale excursie (Xmax)
      2.0 mm
      Cone / Diaphragm Material
      Aluminum
      Surroundmateriaal
      Rubber
      Spreekspoel draadmateriaal
      Copper
      Spreekspoel vormermateriaal
      Kapton® / Polyimide
      Mand- /framemateriaal
      Polymer
      Magneetmateriaal
      Neodymium
      Totale buitendiameter
      1.81" x 1.81"
      Totale diepte
      1.02"
      Montagegatdiameter
      1.57"
      # Bevestigingsgaten
      4
      Gesloten volume
      0.0018 ft.³
      Gesloten F3
      216 Hz
      Gepoort volume
      0.012 ft.³
      Gepoort F3
      88 Hz

      Toon meer
