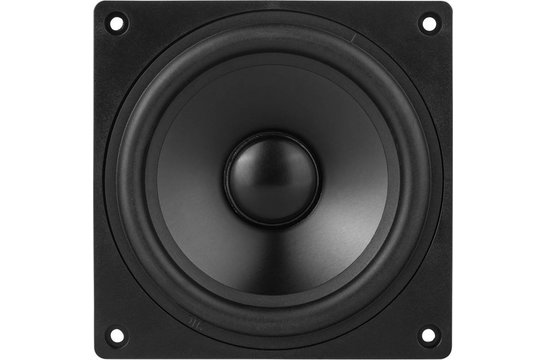

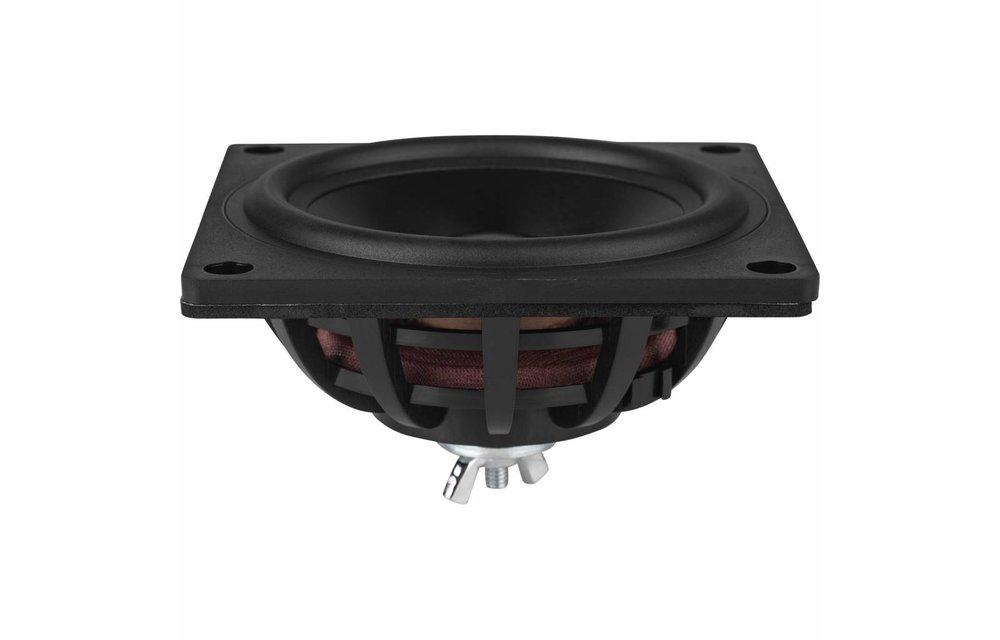

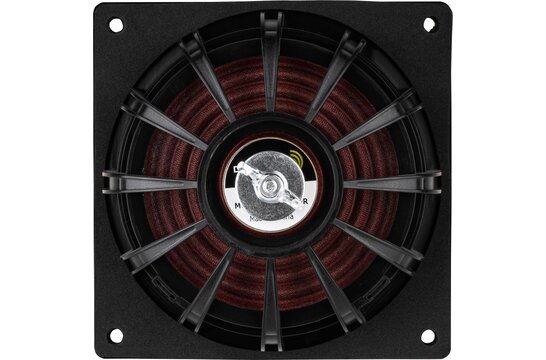

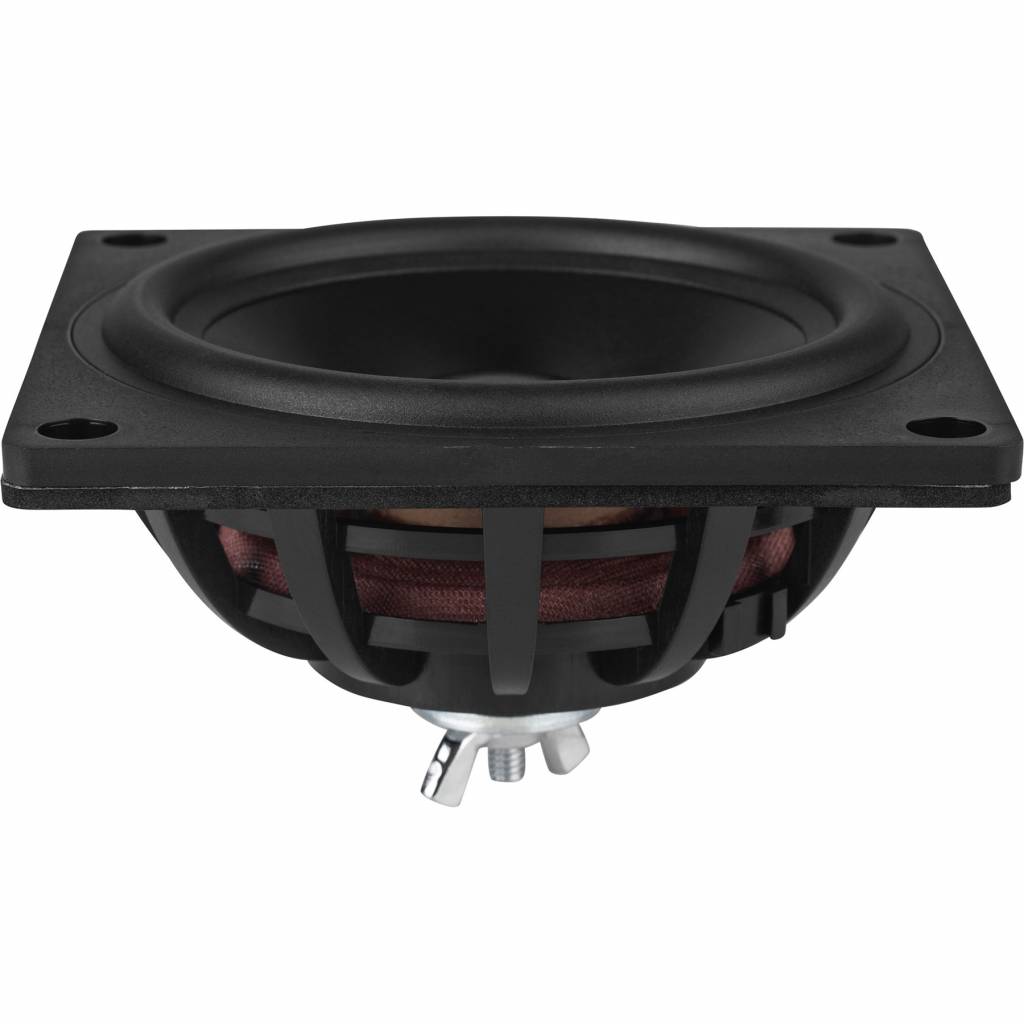

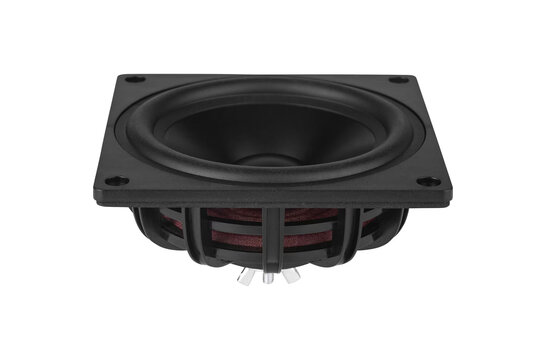

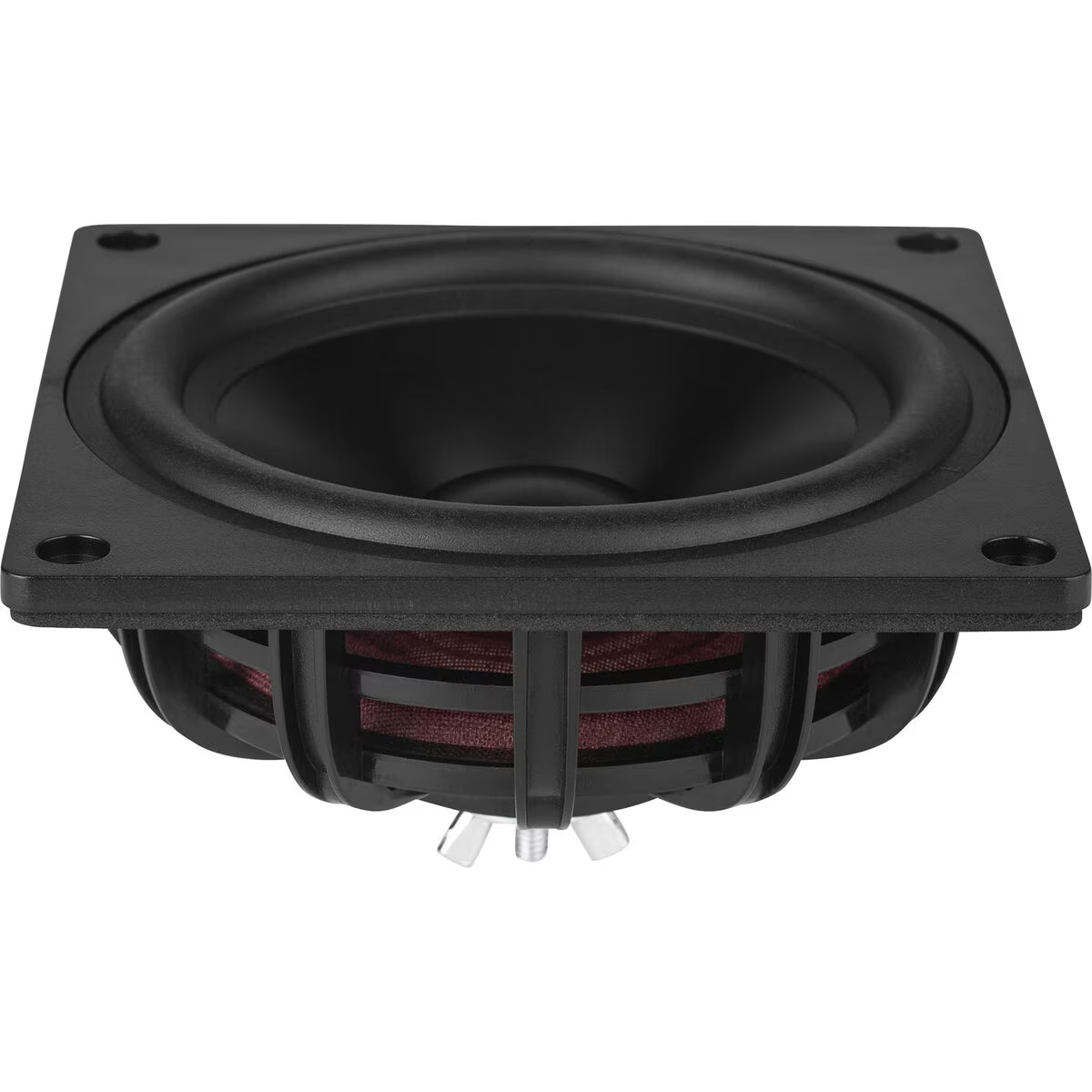

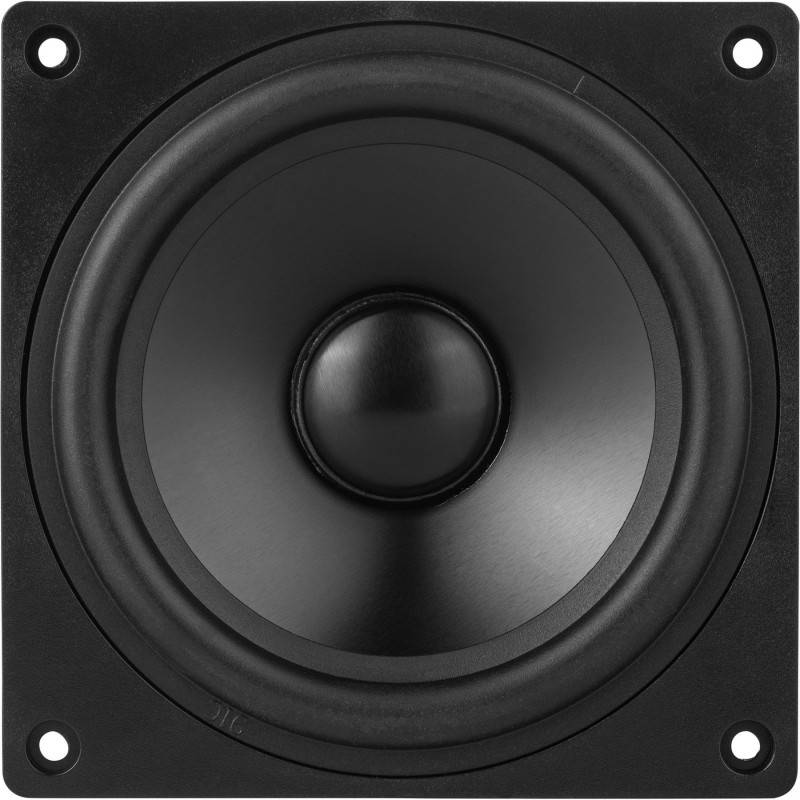

Dayton Audio DMA105-PR 4" Aluminum Cone Passive Radiator

Levertijd: 1 werkdag

  • Artikelcode: DMA105-PR
  • Voorraad: >10 Op voorraad

Dayton Audio's DMA105-PR 4" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small desi

€ 13,25 Incl. 21% btw

  • Bestel 4 voor €12,59 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DMA105-PR 4" Aluminum Cone Passive Radiator

Dayton Audio's DMA105-PR 4" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.



Highlights

  • Perfect match for the Dayton Audio DMA series drivers
  • Allows tuning small enclosures lower than possible using conventional ports
  • Rear mounted threaded post allows easy mass adjustment for custom tuning
  • DIY friendly, oversized mounting flange makes installation simple



Product details

Dayton Audio DMA105-PR 4" DMA Series Passive Radiator

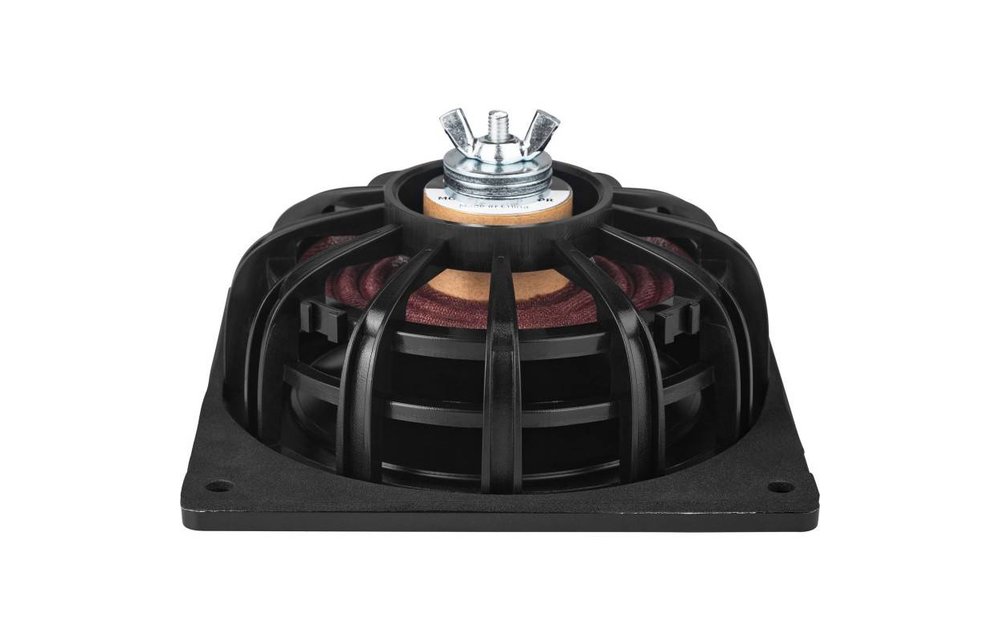

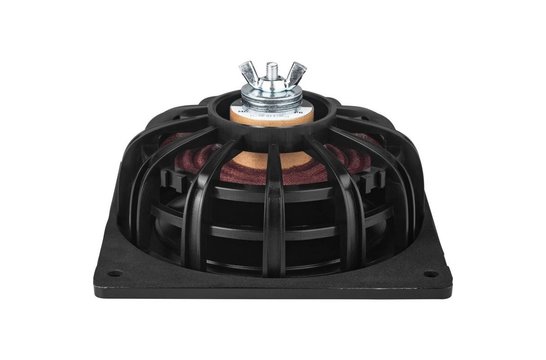

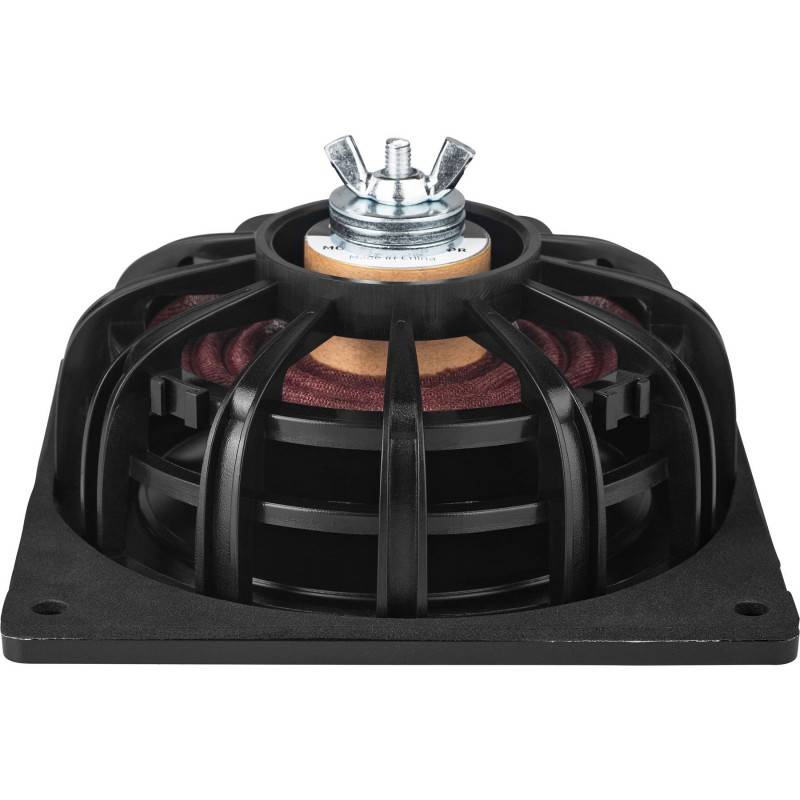

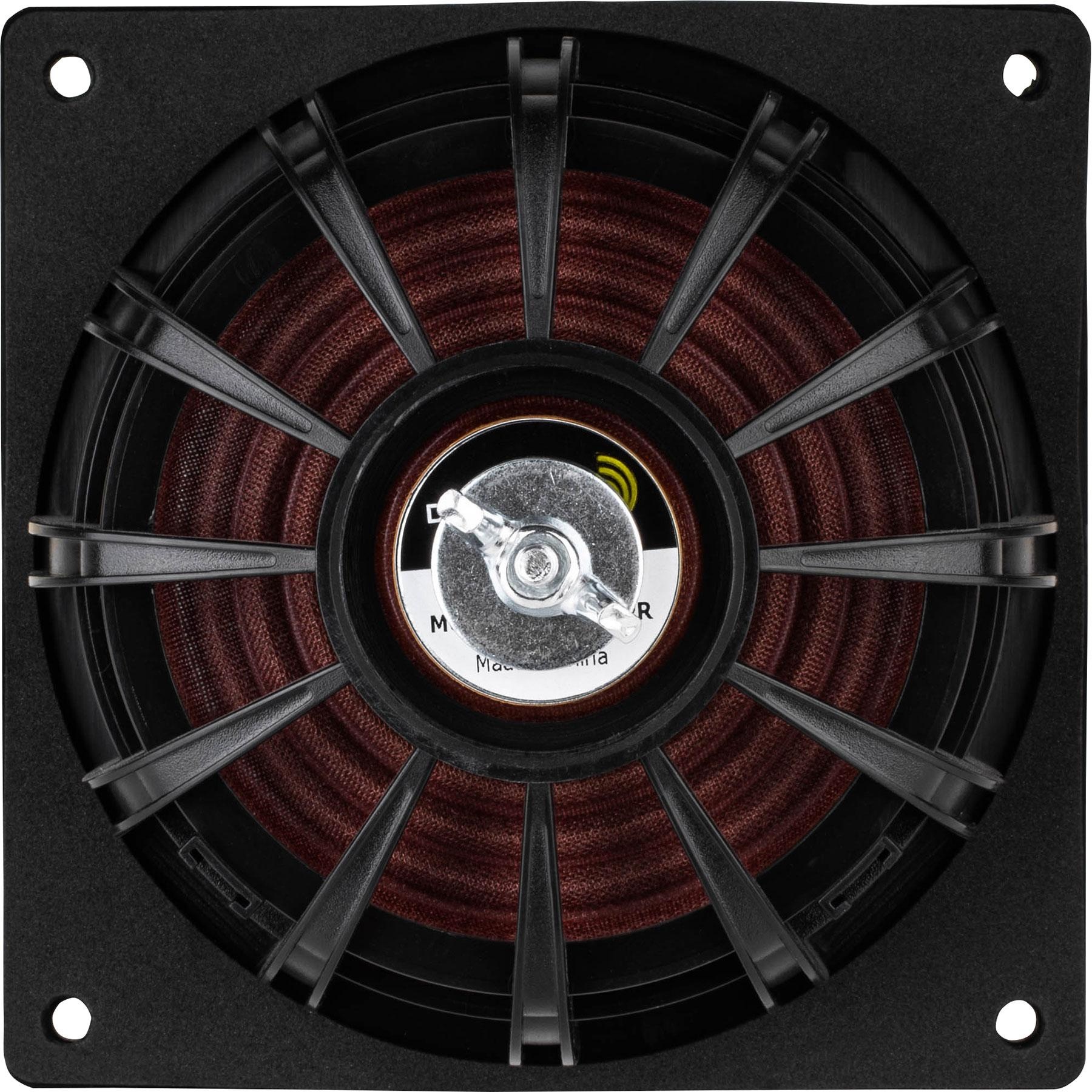

The DMA105-PR 4" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA105-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA105-PR introduces a new range of possibilities.



Specifications: • Fs: 37.9 Hz • Vas: 0.089 ft³ (2.51 liters) • Qms: 7.80 • Cms: 0.60 mm/N • Mms: 29.3 g • Rms: 0.89 kg/s • Sd: 54.1 cm² • Xmech: 9 mm • Dimensions: Overall diameter: 4.1" x 4.1", Cutout diameter: 3.86", Depth: 2.17".



Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Specificaties

Specificaties voor: DMA105-PR 4" Aluminum Cone Passive Radiator

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. DMA series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Passive radiator
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 4"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square.
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt.
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 37.9 Hz
  • Mechanical Q (Qms) 7.80
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Diaphragm Mass Inc. Airload (Mms) 29.3 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.60 mm/N
  • Surface Area of Cone (Sd) 54.1 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 0.089 ft³ (2.51 liters)
  • Maximum Linear Excursion (Xmax) 9mm
  • Driver's Mechanical Losses (Rms) 0.89 kg/s
  • Cone / Diaphragm Material
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Polymer
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 4.1" x 4.1"
  • Overall Depth 2.17"
  • Baffle Cutout Diameter 3.86"
  • Bolt Circle Diameter 5"
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3

Documenten

Reviews

Gebruikers beoordelingen 4.5 / 5 Reviews: (2)

  • CC Door Cristian C. aan 08-12-2019 15:03

    5 / 5

    I used 2x DMA105 PR with one Dayton N91 driver in a aprox. 2 liter enclosure and it sounds very good for the size. Very good bass, very good sound!
    Happy with the combo!

  • EC Door Ezio C. aan 13-09-2019 13:25

    4 / 5

    No description was given
