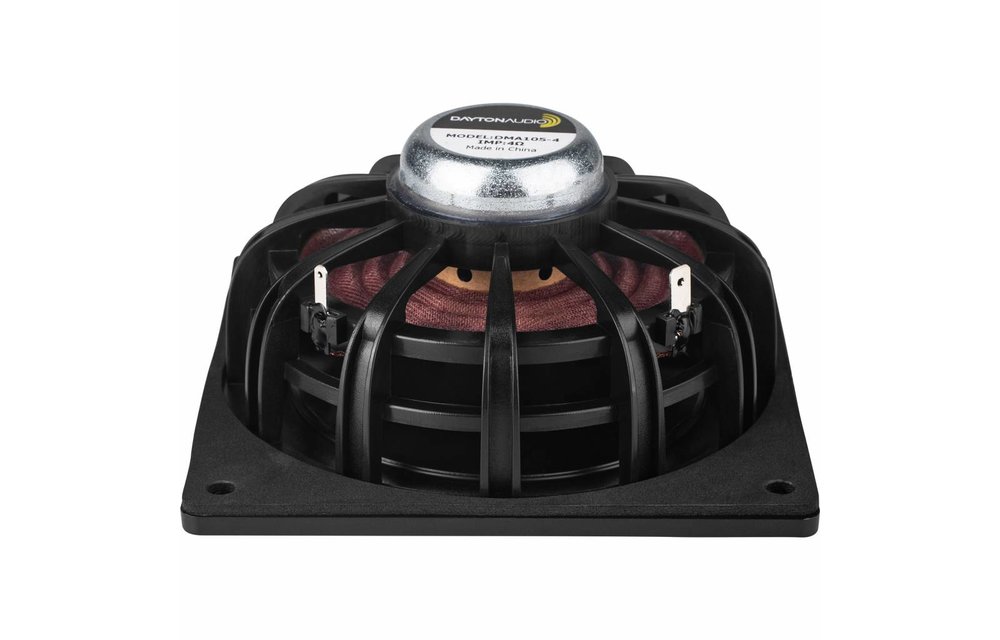

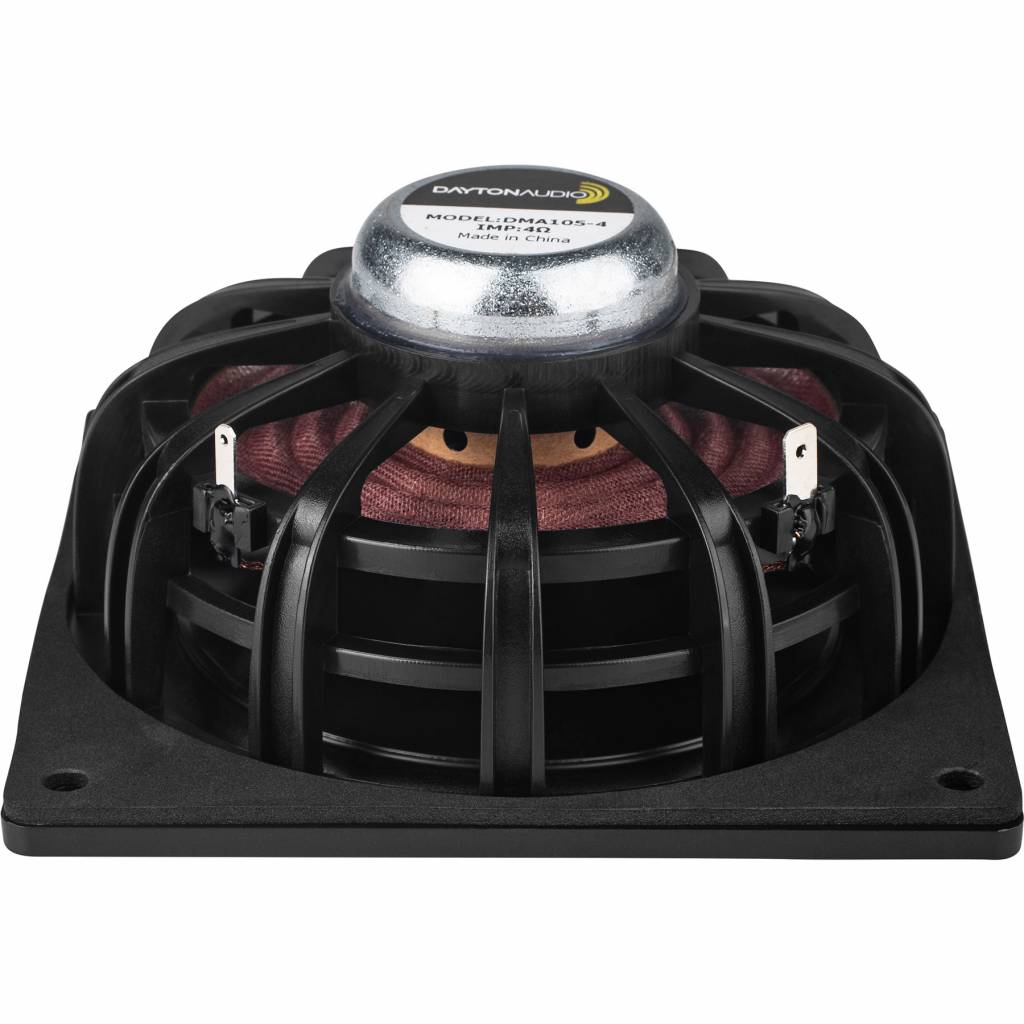

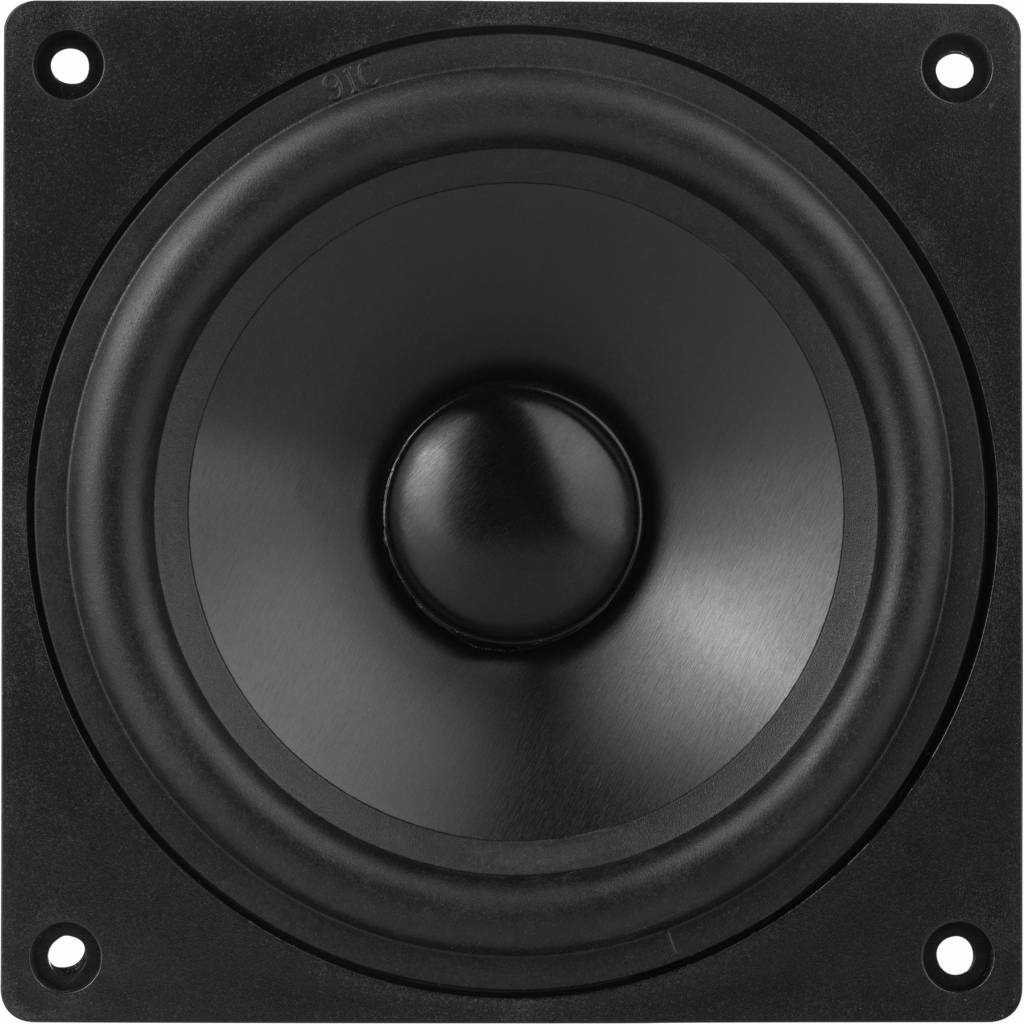

    Dayton Audio DMA105-4 4" Aluminum Cone Full-Range Driver

    € 17,95 >10 Op voorraad: levertijd 1 werkdag
    Dayton Audio's DMA105-4 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazi... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €17,05 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Dayton Audio's DMA105-4 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA105-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



    Highlights

    • Excellent high frequency response for true full-range applications
    • Dual neodymium motor to create a symmetrical magnetic field for superb control
    • Large copper cap lowers distortion while improving high frequency response
    • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
    • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
    • DIY friendly, oversized mounting flange makes installation simple
    • Matching tunable passive radiators also available!



    Product details

    Dayton Audio DMA105-4 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm



    Providing high efficiency with low distortion, Dayton Audio's DMA105-4 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-4 is the perfect full-range for the job.

    Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

    Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

    Specificaties

    Artikelnummer
    DMA105-4
    Woofer Series
    DMA series
    Woofer Type
    Full-range
    Nominal Diameter
    4”
    Power Handling (RMS)
    35 Watts
    Power Handling (max)
    70 Watts
    Impedance
    4 ohms
    Sensitivity
    89.8 dB 2.83V/1m
    Frequency Response
    70 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.4 ohms
    Voice Coil Inductance (Le)
    0.3 mH
    Resonant Frequency (Fs)
    72.67 Hz
    Mechanical Q (Qms)
    2.6
    Electromagnetic Q (Qes)
    0.63
    Total Q (Qts)
    0.51
    Diaphragm Mass Inc. Airload (Mms)
    4.53g
    Mechanical Compliance of Suspension (Cms)
    1.06 mm/N
    Surface Area of Cone (Sd)
    54.1 cm²
    BL Product (BL)
    3.35 Tm
    Compliance Equivalent Volume (Vas)
    0.15 ft.³
    Maximum Linear Excursion (Xmax)
    2.5 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Polymer
    Magnet Material
    Neodymium
    Overall Outside Diameter
    4.1" x 4.1"
    Overall Depth
    1.86"
    Baffle Cutout Diameter
    3.54"
    # Mounting Holes
    4
    Sealed Volume
    0.08 ft.³
    Sealed F3
    121 Hz
    Vented Volume
    0.23 ft.³
    Vented F3
    60 Hz
