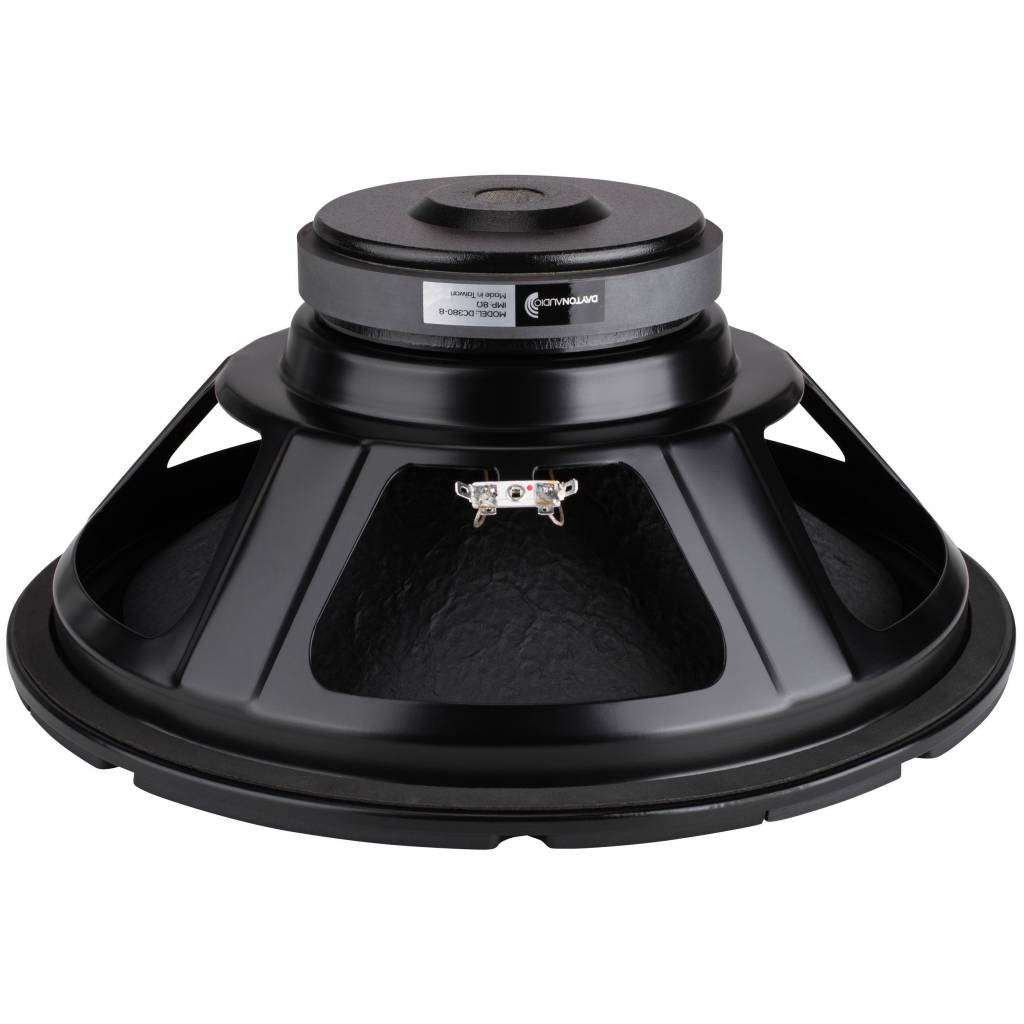

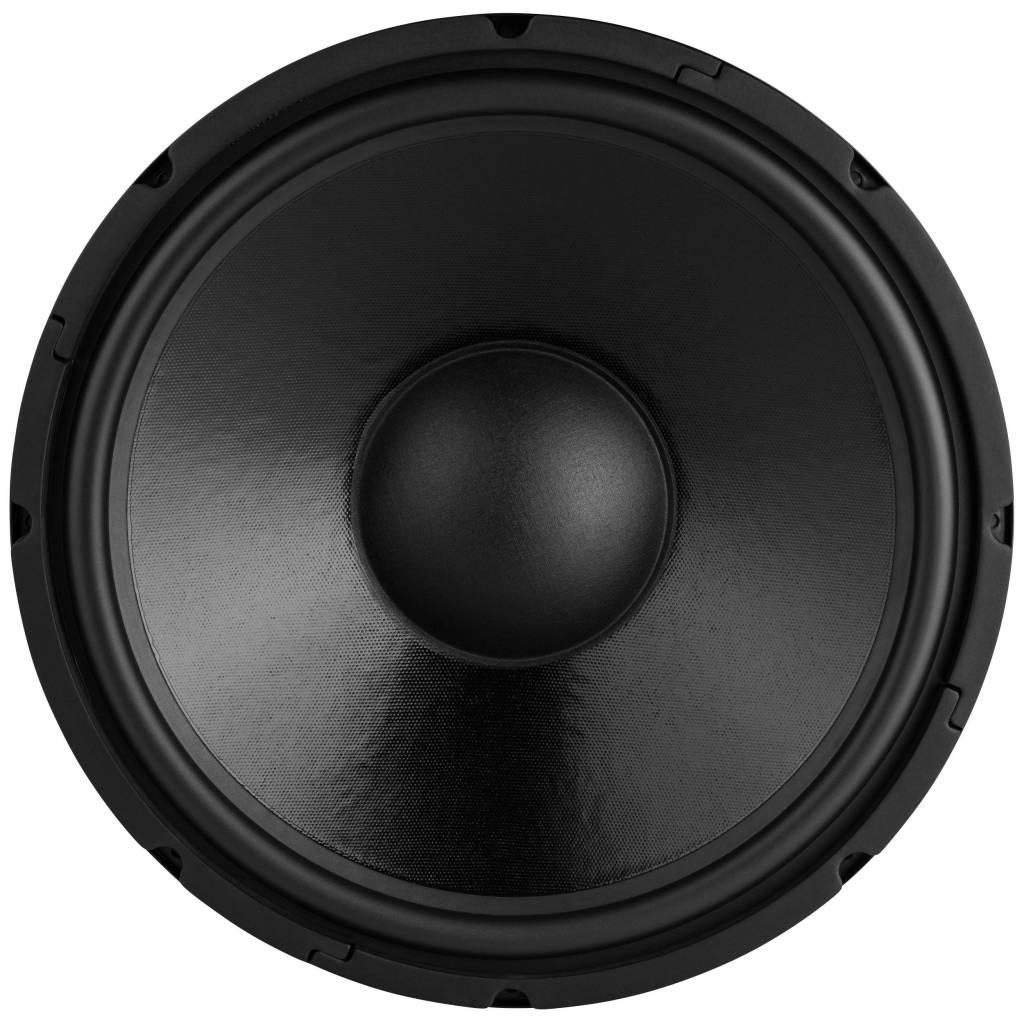

    Dayton Audio DC380-8 15" Classic Woofer

    € 96,45 >10 Op voorraad: levertijd 1 werkdag
    The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €91,63 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.



    Highlights

    • Treated paper cone provides smooth response and low energy storage
    • Aluminum former, vented pole piece, and porous dustcap for high power handling
    • Large diameter flat spider and healthy Xmax for clean bass
    • Bring those old vintage speakers back to life



    Product details

    Dayton Audio DC380-8 15" Classic Woofer



    Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC380-8 15" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.35 allows the DC300-8 to work well in both sealed and ported speaker enclosures.



    A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

    Specificaties

    Artikelnummer
    DC380-8
    Woofer Series
    Classic Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    15"
    Power Handling (RMS)
    100 watts
    Power Handling (max)
    200 watts
    Impedance
    8 ohms
    Sensitivity
    91.8 dB @ 2.83V/1m
    Frequency Response
    20 - 1,500 Hz
    Voice Coil Diameter
    51 mm
    DC Resistance (Re)
    6.4 ohms
    Voice Coil Inductance (Le)
    3.09 mH @ 1 kHz
    Resonant Frequency (Fs)
    18.8 Hz
    Mechanical Q (Qms)
    2.87
    Electromagnetic Q (Qes)
    0.34
    Total Q (Qts)
    0.30
    Diaphragm Mass Inc. Airload (Mms)
    182.9g
    Mechanical Compliance of Suspension (Cms)
    0.39 mm/N
    Surface Area of Cone (Sd)
    834.7 cm²
    Volume of Displacement (Vd)
    363.1 cm³
    BL Product (BL)
    20.4 Tm
    Compliance Equivalent Volume (Vas)
    391.4 liters
    Maximum Linear Excursion (Xmax)
    4.35 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    385 mm
    Overall Depth
    162 mm
    Baffle Cutout Diameter
    349 mm
    # Mounting Holes
    8
    Sealed Volume
    2 ft.³
    Sealed F3
    53 Hz
    Vented Volume
    5.27 ft.³
    Vented F3
    32 Hz
