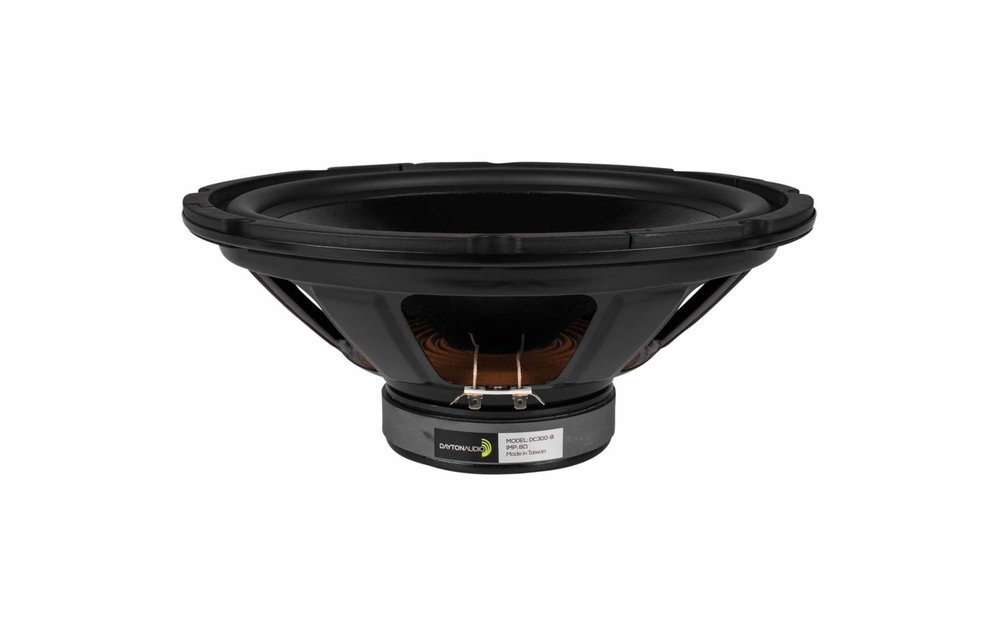

    Dayton Audio DC300-8 12" Classic Woofer

    € 59,95 Niet op voorraad: binnen 3-6 weken leverbaar
    Choose the Dayton Audio DC300-8 Classic Series 12" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €56,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Choose the Dayton Audio DC300-8 Classic Series 12" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.



    Highlights

    • Works great as a general replacement woofer
    • Excellent price/performance ratio
    • Bring those old vintage speakers back to life
    • Long lasting rubber surround increases the life of the driver



    Product details

    Dayton Audio DC300-8 12" Classic Woofer



    Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.33 allows the DC300-8 to work well in both sealed and ported speaker enclosures.



    A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

    OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)

    Specificaties

    Artikelnummer
    DC300-8
    Woofer Series
    Classic Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    12"
    Power Handling (RMS)
    80 watts
    Power Handling (max)
    160 watts
    Impedance
    8 ohms
    Sensitivity
    90.3 dB @ 2.83V/1m
    Frequency Response
    25 - 2,500 Hz
    Voice Coil Diameter
    51 mm
    Magnet Weight
    30 oz.
    DC Resistance (Re)
    6.8 ohms
    Voice Coil Inductance (Le)
    2.93 mH @ 1 kHz
    Resonant Frequency (Fs)
    22.9 Hz
    Mechanical Q (Qms)
    3.21
    Electromagnetic Q (Qes)
    0.37
    Total Q (Qts)
    0.33
    Diaphragm Mass Inc. Airload (Mms)
    100.7g
    Mechanical Compliance of Suspension (Cms)
    0.48 mm/N
    Surface Area of Cone (Sd)
    498.8 cm²
    Volume of Displacement (Vd)
    214.5 cm³
    BL Product (BL)
    16.3 Tm
    Compliance Equivalent Volume (Vas)
    181.5 liters
    Maximum Linear Excursion (Xmax)
    4.3 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    306.5 mm
    Overall Depth
    131.5 mm
    Baffle Cutout Diameter
    279.5 mm
    # Mounting Holes
    8
    Sealed Volume
    1.47 ft.³
    Sealed F3
    52 Hz
    Vented Volume
    4.58 ft.³
    Vented F3
    28 Hz
