- Artikelnummer

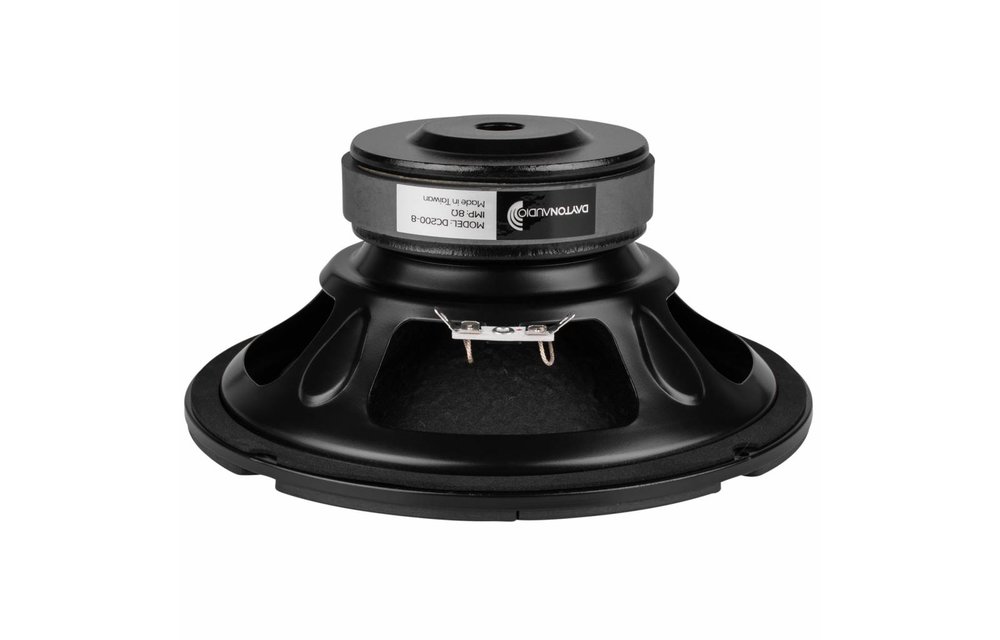

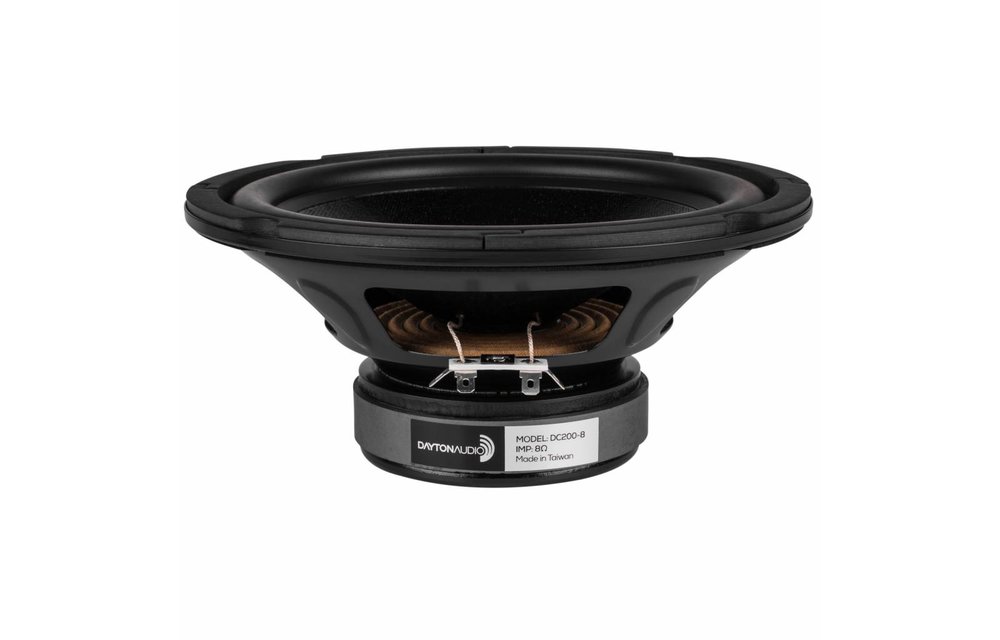

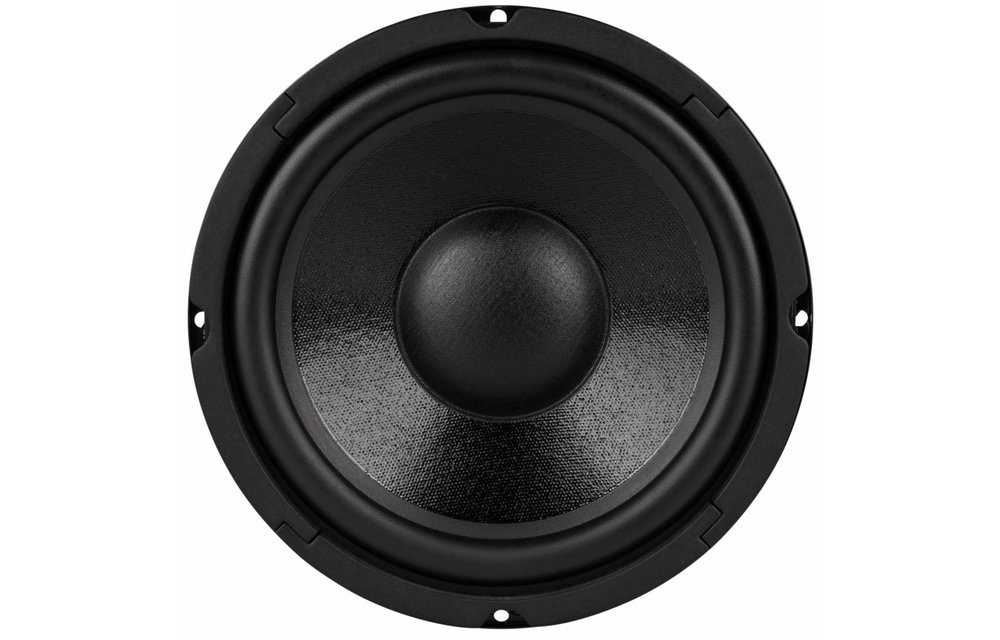

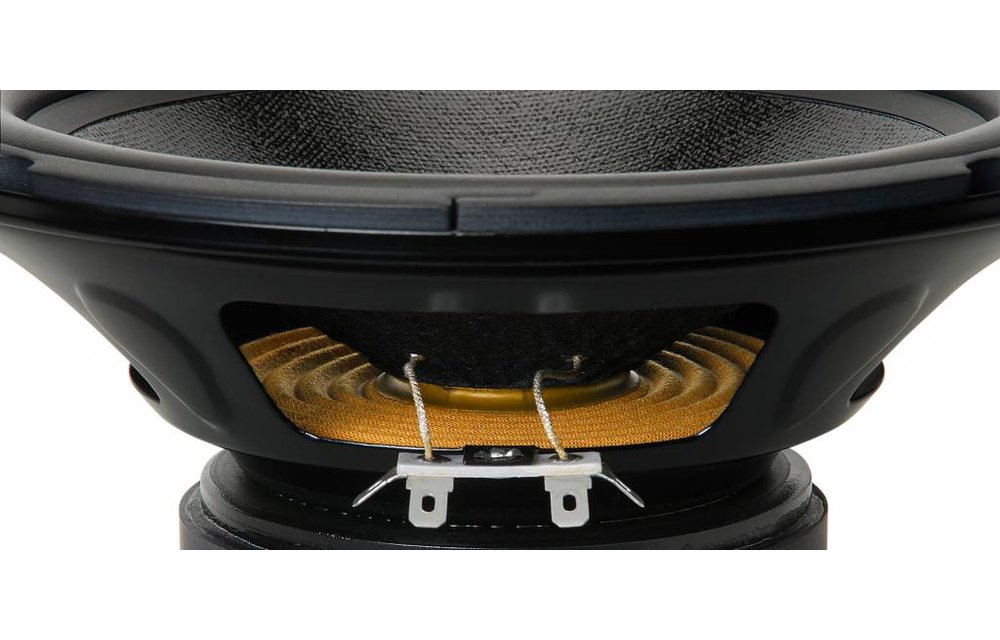

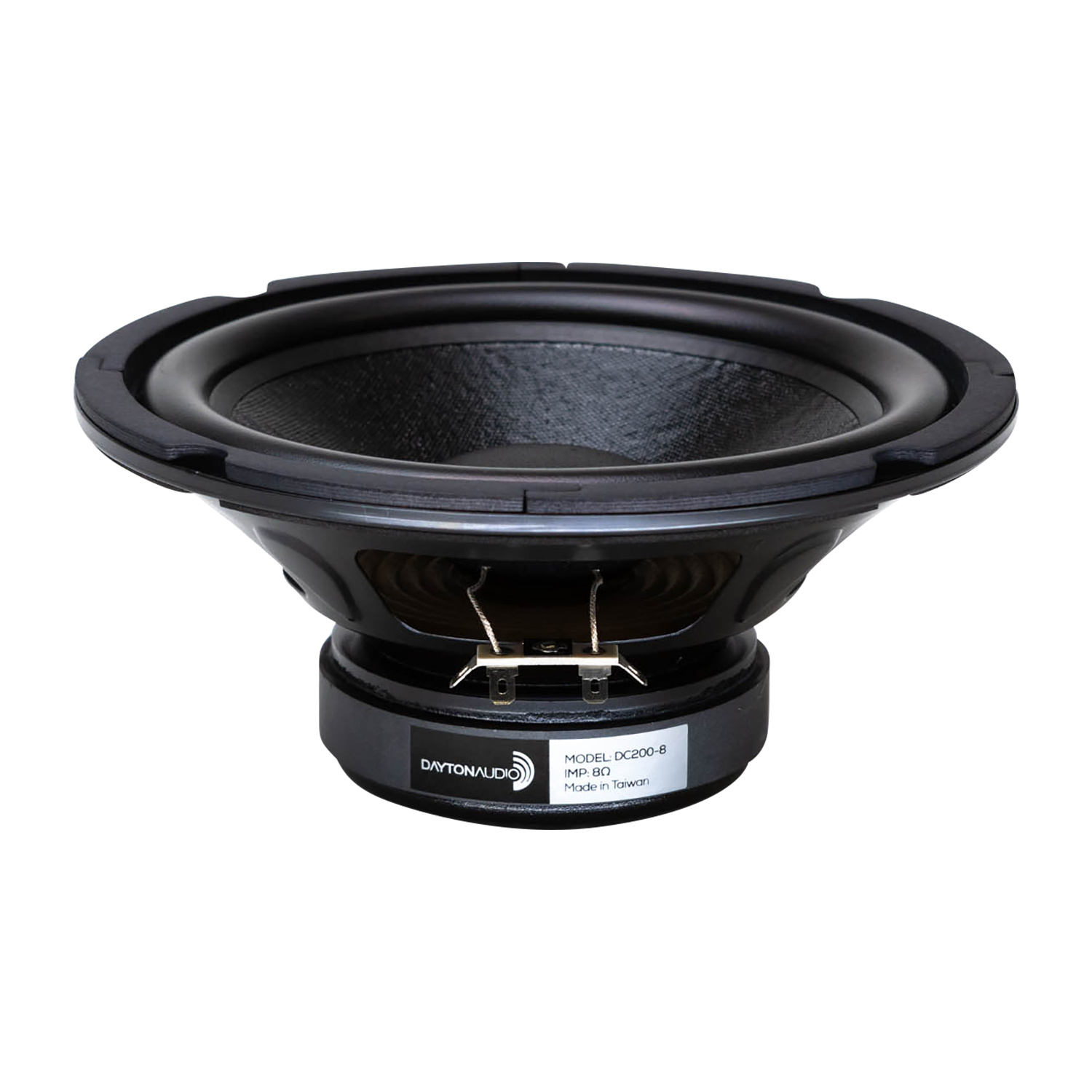

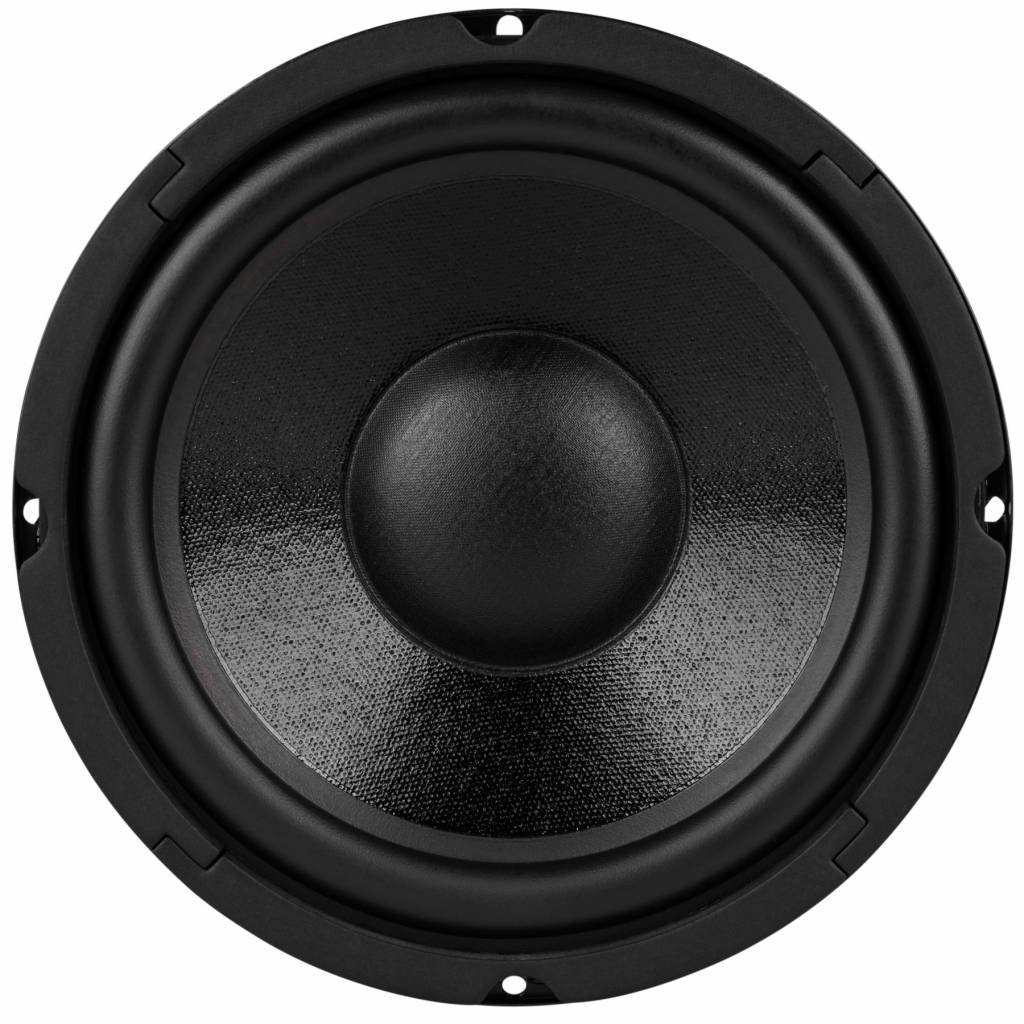

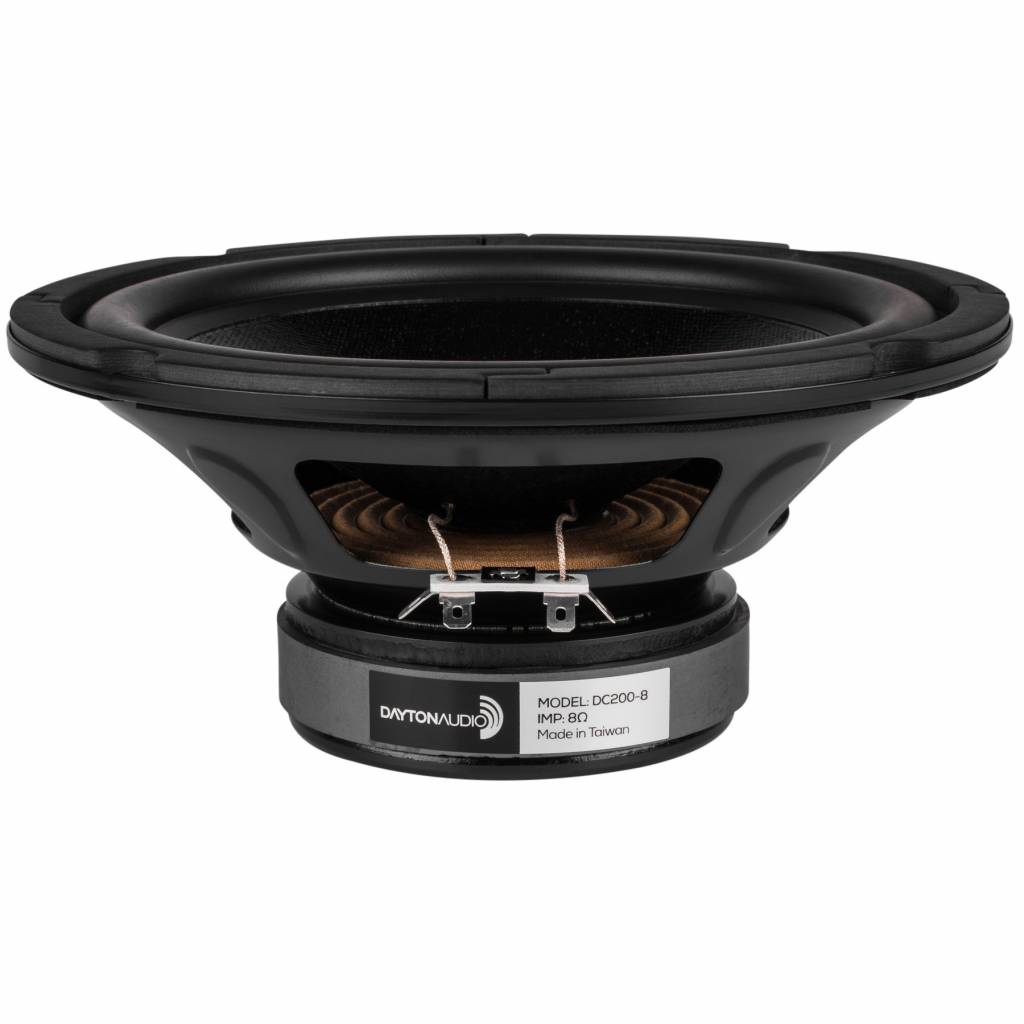

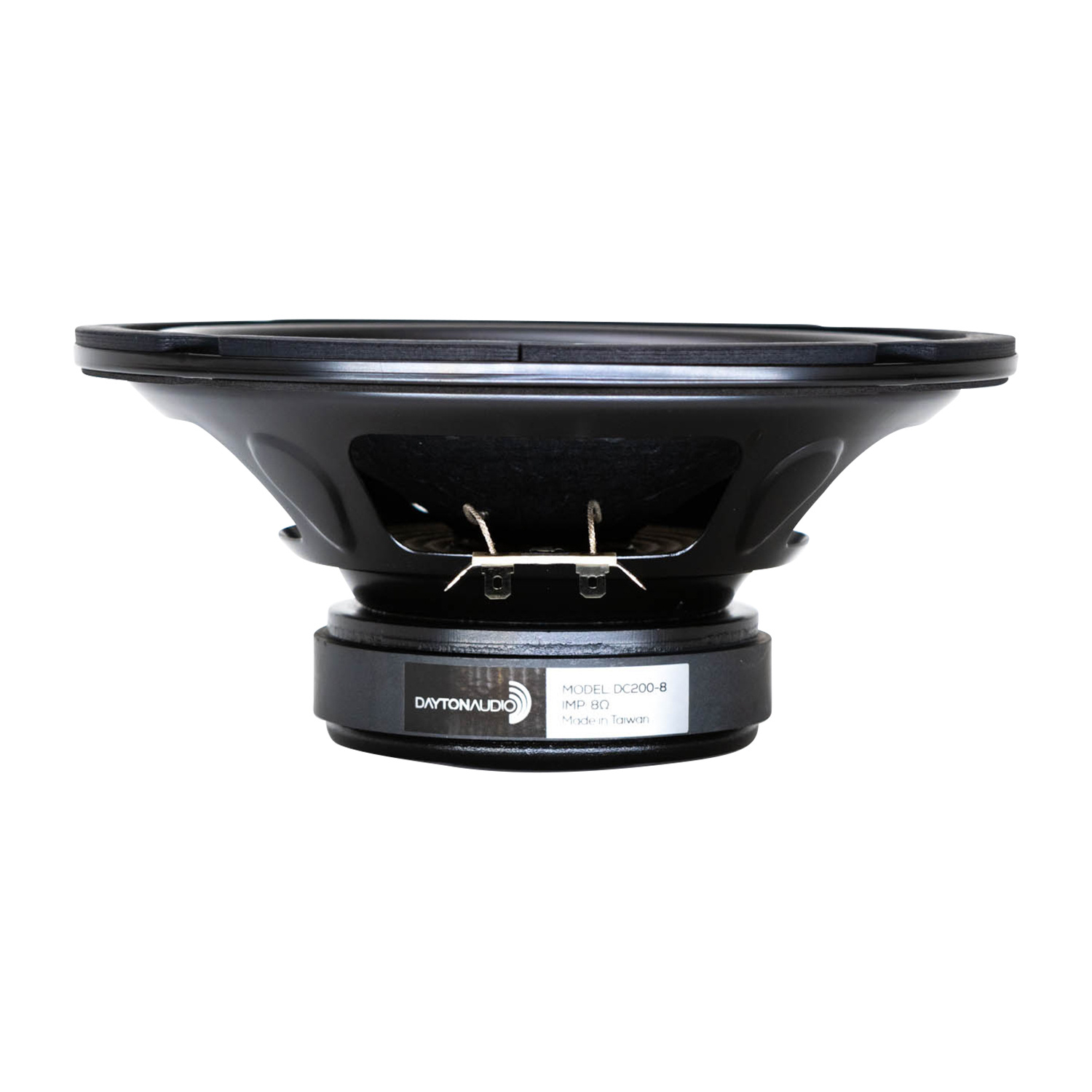

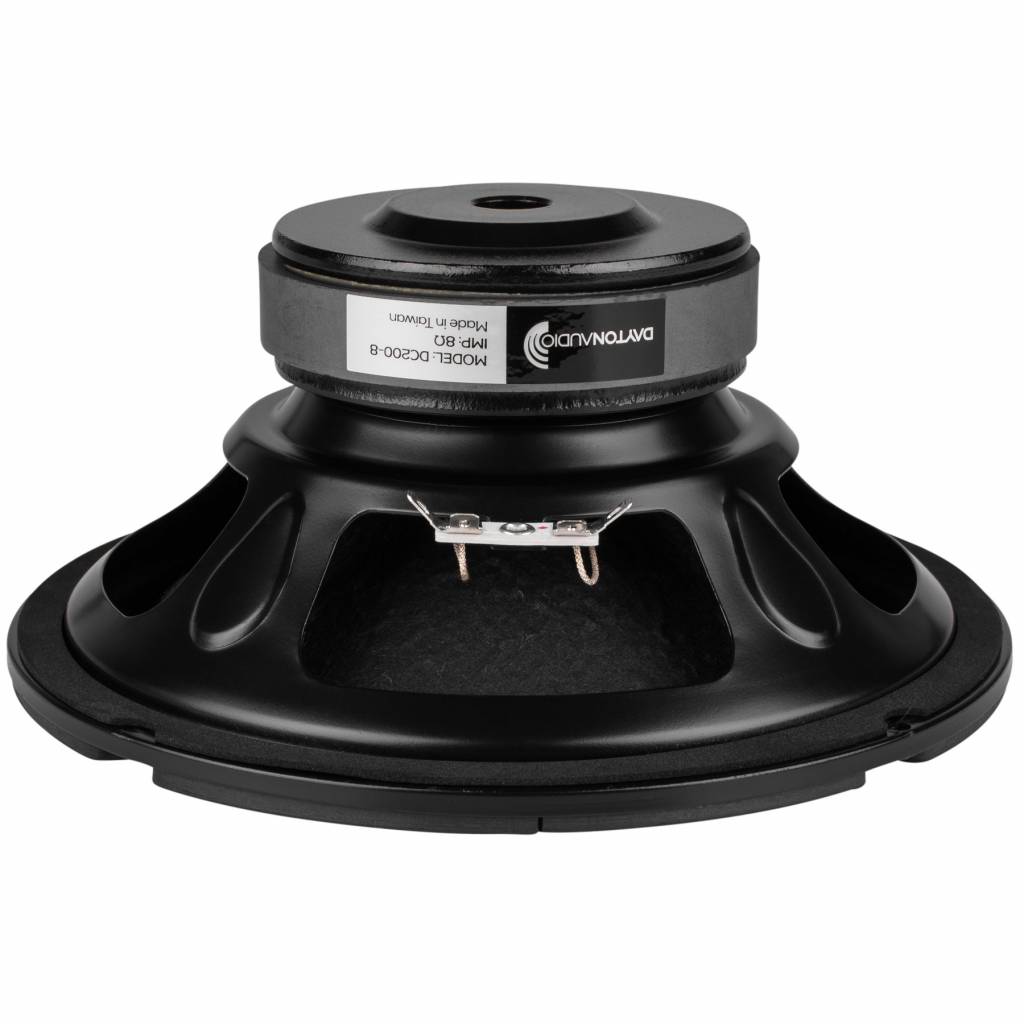

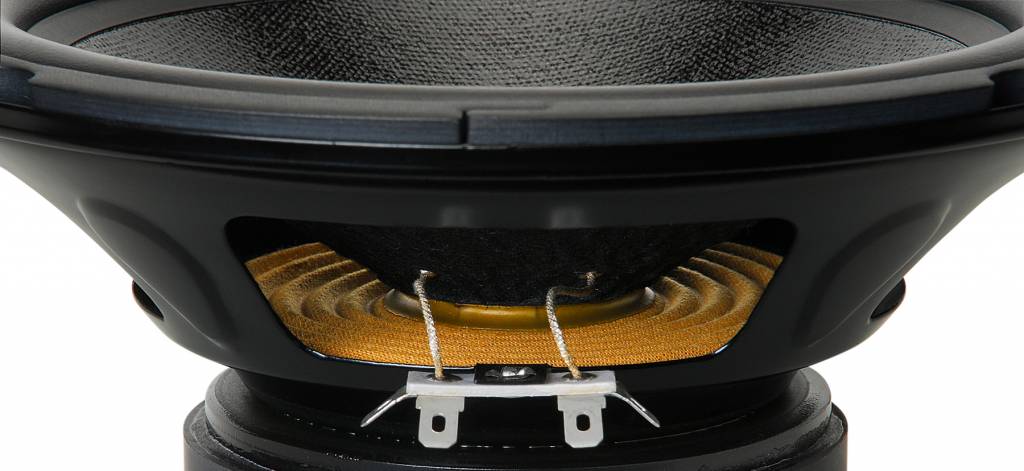

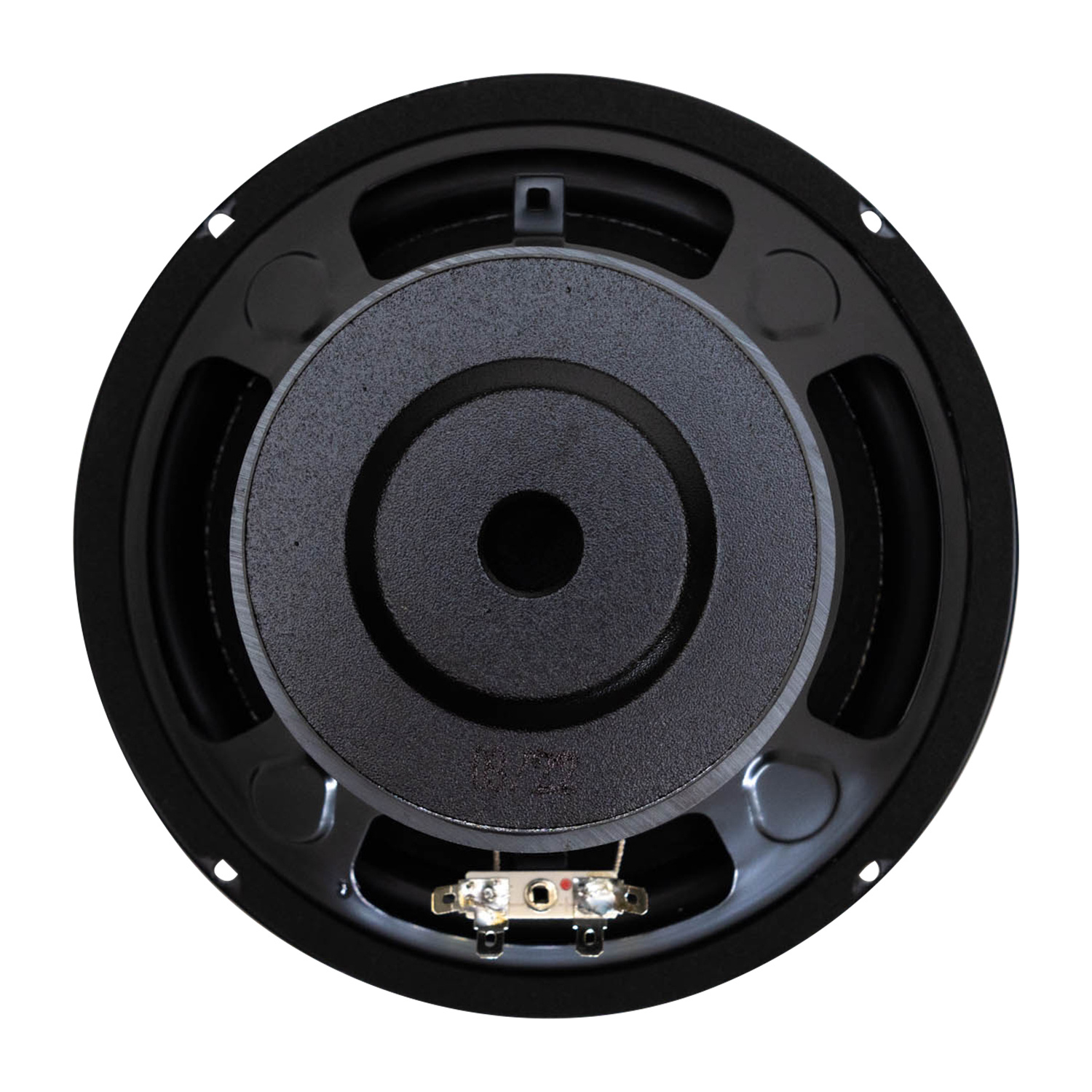

- DC200-8
- Woofer Series
- Classic Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 8"
- Power Handling (RMS)
- 60 watts
- Power Handling (max)
- 120 watts
- Impedance
- 8 ohms
- Sensitivity
- 87 dB @ 2.83V/1m
- Frequency Response
- 29 - 3,000 Hz
- Voice Coil Diameter
- 35 mm
- Magnet Weight
- 15 oz
- DC Resistance (Re)
- 6.41 ohms
- Voice Coil Inductance (Le)
- 2.32 mH @ 1 kHz
- Resonant Frequency (Fs)
- 30.3 Hz
- Mechanical Q (Qms)
- 3.06
- Electromagnetic Q (Qes)
- 0.49
- Total Q (Qts)
- 0.42
- Diaphragm Mass Inc. Airload (Mms)
- 36.1g
- Mechanical Compliance of Suspension (Cms)
- 0.77 mm/N
- Surface Area of Cone (Sd)
- 211.2 cm²
- Volume of Displacement (Vd)
- 95.1 cm³
- BL Product (BL)
- 9.5 Tm
- Compliance Equivalent Volume (Vas)
- 45.7 liters
- Maximum Linear Excursion (Xmax)
- 4.5 mm
- Cone / Diaphragm Material
- Treated Paper
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 205 mm
- Overall Depth
- 93.5 mm
- Baffle Cutout Diameter
- 183 mm
- # Mounting Holes
- 4
- Sealed Volume
- 0.46 ft.³
- Sealed F3
- 66 Hz
- Vented Volume
- 1.36 ft.³
- Vented F3
- 37 Hz
