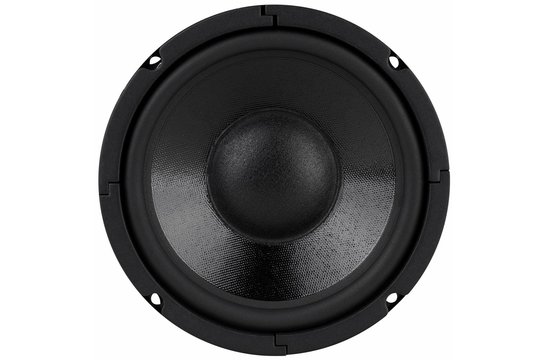

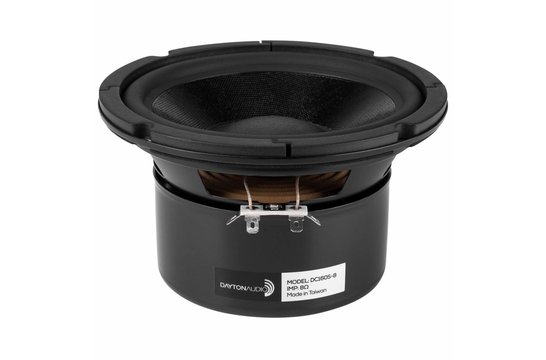

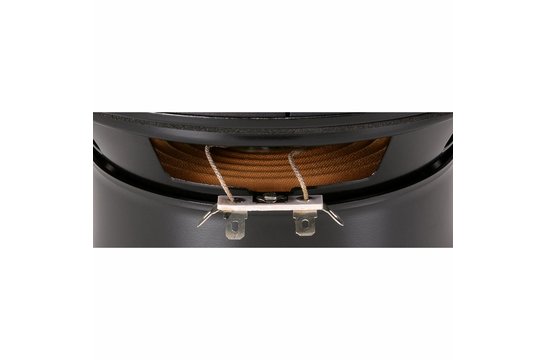

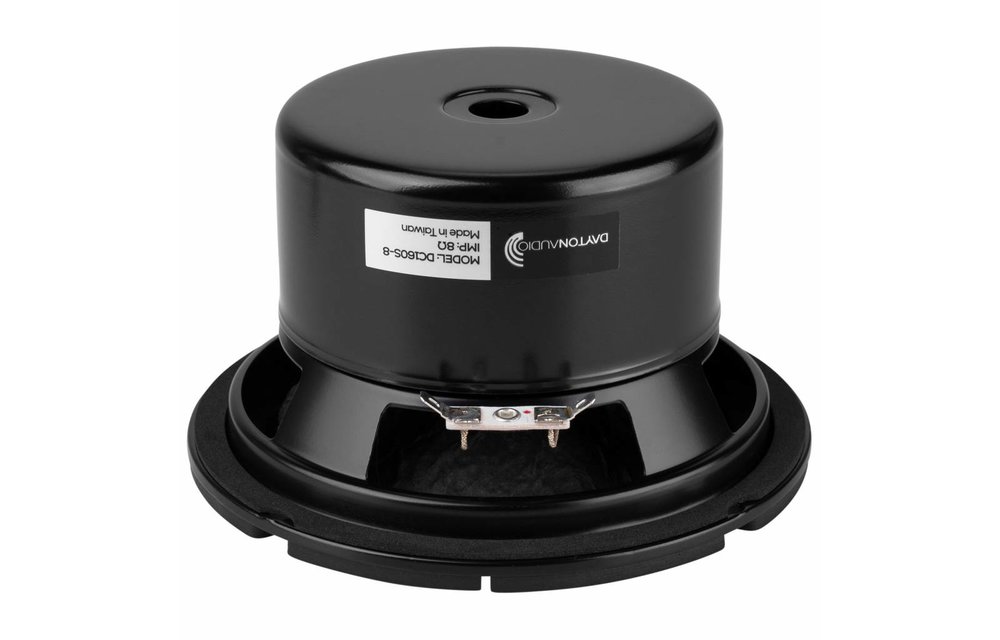

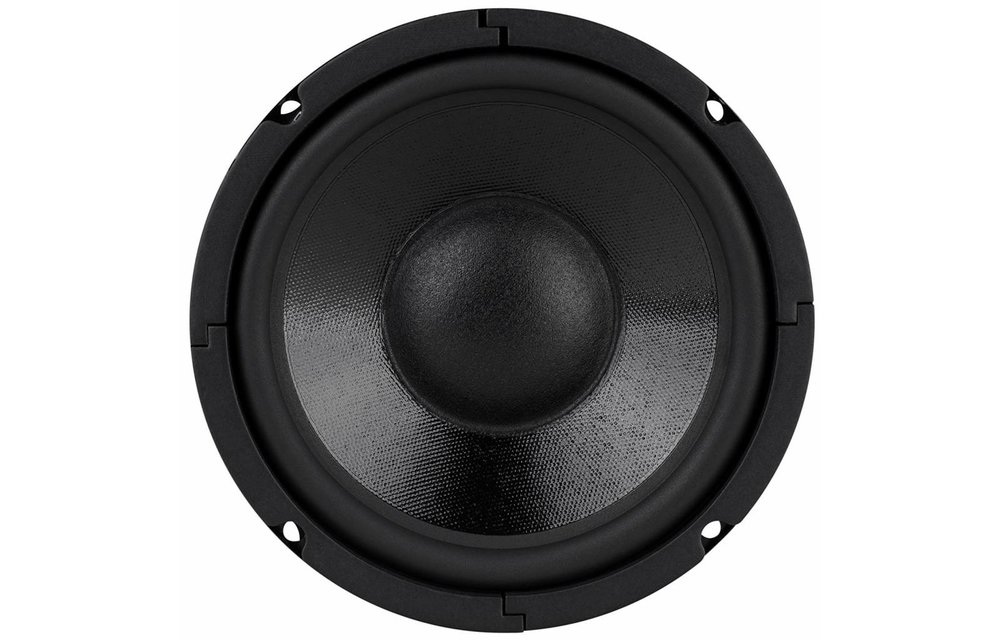

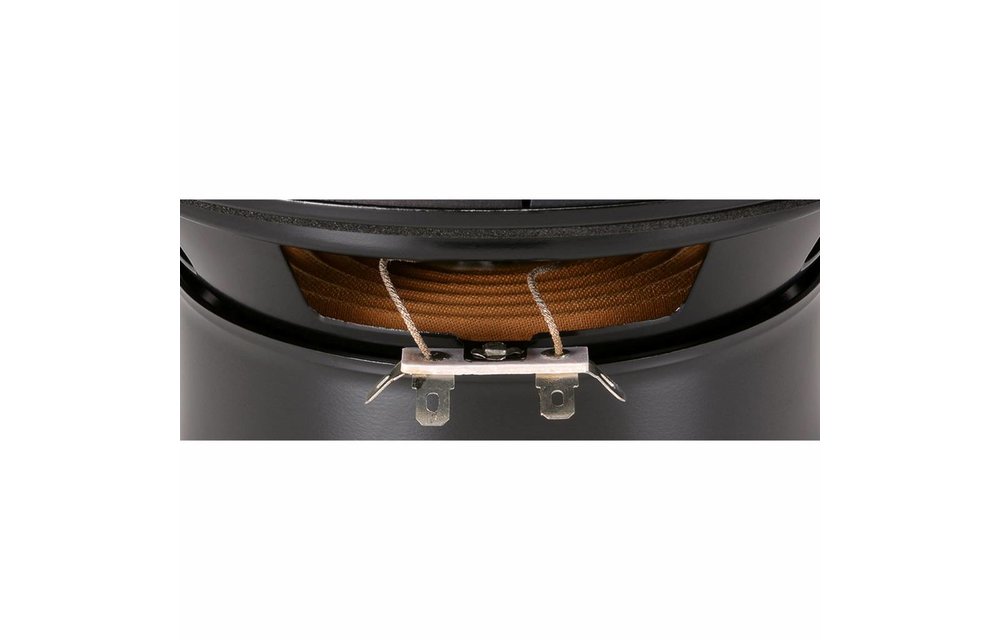

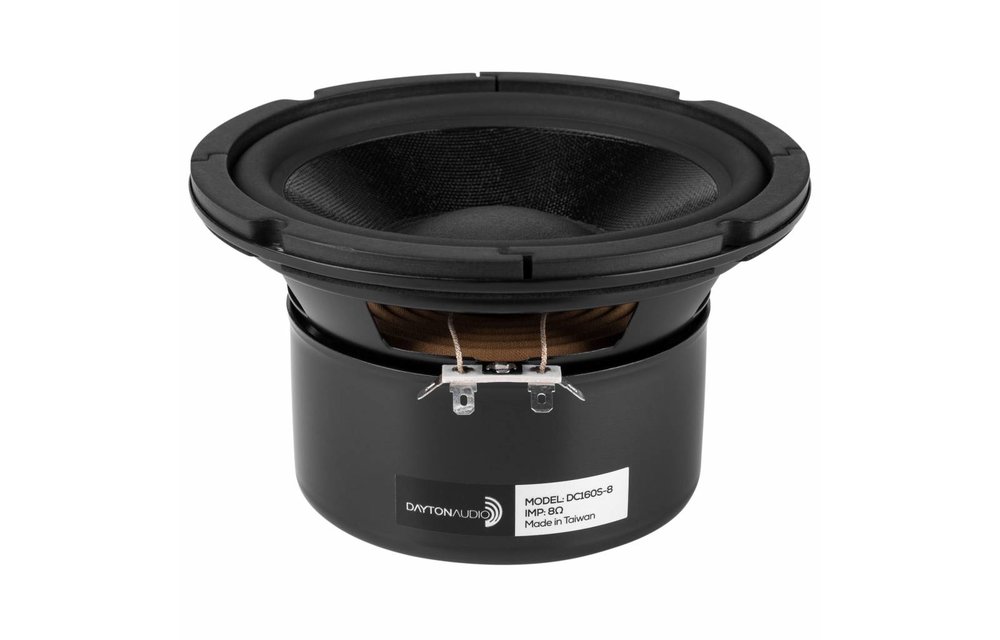

    Dayton Audio DC160S-8 6-1/2" Classic Shielded Woofer

    € 38,22€ 46,25 1 Op voorraad: levertijd 1 werkdag
    Choose the Dayton Audio DC160S-8 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €43,94 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Choose the Dayton Audio DC160S-8 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



    Highlights

    • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
    • Smooth frequency response up to 2 kHz and great bass response
    • Rubber surround, aluminum voice coil, and extended bump plate
    • Low 32 Hz free-air resonance



    Product details

    Dayton Audio DC160S-8 6-1/2" Classic Shielded Woofer



    Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-8 as a small subwoofer! The excellent low frequency performance will amaze you.



    A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

    Specificaties

    Artikelnummer
    DC160S-8
    Woofer Series
    Classic Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.50"
    Power Handling (RMS)
    50 watts
    Power Handling (max)
    100 watts
    Impedance
    8 ohms
    Sensitivity
    85.3 dB @ 2.83V/1m
    Frequency Response
    33 - 4,000 Hz
    Voice Coil Diameter
    35 mm
    Magnet Weight
    15 oz.
    DC Resistance (Re)
    6.9 ohms
    Voice Coil Inductance (Le)
    2.29 mH @ 1 kHz
    Resonant Frequency (Fs)
    30.3 Hz
    Mechanical Q (Qms)
    3.04
    Electromagnetic Q (Qes)
    0.33
    Total Q (Qts)
    0.30
    Diaphragm Mass Inc. Airload (Mms)
    32.2g
    Mechanical Compliance of Suspension (Cms)
    0.86 mm/N
    Surface Area of Cone (Sd)
    134.8 cm²
    Volume of Displacement (Vd)
    42.5 cm³
    BL Product (BL)
    11.3 Tm
    Compliance Equivalent Volume (Vas)
    22.5 liters
    Maximum Linear Excursion (Xmax)
    3.15 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    165 mm
    Overall Depth
    95 mm
    Baffle Cutout Diameter
    144.6 mm
    # Mounting Holes
    4

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great woofer, handles bass and mids pretty well! Using this for my first DIY project. Delivered to the UK within a few days! Will order again!
    Door Prab on 4 Januari 2021
