Dayton Audio DC160-8 6-1/2" Classic Woofer

Levertijd: 1 werkdag

  • Artikelcode: DC160-8
  • Voorraad: >10 Op voorraad

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

€ 39,95 Incl. 21% btw

  • Bestel 4 voor €37,95 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

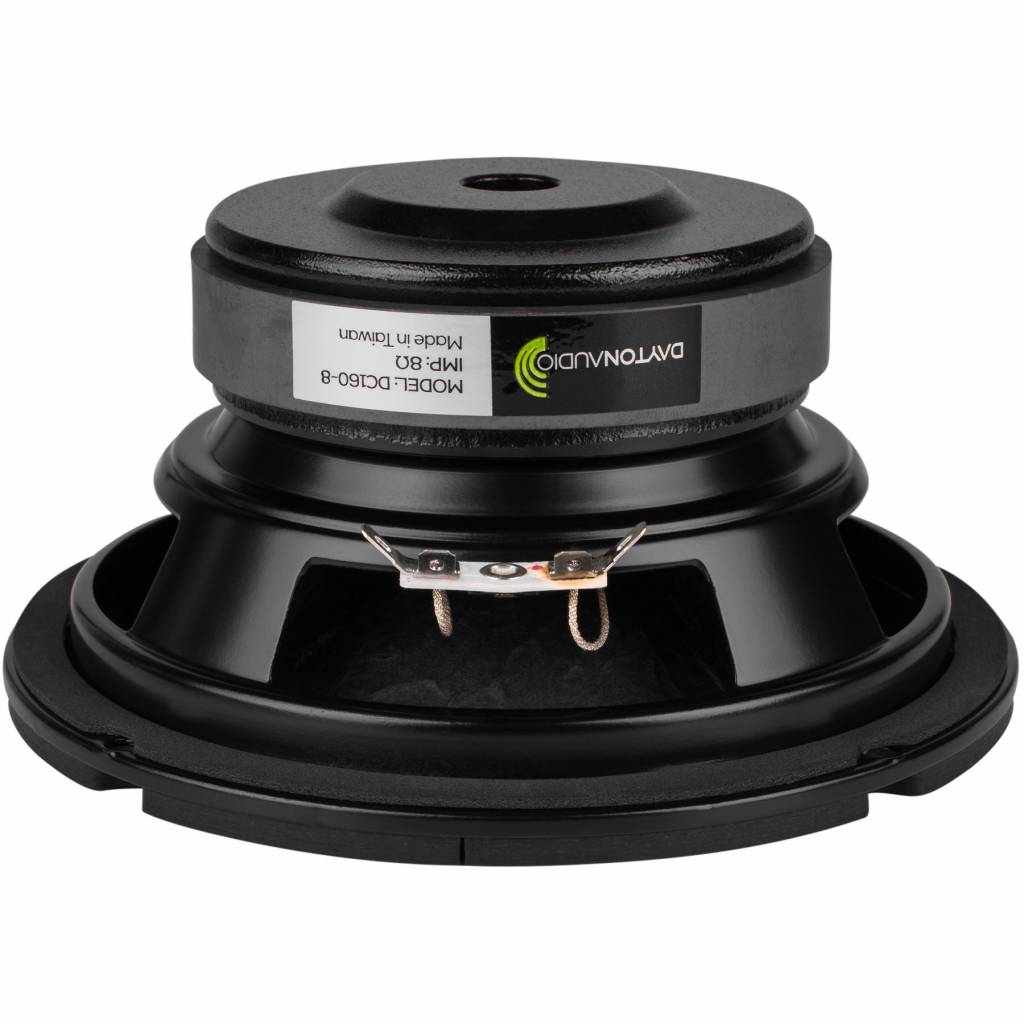

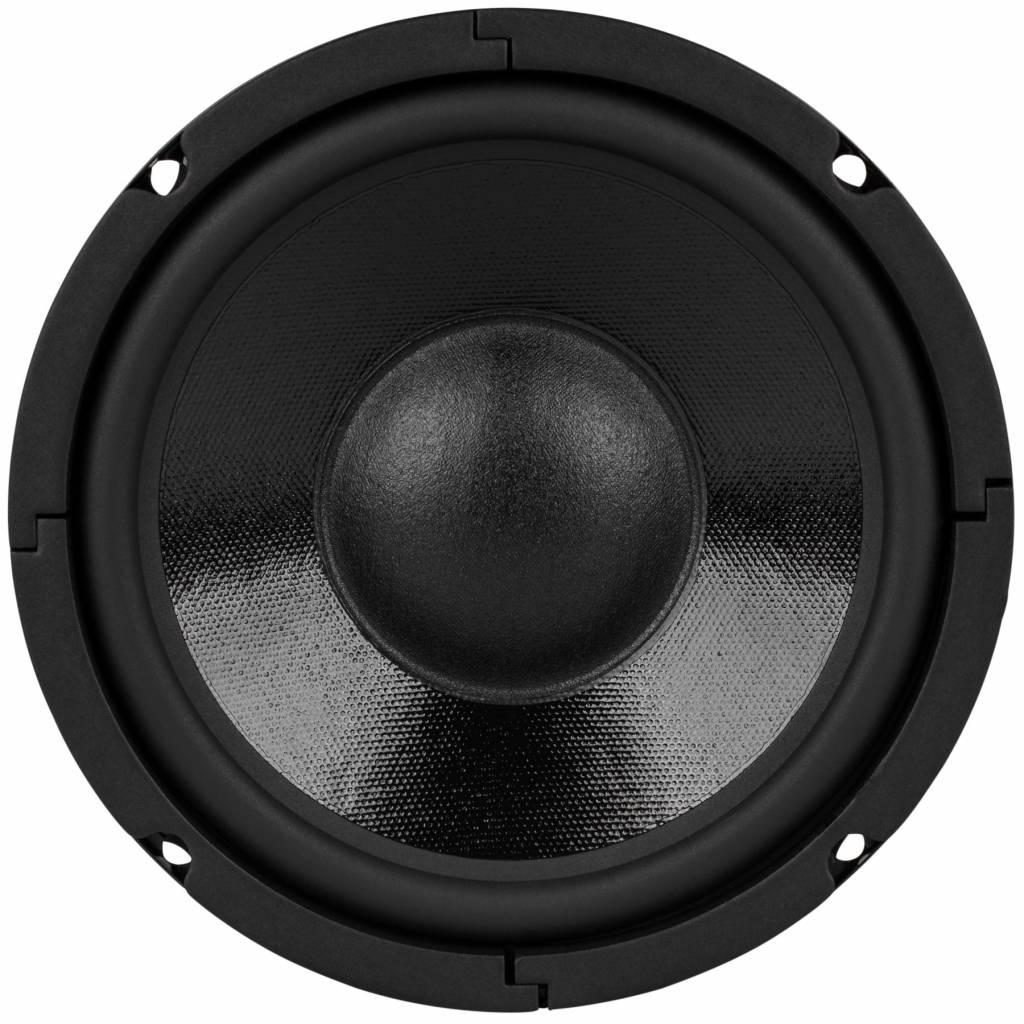

Dayton Audio DC160-8 6-1/2" Classic Woofer

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.



Highlights

  • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
  • Smooth frequency response up to 2 kHz and great bass response
  • Rubber surround, aluminum voice coil, and extended bump plate
  • Low 34 Hz free-air resonance



Product details

Dayton Audio DC160-8 6-1/2" Classic Woofer



Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Specificaties

Specificaties voor: DC160-8 6-1/2" Classic Woofer

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Classic Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Midwoofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 6.50"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 50 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 100 watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86.1 dB @ 2.83V/1m
  • Frequency Response 30 - 4,000 Hz
  • Voice Coil Diameter 35 mm
  • Magnet Weight 15 oz.
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 2.26 mH @ 1 kHz
  • Resonant Frequency (Fs) 35.7 Hz
  • Mechanical Q (Qms) 3.46
  • Electromagnetic Q (Qes) 0.38
  • Total Q (Qts) 0.34
  • Diaphragm Mass Inc. Airload (Mms) 29.3g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.68 mm/N
  • Surface Area of Cone (Sd) 134.8 cm²
  • Volume of Displacement (Vd) 42.5 cm³
  • BL Product (BL) 10.7 Tm
  • Compliance Equivalent Volume (Vas) 17.9 liters
  • Maximum Linear Excursion (Xmax) 3.15 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 165 mm
  • Overall Depth 82.2 mm
  • Baffle Cutout Diameter 144.6 mm
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.14 ft.³
  • Sealed F3 89 Hz
  • Vented Volume 0.34 ft.³
  • Vented F3 54 Hz

Documenten

Reviews

Gebruikers beoordelingen 4.5 / 5 Reviews: (6)

  • FX Door Felix aan 28-09-2020 23:44

    5 / 5

    Ein solider Treiber der meine Qualität Anforderungen sogar übertroffen hat. Es ist halt DER STANDARD Woofer der in fast jeder Anwendung Platz findet

  • MV Door Maxim V. aan 16-07-2020 12:37

    4 / 5

    As always with Dayton drivers, the build quality is solid and the finish is smart. The sound (with a 1st order passive LPF at 1.5kHz) is nice, very smooth and doesn't ever sound strained, even crossed at the limit of its usable frequency range. The only thing I don't like is that the front gasket is very thick, meaning without a recess, the driver comes out in front of the baffle a long way which doesn't look great.

  • VJ Door Ville J. aan 22-10-2019 17:06

    4 / 5

    No description was given

  • GL Door Georgios L. aan 19-03-2019 11:00

    4 / 5

    No description was given

  • PH Door Petri H. aan 02-10-2018 20:42

    5 / 5

    Its awesome

  • LA Door Luigi A. aan 26-06-2018 18:16

    5 / 5

    Very good sound!
