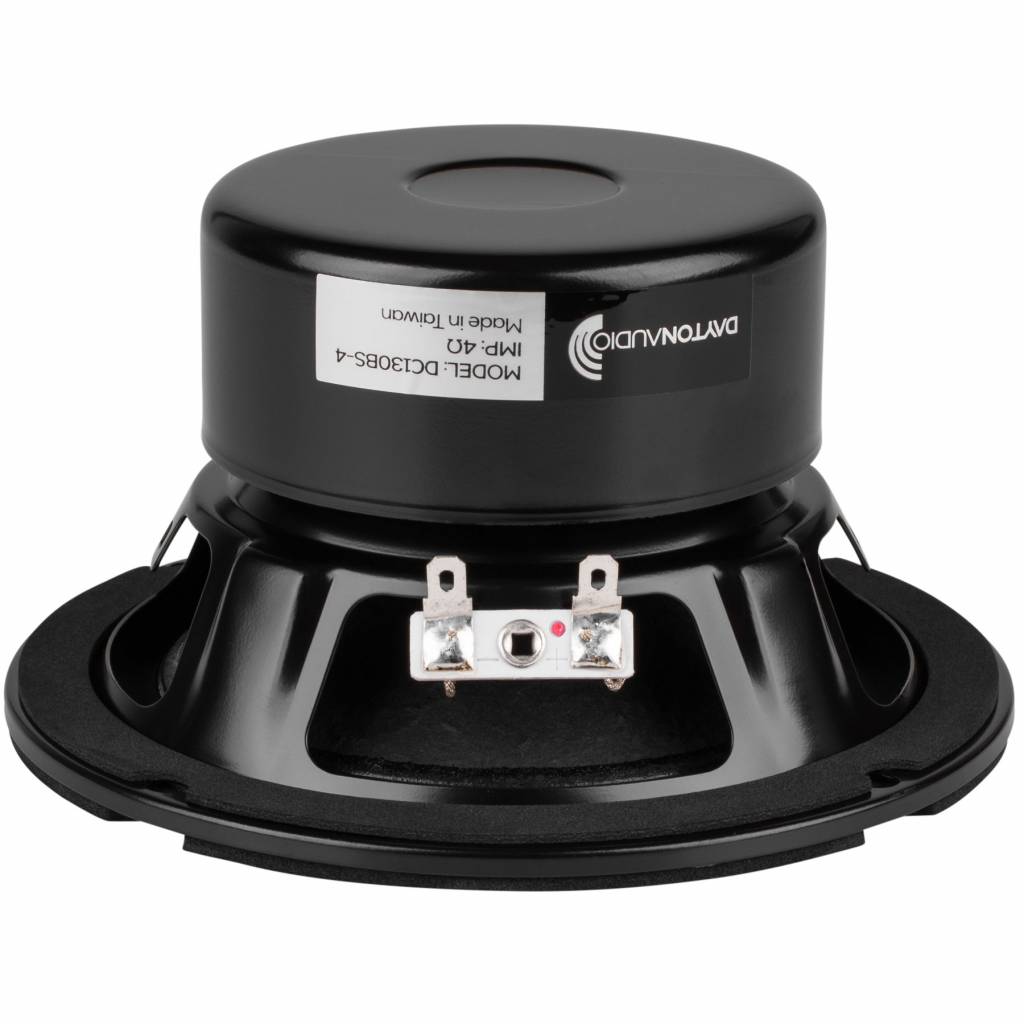

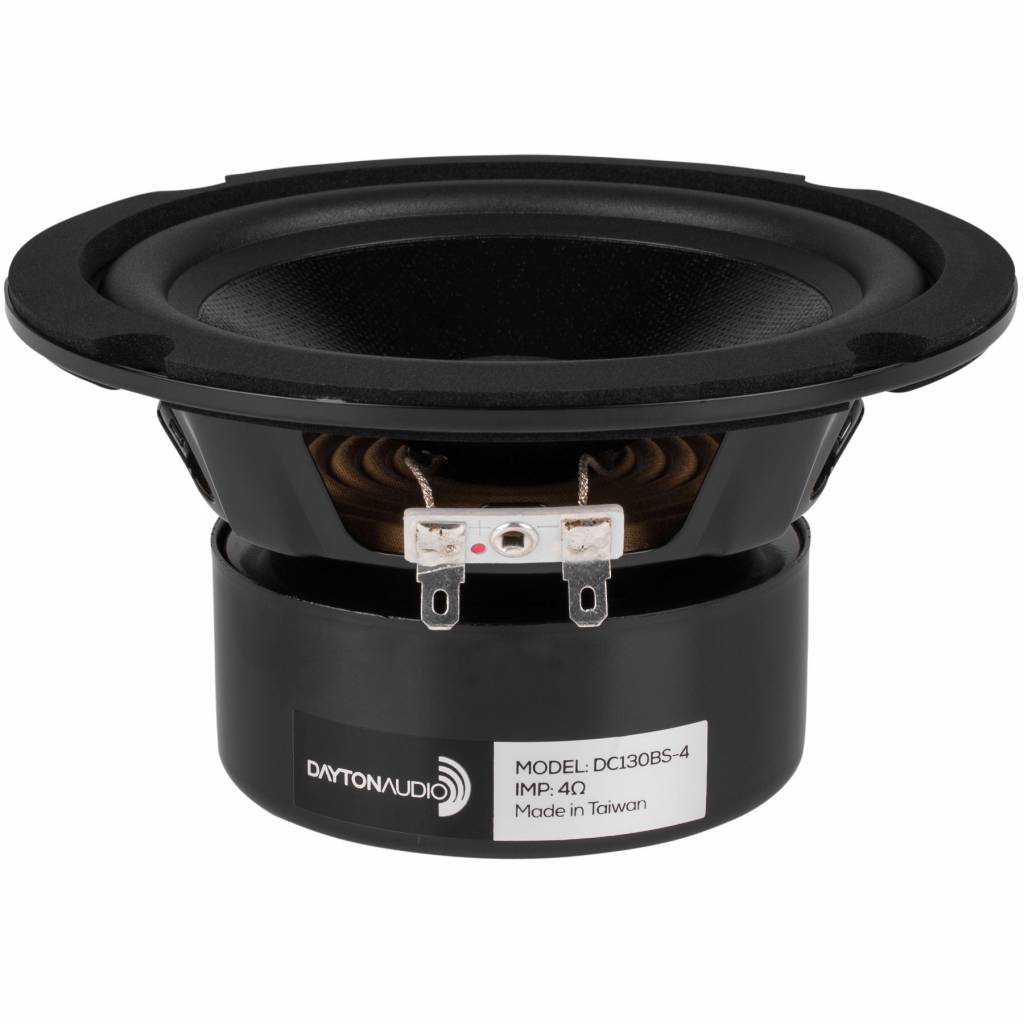

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

Alleen op bestelling leverbaar, vervolgens 1 week levertijd

  • Artikelcode: DC130BS-4
  • Niet op voorraad

The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.

€ 29,95 Incl. 21% btw

  • Bestel 4 voor €28,45 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.



Highlights

  • Treated paper cone provides smooth response and low energy storage
  • Aluminum former and porous dustcap for high power handling
  • Large diameter flat spider and good Xmax for clean bass



Product details

Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm



The Dayton Audio Classic woofers are excellent as replacements or for new system design and construction. Their versatile set of parameters make them suitable for sealed or vented enclosure designs. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.



PRODUCT SPECIFICATIONS

Nominal Diameter

5-1/4"

Power Handling (RMS)

30 Watts

Power Handling (max)

60 Watts

Impedance

4 ohms

Frequency Response

55 to 4,000 Hz

Sensitivity

91.6 dB 2.83V/1m

Voice Coil Diameter

1"



THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)

51.8 Hz

DC Resistance (Re)

3.55 ohms

Voice Coil Inductance (Le)

0.5 mH

Mechanical Q (Qms)

1.86

Electromagnetic Q (Qes)

0.44

Total Q (Qts)

0.35

Compliance Equivalent Volume (Vas)

0.46 ft.³

Mechanical Compliance of Suspension (Cms)

1.08 mm/N

BL Product (BL)

4.8 Tm

Diaphragm Mass Inc. Airload (Mms)

8.8g

Maximum Linear Excursion (Xmax)

2.5 mm

Surface Area of Cone (Sd)

93.3 cm²



MATERIALS OF CONSTRUCTION

Cone Material

Coated Paper

Surround Material

Rubber

Voice Coil Wire Material

Copper

Voice Coil Former

Aluminum

Basket / Frame Material

Steel

Magnet Material

Ferrite



MOUNTING INFORMATION

Overall Outside Diameter

5.71"

Baffle Cutout Diameter

4.72"

Depth

3.09"

Bolt Circle Diameter

5.24"

# Mounting Holes

4



OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)

Sealed Volume

0.12 ft.³

Sealed F3

119 Hz

Vented Volume

0.36 ft.³

Vented F3

64 Hz



Specificaties

Specificaties voor: DC130BS-4 5-1/4" Classic Shielded Woofer 4 Ohm

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Classic Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Midwoofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 5.25"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 30 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 60 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 91.6 dB @ 2.83V/1m
  • Frequency Response 55 to 4,000 Hz
  • Voice Coil Diameter 25 mm
  • Magnet Weight
  • DC Resistance (Re) 3.55 ohms
  • Voice Coil Inductance (Le) 0.5 mH @ 1 kHz
  • Resonant Frequency (Fs) 51.8 Hz
  • Mechanical Q (Qms) 1.86
  • Electromagnetic Q (Qes) 0.44
  • Total Q (Qts) 0.35
  • Diaphragm Mass Inc. Airload (Mms) 8.8g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.08 mm/N
  • Surface Area of Cone (Sd) 93.3 cm²
  • Volume of Displacement (Vd) 14.0 cm³
  • BL Product (BL) 4.8 Tm
  • Compliance Equivalent Volume (Vas) 13.2 liters
  • Maximum Linear Excursion (Xmax) 2.5 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded Yes
  • Overall Outside Diameter 145 mm
  • Overall Depth 77.4 mm
  • Baffle Cutout Diameter 120 mm
  • Bolt Circle Diameter 5.24"
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.12 ft.³
  • Sealed F3 119 Hz
  • Vented Volume 0.36 ft.³
  • Vented F3 64 Hz

Documenten

Reviews

Gebruikers beoordelingen 3 / 5 Reviews: (1)

  • RB Door Robert B. aan 19-05-2020 16:47

    3 / 5

    it works as Subwoofer but the Volume is quiet
