- Artikelnummer

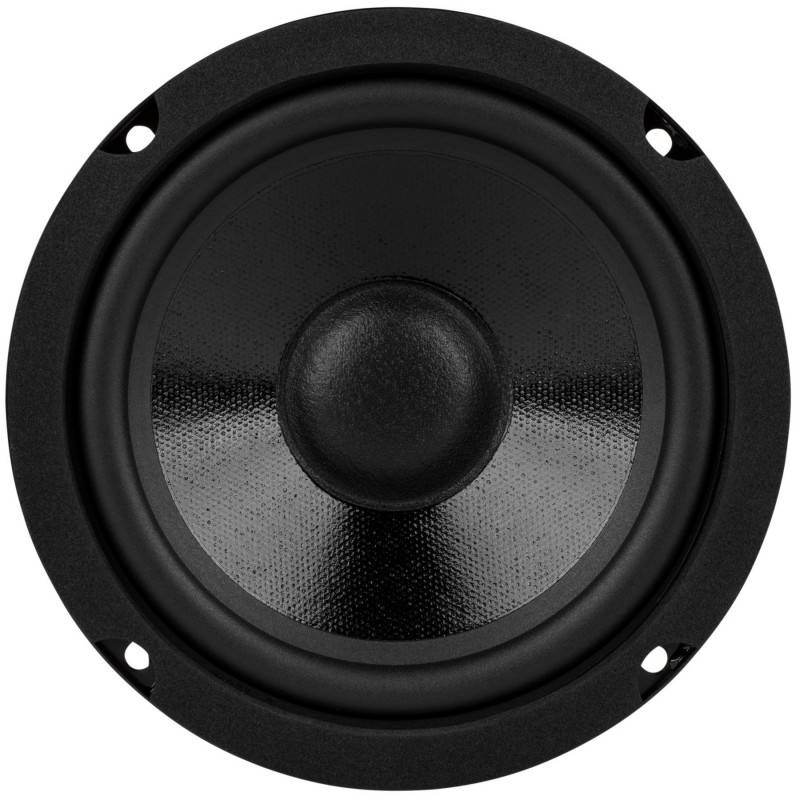

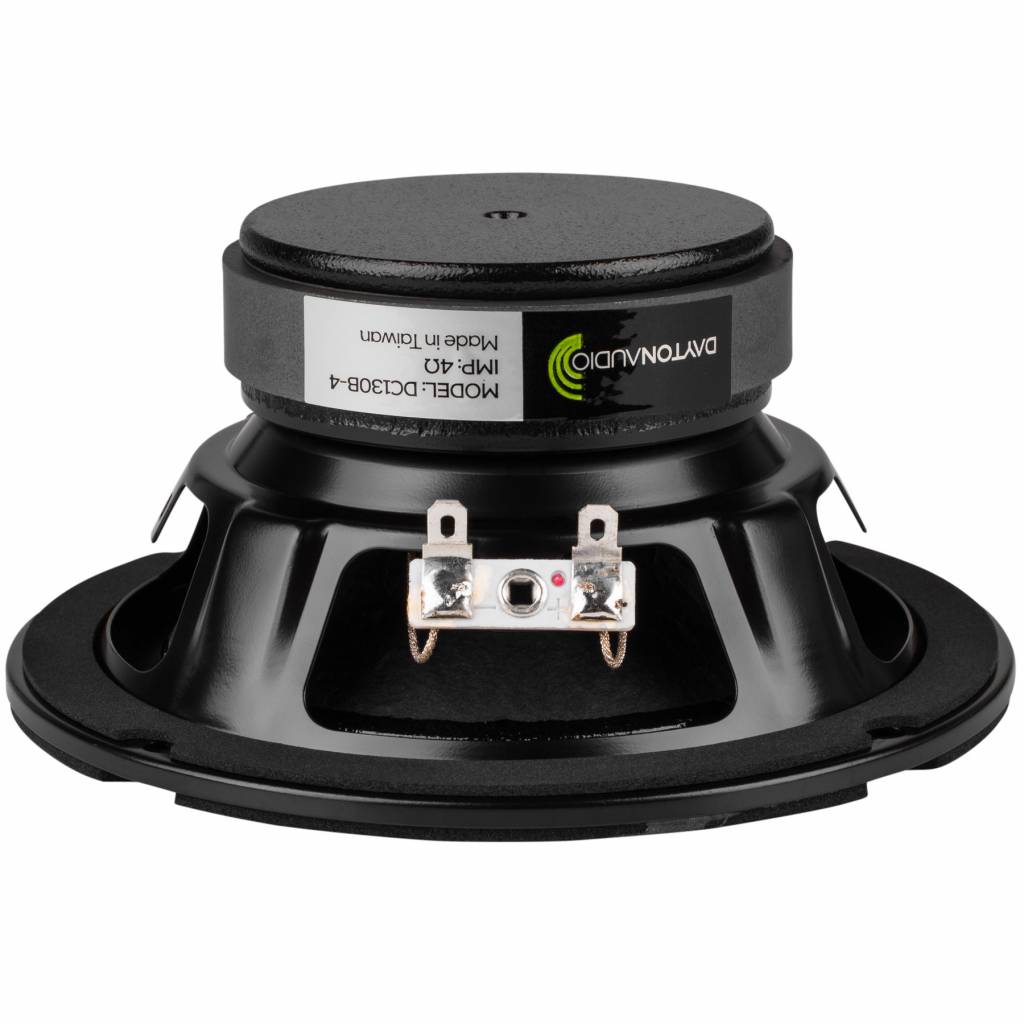

- DC130B-4
- Woofer Series
- Classic Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 5.25"
- Power Handling (RMS)
- 40 Watts
- Power Handling (max)
- 80 Watts
- Impedance
- 4 ohms
- Sensitivity
- 92.1 dB 2.83V/1m
- Frequency Response
- 50 to 5,000 Hz
- Voice Coil Diameter
- 25.4 mm
- Magnet Weight
- 11 oz.
- DC Resistance (Re)
- 3.2 ohms
- Voice Coil Inductance (Le)
- 0.5 mH @ 1 kHz
- Resonant Frequency (Fs)
- 51.8 Hz
- Mechanical Q (Qms)
- 2.52
- Electromagnetic Q (Qes)
- 0.41
- Total Q (Qts)
- 0.35
- Diaphragm Mass Inc. Airload (Mms)
- 9.4g
- Mechanical Compliance of Suspension (Cms)
- 1 mm/N
- Surface Area of Cone (Sd)
- 91.6 cm²
- Volume of Displacement (Vd)
- 22.9 cm³
- BL Product (BL)
- 4.89 Tm
- Compliance Equivalent Volume (Vas)
- 12.3 liters
- Maximum Linear Excursion (Xmax)
- 2.5 mm
- Cone / Diaphragm Material
- Coated Paper
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Aluminum
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 145 mm
- Overall Depth
- 67.8 mm
- Baffle Cutout Diameter
- 120 mm
- # Mounting Holes
- 4
- Sealed Volume
- 0.1 ft.³
- Sealed F3
- 120 Hz
- Vented Volume
- 0.22 ft.³
- Vented F3
- 72 Hz
