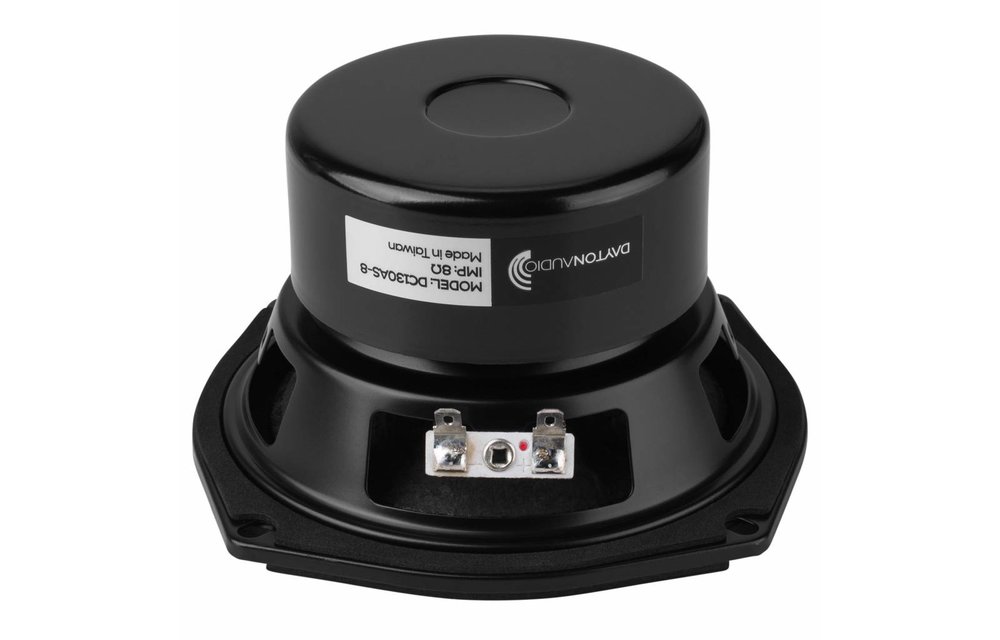

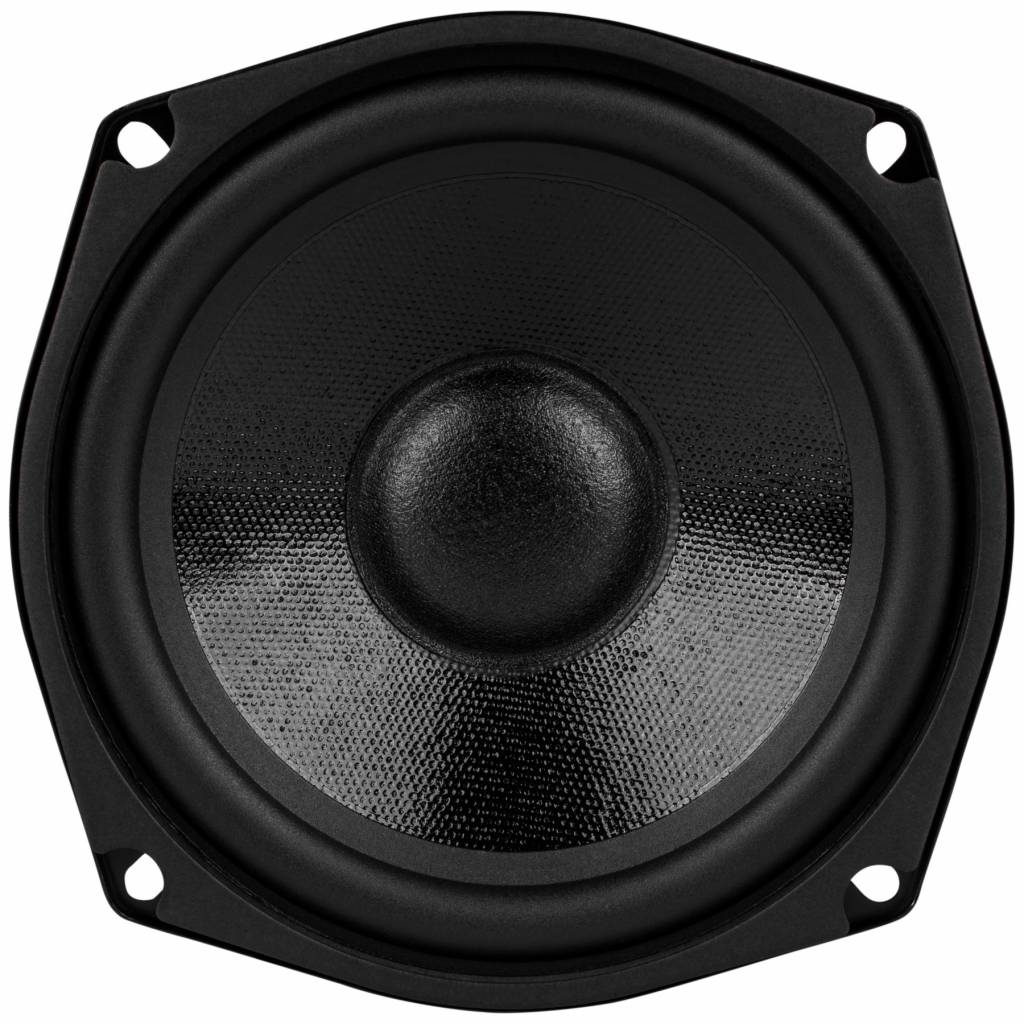

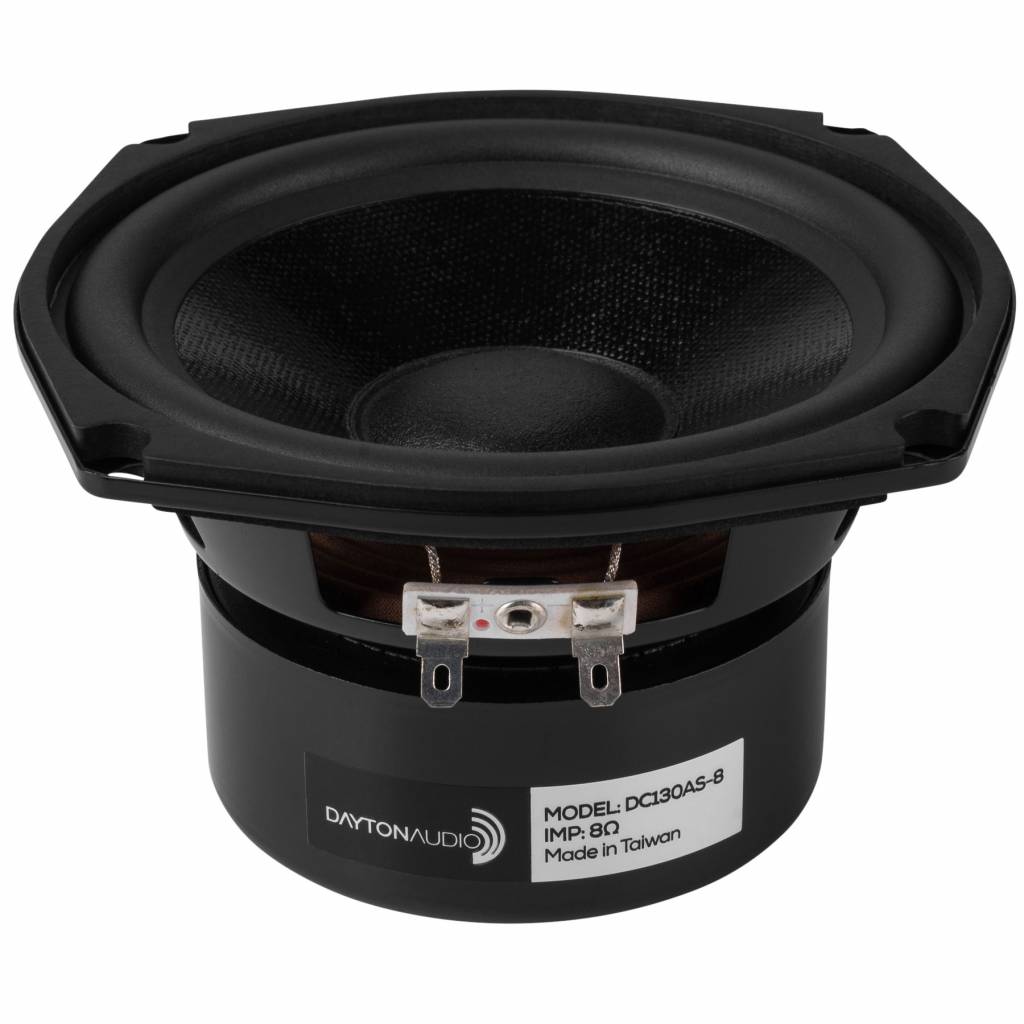

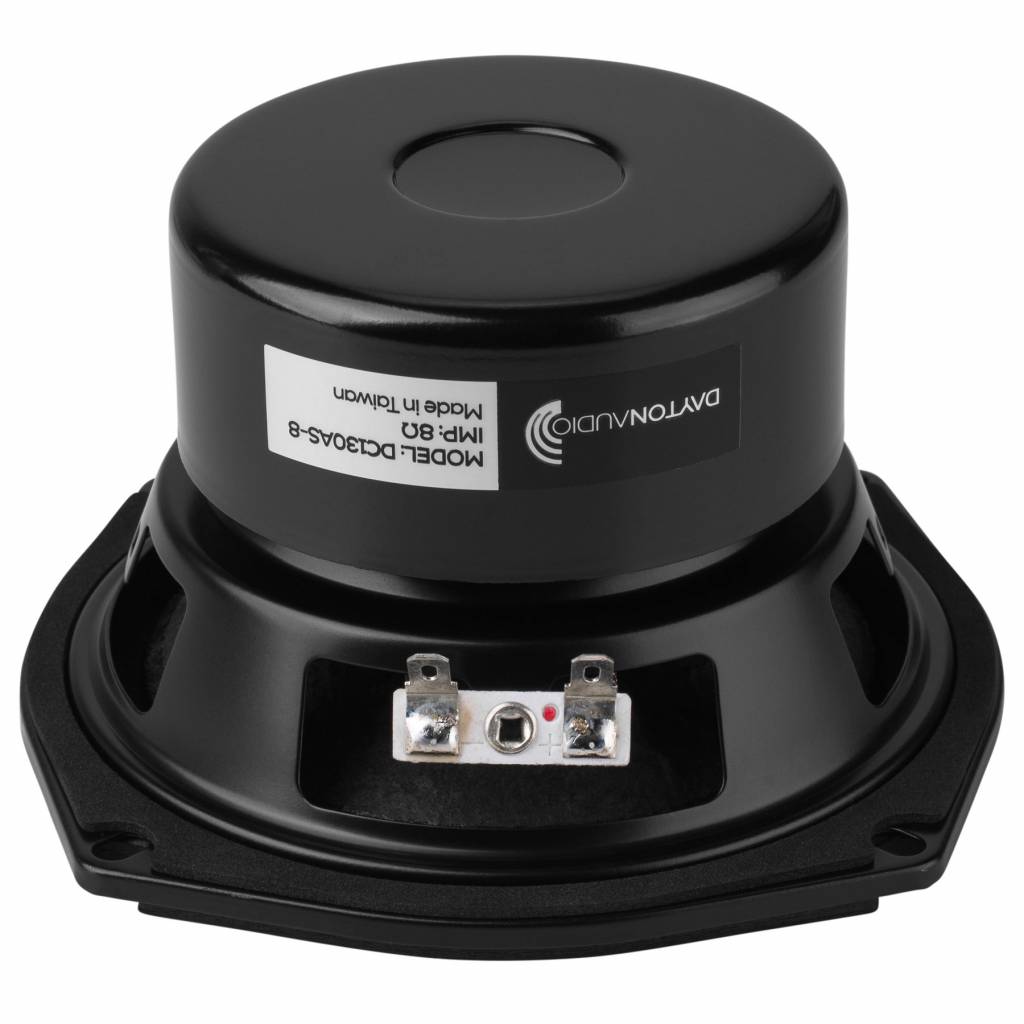

    Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer

    € 24,75€ 29,95 3 Op voorraad: levertijd 1 werkdag
    Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Choose the Dayton Audio DC130AS-8 Classic Series 5-1/4" woofer for use as a great replacement bookshelf speaker, midrange in 3-way designs, or even as a small subwoofer. The shielded design allows for use near tube TVs and focuses the magnetic flux in the gap for high sensitivity.



    Highlights

    • Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
    • Smooth frequency response up to 2 kHz and great bass response
    • Rubber surround, aluminum voice coil, and extended bump plate
    • Shielded design increases performance and allows it to be used near tube TVs
    • 4 ohm impedance for series pair use in MTMs and center channel speakers



    Product details

    Dayton Audio DC130AS-8 5-1/4" Classic Shielded Woofer



    Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC130AS-8 shielded 5-1/4" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC130AS-8 as a small subwoofer! The excellent low frequency performance will amaze you.



    A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil increases power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

    Specificaties

    Artikelnummer
    DC130AS-8
    Woofer Series
    Classic Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5.25"
    Power Handling (RMS)
    30 watts
    Power Handling (max)
    60 watts
    Impedance
    8 ohms
    Sensitivity
    88.5 dB @ 2.83V/1m
    Frequency Response
    55 - 4,000 Hz
    Voice Coil Diameter
    25 mm
    Magnet Weight
    10 oz.
    DC Resistance (Re)
    5.6 ohms
    Voice Coil Inductance (Le)
    0.84 mH @ 1 kHz
    Resonant Frequency (Fs)
    57.2 Hz
    Mechanical Q (Qms)
    2.01
    Electromagnetic Q (Qes)
    0.58
    Total Q (Qts)
    0.45
    Diaphragm Mass Inc. Airload (Mms)
    9.7g
    Mechanical Compliance of Suspension (Cms)
    0.8 mm/N
    Surface Area of Cone (Sd)
    91.6 cm²
    Volume of Displacement (Vd)
    22.9 cm³
    BL Product (BL)
    5.83 Tm
    Compliance Equivalent Volume (Vas)
    9.73 liters
    Maximum Linear Excursion (Xmax)
    2.5 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    134 mm
    Overall Depth
    78.4 mm
    Baffle Cutout Diameter
    120 mm
    # Mounting Holes
    4
    Sealed Volume
    0.19 ft.³
    Sealed F3
    95 Hz
    Vented Volume
    0.6 ft.³
    Vented F3
    47 Hz

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Perfect mid.
    Door Stanford A. on 19 Mei 2020
    5 van 5
    Used this as a midwoofer in a 3way system, souds great!
    Door Oskar F. on 16 Augustus 2018
