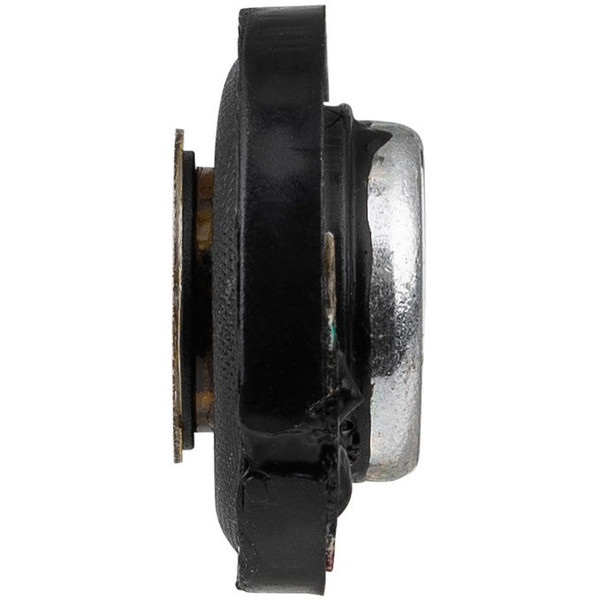

Dayton Audio DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX9CT-4
  • Voorraad: >10 Op voorraad

Take your product or project to the next level by turning it into a speaker! The DAEX9CT-4 is the smallest of the Dayton Audio Exciters and is designed to turn small surfaces into a hidden sound source.

€ 4,25 Incl. 21% btw

  • Bestel 4 voor €4,04 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm

Take your product or project to the next level by turning it into a speaker! The DAEX9CT-4 is the smallest of the Dayton Audio Exciters and is designed to turn small surfaces into a hidden sound source.



Highlights

  • Super small size; less than an inch in diameter, less than 3/8" high
  • 4-ohm impedance for use with small, Class D amplifiers
  • Turns almost any surface into a speaker
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor



Product details

Dayton Audio DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm



Dayton Audio's 9 mm DAEX9CT-4 coin-type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Its 4-ohm nominal impedance facilitates the use of series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern.

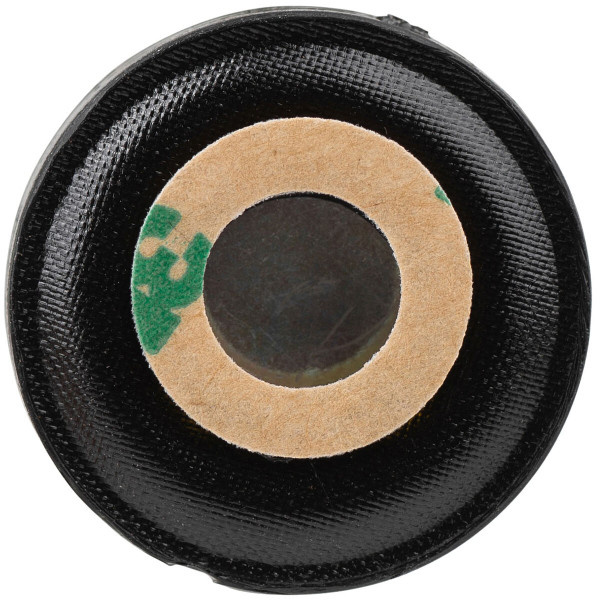

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX9CT-4 Coin Type 9mm Exciter 0.5W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range Exciter
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 0.50 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 1200 Hz
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.02 mH
  • Total Q (Qts) 3.00
  • Diaphragm Mass Inc. Airload (Mms) 0.076 g
  • Mechanical Compliance of Suspension (Cms) 0.001 mm/N
  • BL Product (BL) 0.49 Tm
  • Voice Coil Diameter 9 mm
  • Overall Outside Diameter 20.9 mm
  • Overall Depth 8.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 10.8 outside Ø, 7.7 inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 3.9 grams
