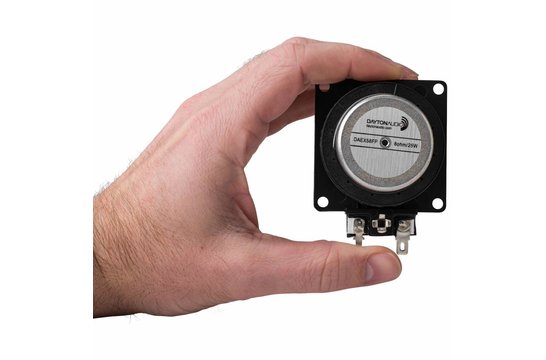

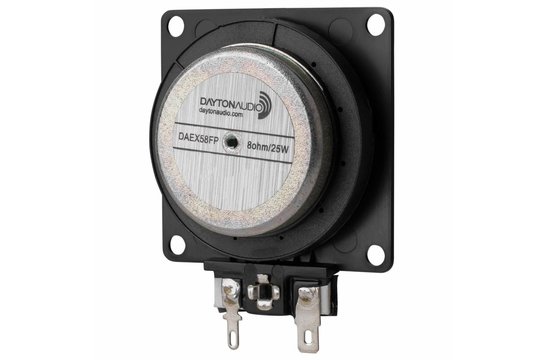

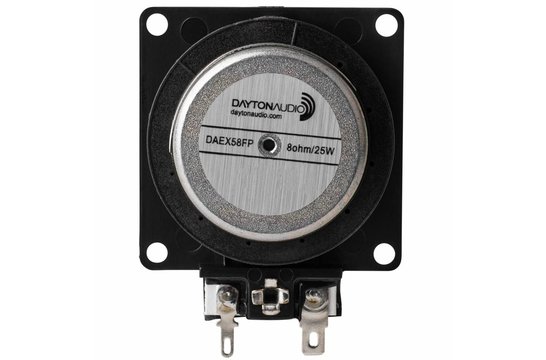

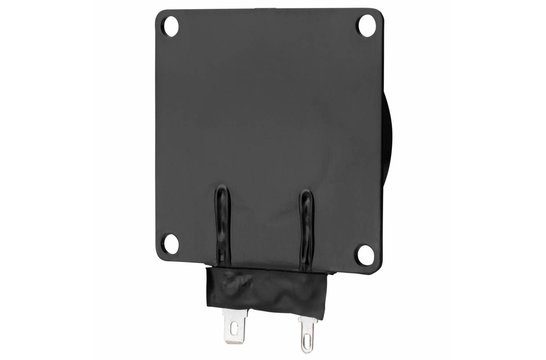

Dayton Audio DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX58FP
  • Voorraad: >10 Op voorraad

Dayton Audio's DAEX58FP Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited.

€ 19,25 Incl. 21% btw

  • Bestel 4 voor €18,29 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm

Dayton Audio's DAEX58FP Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited.



Highlights

  • Super small size with low profile height
  • 8 ohm impedance for use in almost any amplifier
  • Includes mounting plate
  • Adds sound to any surface



Product details

Dayton Audio DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm



Ideal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4" square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area.



Surface materials include: cardboard, glass, wood, steel, sheet rock, and more. The 58 mm exciter is heavily used in the automotive, industrial, point-of-sale, retail display, marine, aeronautical industry, digital signage, and art field, along with many other applications where space and depth limitations are a concern.



The flat surface of this transducer can be glued, screwed or double face taped to a wide variety of surfaces to suit almost endless needs. Surfaces include metal cabinets, glass panes, picture frames, wood tiles, under table surfaces, inside display cabinets, cardboard signs, sheet metal and much more.



Typical Applications:

  • Retail display cases and store fronts
  • Public exhibits
  • Self service counters
  • Digital signage



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX58FP Flat Pack 58mm Exciter 25W 8 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 25 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 40 watts
  • Impedance SPEC Impedance 8 ohms
  • Frequency Response SPEC Frequency Response 60 ­- 12.000 Hz (varies by application)
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 240 Hz
  • DC Resistance (Re) 7 ohms
  • Voice Coil Inductance (Le) 0.47 mH
  • Total Q (Qts) 1.98
  • Diaphragm Mass Inc. Airload (Mms) 9.95 g
  • Mechanical Compliance of Suspension (Cms) 0.05 mm/N
  • BL Product (BL) 5.0 Tm
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter -
  • Overall Depth 20 mm
  • Overall Dimensions (L x W x H) 58.8 x 58.8 x 20.0 mm
  • Adhesive dimensions 50.8 x 50.8 mm
  • # Mounting Holes 4
  • Mounting type screw, glue or double face taped mounting
  • Weight

Documenten

Reviews

Gebruikers beoordelingen 4.35 / 5 Reviews: (3)

  • PC Door Paulo Câmara aan 04-11-2019 10:58

    4 / 5

    Very good product.

    Shipping was on time, this exciter performs at it expected, robust ans sounds nive. Would recommend for beginners DML speakers. Excellent price/quality ratio.

  • CA Door Christopher Aaby S. aan 11-12-2018 13:31

    5 / 5

    Good product, fast international delivery!

  • DK Door Derek K. aan 22-03-2018 18:29

    4 / 5

    No description was given
