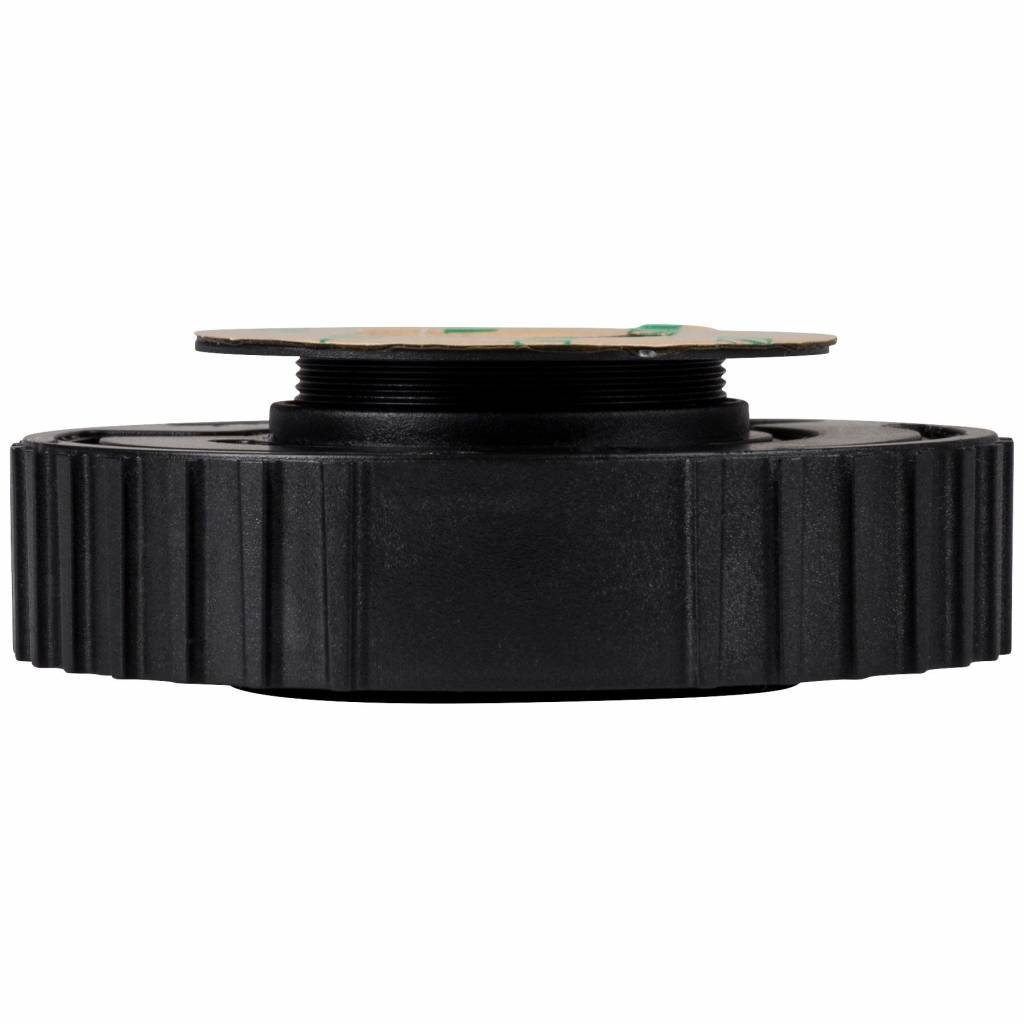

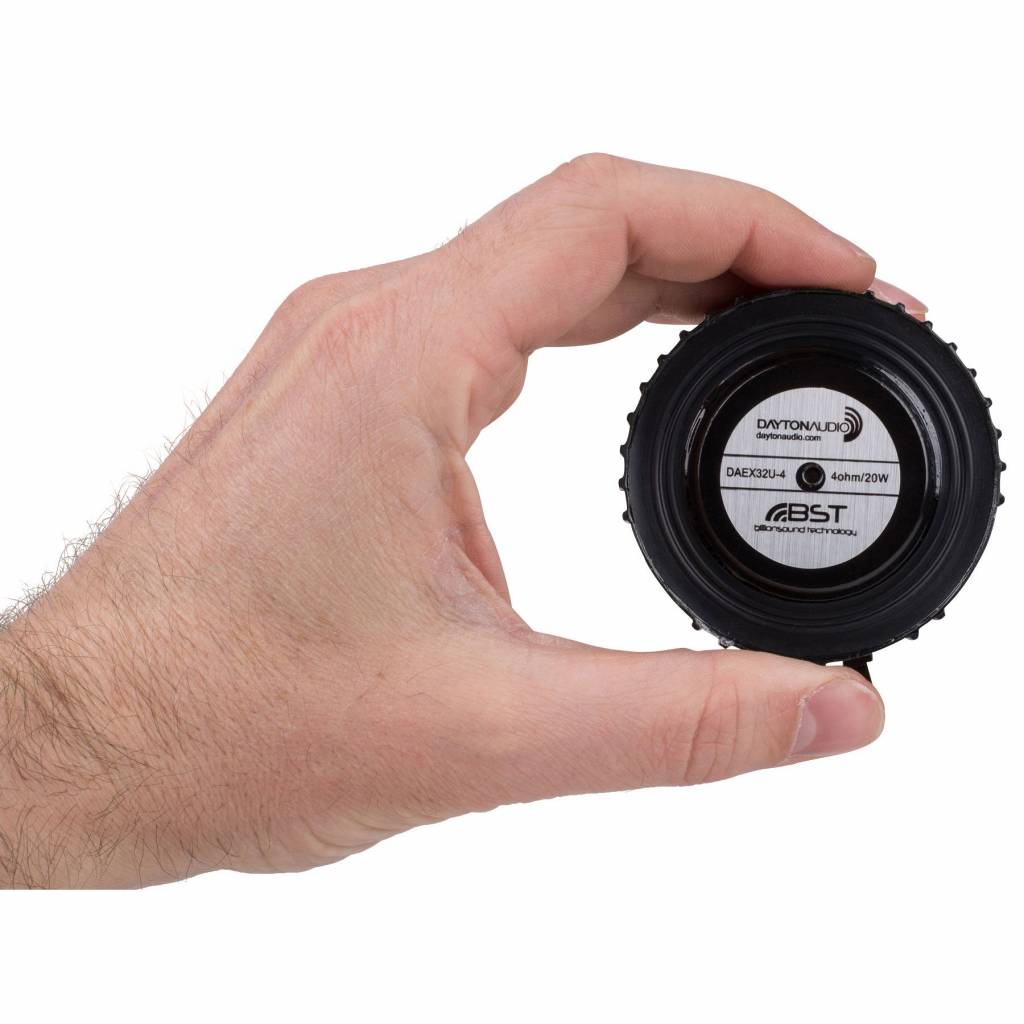

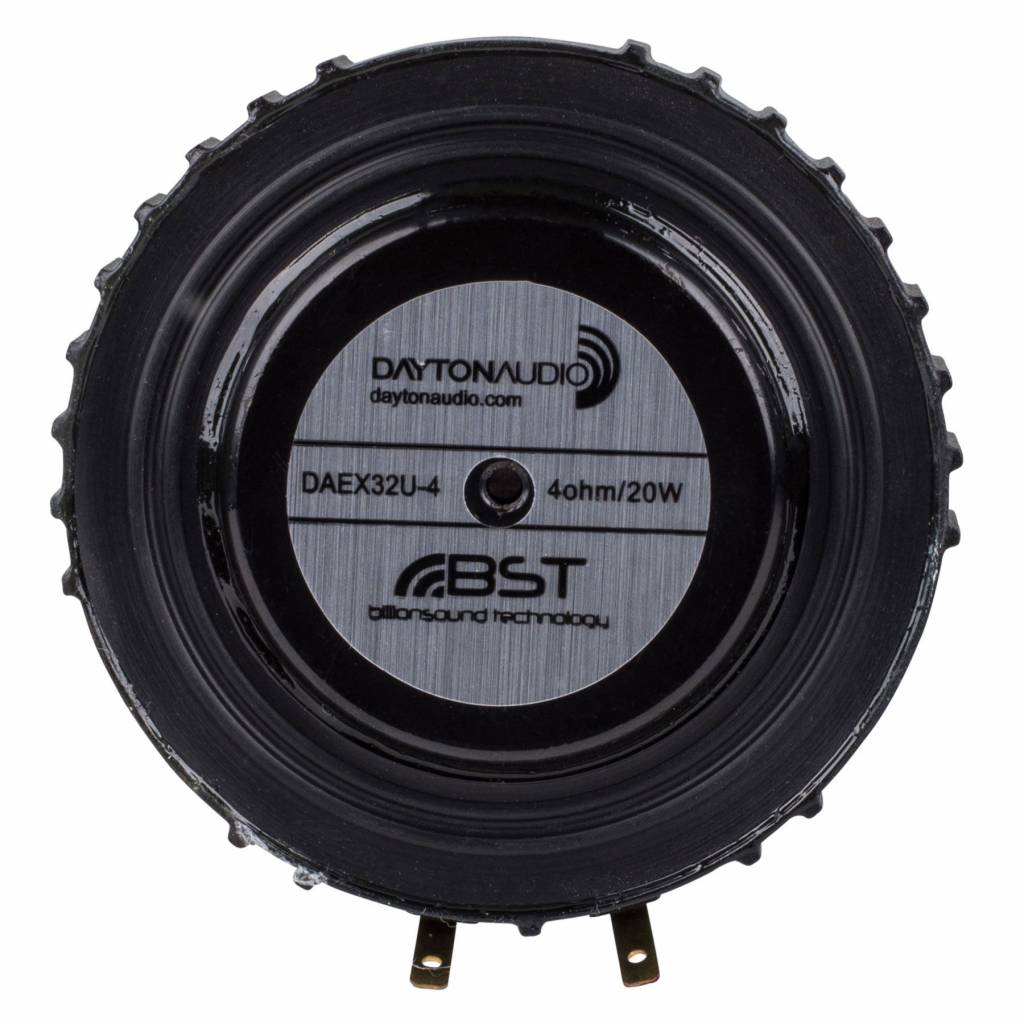

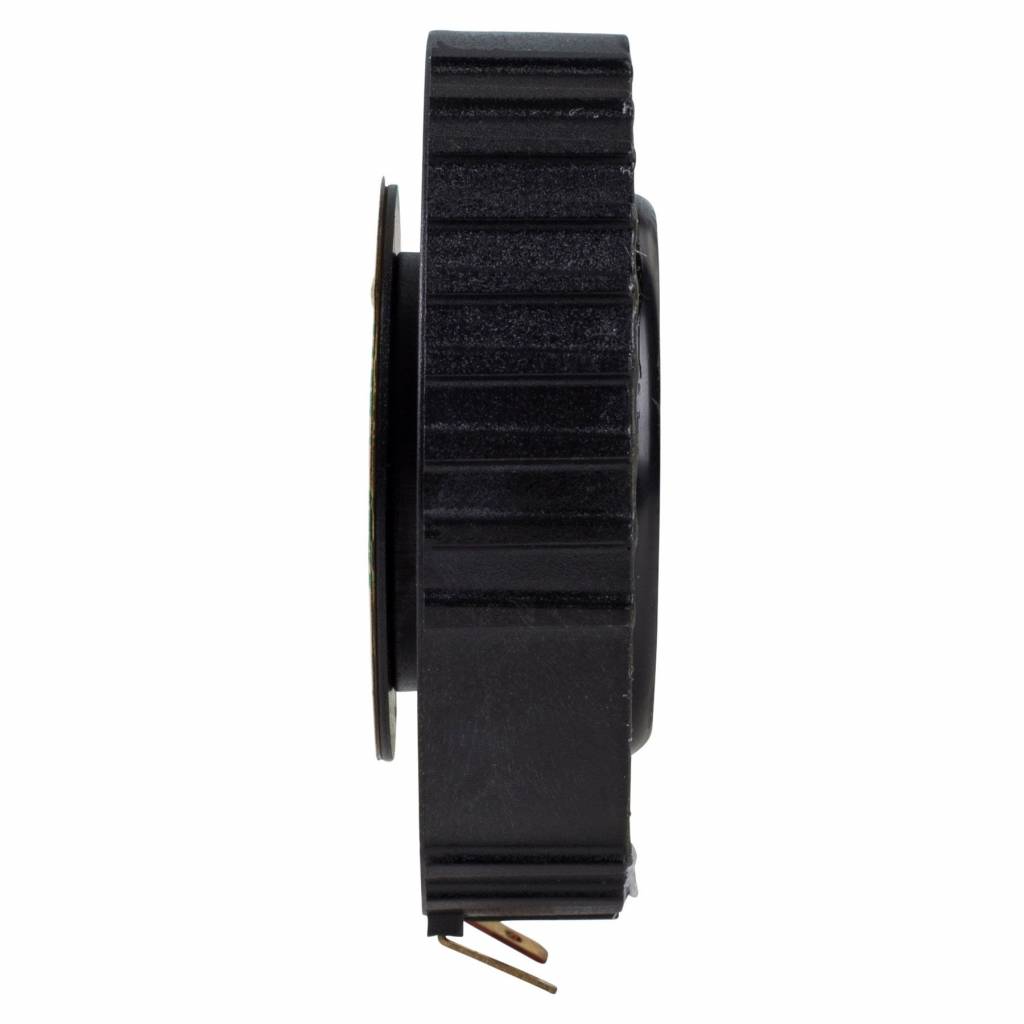

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX32U-4
  • Voorraad: >10 Op voorraad

Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4 audio exciter. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects!

€ 25,45 Incl. 21% btw

  • Bestel 4 voor €24,18 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

Turn large, rigid surfaces into speakers with the Dayton Audio DAEX32U-4 audio exciter. Includes pre-attached 3M VHB adhesive for maximum energy transfer, even on moving objects!



Highlights

  • Heavy-duty design with a 32 mm voice coil for a high 20 watt RMS power handling
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary two-layer voice coil
  • 4-ohm impedance for use with small, Class D amplifiers



Product details

Dayton Audio DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm



Dayton Audio's DAEX32U-4 Ultra exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil makes it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter.



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output.

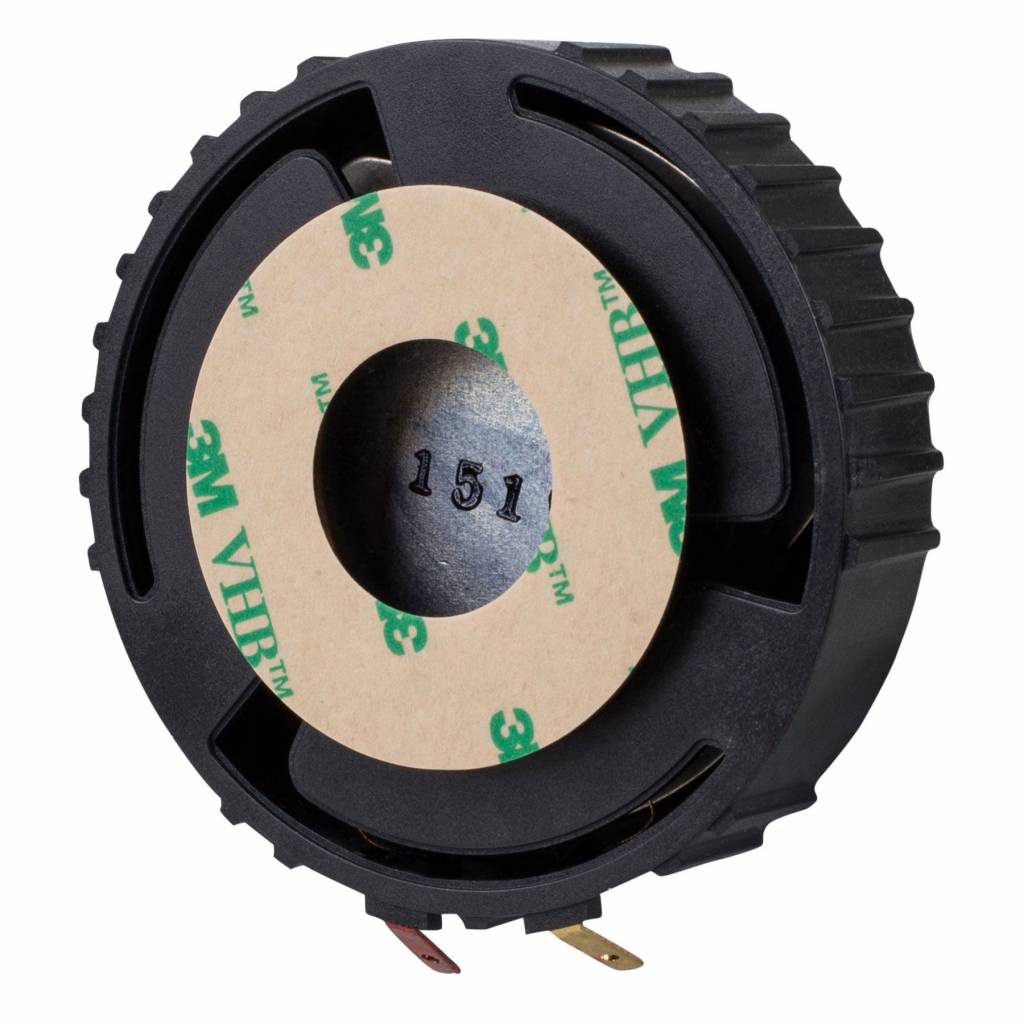

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX32U-4 Ultra 32mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 160 Hz
  • DC Resistance (Re) 3.5 ohms
  • Voice Coil Inductance (Le) 0.23 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter 64 mm
  • Overall Depth 19 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 41.7 mm outside Ø, 21.7 mm inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 140 grams

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (3)

  • AB Door Alex B. aan 15-02-2020 11:45

    5 / 5

    Very good quality. Works great

  • DD Door Dinko D. aan 09-02-2020 15:29

    5 / 5

    No description was given

  • BG Door bob g. aan 11-12-2018 12:25

    5 / 5

    Excellent service will use again. This is the second order for these and I am really happy with them. They need a few hours of use to give there best but after that the sound is superb with a well designed dml.
