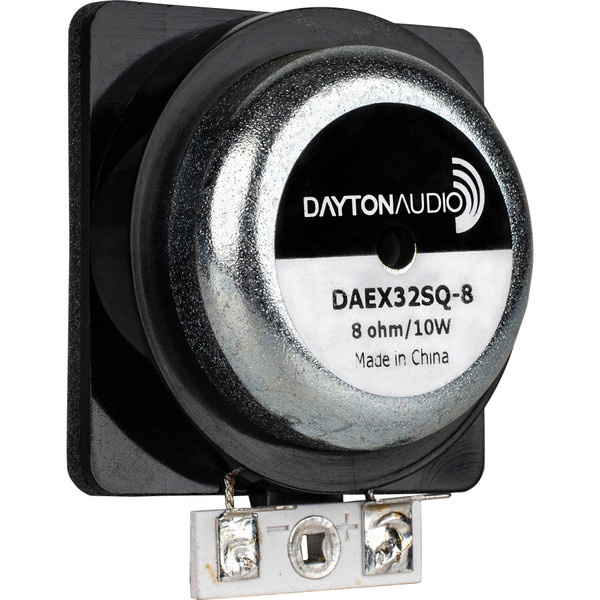

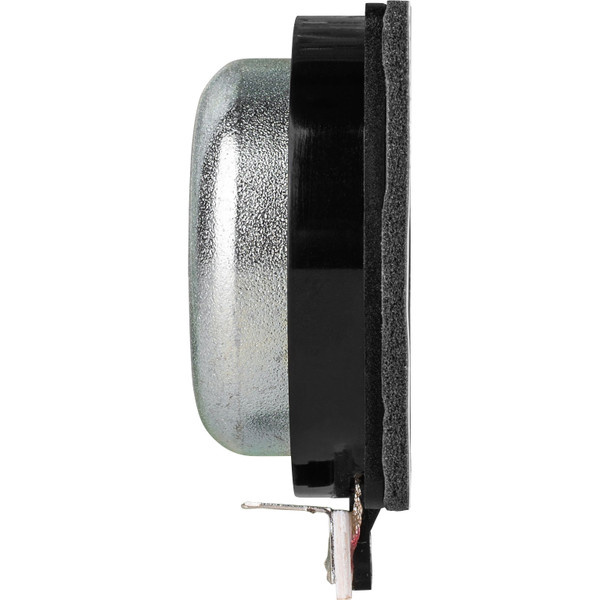

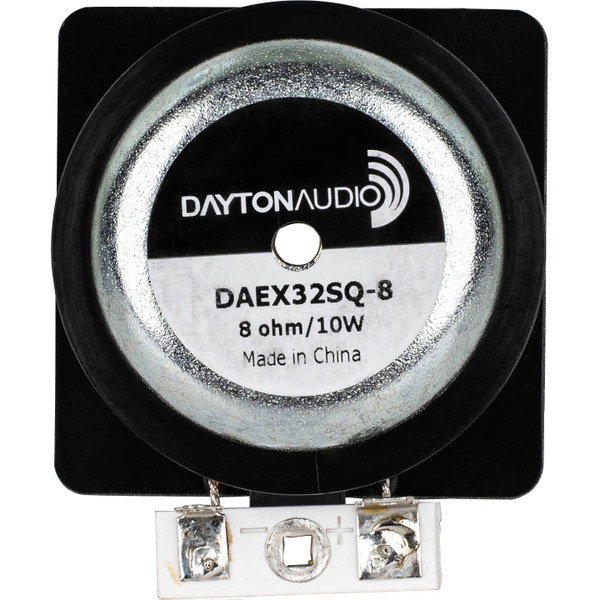

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX32SQ-8
  • Voorraad: 4 Op voorraad

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower

€ 19,95 Incl. 21% btw

  • Bestel 4 voor €18,95 per stuk en bespaar 5% Sale 5%
  • Bestel 10 voor €17,96 per stuk en bespaar 10% Sale 10%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower distortion when driven to its limits.



Highlights

  • Extended range and wide dispersion
  • 32 mm 2 layer voice coil for high, 20 watts RMS, power handling
  • Pre-applied 3M VHB adhesive for quick, secure installation
  • 8 ohms impedance for easy connection to most amplifiers



Product Details

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm



Dayton Audio's DAEX32SQ-8 square frame 32mm exciter gives you the ability to turn almost any solid surface into a truly invisible high-fidelity speaker. With a 1-1/4" 2-layer voice coil this exciter is capable of great power handling and impressive overall output capability. The square frame design gives this exciter additional mounting area to help support the powerful motor assembly and provide improved linearity when mounted to vertical surfaces.

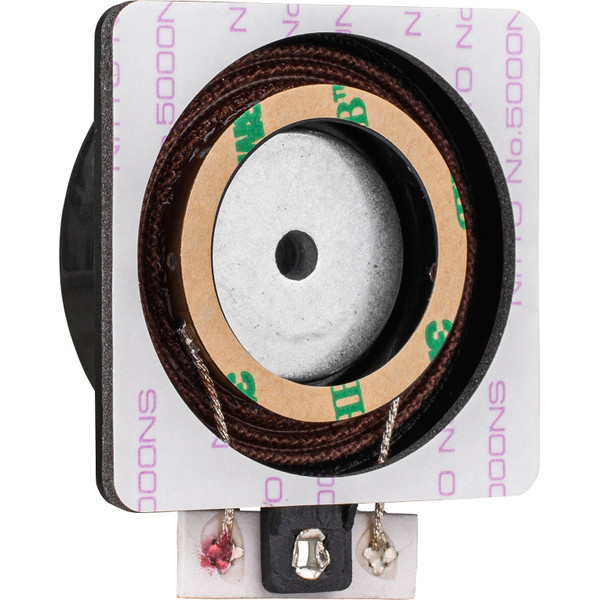

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



Specifications: • Power handling: 20 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 8 ohms • Re: 8 ohms • Le: 0.51 mH • Fs: 481 Hz • Dimensions: 2" (51 mm) W x 2.43" (61.8 mm) H x 0.89" (22.5 mm) D • Weight: 130 grams.



Application Full-Range Exciter
Impedance 8 ohms
Power Handling (RMS) 20 Watts

Specificaties

Specificaties voor: DAEX32SQ-8 Square Frame 32mm Exciter 20W 8 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 8 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 481 Hz
  • DC Resistance (Re) 8 ohms
  • Voice Coil Inductance (Le) 0.51 mH
  • Total Q (Qts) 1.15
  • Diaphragm Mass Inc. Airload (Mms) 3.4 gr
  • Mechanical Compliance of Suspension (Cms) 0.32 mm/N
  • BL Product (BL) 7.98 Tm
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter -
  • Overall Depth 22.5 mm
  • Overall Dimensions (L x W x H) 61.8 x 51 x 22.5 mm
  • Adhesive dimensions 51 x 51 mm
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 130 grams
