Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX32QMB-4
  • Voorraad: >10 Op voorraad

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil.

€ 27,45 Incl. 21% btw

  • Bestel 4 voor €26,08 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil.



Highlights

  • Large 32 mm voice coil improves power handling to 40 watts RMS
  • Rare-earth neodymium motor and a proprietary vented voice coil
  • Four arms provide extra support improving linearity
  • Turns any flat, rigid surface into a speaker



Product details

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm



Dayton Audio's DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 40 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 480 Hz
  • DC Resistance (Re) 3.7 ohms
  • Voice Coil Inductance (Le) 0.23 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 32 mm
  • Overall Outside Diameter 53.3 mm / 80 mm with legs
  • Overall Depth 20 mm
  • Overall Dimensions (L x W x H) -

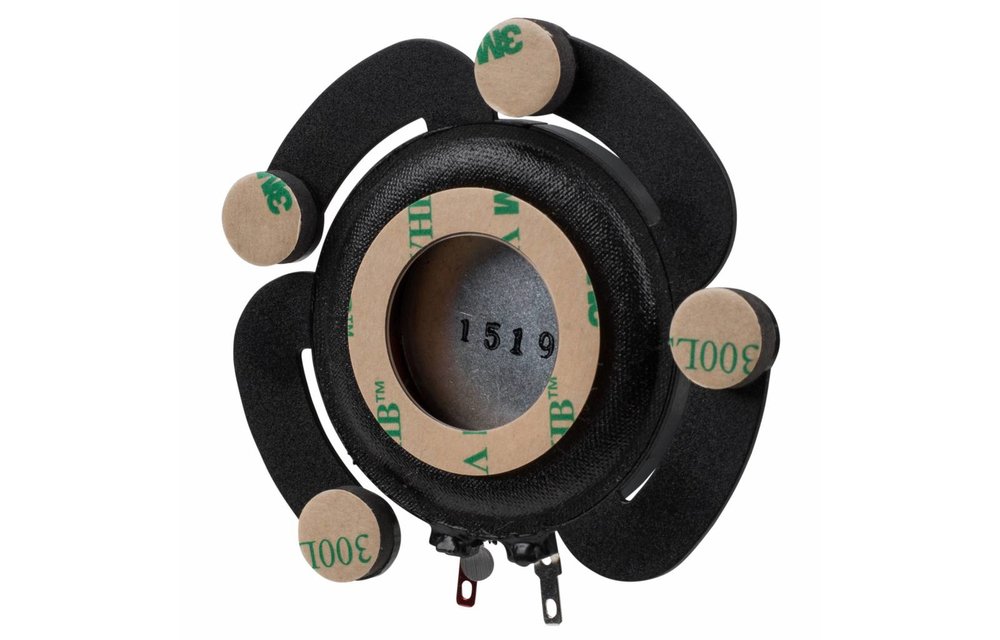

  • Adhesive dimensions 24.5 mm inside Ø, 35.5 mm outside Ø, leg pad 4 mm outside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 130 grams

Documenten

Reviews

Gebruikers beoordelingen 4.6 / 5 Reviews: (5)

  • DS Door Daniel S. aan 01-02-2020 05:35

    4 / 5

    No description was given

  • JO Door John O. aan 29-01-2020 12:26

    5 / 5

    Great product very pleased

  • UE Door UroÅ¡ E. aan 30-06-2018 16:11

    5 / 5

    No description was given

  • RB Door René B. aan 24-02-2018 10:00

    5 / 5

    Great sound. Is easy to install with two sided tape on it.

  • SG Door Silviu G. aan 24-11-2017 18:02

    4 / 5

    They are pretty great , though at high volume they get hot pretty quickly
