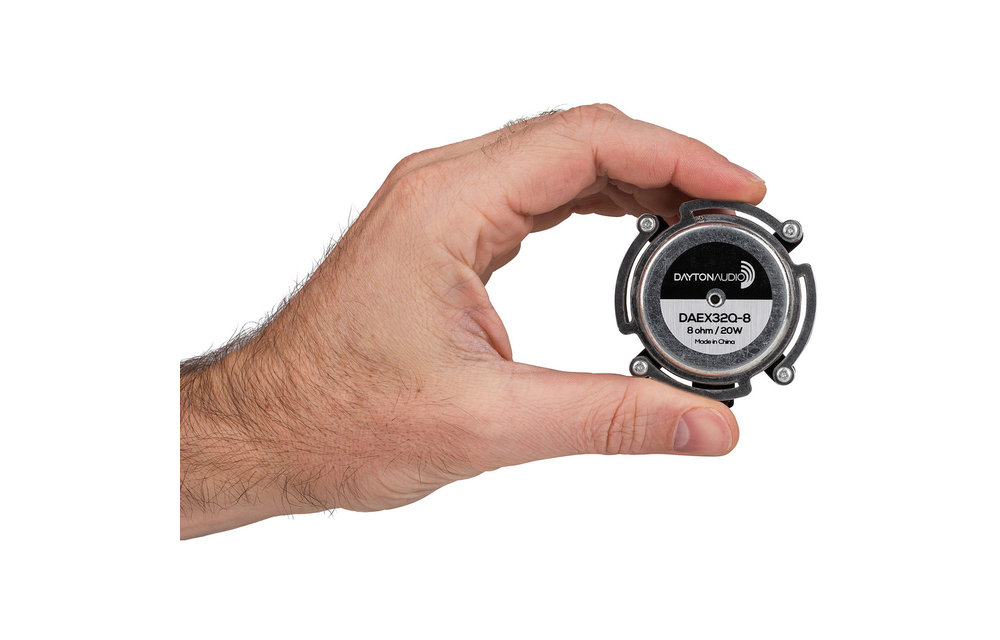

Dayton Audio DAEX32Q-8 Dual Steel Spring Balanced 32mm Exciter 20W 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX32Q-8
  • Voorraad: >10 Op voorraad

When applied to vertical surfaces the Dayton Audio DAEX32Q-8 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion.

€ 25,45 Incl. 21% btw

  • Bestel 4 voor €24,18 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX32Q-8 Dual Steel Spring Balanced 32mm Exciter 20W 8 Ohm

When applied to vertical surfaces the Dayton Audio DAEX32Q-8 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion.



Highlights

  • Dual steel spider design to better support the large neodymium motor
  • 32 mm two layer voice coil for high, 20 watts RMS, power handling
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • 8 ohm impedance for easy connection to most amplifiers



Product details

Dayton Audio DAEX32Q-8 Dual Steel Spring Balanced 32mm Exciter 20W 8 Ohm



The DAEX32Q-8 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 20 watts RMS for high output even when attached to thicker surfaces. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! This exciter is perfect for turning whatever you can imagine into a speaker such as cabinet doors, monitors, windows, garage doors, ect…



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX32Q-8 Dual Steel Spring Balanced 32mm Exciter 20W 8 Ohm

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 8 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 580 Hz
  • DC Resistance (Re) 6.5 ohms
  • Voice Coil Inductance (Le) 0.36 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter -
  • Overall Outside Diameter 60.5 mm
  • Overall Depth 19.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 32 mm outside Ø, 23 mm inside Ø
  • # Mounting Holes -
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 132.6 grams

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (2)

  • SC Door Steve Crowther (oneninernine) aan 24-06-2019 15:18

    5 / 5

    These are amazing. I am using them to make flat panel speakers replacing the left and right of a THX 5 channel home cinema system (YouTube build coming soon). This purchase is for the rear speakers. Trust me, they sound awesome. <br />
    Super fast deliver to United Kingdom. Thank you.

  • RP Door Reyner P. aan 30-12-2018 19:38

    5 / 5

    Superb exciters. Fixed to XPS board. Sound is amazing.
