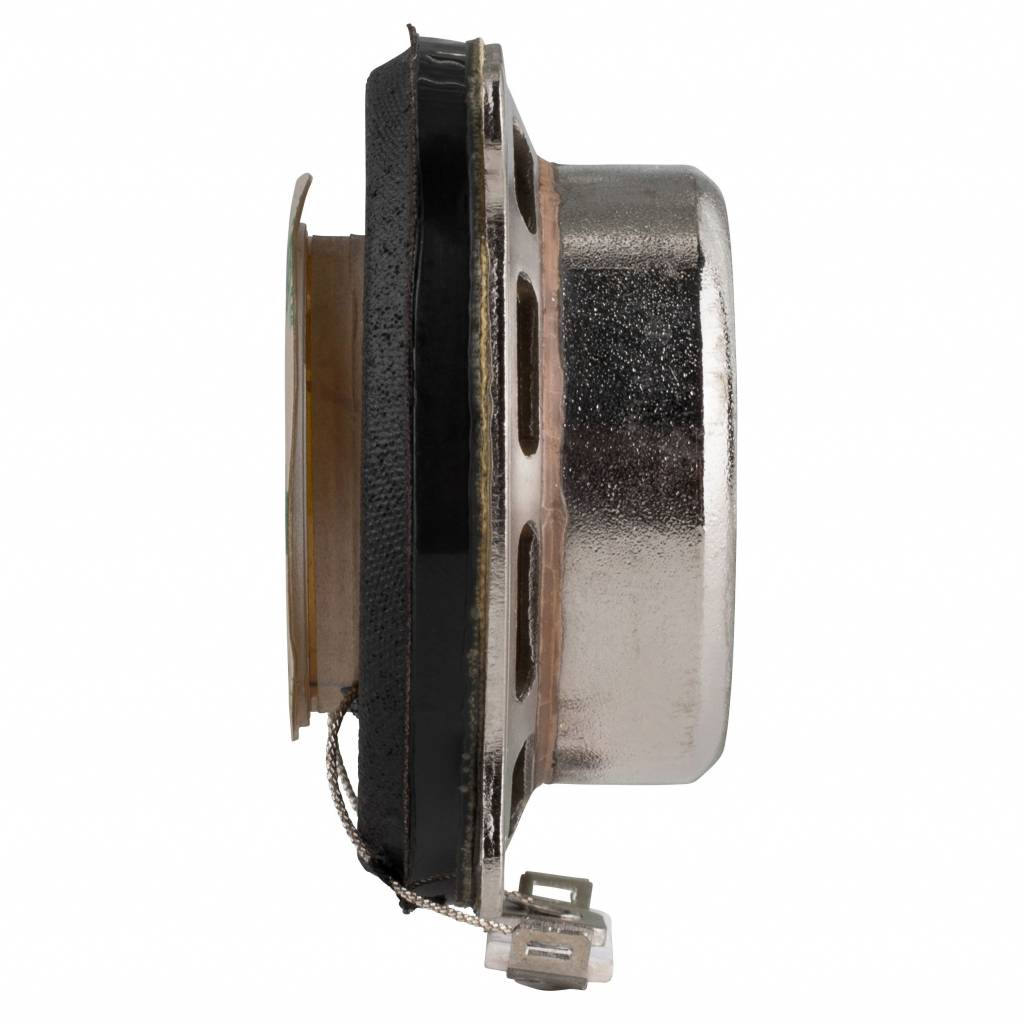

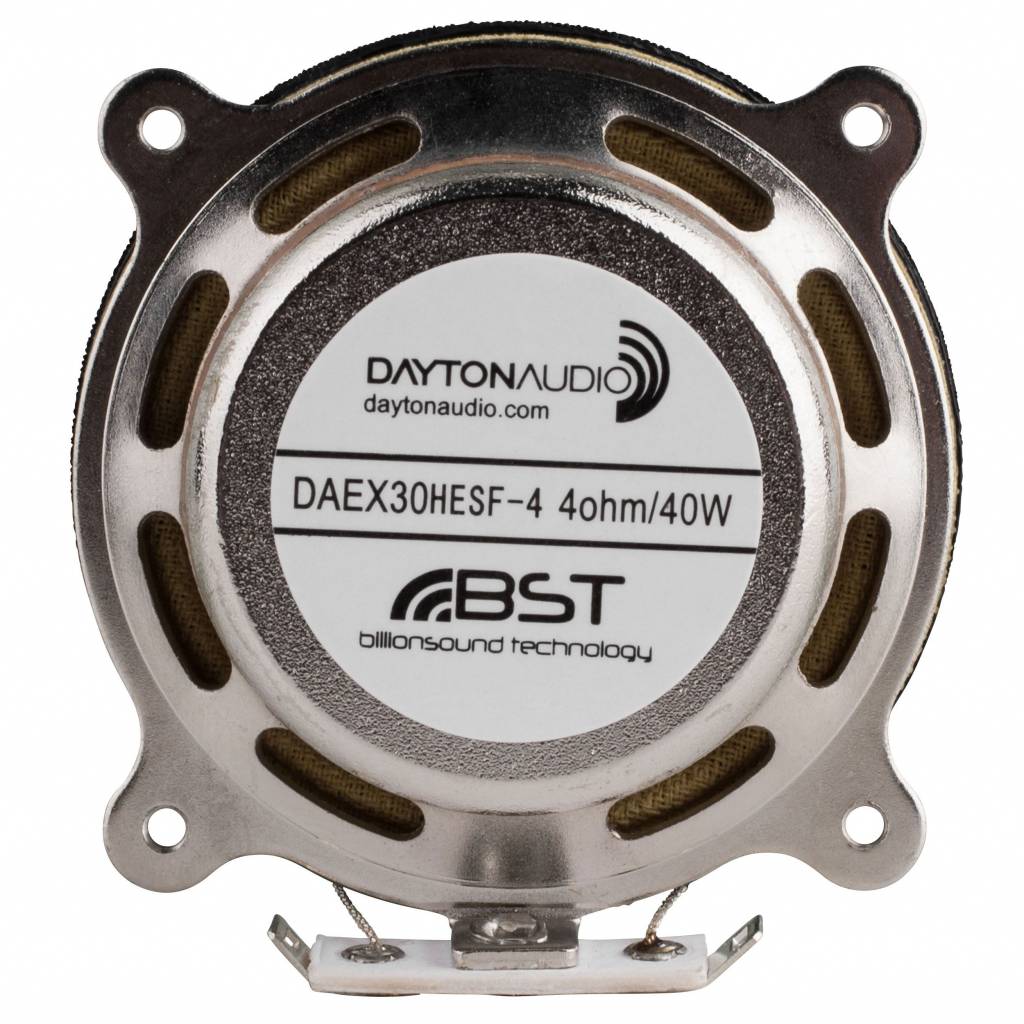

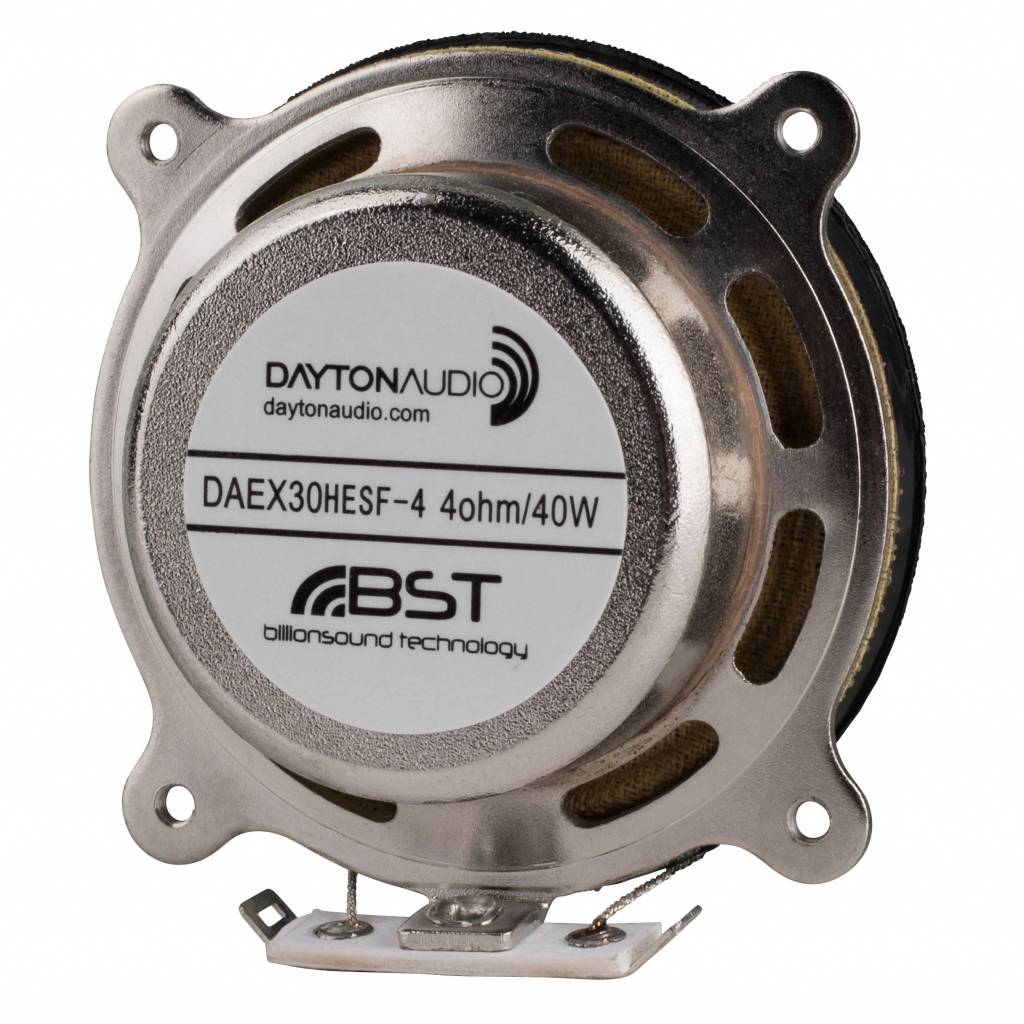

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter

Levertijd: 1 werkdag

  • Artikelcode: DAEX30HESF-4
  • Voorraad: >10 Op voorraad

The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer

€ 28,45 Incl. 21% btw

  • Bestel 4 voor €27,03 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter

The DAEX30HESF-4 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer.



Highlights

  • High output exciter design handles up to 40 watts RMS
  • Specially designed neodymium motor and proprietary voice coil
  • 3M™ VHB™ adhesive ring with four mounting holes
  • Low inductance (only 0.3 mH) motor for extended response



Product details

Dayton Audio DAEX30HESF-4 High Efficiency Steered Flux Exciter with Shielding 30 mm Exciter 40W 4 Ohm



Dayton Audio's DAEX30HESF-4 steered high flux exciter is one of our most powerful. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum output.



For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH.

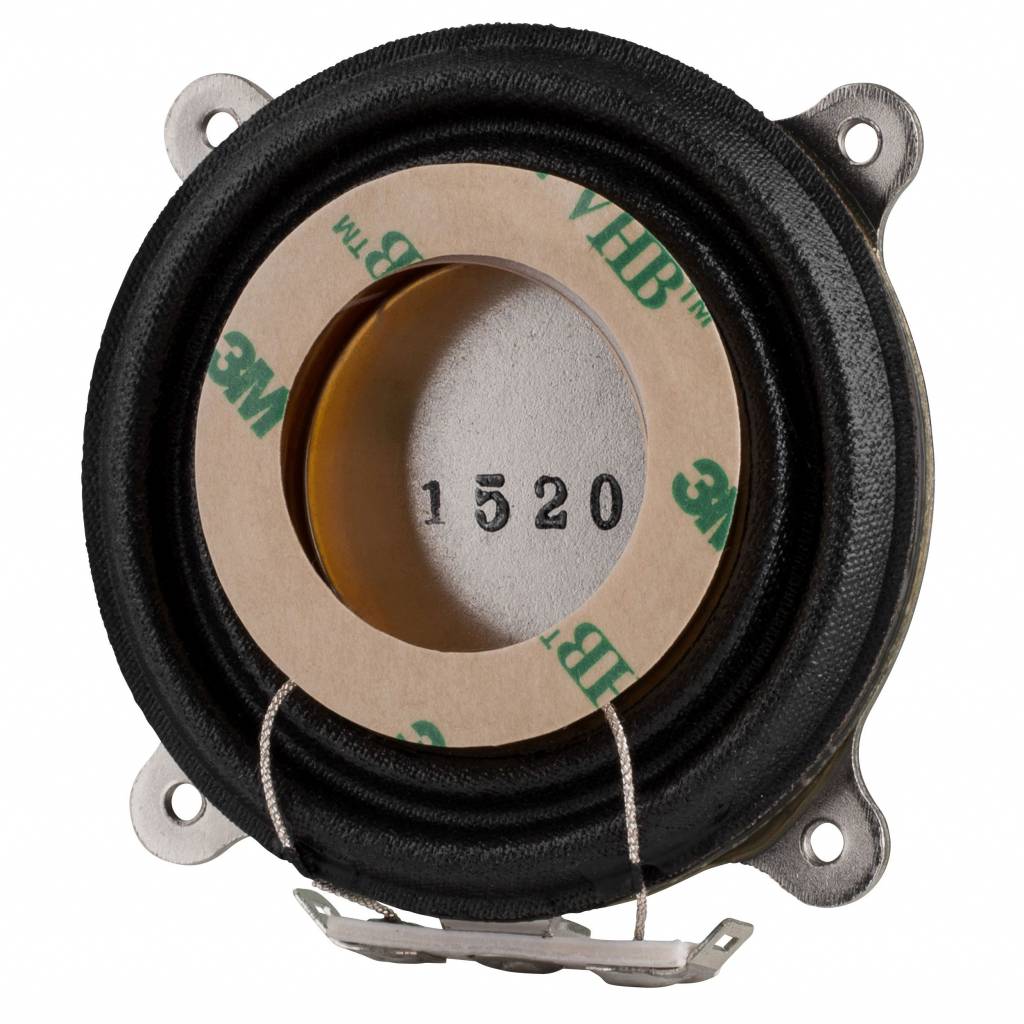

Four threaded screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX30HESF-4 High Efficiency Steered Flux Exciter

  • Exciter type SPEC Exciter type Full-Range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 40 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response 70 - 20.000 Hz
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 300 Hz
  • DC Resistance (Re) 3.8 ohms
  • Voice Coil Inductance (Le) 0.31 mH
  • Total Q (Qts) -
  • Diaphragm Mass Inc. Airload (Mms) -
  • Mechanical Compliance of Suspension (Cms) -
  • BL Product (BL) -
  • Voice Coil Diameter 30 mm
  • Overall Outside Diameter 57 mm Ø (69.9 mm acros mounting tabs)
  • Overall Depth 28.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 3.18 cm outside Ø
  • # Mounting Holes 4
  • Mounting type 3M VHB adhesive pre-applied
  • Weight 158 grams
