Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX25VT-4
  • Voorraad: >10 Op voorraad

Take your product or project to the next level by turning it into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications.

€ 16,45 Incl. 21% btw

  • Bestel 4 voor €15,63 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm

Take your product or project to the next level by turning it into a speaker! The DAEX25VT-4 is designed by Dayton Audio with voice coil cooling air vents, for high-power applications.



Highlights

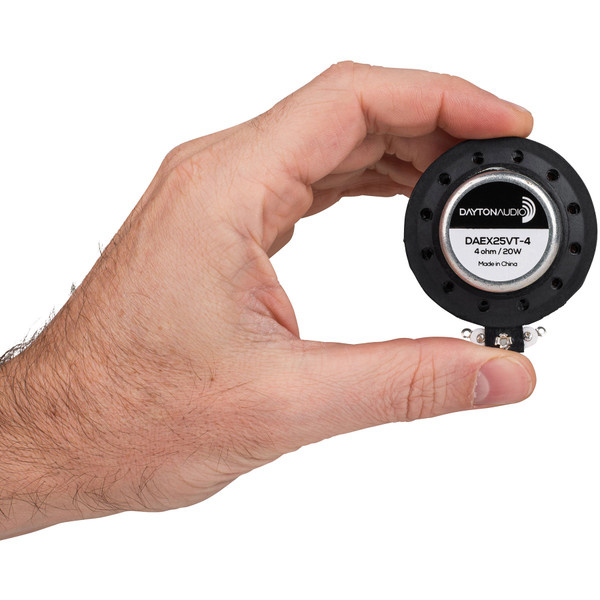

  • Small size; just over 2" diameter, about 7/8" high
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output



Product details

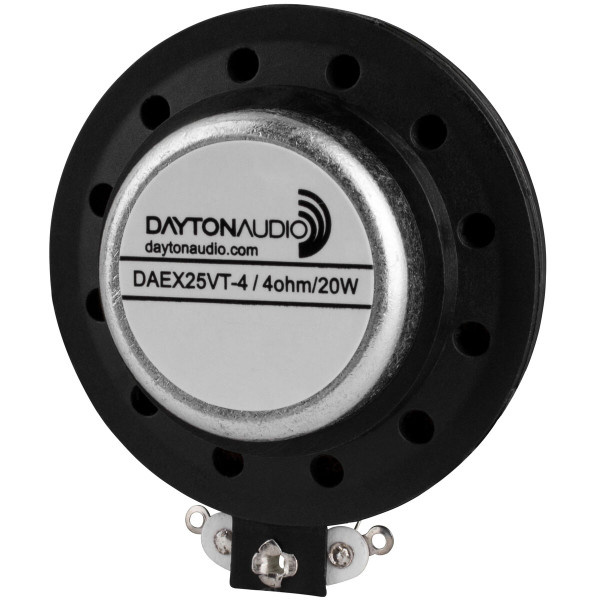

Dayton Audio DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm



Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

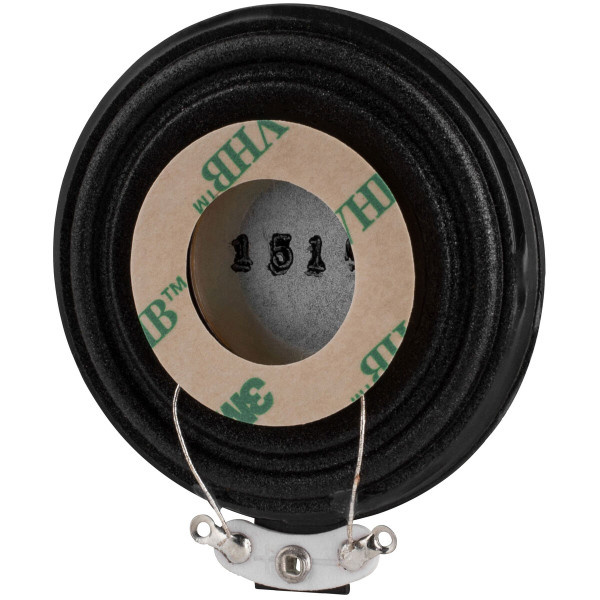

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX25VT-4 Vented 25mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 230 Hz
  • DC Resistance (Re) 4.2 ohms
  • Voice Coil Inductance (Le) 0.24 mH
  • Total Q (Qts) 0.83
  • Diaphragm Mass Inc. Airload (Mms) 1.75 g
  • Mechanical Compliance of Suspension (Cms) 0.0003 mm/N
  • BL Product (BL) 3.86 Tm
  • Voice Coil Diameter 25 mm
  • Overall Outside Diameter 58.1 mm

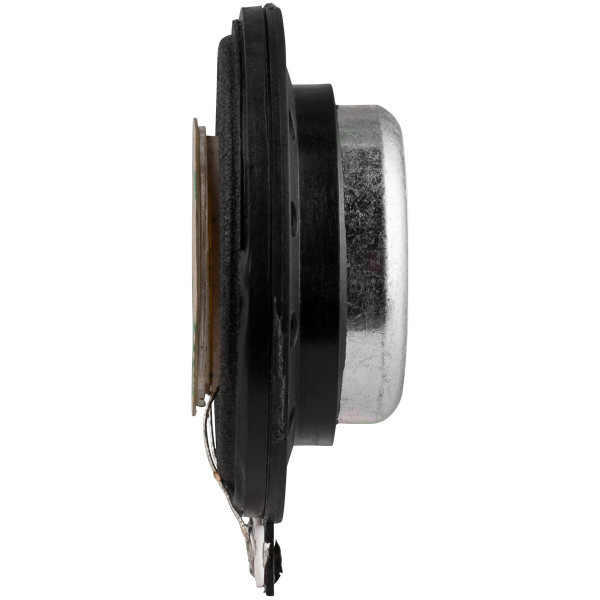

  • Overall Depth 20.5 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 28 mm outside Ø
    21.5 mm inside Ø
  • # Mounting Holes -
  • Mounting type Self 3M VHB adhesive pre-applied mounting
  • Weight 77.5 grams

Documenten

Reviews

Gebruikers beoordelingen 4.65 / 5 Reviews: (3)

  • JS Door Jarmo S. aan 28-11-2019 09:15

    4 / 5

    No description was given

  • DV Door DaveBiv aan 30-06-2019 19:42

    5 / 5

    After reading mixed opinion on the sound quality of exciters I decided to give these a go, and I'm glad I did! I've mounted them to tile backing board (the cement/foam sandwich type, 10mm thick) and am using them as the rear L/R in a home theater setup which can be built into the wall and easily plastered over as I (and moreover, the wife!) don't want visible speakers behind the sofa, and they sound great. With board size of 600mm by 400mm they produce decent bass - obviously a sub is going to help in that area for real grunt, but for general listening they are adequate. I was sceptical of the 20W output, but with boards of that size I would say they probably do manage it, or at least close to it. Voice clarity seems to suffer before music when pushed hard so if you need the full 20W maybe go with something more powerful, but for satellites it's plenty of juice for me. The small sacrifice in sound quality for 100% invisible speakers was an easy one to make!

  • CB Door Colin B. aan 30-10-2017 19:29

    5 / 5

    No description was given
