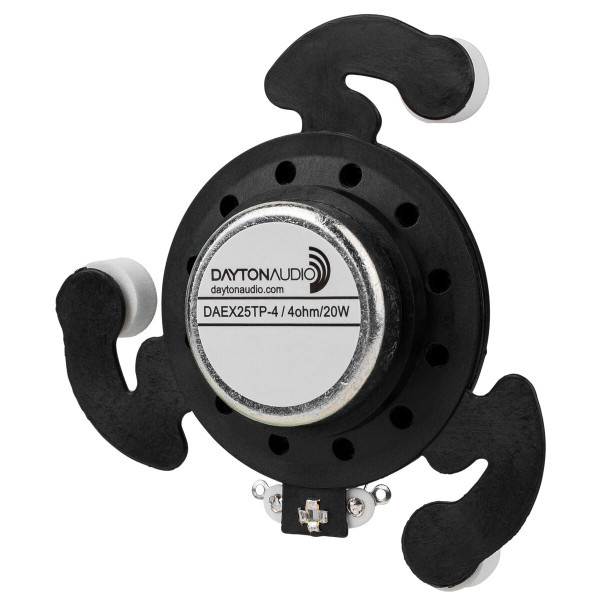

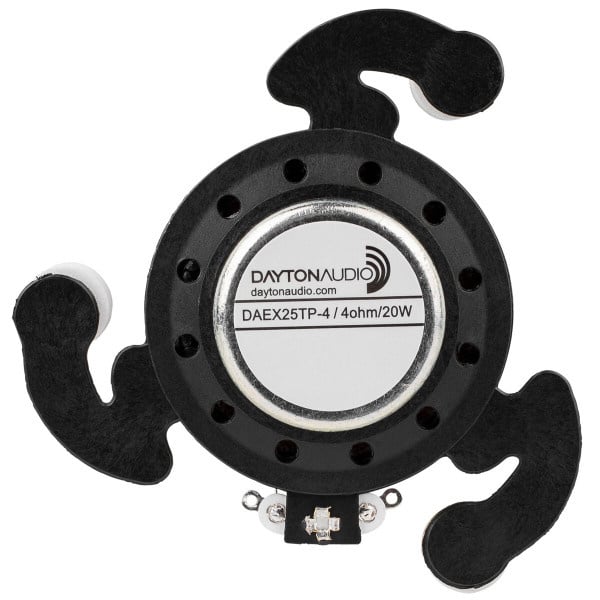

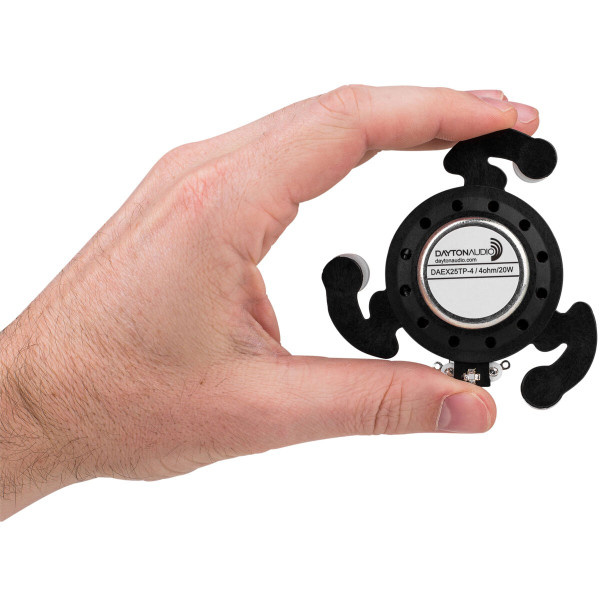

Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX25TP-4
  • Voorraad: 6 Op voorraad

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling.

€ 19,95 Incl. 21% btw

  • Bestel 4 voor €18,95 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling.



Highlights

  • Unique, three arm design for exciting a large surface
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output



Product details

Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm



Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

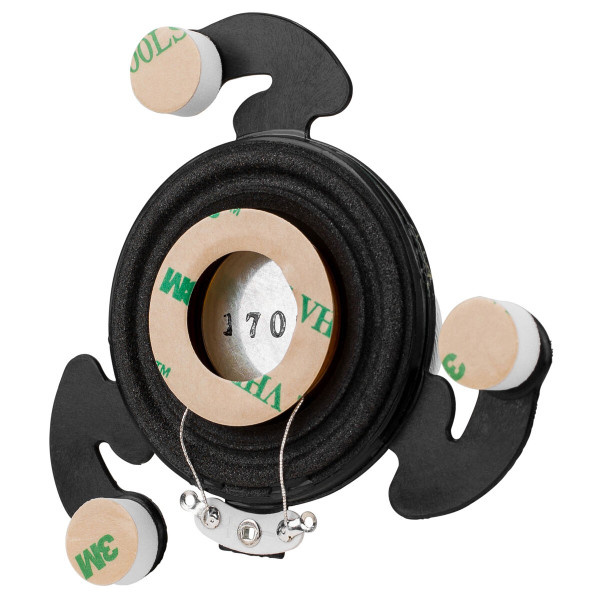

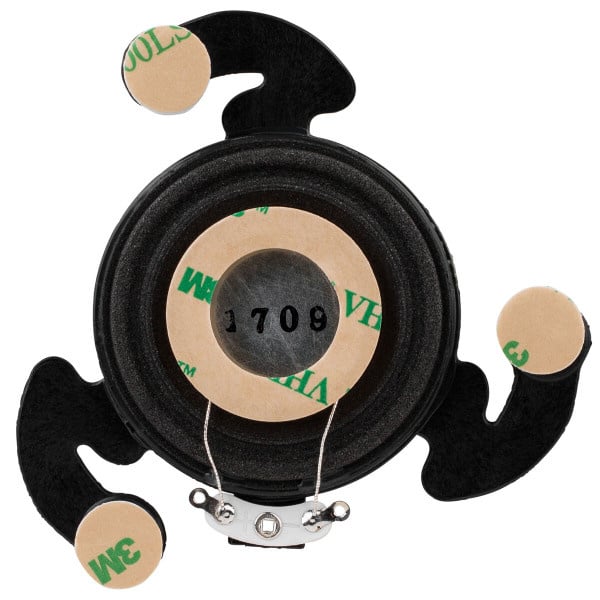

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm

  • Exciter type SPEC Exciter type Full range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 20 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs) 233 Hz
  • DC Resistance (Re) 4.2 ohms
  • Voice Coil Inductance (Le) 0.10 mH
  • Total Q (Qts) 0.74
  • Diaphragm Mass Inc. Airload (Mms) 1.75 g
  • Mechanical Compliance of Suspension (Cms) 0.0003 mm/N
  • BL Product (BL) 3.86 Tm
  • Voice Coil Diameter 25 mm
  • Overall Outside Diameter 88.71 mm
  • Overall Depth 21 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 12 mm diameter
  • # Mounting Holes -
  • Mounting type Self 3M VHB adhesive pre-applied mounting
  • Weight 82 grams

Documenten

Reviews

Gebruikers beoordelingen 5 / 5 Reviews: (1)

  • DV Door DB1v aan 27-07-2019 00:00

    5 / 5

    Another great exciter from Dayton, it seems to be exactly the same as the DAEX25VT-4 just with three extra arms for extra bass. The sound quality from these never ceases to amaze me - until I used an exciter I always imagined it to sound flat, and more like a standard speaker coming from behind a door something, but it couldn't be further from the truth. Obviously the design of the DML plays a large part in the sound reproduction, but a cement/foam sandwich style tiling board seems to be ideal as the highs are crisp and it goes surprisingly low. There's a lovely depth to them which I didn't expect, and the fact that gives an almost 180 degree listening angle worth of full range sound is also a bonus. If you have a project for these and you're in two minds about getting them, I would definitely recommend giving these a go. And the fact that they can be built into a wall for absolute invisible audio makes them all the more amazing.
