Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX25QLP-4 4 ohm sound exciter improves power handling with a vented voice coil.
- Four arms provide extra support improving linearity
- 4 ohm impedance for use with small, Class D amplifiers
- Rare-earth neodymium motor and a proprietary vented voice coil
- Turns any flat, rigid surface into a speaker

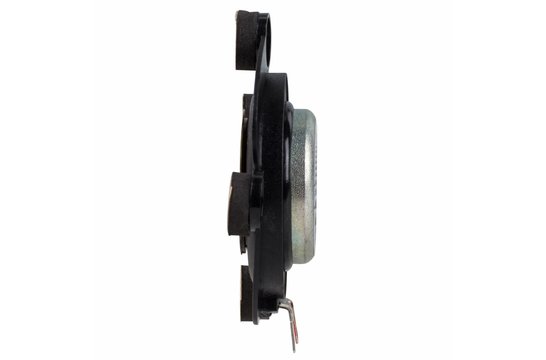

Dayton Audio DAEX25QLP-4 Quad Feet Low Profile 25mm Exciter 10W 4 Ohm
Dayton Audio's DAEX25QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.
A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!
A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.
