      Dayton Audio DAEX25Q-4 Exciter

      € 16,90€ 20,45 >10 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €19,43 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.



      Highlights

      • Unique, four arm design for exciting a large surface
      • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
      • Rare-earth neodymium motor and a proprietary voice coil
      • 4-ohm impedance for use with small, Class D amplifiers
      • 20 watt RMS power handling for high output



      Product details

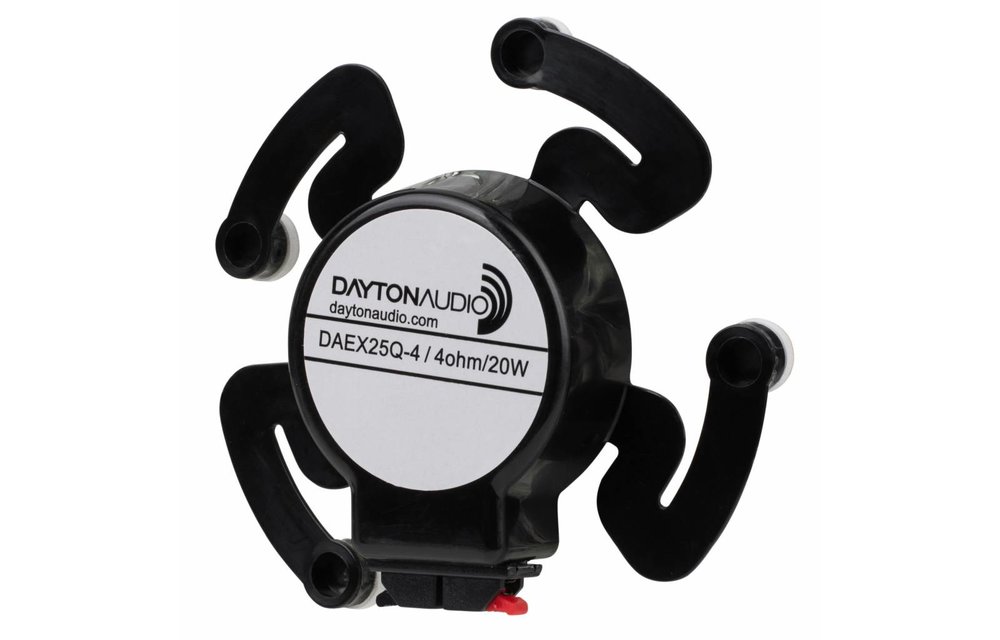

      Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm



      Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).



      A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound.



      To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection.



      A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.



      Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



      To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

      Specificaties

      Artikelnummer
      DAEX25Q-4
      Extitertype
      Full-Range
      Belastbaarheid (RMS)
      20 watts
      Belastbaarheid (max)
      -
      Impedantie
      4 ohms
      Frequentieresponse
      -
      Resonantiefrequentie
      -
      Gelijkstroomweerstand (Re)
      4.3 ohms
      Spreekspoelinductie (Le)
      0.25 mH
      Totale Q (Qts)
      0.69
      Bewegende massa (Mms)
      1.75 g
      Compliantie van de ophanging (Cms)
      0.0003 mm/N
      Krachtsfactor
      3.86 Tm
      Spreekspoeldiameter
      25 mm
      Totale buitendiameter
      24.7 mm
      Totale hoogte
      24.77 mm
      Totale afmetingen (L x B x H)
      -
      Bevestiginsoppervlak afmetingen
      12 mm outside Ø
      # Bevestigingsgaten
      -
      Bevestigingstype
      3M VHB adhesive pre-applied
      Gewicht
      90.5 grams

      Toon meer

      Reviews

      4 from 5Based on 6 reviews
      Schrijf een review
      5 van 5
      Koper heeft geen omschrijving achtergelaten.
      Door Peter U. on 4 Maart 2020
      1 van 5
      Over priced junk, sound quality is terrible...
      Door Dominic S. on 31 Mei 2019
