Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm

Levertijd: 1 werkdag

  • Artikelcode: DAEX25CT-4
  • Voorraad: >10 Op voorraad

Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters.

€ 10,95 Incl. 21% btw

  • Bestel 4 voor €10,40 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm

Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters.



Highlights

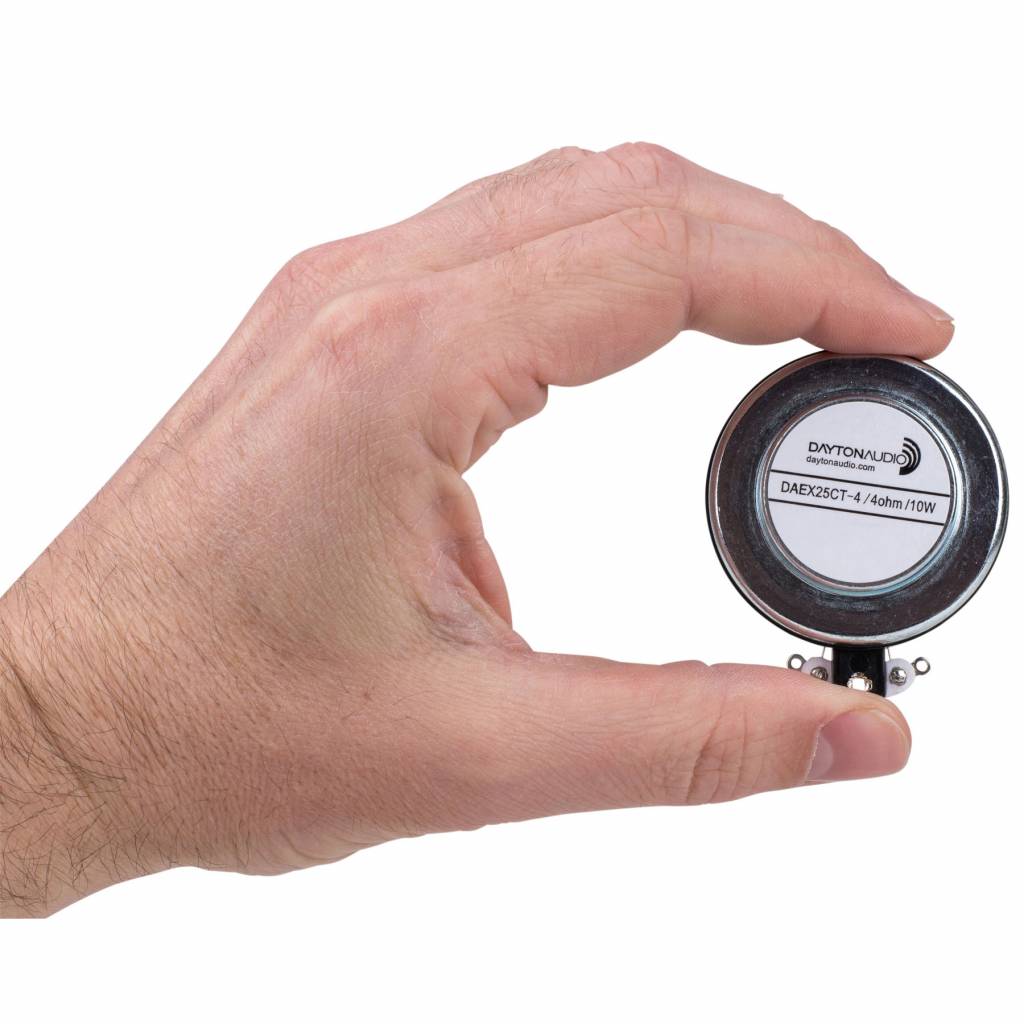

  • Small size; just under 2" diameter, about 9/16" high
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 1" voice coil for 10 watt RMS power handling



Product details

Dayton Audio DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm



Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!



A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power for higher output applications while maintaining a slim-line form factor.

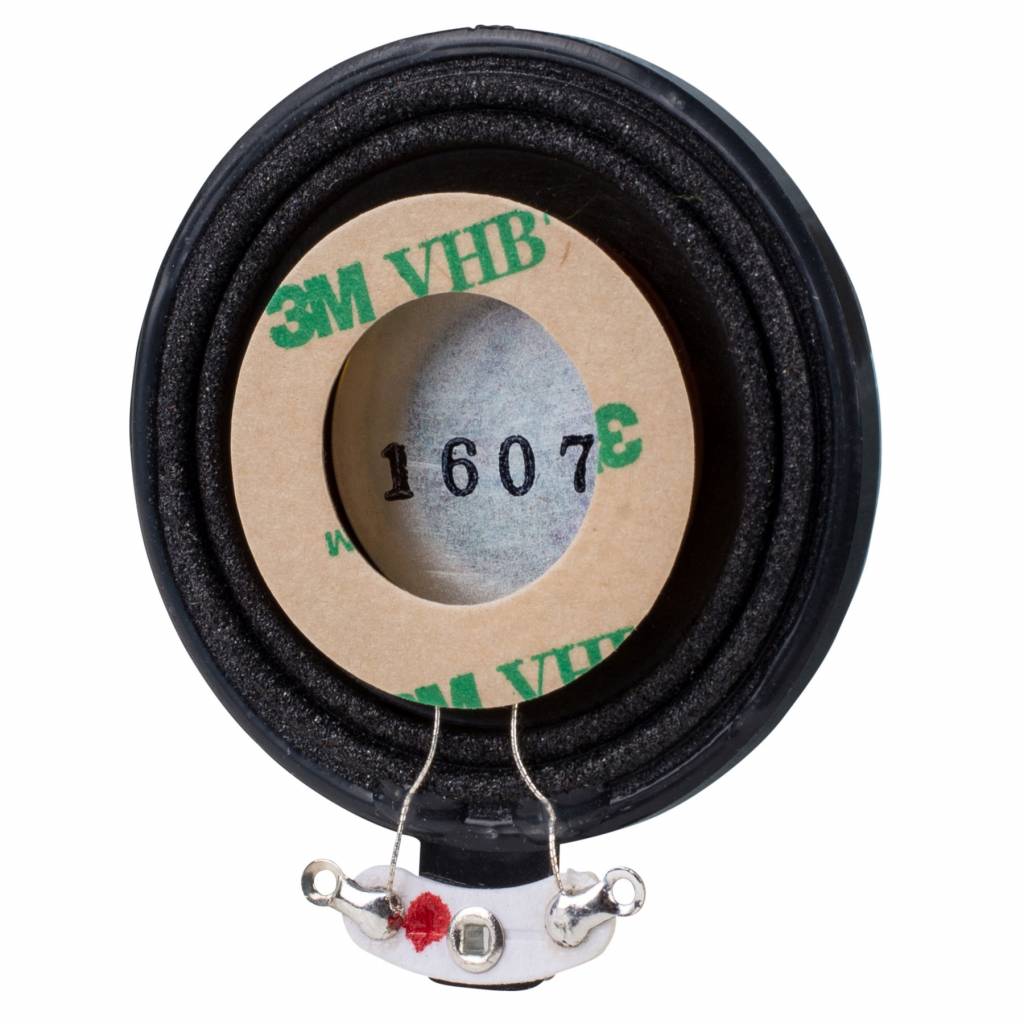

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.



To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Specificaties

Specificaties voor: DAEX25CT-4 Coin Type 25mm Exciter 10W 4 Ohm

  • Exciter type SPEC Exciter type Full range
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 10 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. -
  • Impedance SPEC Impedance 4 ohms
  • Frequency Response SPEC Frequency Response -
  • Bekijk alle specificaties
  • Resonant Frequency (Fs)
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.07 mH
  • Total Q (Qts) 1.07
  • Diaphragm Mass Inc. Airload (Mms) 1.29 g
  • Mechanical Compliance of Suspension (Cms) 0.0002 mm/N
  • BL Product (BL) 1.54 Tm
  • Voice Coil Diameter 25 mm
  • Overall Outside Diameter 48 mm
  • Overall Depth 15 mm
  • Overall Dimensions (L x W x H) -
  • Adhesive dimensions 27 mm outside Ø
  • # Mounting Holes -
  • Mounting type Self 3M VHB adhesive pre-applied mounting
  • Weight 74.6 grams
